Powerwall Anchoring Details

A1

Table 1. Mounting Design Guidelines Based on Seismic and Wind Speed Conditions

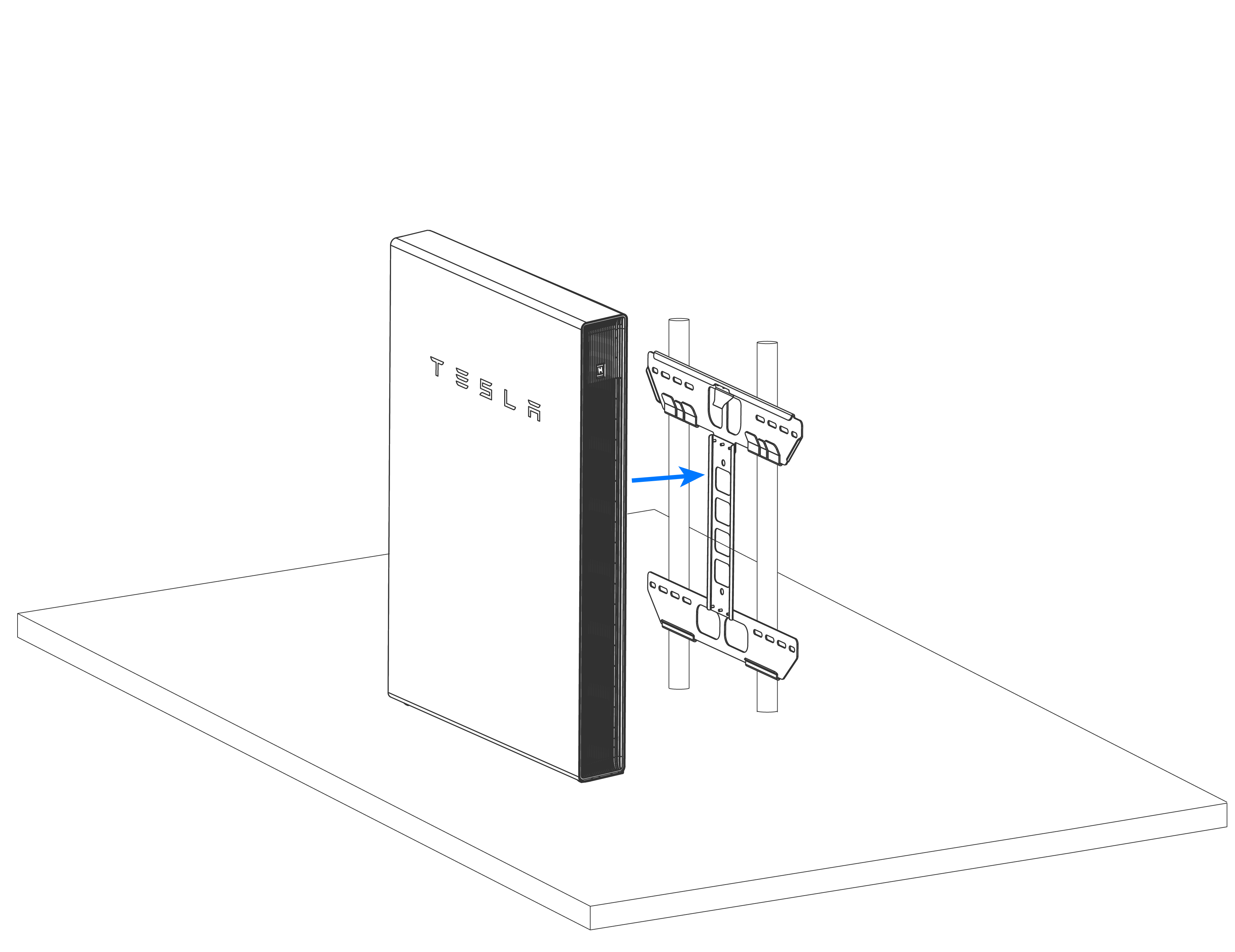

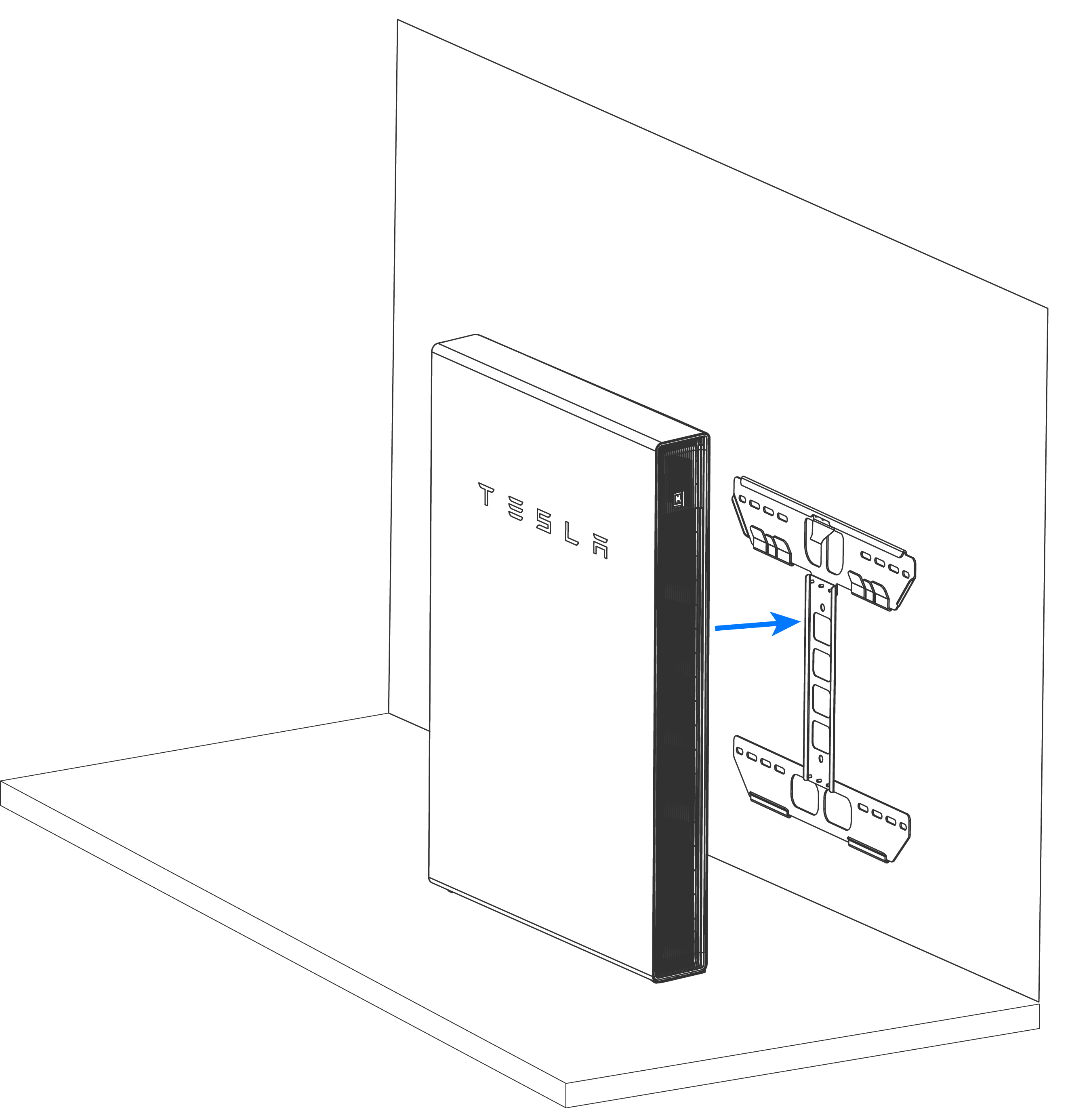

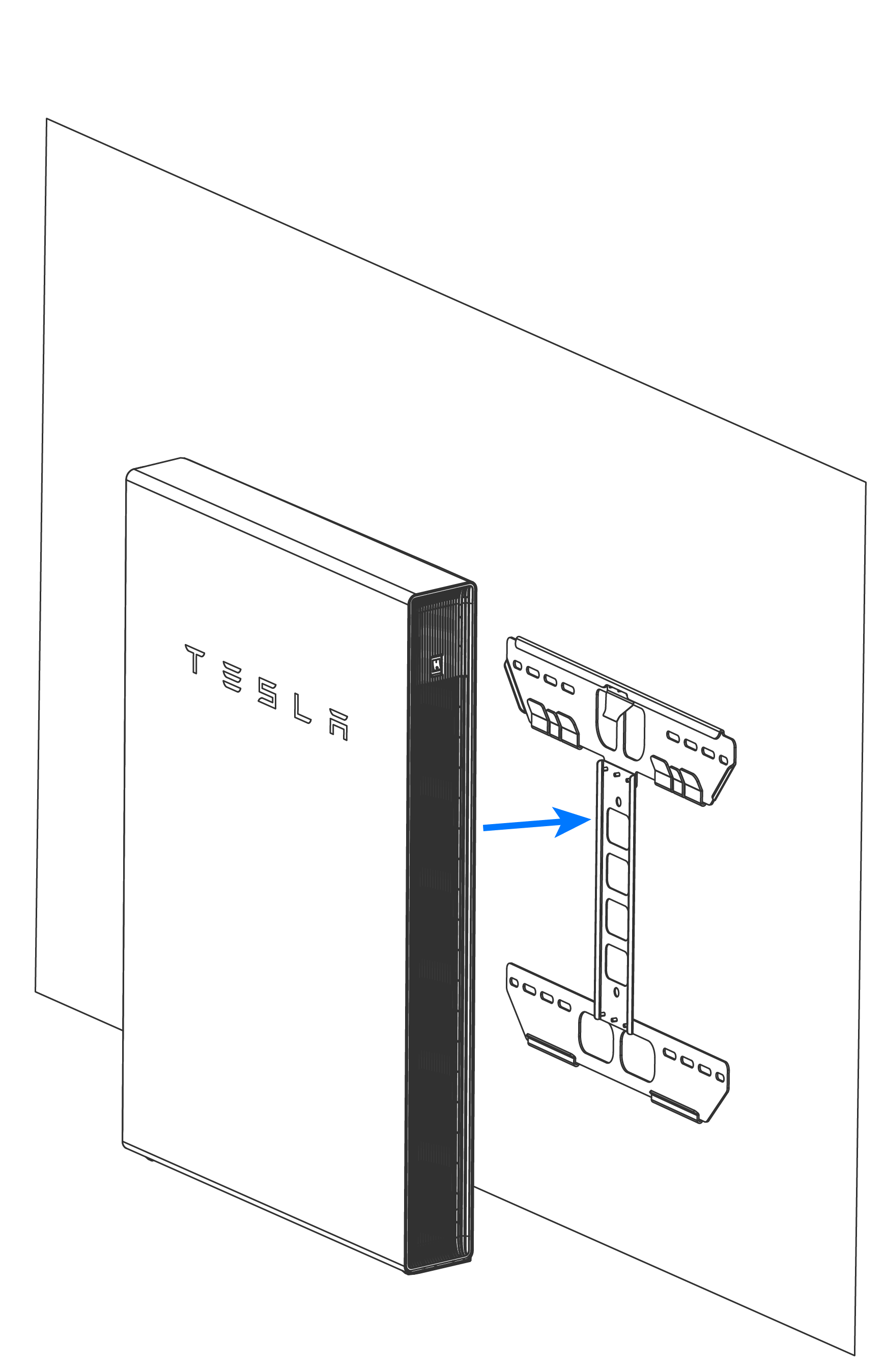

Ground- or Wall-mount Powerwall Ground-mount Powerwall on Poured Concrete Ground-mount Powerwall on Poured Concrete with Steel Posts
Wall and Foundation Existing structural wall and existing approved foundation Existing structural wall and poured concrete foundation Poured concrete with steel posts
Seismic Design Category A, B, C, or D A, B, C, or D A, B, C, or D
Max Wind Speed (Exposure Category C) 180 mph 180 mph 180 mph
Installation Information Installation instructions Installation instructions (A6 - A7) Installation instructions and anchoring details (A8 - A11)
Anchoring details (A2 - A5) Anchoring details (A2 - A5)
Informational PurposesAn informational icon, calling your attention
Note
There is no wind speed limitation on Powerwall and anchoring equipment when mounting in interior locations.
The following conditions will require additional site-specific evaluation by the installing company's structural engineering team:
  • Wind Exposure Category D
  • Wind speeds greater than 180 mph
  • Poured concrete pad and steel post construction in regions with seismic above SS = 2.37
  • If needed, reference the linked third party resource for Seismic Categories, Wind Speeds and Exposure Categories: https://asce7hazardtool.online/
