Using Wall Connector

  1. Open the vehicle charge port by the following methods:

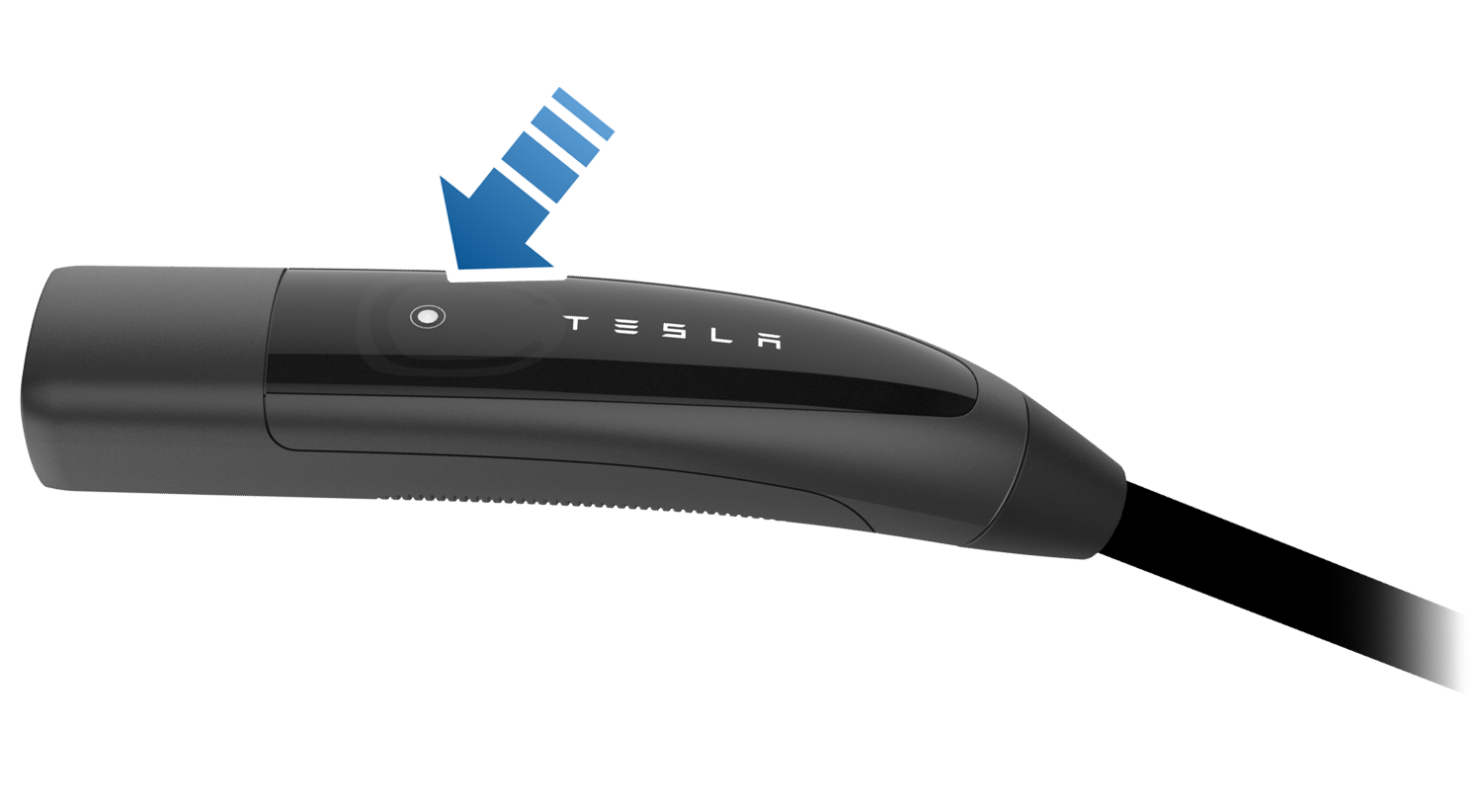

    1. Press the button on the charge handle.
    2. Press on the charge port door.
    3. Open the vehicle charge port by using the mobile app, using the vehicle touchscreen, or by pressing and holding the trunk button on the keyfob.
  2. Insert the charge handle into the vehicle charge port.
  3. Check the vehicle controls to verify charging.
  4. To remove the charge handle from the vehicle, press and hold the button on the handle to unlock the charge port.
    Informational PurposesAn informational icon, calling your attention
    Note
    The vehicle must be unlocked to remove the charge handle.
  5. Remove the charge handle from the vehicle charge port.

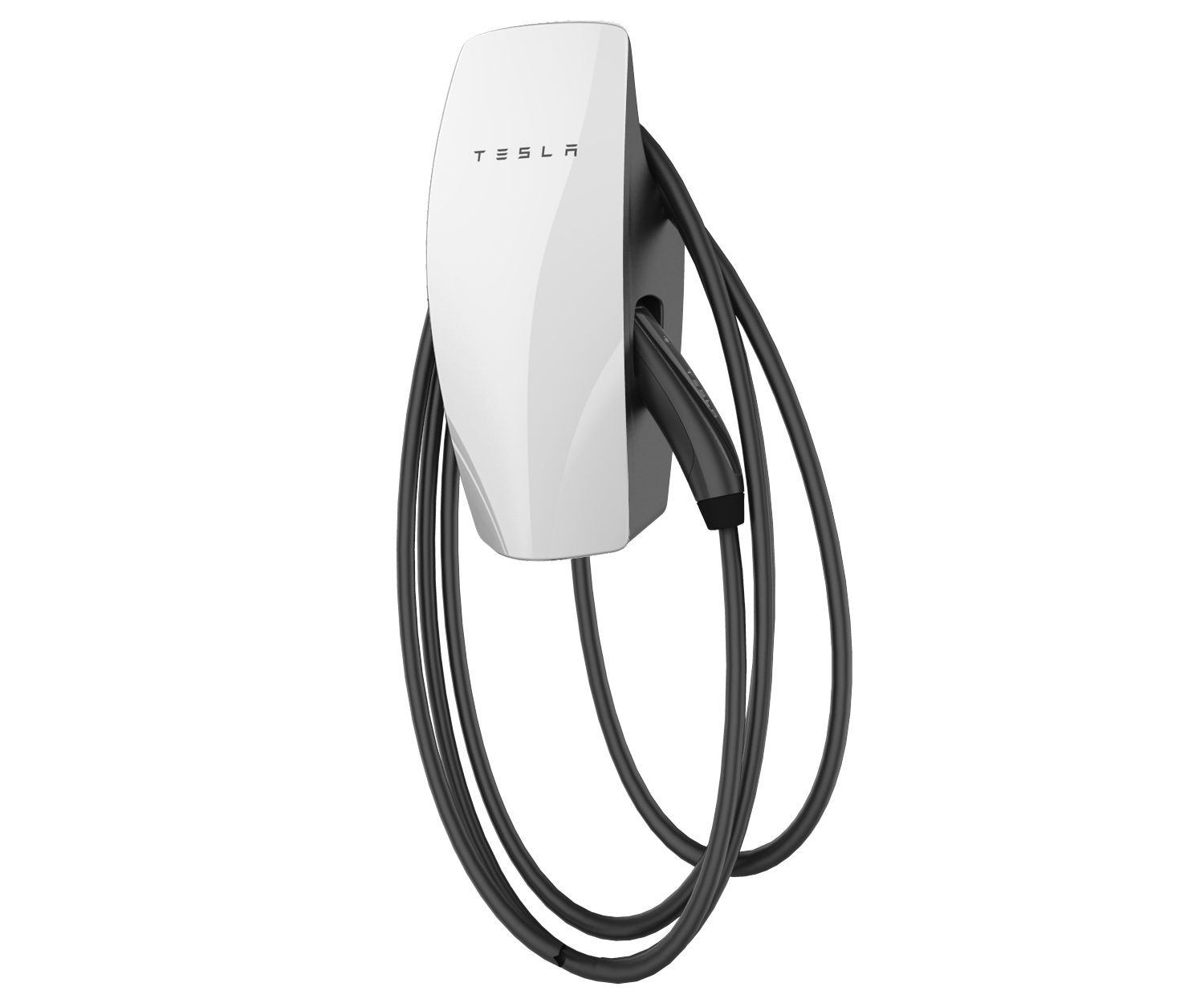

  6. Wrap the charge cable counter-clockwise around the Wall Connector and insert the charge handle into the holster.
