Light Codes
Startup
After Startup

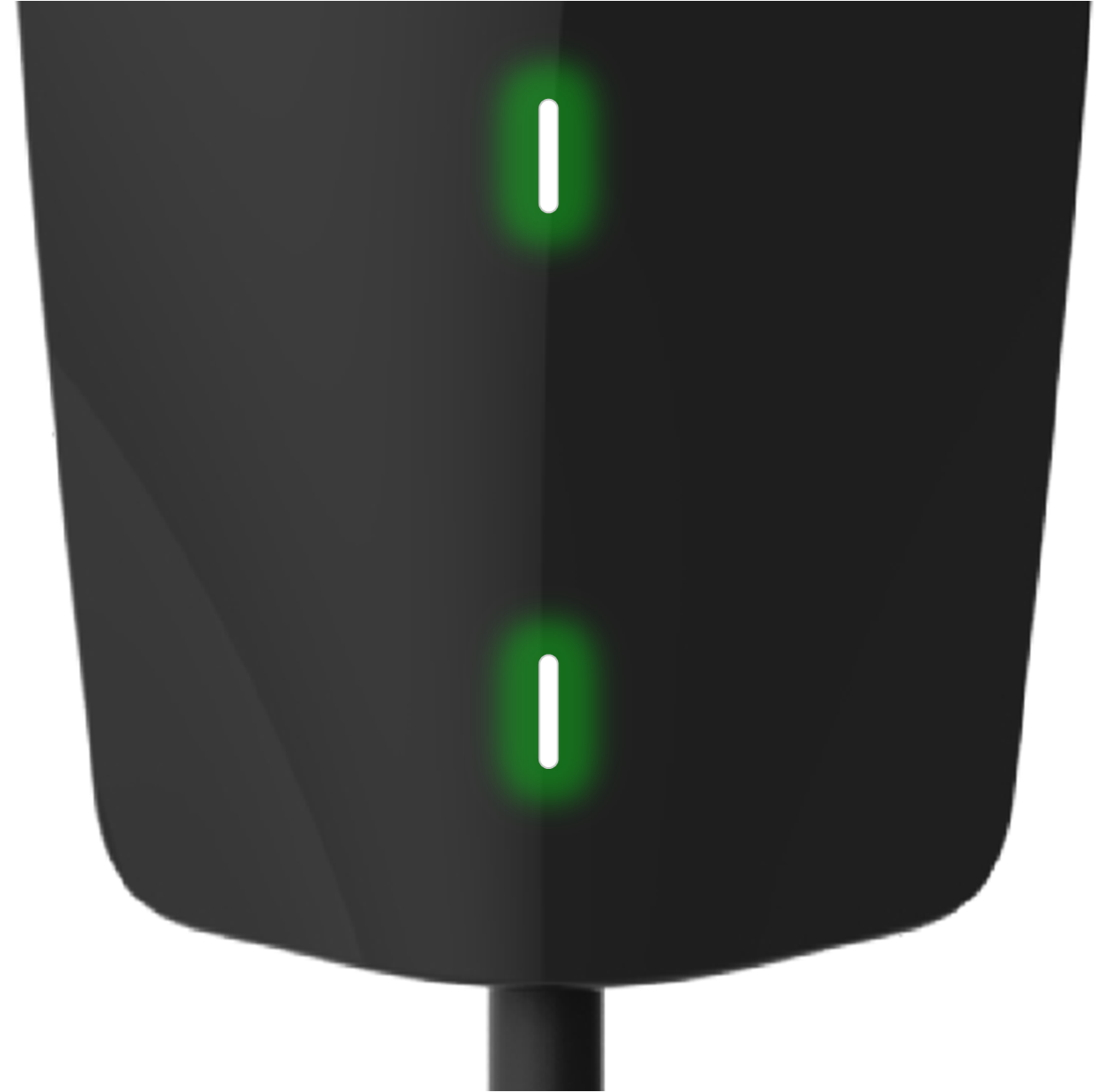

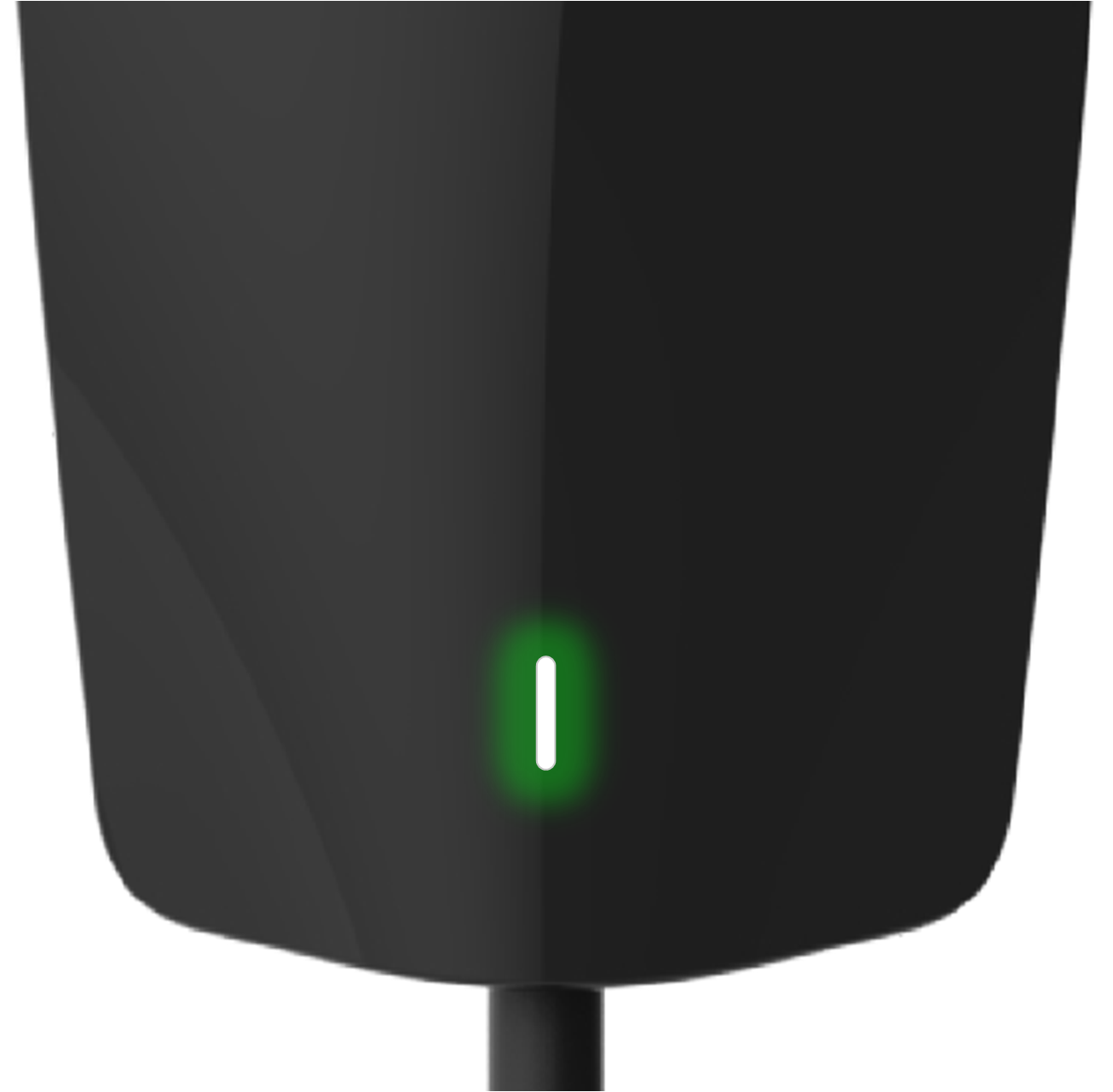

After Wall Connector is energized at the circuit breaker, certain green LEDs (depending on the circuit breaker size) will illuminate for 10 seconds. See table below for exact light codes.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|

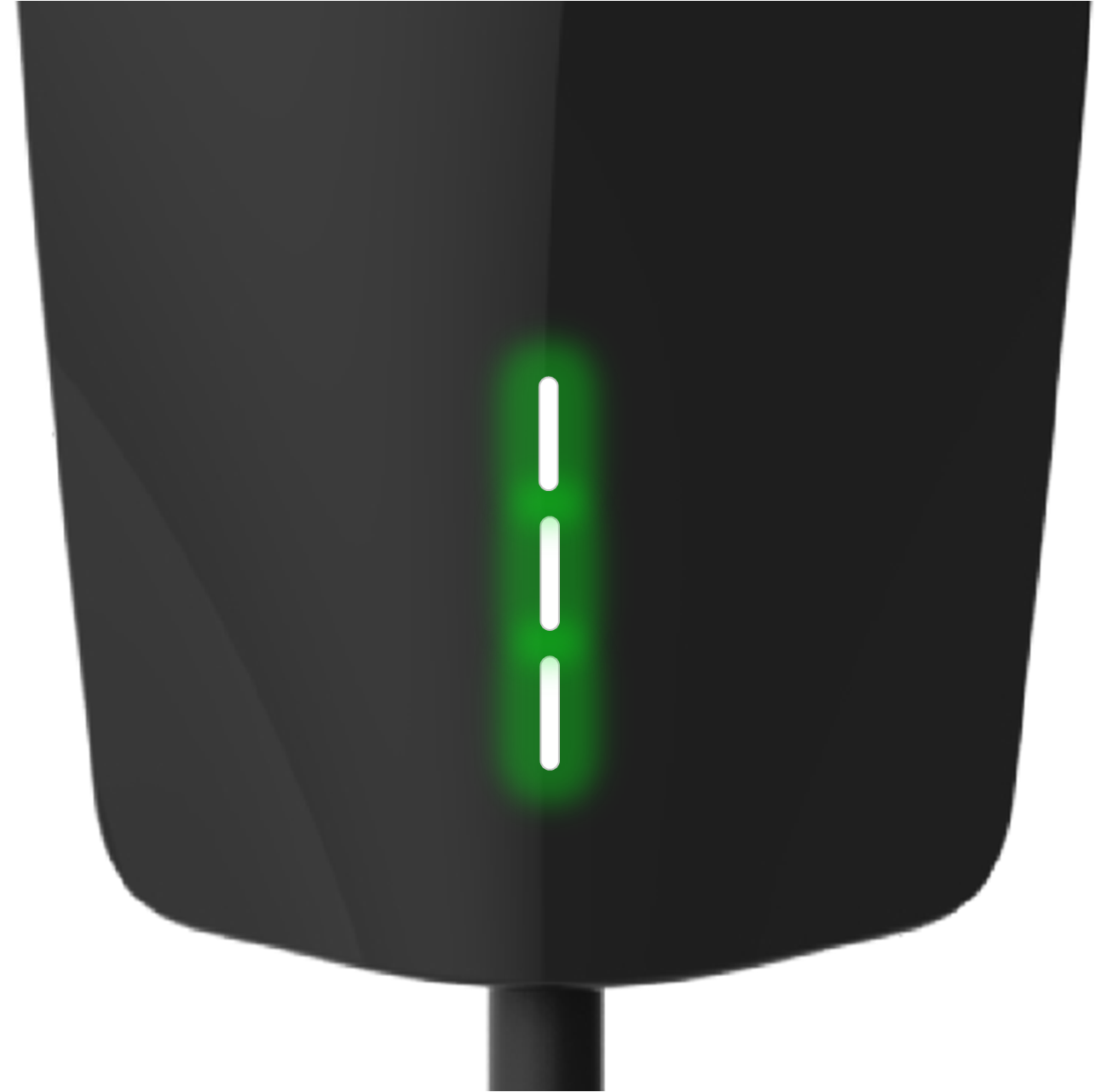

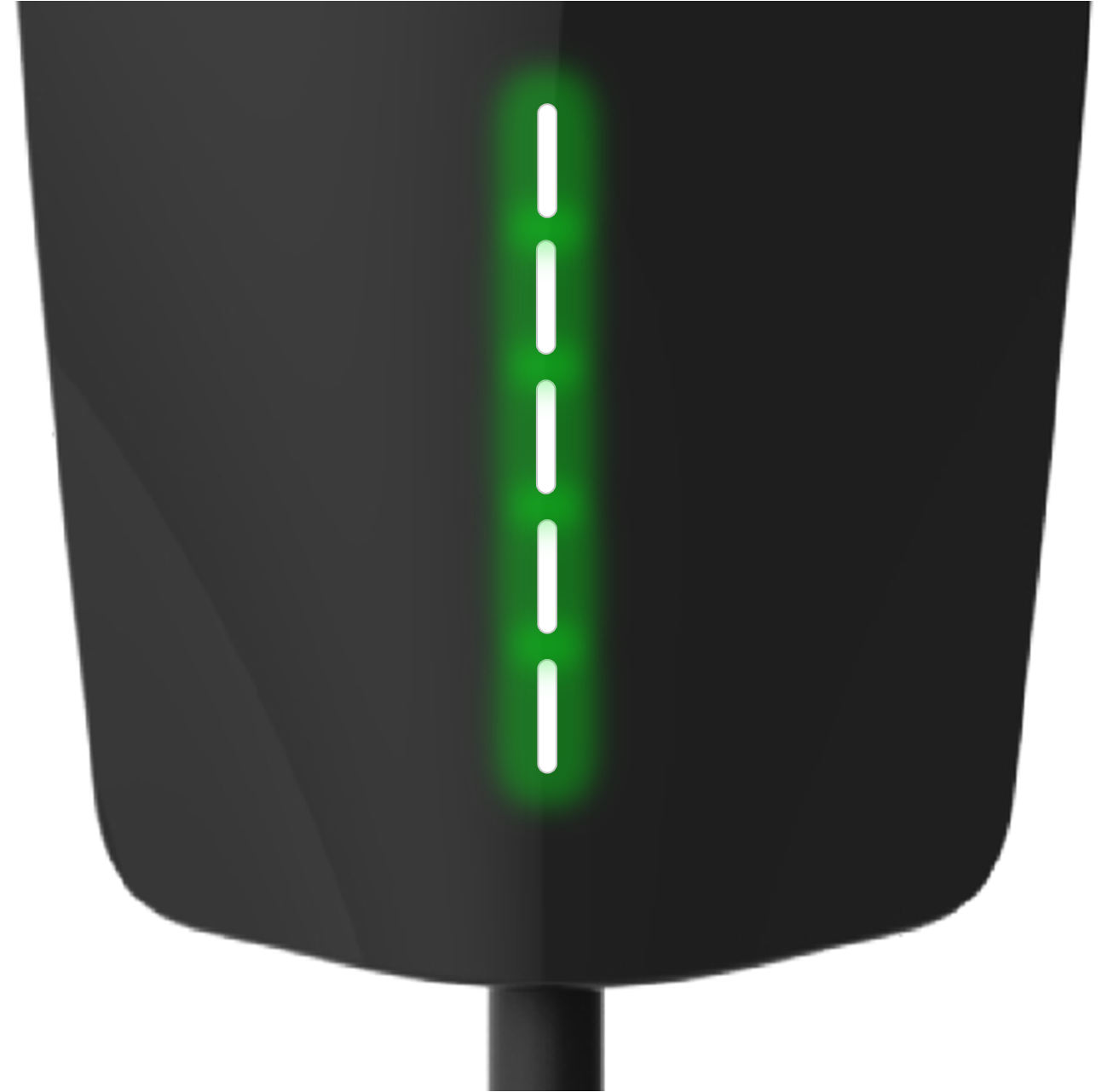

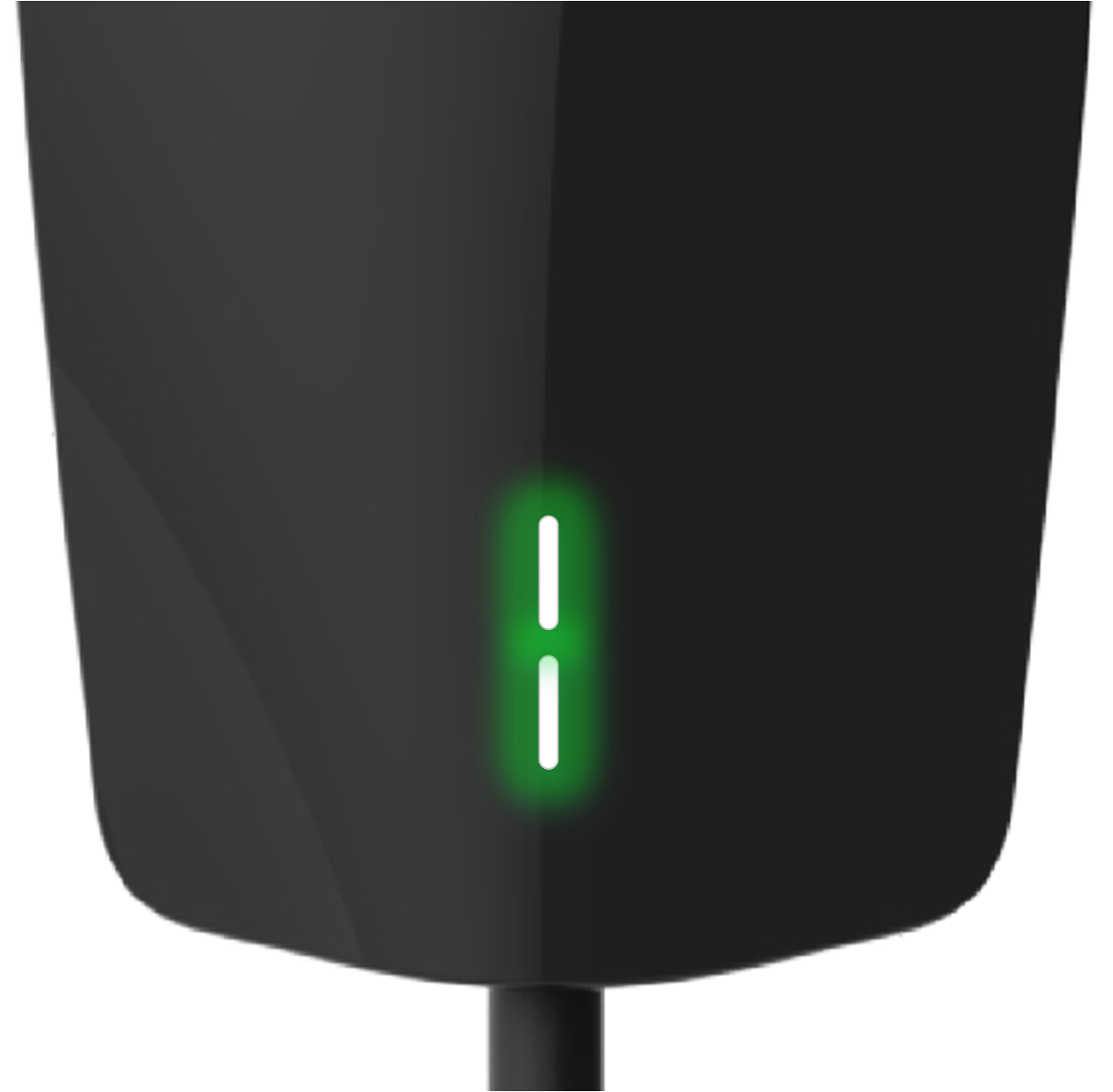

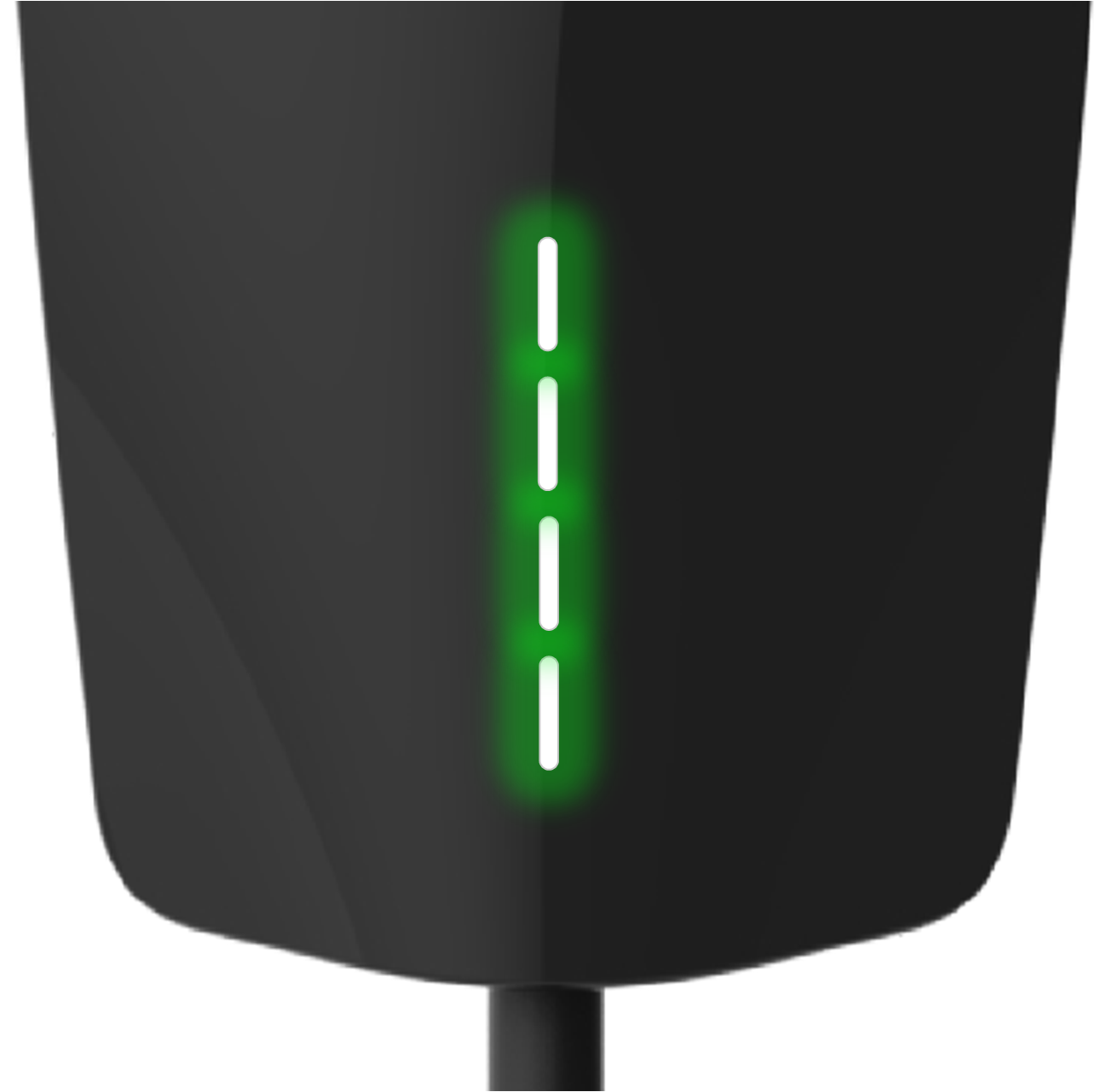

Circuit breaker | 60 A | 50 A | 40 A | 30 A | 20 A | 15 A |
Maximum output | 48 A | 40 A | 32 A | 24 A | 16 A | 12 A |
Note
To re-display the green LEDs after the initial 10 seconds, press and hold the charging
handle button.

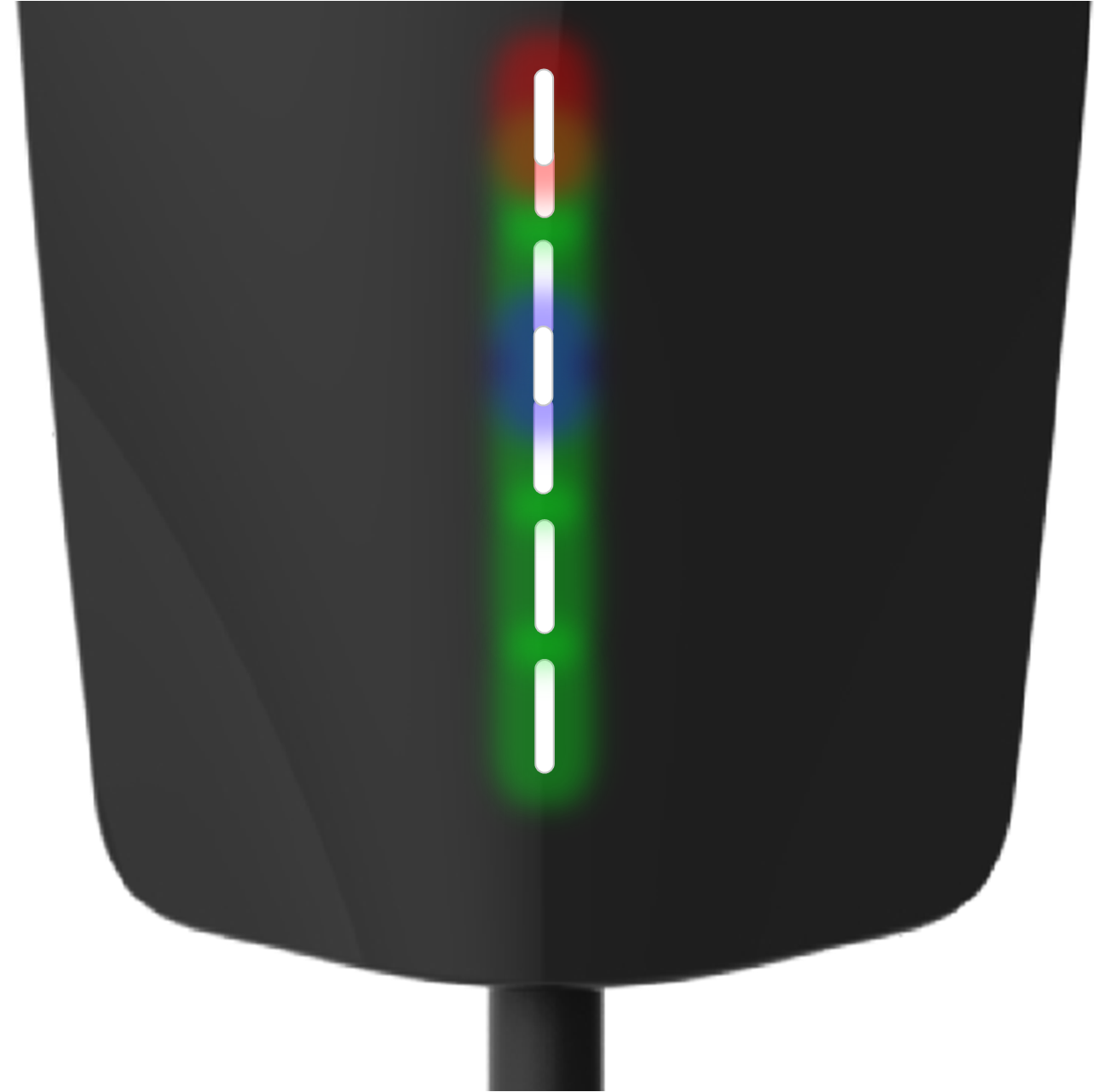

When multiple Wall Connectors are linked for power sharing, the center blue LED will illuminate during the 10-second startup window.
Other

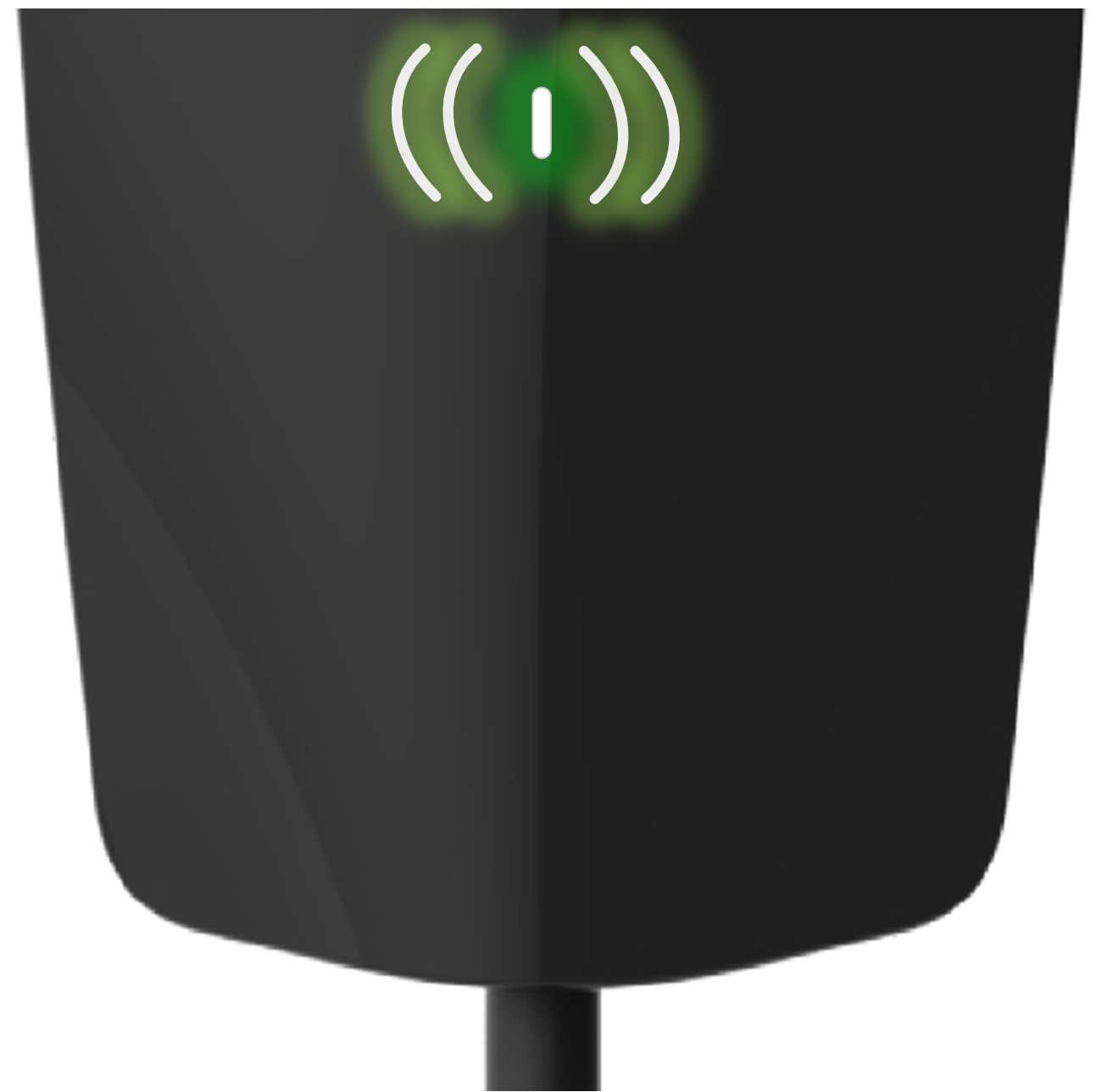

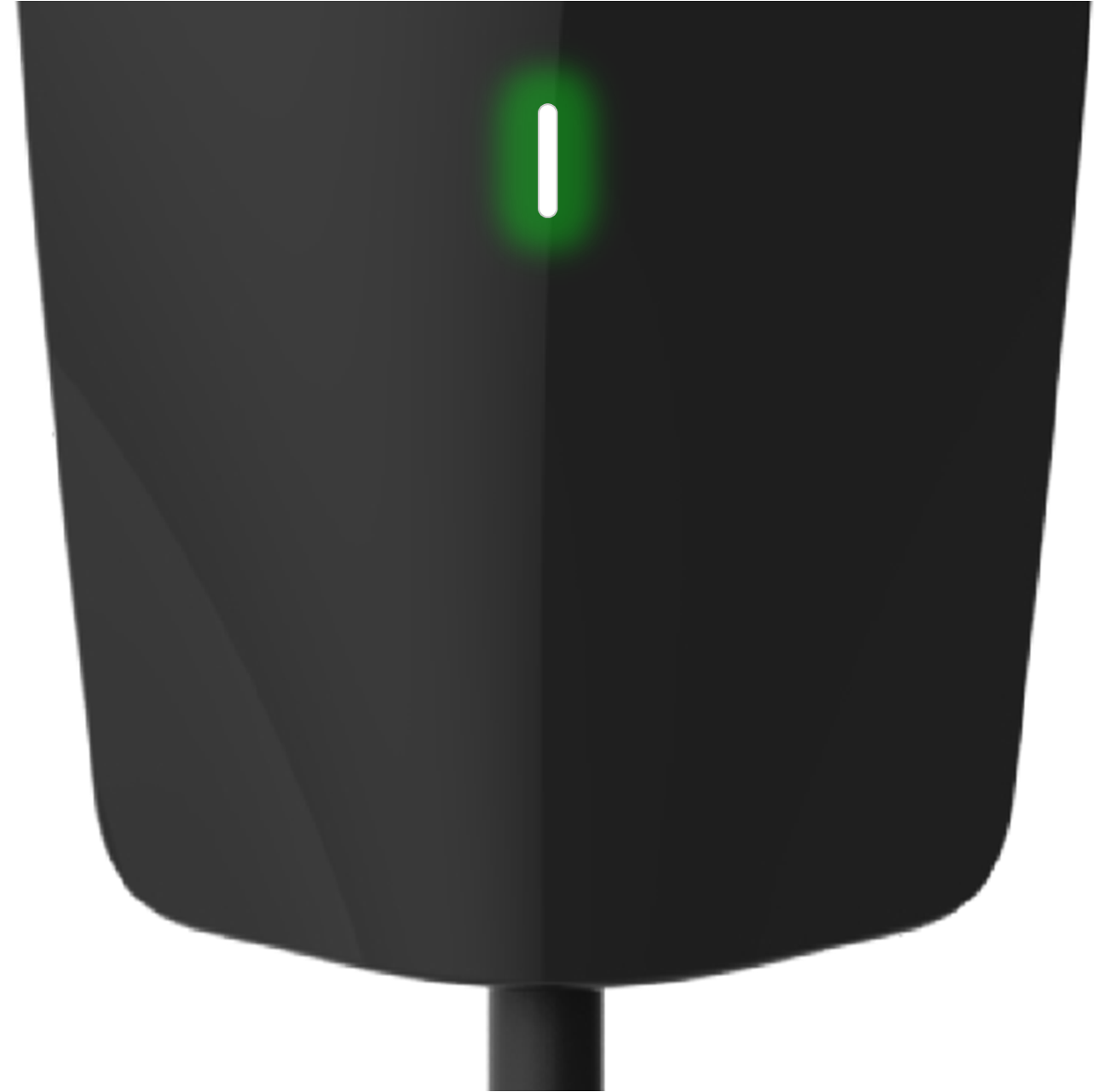

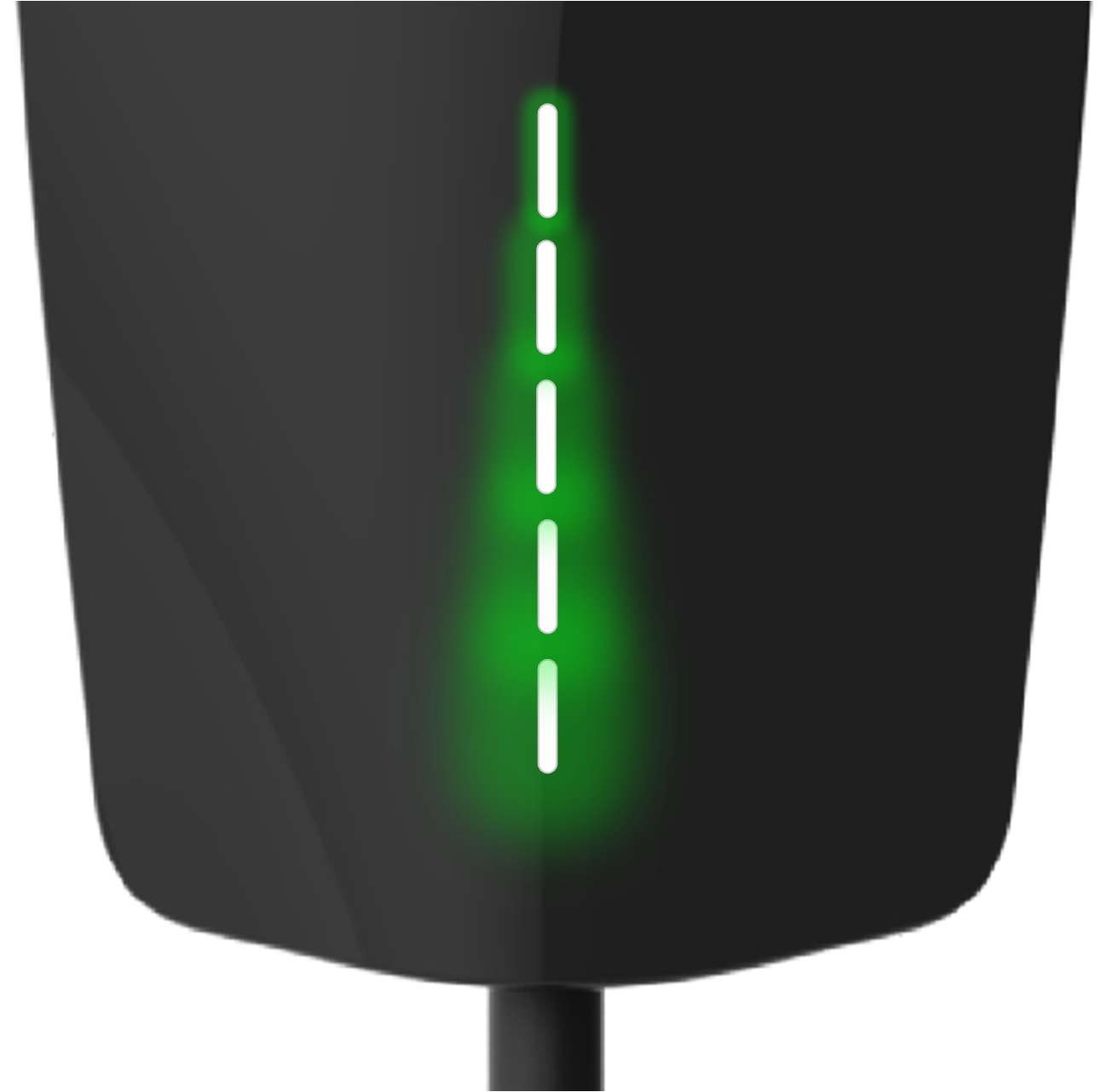

Standby, waiting to plug in | Charging in progress | SSID broadcasting, ready to commission | Waiting to charge, communicating with vehicle |
---|---|---|---|
Top green solid | Every green streaming | Green pulsing | Blue solid |
![]() |
![]() |
![]() |
![]() |
