Using Wall Connector

  1. Insert the charge handle into the vehicle charge port.
  2. Check the vehicle controls to verify charging.

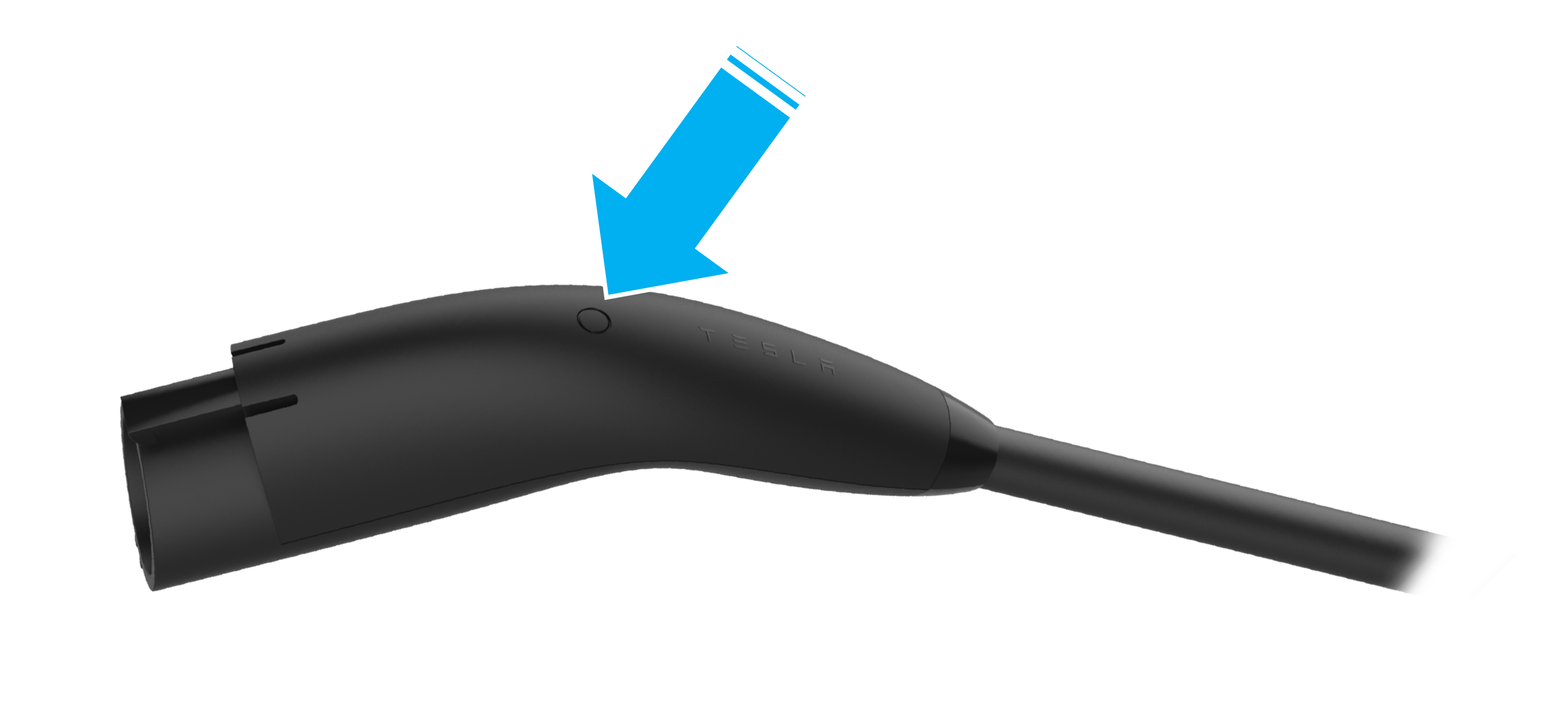

  3. To remove the charge handle from the vehicle, press and hold the button on the handle to unlock the charge port.
  4. Remove the charge handle from the vehicle charge port.

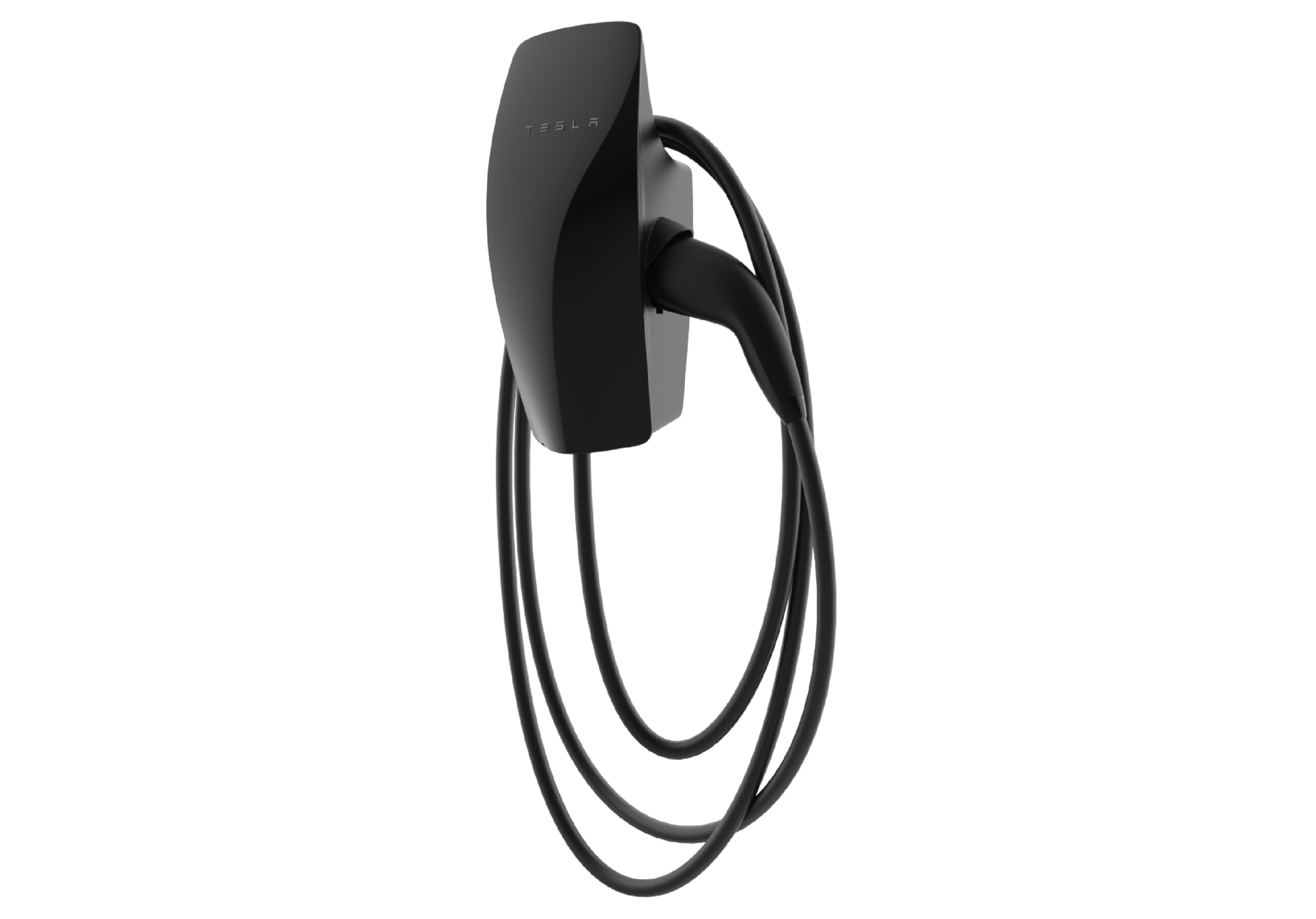

  5. Wrap the charge cable counter-clockwise around the Wall Connector and insert the charge handle into the holster.
