Removing Left Side Cover

Tools and Equipment:
  • HV protective glove set rated for 500 VAC/750 VDC, Class 00
  • Safety glasses
  1. Turn off power to the Powerwall system (Powerwall+ Lockout/Tagout).

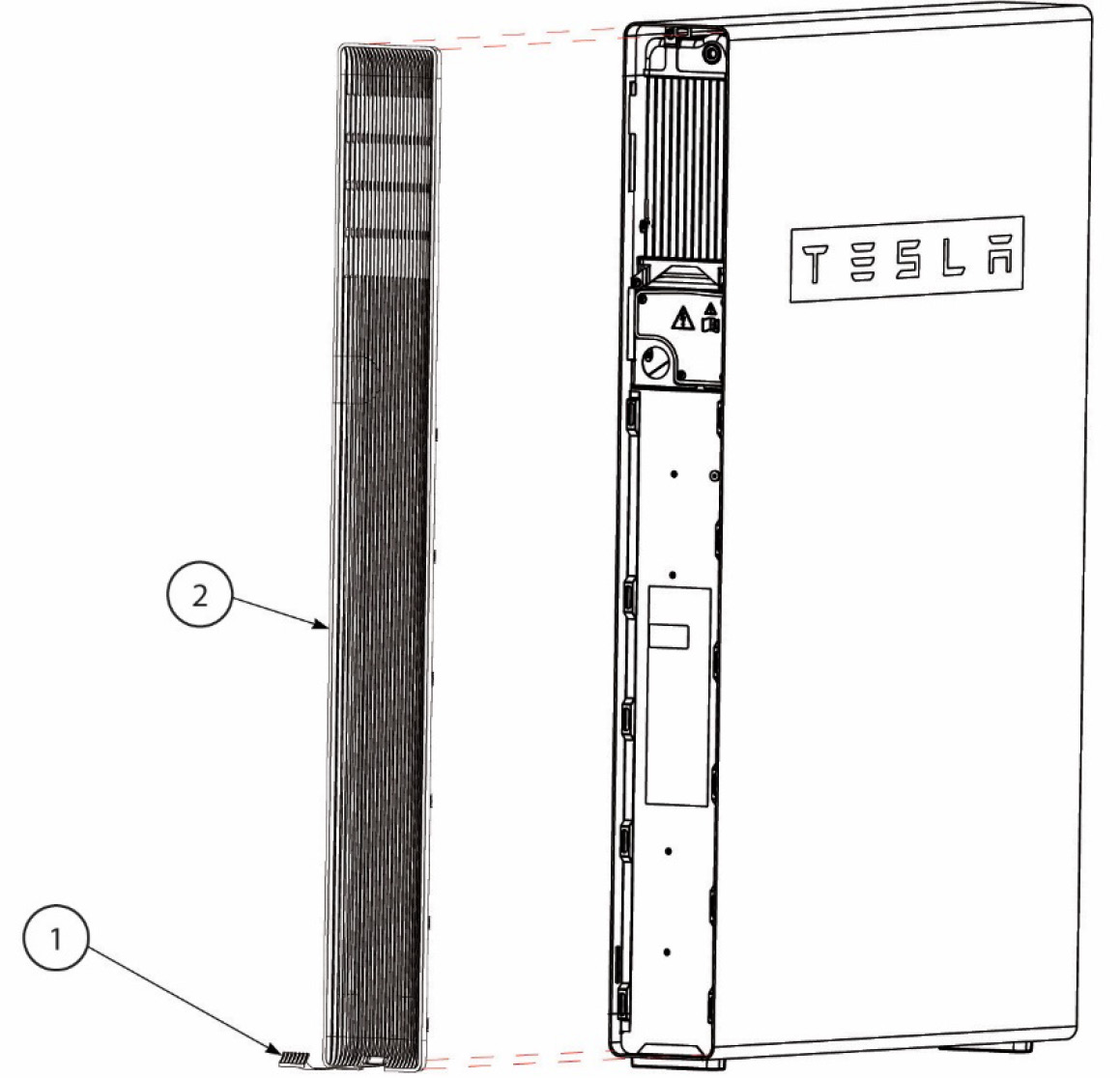

  2. Push in on the bottom of the tab (Figure 1, 1) at the bottom of the side cover (2). Release the tab.
    Informational PurposesAn informational icon, calling your attention
    Note
    The tab at the bottom of the side cover is attached to a strap on the side cover.
  3. Pull on the tab (1) and strap at the bottom of the side cover (2) to gently remove the side cover from the Powerwall.
  4. Secure the tab (Figure 1, 1) to the bottom of the left side cover (2).
