System Components
Powerwall
| Component | Description | Tesla Part Numbers |
|---|---|---|
|

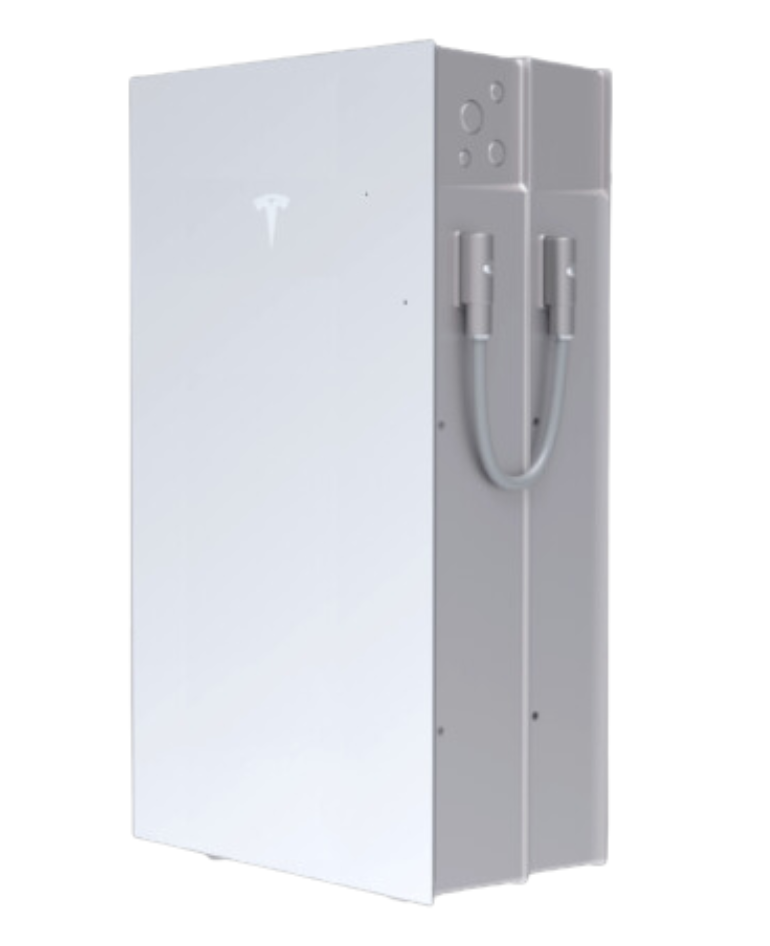

Powerwall 3 is an integrated solar and battery system that converts energy from solar panels to be used by the home, and stores excess energy for future use. Every system contains at least one Powerwall 3, with additional Powerwalls installed depending on your home’s energy consumption. |
1707000-xx-y |
Powerwall is installed with the following Tesla device.
Tesla Energy Equipment
| Component | Description | Tesla Part Numbers |
|---|---|---|
|
The Backup Gateway 2 is installed in partial and whole home backup systems. Powerwall controls operation of the system, while Backup Gateway 2 monitors energy usage and manages the transition to and from backup operation. |
1152100-xx-y |
Additional Equipment
| Component | Description |
|---|---|
|
The Remote System Shutdown Switch, when installed, is a means of initiating PV array rapid shutdown and disconnecting and de-energizing output of PV and battery equipment. To turn the system off, push in on the switch. To turn the system back on, twist the red button clockwise, allowing it to return to the ON position. |
