Ridge Details

      Details Download

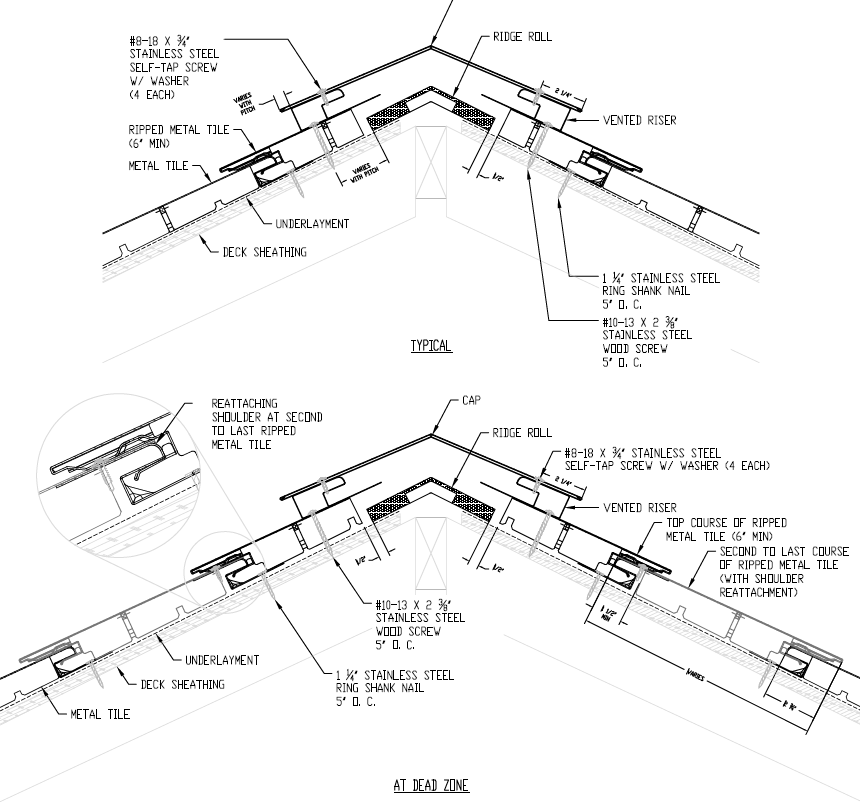

      		Ridge, Vented, Metal Tile, 6:12 DWG PDF

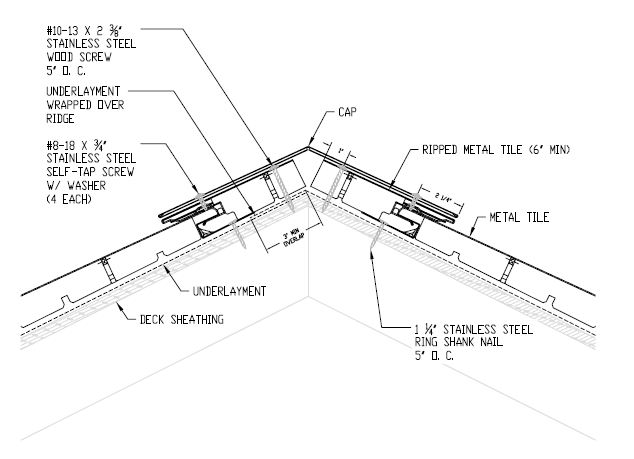

      		Ridge, Unvented, Metal Tile, 5:12 DWG PDF

      View all Solar Roof detail drawings
