Perimeter Details
| Details | Download | ||
|---|---|---|---|
|

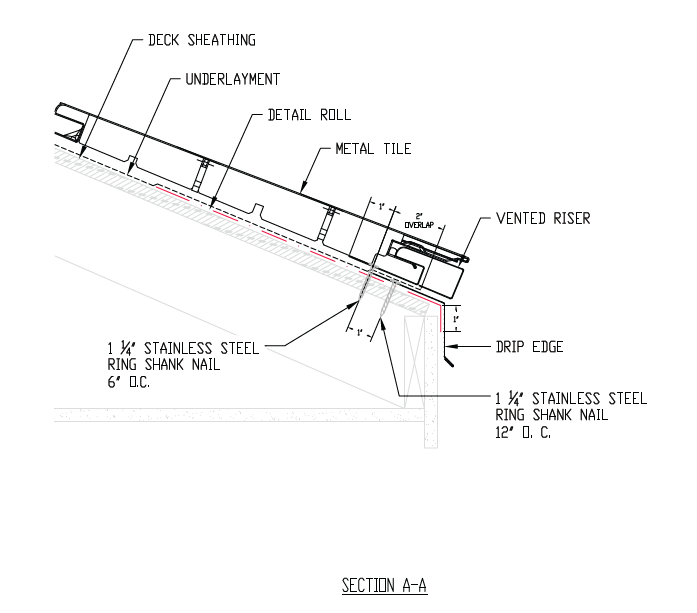

Eave, Metal Tile, 5:12 | DWG | |
|

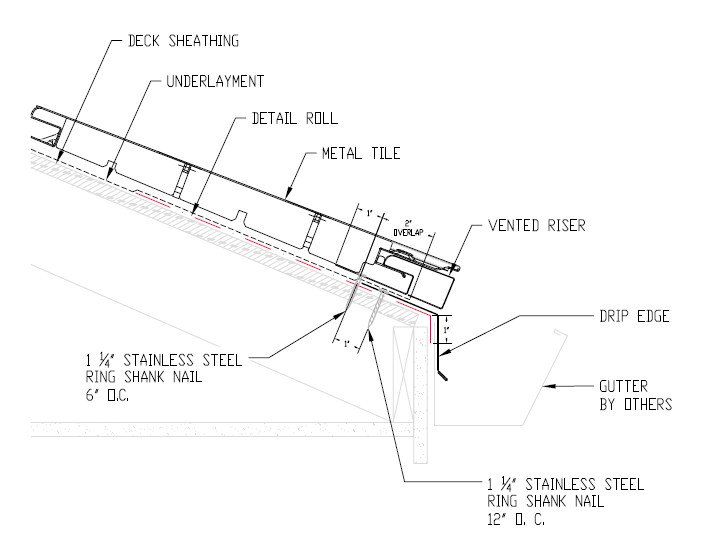

Eave with Gutter, Metal Tile, 5:12 | DWG | |
|

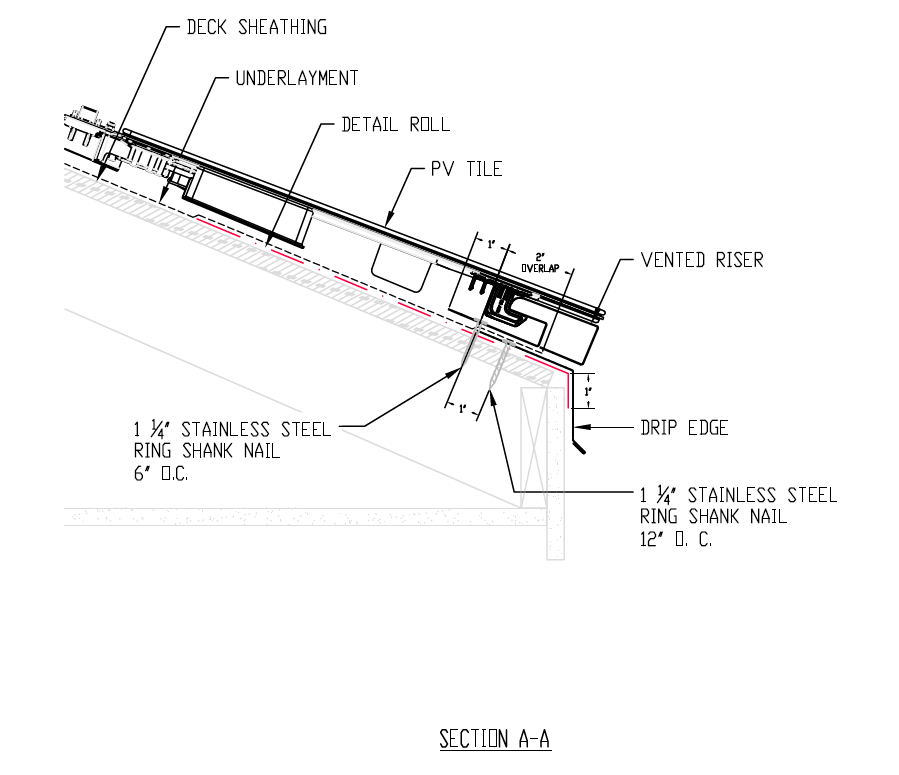

Eave, PV Tile, 5:12 | DWG | |
|

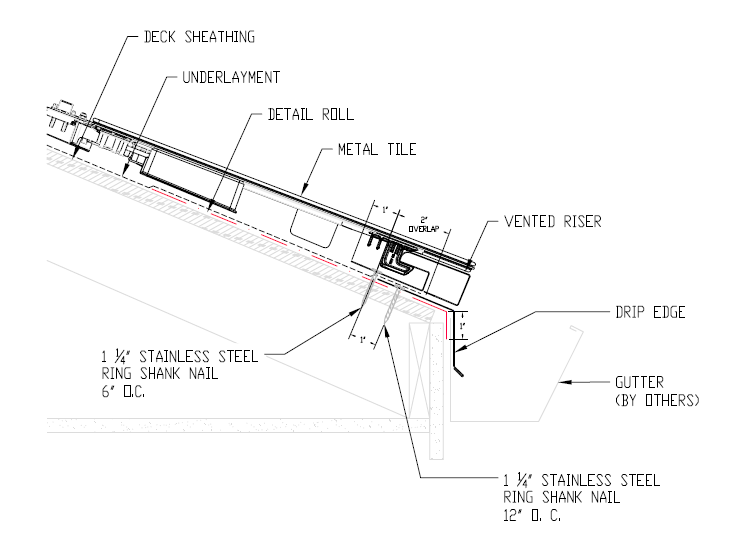

Eave with Gutter, PV Tile, 5:12 | DWG | |
|

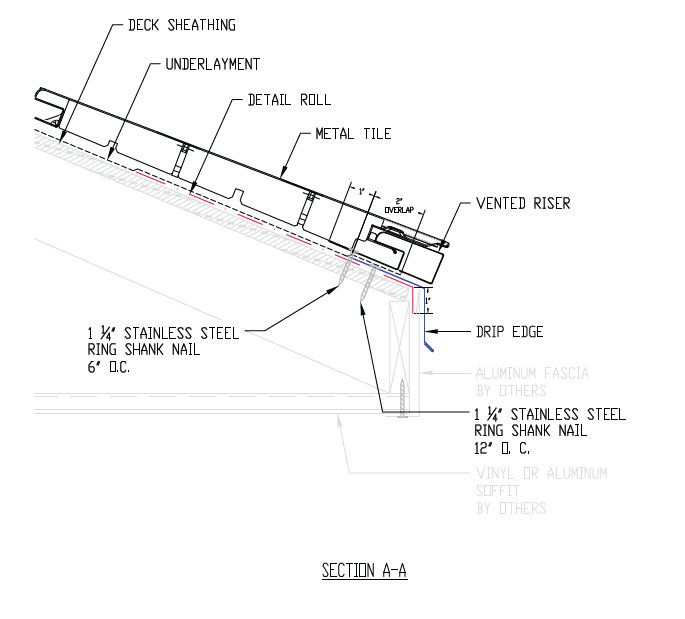

Eave with AL Fascia, Metal Tile, 5:12 | DWG | |
|

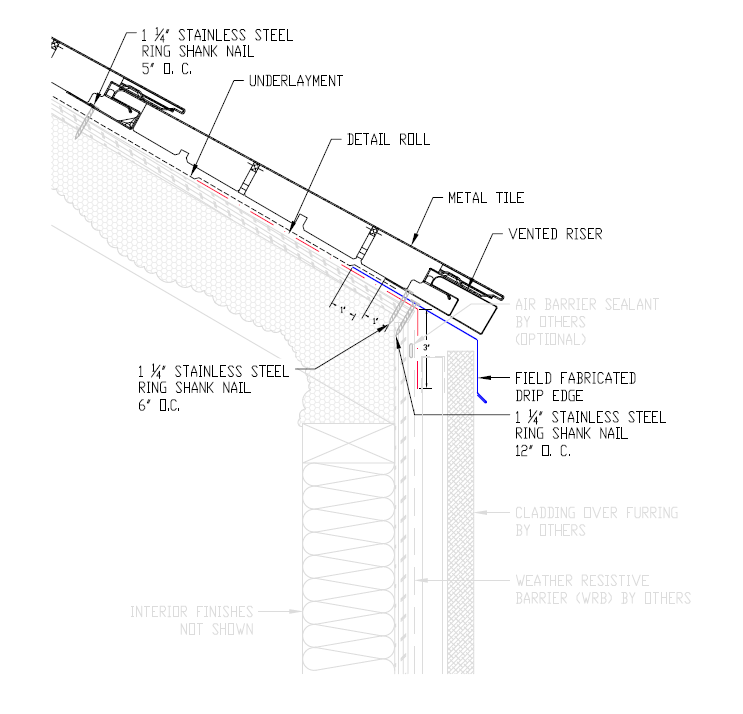

Eave, Top of Wall, Metal Tile, 7:12 | DWG | |
|

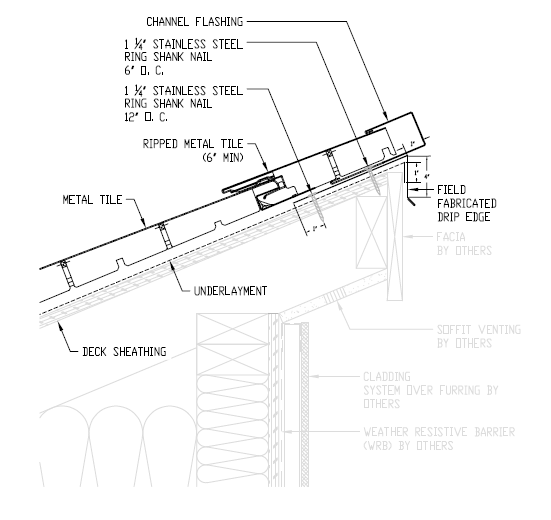

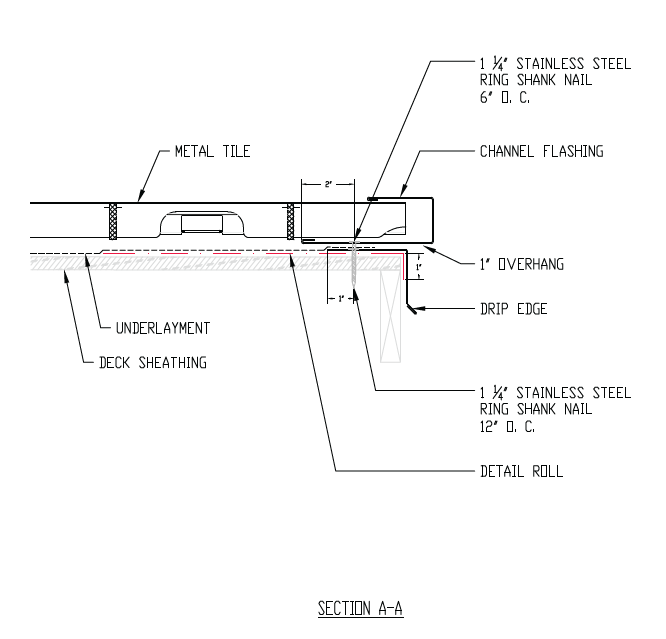

Rake, Metal Tile | DWG | |
|

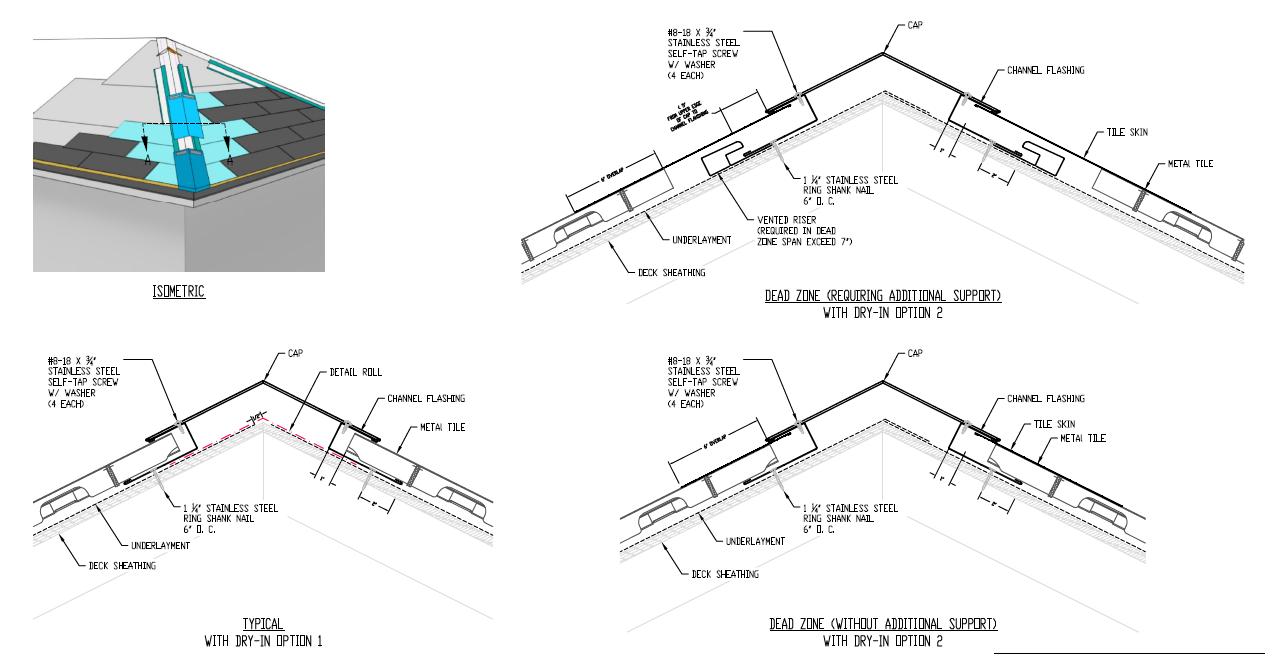

Hip, Metal Tile, 6:12 | DWG | |
|

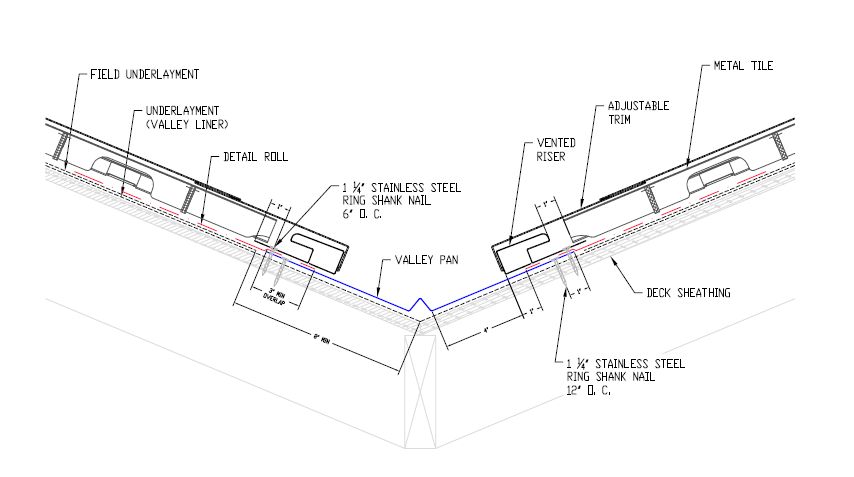

Valley, Metal Tile, 5:12 | DWG | |
|
Peak Wall, Metal Tile, 7:12 | DWG | |
|
Peak Wall with Overhang, Metal Tile, 7:12 | DWG | |
