Tesla Asset Controller (TACO) Low Voltage and Communication Wiring

Communication Wiring to Backup Gateway 2

Informational PurposesAn informational icon, calling your attention
Note
Refer to local codes and standards for correct wiring practices and wire colors.

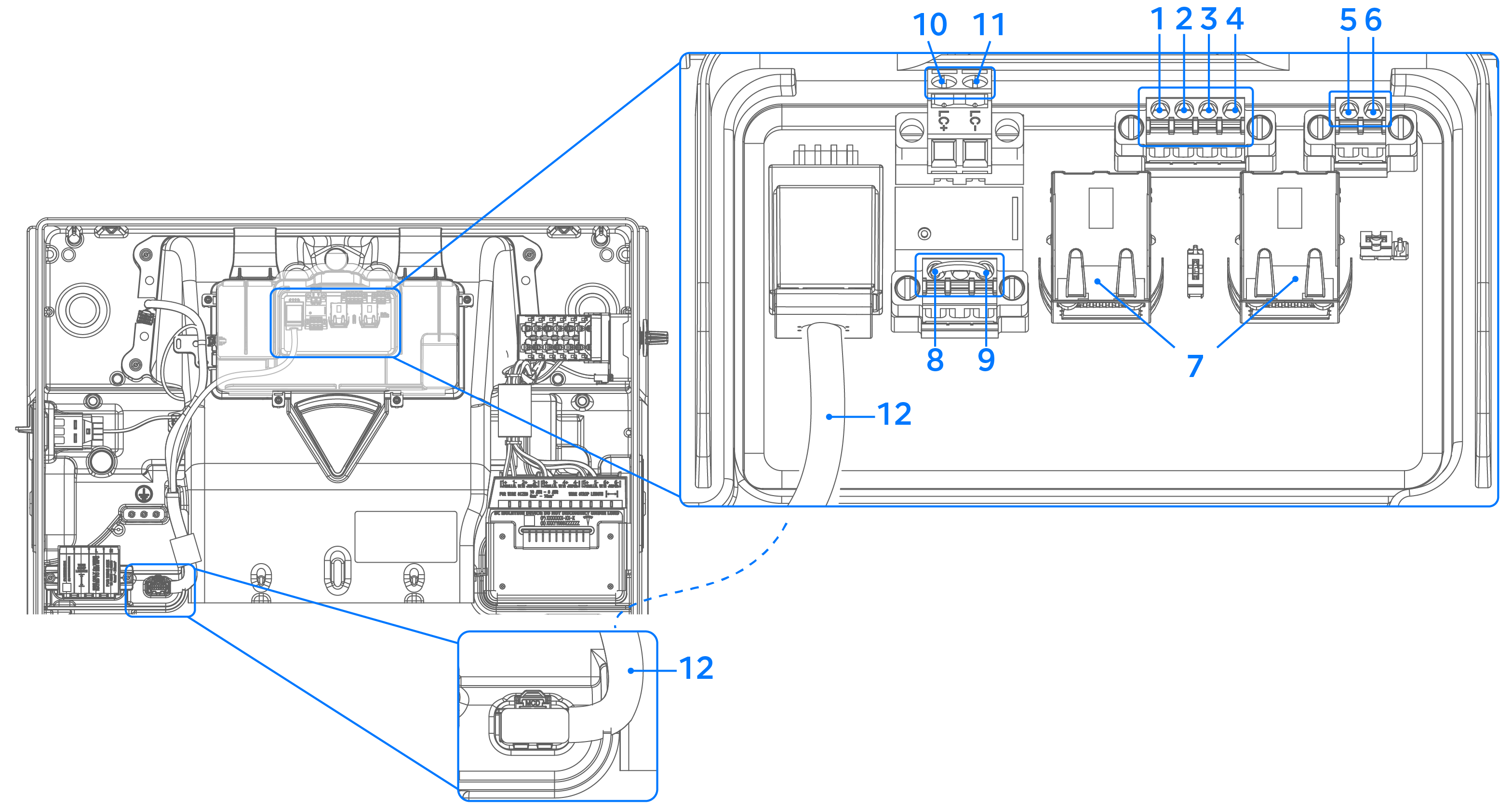

Terminal Name Recommended Wire Color Wire Gauge
1 CN- (CAN LO) Orange 0.2 - 1.5 mm2
2 CN+ (CAN HI) Blue 0.2 - 1.5 mm2
3 GND (Earth) Black 1 - 1.5 mm2
4 12V+ (Logic+) Red 1 - 1.5 mm2

Tesla Remote Energy Meter Wiring (Not Yet Available)

Informational PurposesAn informational icon, calling your attention
Note
The remote energy metering via an external meter is not yet supported.
Terminal Name Recommended Wire Color Wire Gauge
5 RS-485 + Red 0.2 - 1.5 mm2
6 RS-485 - Black 0.2 - 1.5 mm2

Ethernet Jacks

Terminal Name Recommended Wire Color Wire Requirements
7 RJ45 Ethernet jacks - CAT5 or CAT6 Ethernet wiring (see Prepare Ethernet Wiring with RJ45 Connectors)

(Optional) System Shutdown Switch Wiring

Terminal Name Recommended Wire Color Wire Gauge
8 System Shutdown + Red 0.2 - 1.5 mm2
9 System Shutdown - Black 0.2 - 1.5 mm2
Informational PurposesAn informational icon, calling your attention
Note
The terminal between the two System Shutdown terminals is not used.

Aux Wiring (Not Yet Available)

Informational PurposesAn informational icon, calling your attention
Note
The load control functionality is not yet available.
Terminal Name Recommended Wire Color Wire Gauge
10 Load Control + - 0.2 - 1.5 mm2
11 Load Control - - 0.2 - 1.5 mm2

TACO Low Voltage Harness

Terminal Name Recommended Wire Color Wire Gauge
12 TACO low voltage harness (provides 12V power to TACO) - -
