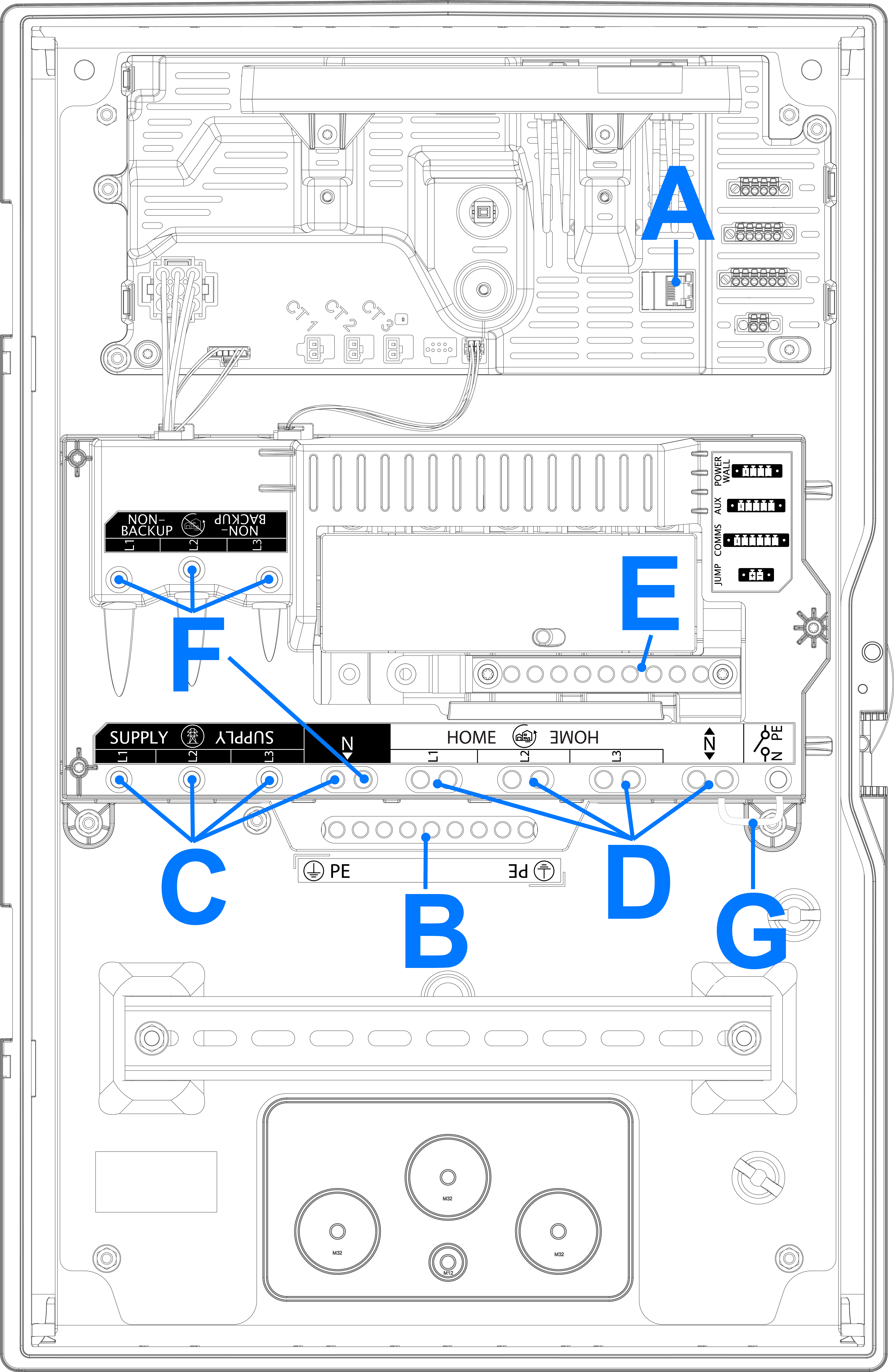

Backup Gateway 2 Wiring
| Terminal Name | Recommended Wire Color | Wire Size | |
|---|---|---|---|
| A | Ethernet terminal - not used, see Ethernet Jacks | ||
| B | Earth Bar | Green or Green/Yellow | 2.5 – 25 mm2 |
| C | Grid Supply (L1, L2, L3, N) | Red, White, Blue, Black | 2.5 – 35 mm2 |
| D | Backup Loads and Generation (L1, L2, L3, N) | Red, White, Blue, Black | 2.5 – 35 mm2 |
| E | Generation Neutral Bar (N) | Black | 2.5 – 25 mm2 |
| F | Non-Backup Loads and Non-Backup Generation (L1, L2, L3, N) | Red, White, Blue, Black | 2.5 – 35 mm2 |
| G | Switched Neutral-Earth link | - |
16 mm 2 |
