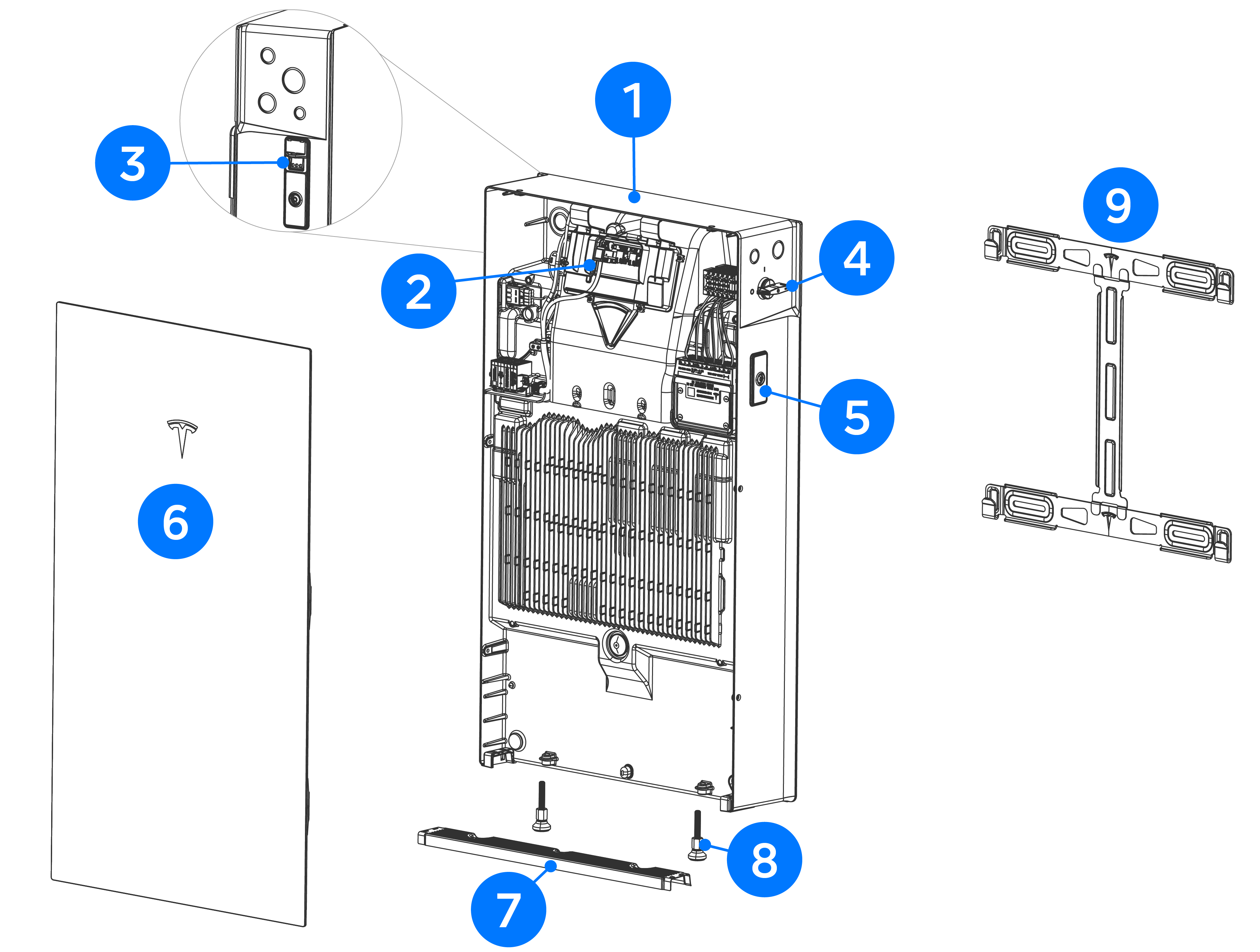

Powerwall 3 Overview
| 1 | Powerwall 3 |
| 2 | Tesla Asset Controller (TACO) |
| 3 | On / Off switch |
| 4 | Integrated DC Isolator |
| 5 | Expansion port cover |
| 6 | Glass front cover |
| 7 | Air intake screen |
| 8 | Leveling feet |
| 9 | Wall mounting bracket |
Note
Do not remove the expansion port covers.
These are protective covers and Powerwall 3 will not operate when they are
removed.
Note

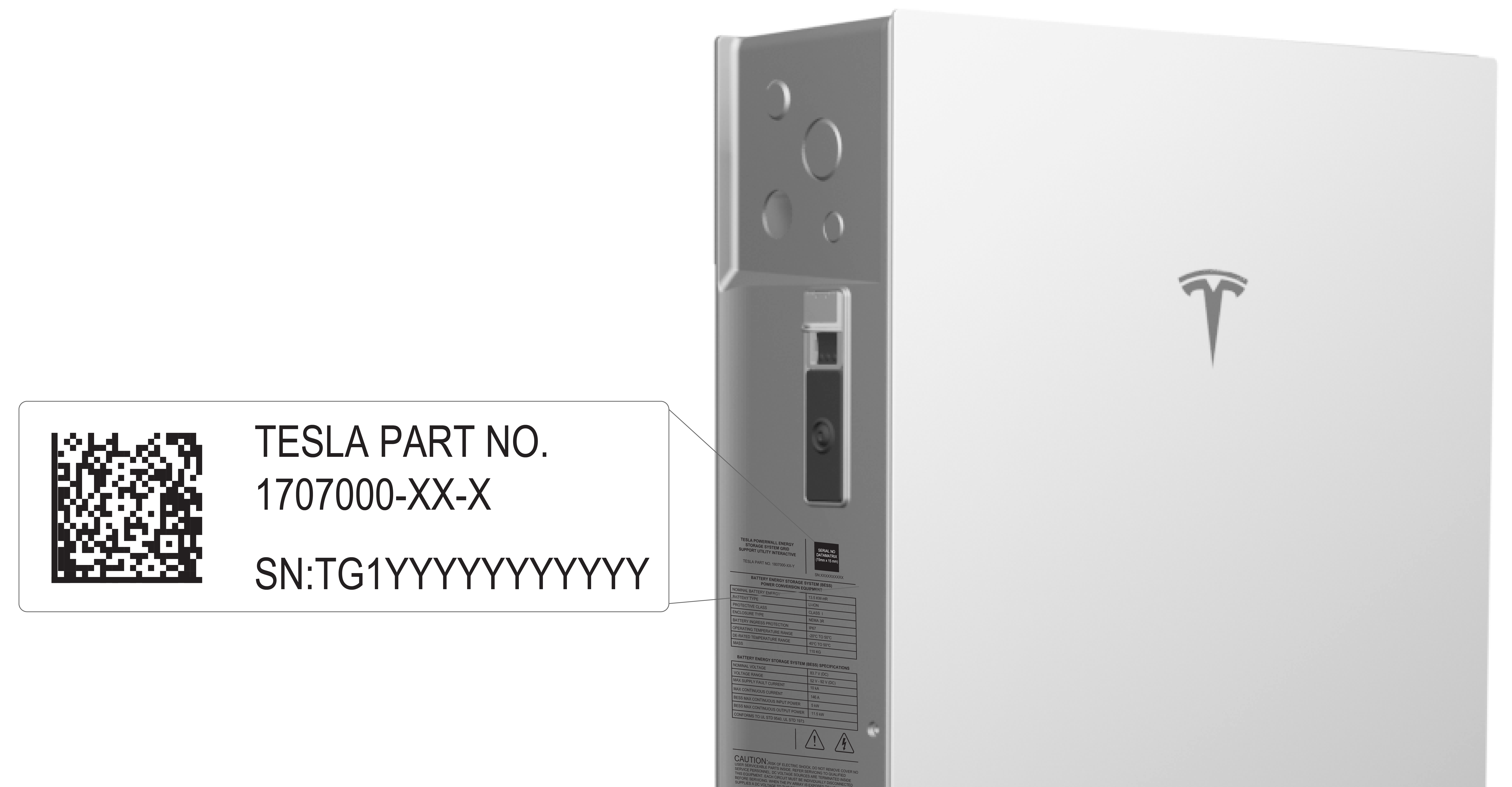

The Powerwall 3 part number and serial number can be
found on the left side of the unit.
