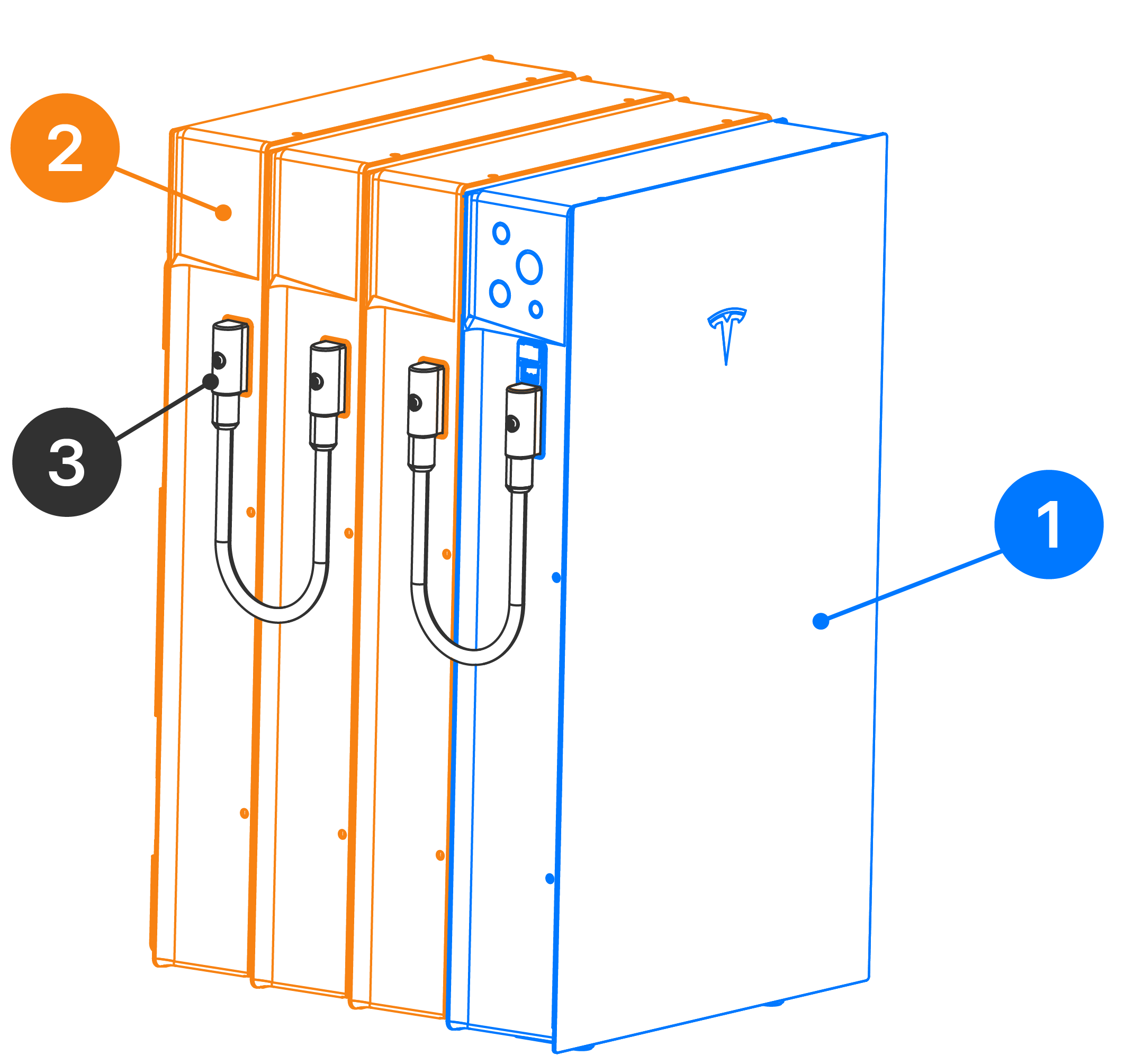

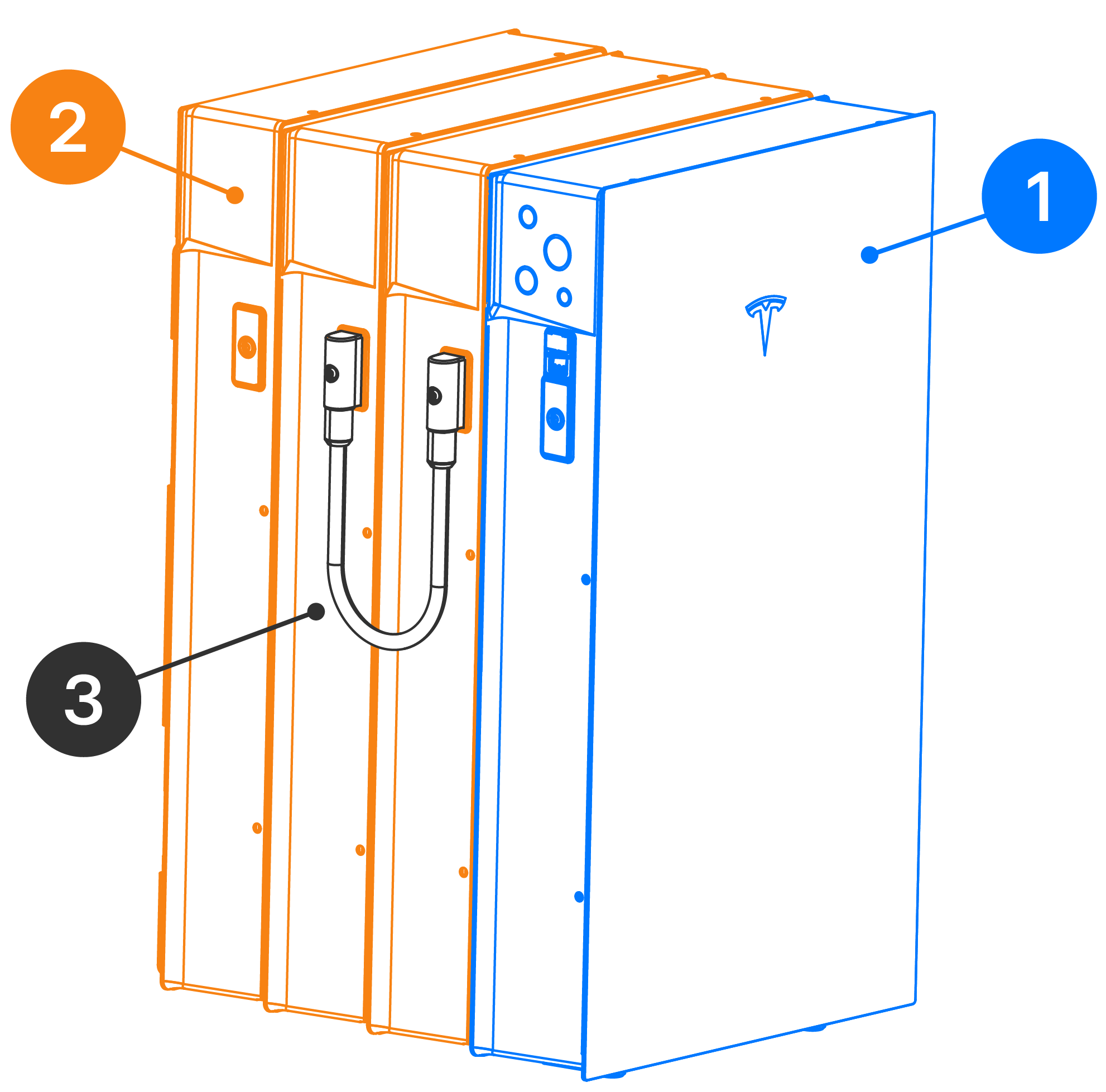

Powerwall 3 Expansion Units

1 Powerwall 3
2 Powerwall 3 Expansion
3 Expansion Harness
Expansion units offer additional storage for Powerwall 3 systems. Key points about Expansion units include:
  • Function: An Expansion unit does not include an inverter; it is only additional storage (kWh)
    Informational PurposesAn informational icon, calling your attention
    Note
    Expansion units do not have an LED. Wall-mounted Expansion units are installed with the same glass front cover as Powerwall 3, but the logo on the front will never light because there is no LED in the unit.
    Informational PurposesAn informational icon, calling your attention
    Note
    Expansion units are not field serviceable.
  • Dimensions: The Expansion enclosure is the same height and width as Powerwall 3, but is 1 inch (25 mm) slimmer than Powerwall 3 (see diagram)
  • Mounting: Expansion units can be mounted individually
  • Expansion Connection: Expansion units can only be connected to Powerwall 3 or other Expansion units via the Expansion Harness. Each unit (Powerwall 3 and Expansion) has (2) Expansion ports, one on each side of the enclosure
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The Expansion Harness is the only approved method of connecting Expansion units. Do not modify the Expansion Harness in any way. Doing so would result in product damage that could void the product warranty.
    Informational PurposesAn informational icon, calling your attention
    Note
    The Expansion units are electrically paralleled with a Powerwall 3.
  • System Size: Up to (3) Expansion units can be connected to the Leader Powerwall 3
    Informational PurposesAn informational icon, calling your attention
    Note
    Expansion units can only be connected to the Leader Powerwall 3 (the unit connected to the Backup Gateway 2 / Backup Switch / Gateway 3 via 12V / CAN wiring; a system can only have (1) Leader). Expansion units connected to Follower Powerwall 3 units (any Powerwall 3 other than the Leader) will not function. The total maximum system size is (7) units - up to (4) Powerwall 3 units with up to (3) Expansion units.
  • Compatible Powerwall 3 Versions: Powerwall 3 units with Tesla P/N 1707000-xx-J or greater are compatible with Expansion units
  • Flexibility:
    • The Expansion Harness can be plugged in on either side of a Powerwall 3 or an Expansion unit
    • Powerwall 3 can be installed at either end of a chain of Expansion units
    • Powerwall 3 can be installed in the middle of a chain of Expansion units
Figure 1. Powerwall 3 Dimensions Compared with Expansion Unit Dimensions
Informational PurposesAn informational icon, calling your attention
Note
Powerwall 3 and the Expansion unit are both 43.5 in (1105 mm) tall when the glass front cover is installed.
