Configure Wi-Fi Connected Tesla Remote Meter

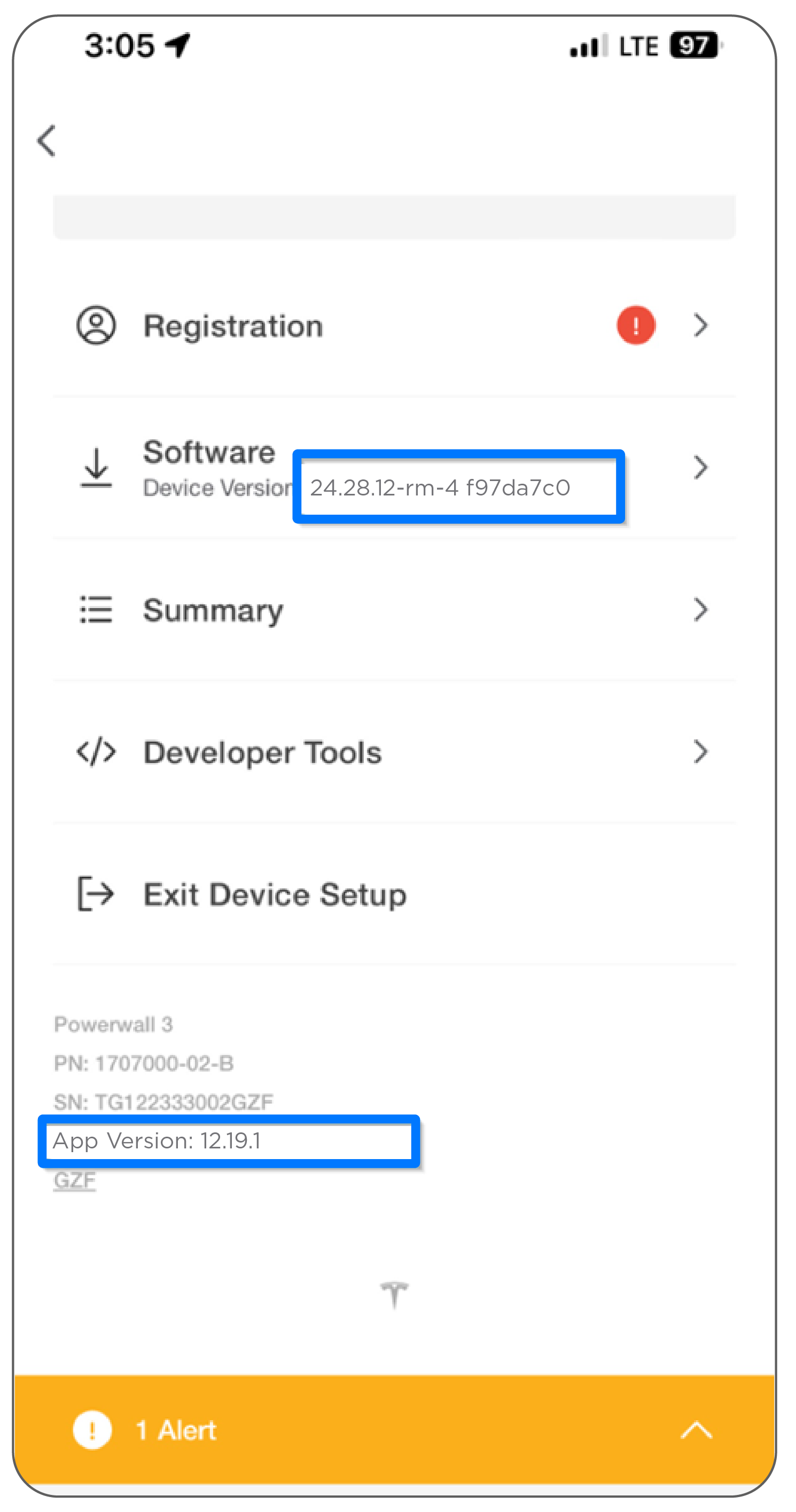

  1. Log in to Tesla One and connect to the Powerwall 3, then confirm the following minimum software versions:
    • Tesla One version version 12.19.1 or later
    • Powerwall software version 24.28.12-rm-5 or later

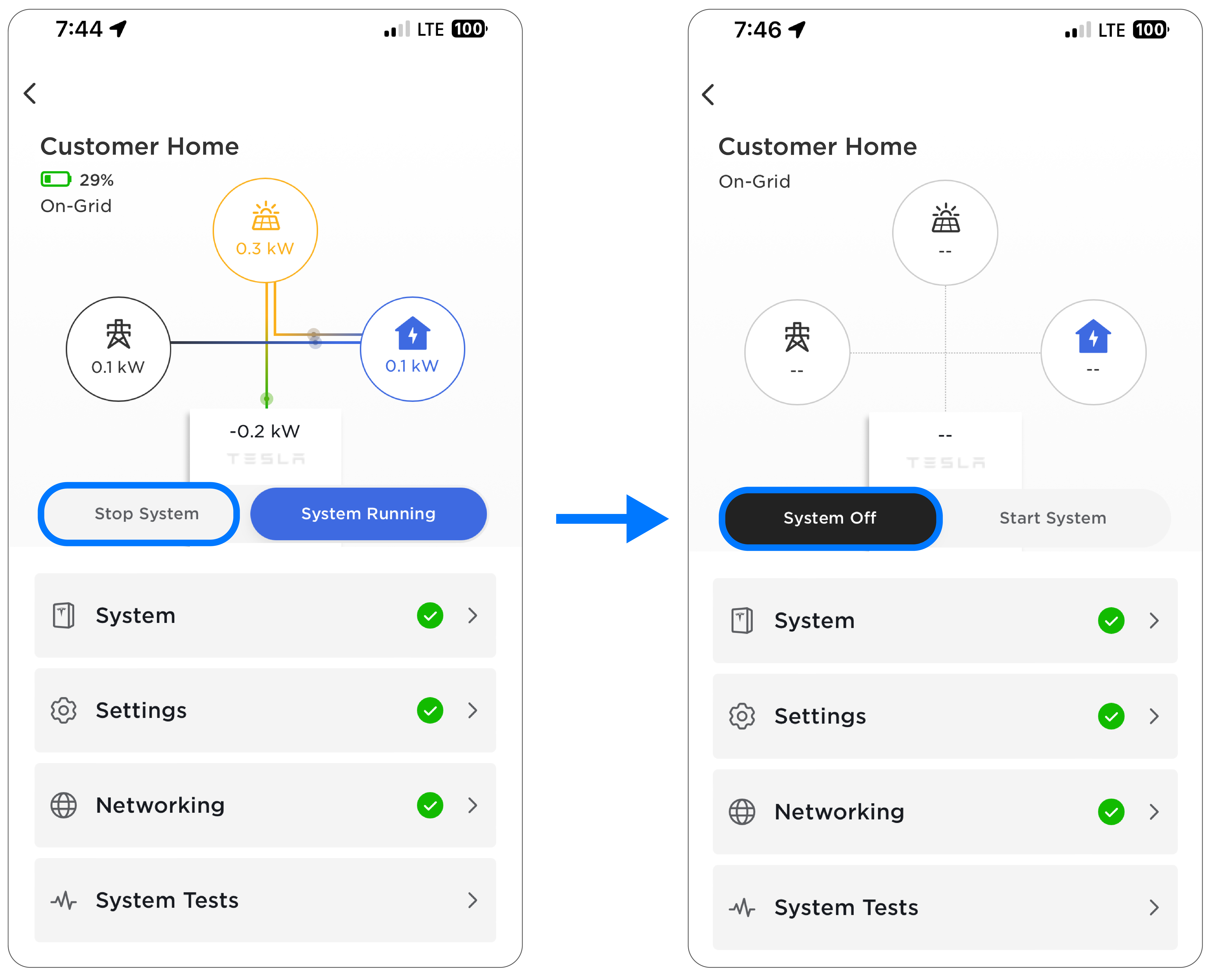

  2. If the system is running, select Stop System.

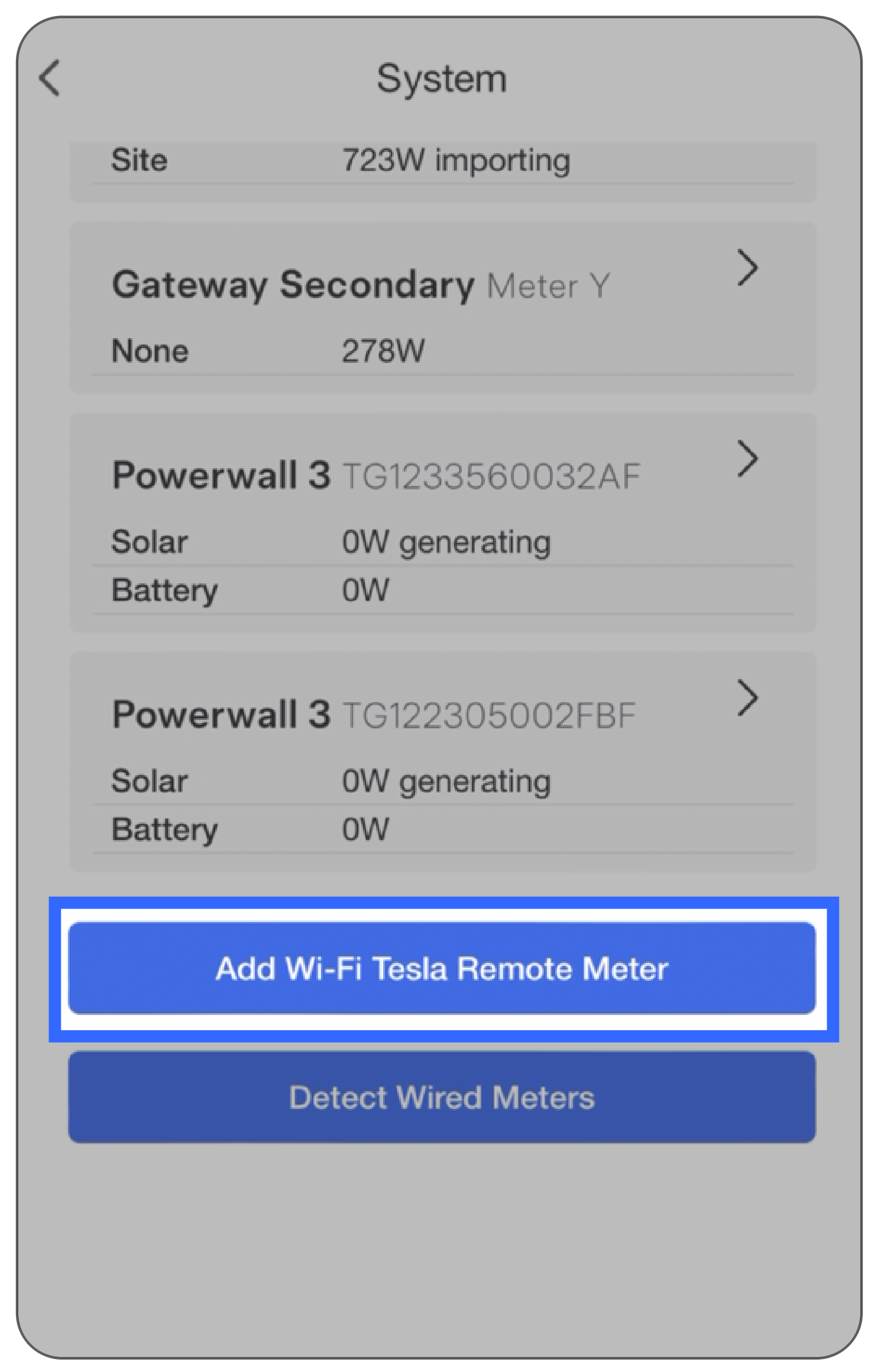

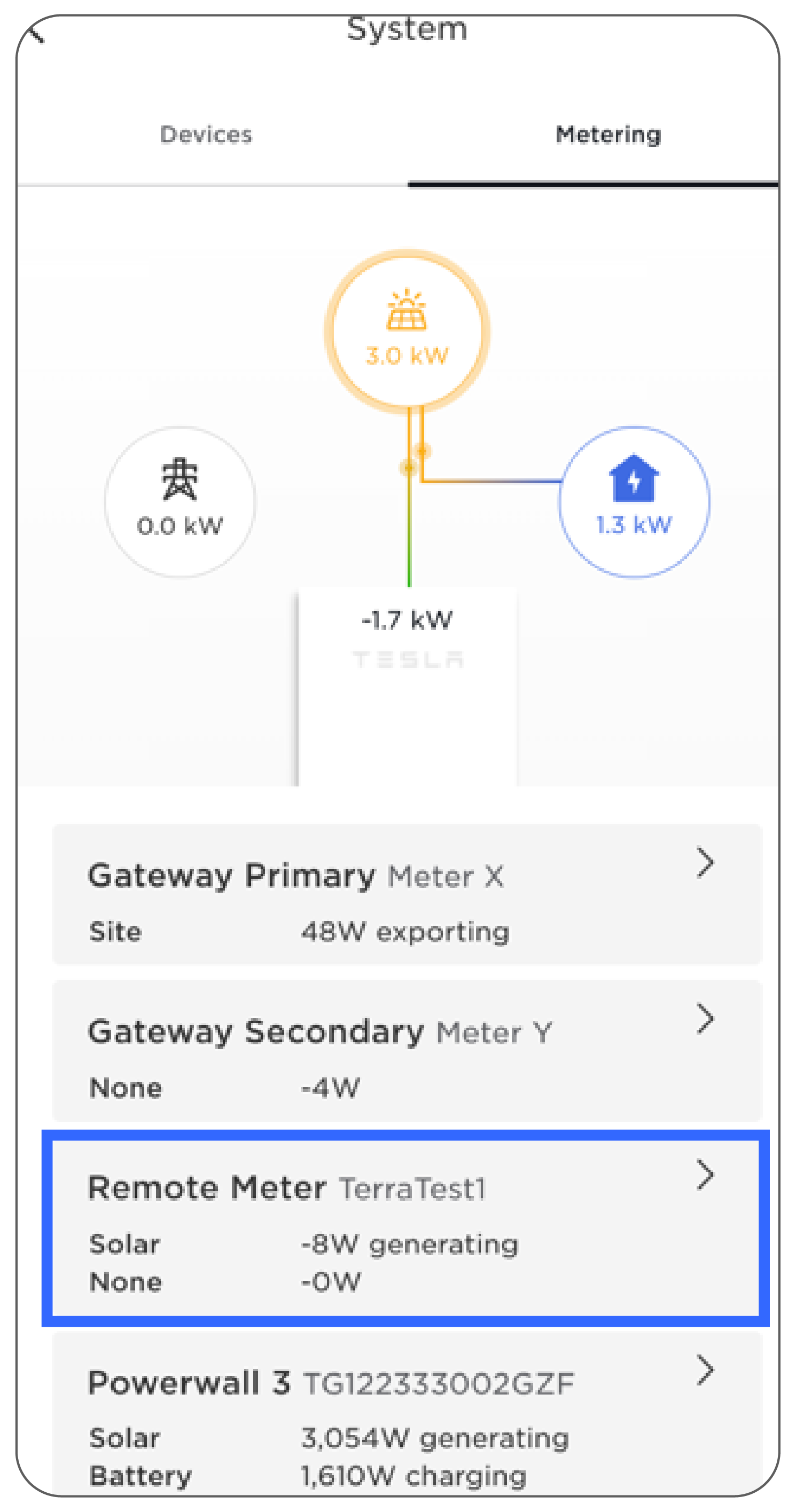

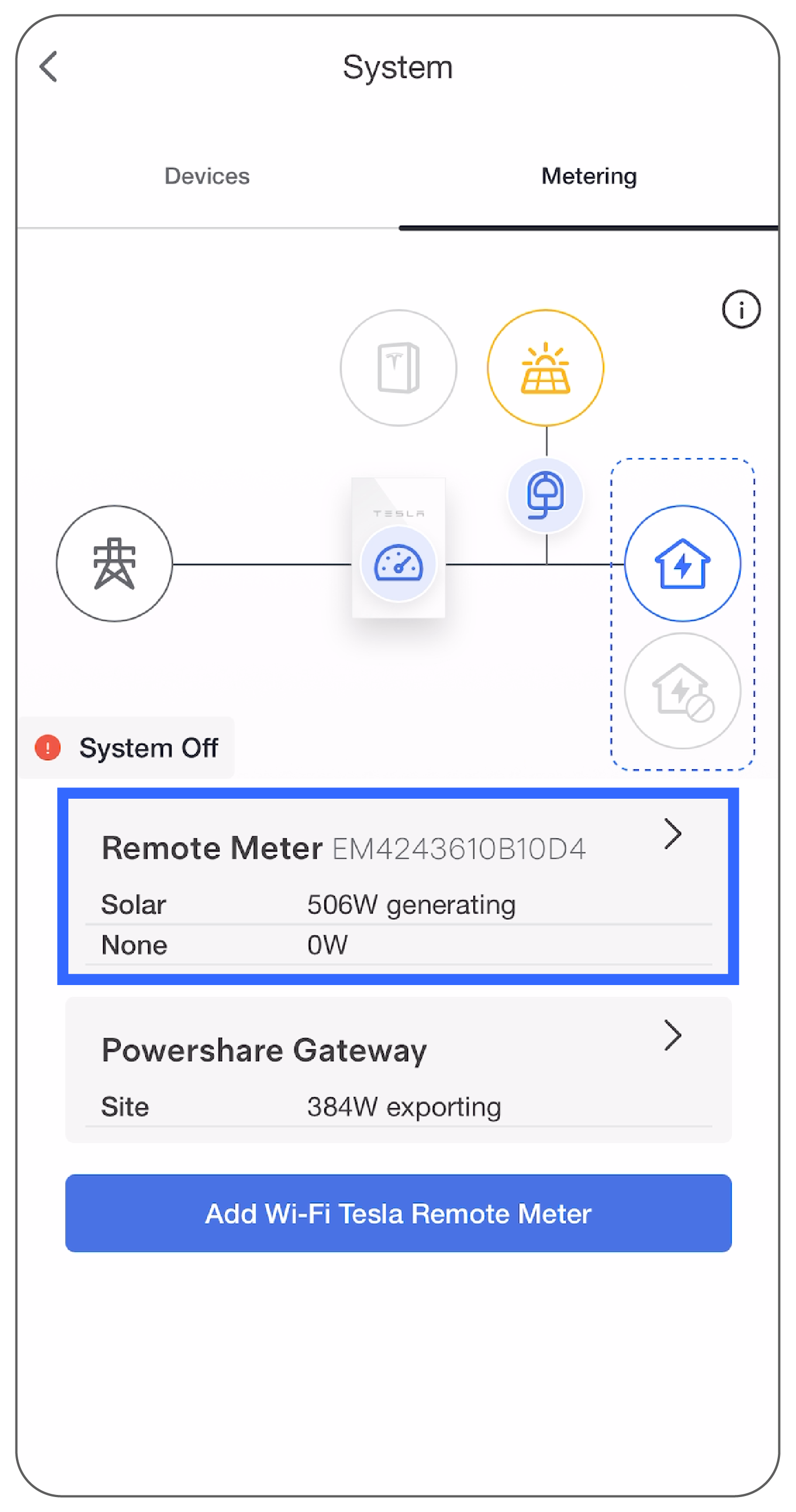

  3. Select System, then select the Metering tab and select Add Wi-Fi Tesla Remote Meter.

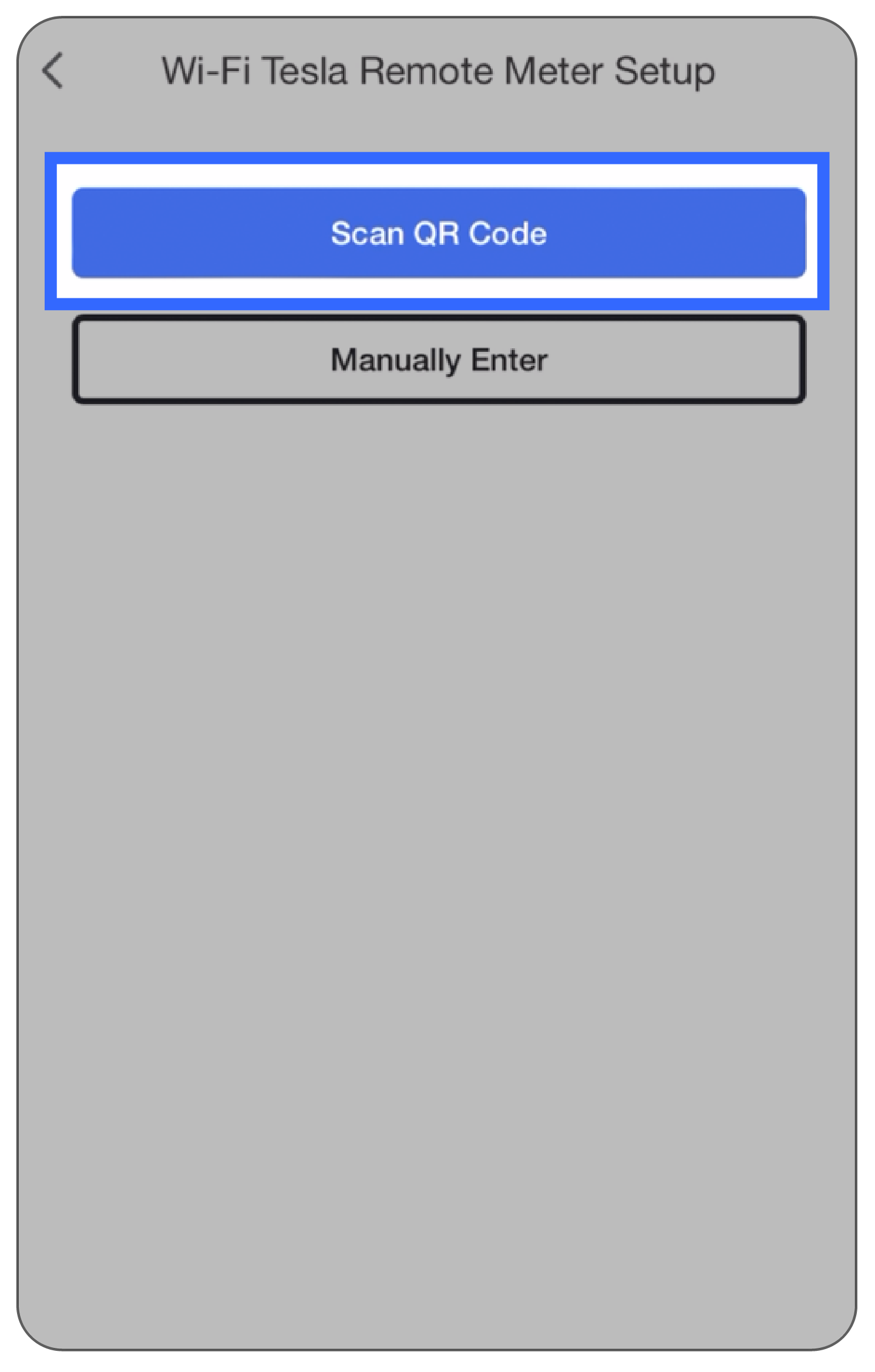

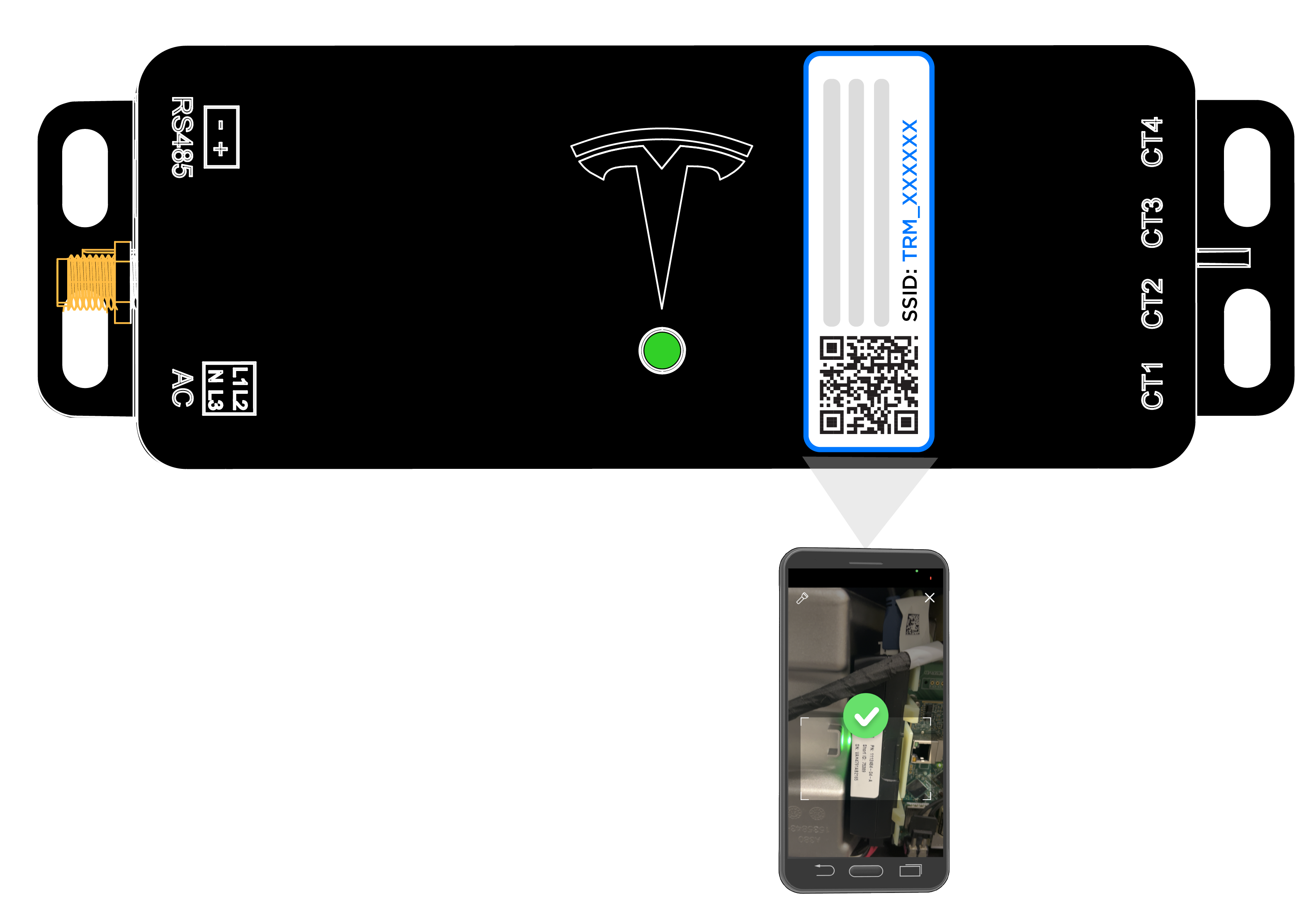

  4. Select Scan QR Code, then scan the QR code on the Tesla Remote Meter.

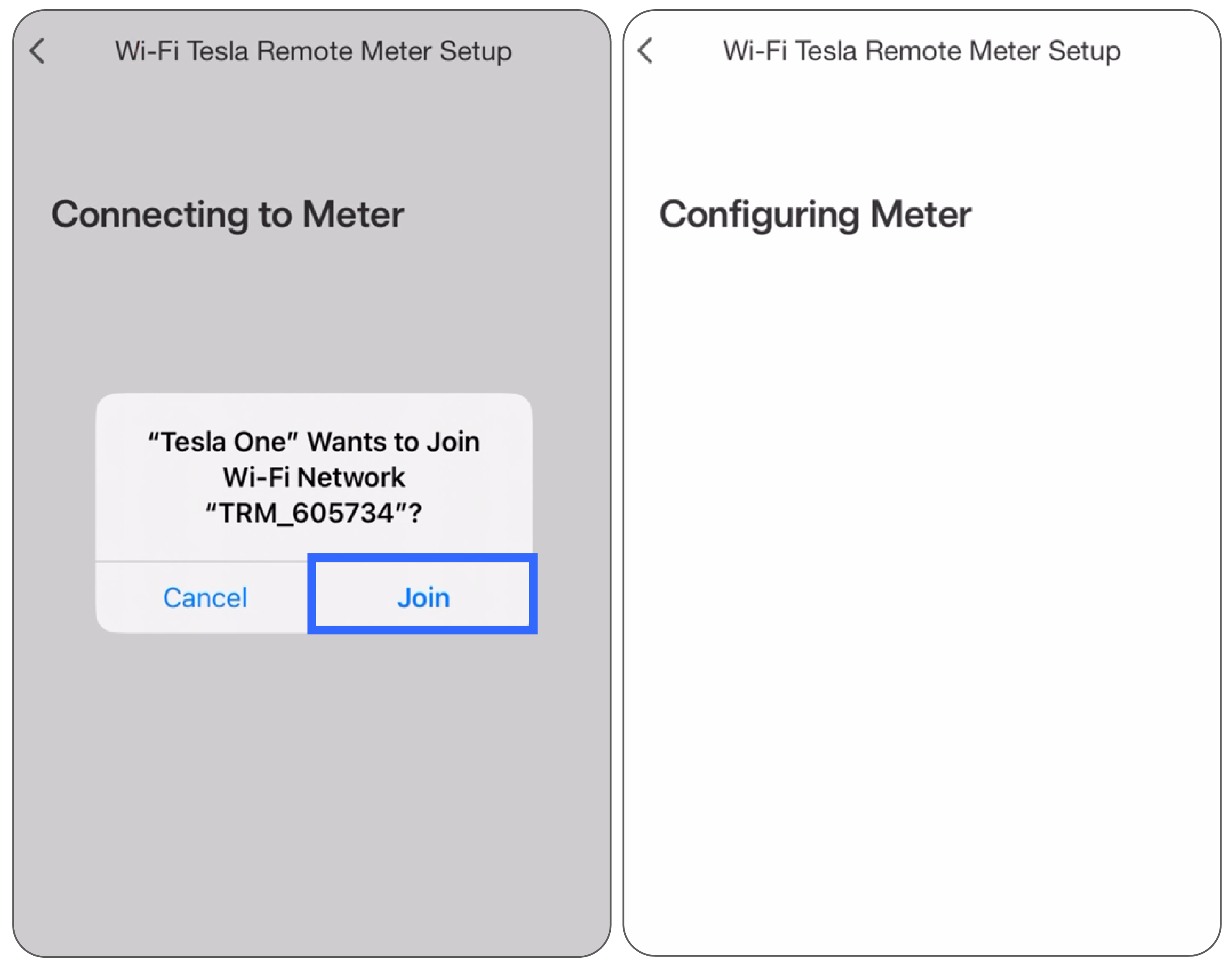

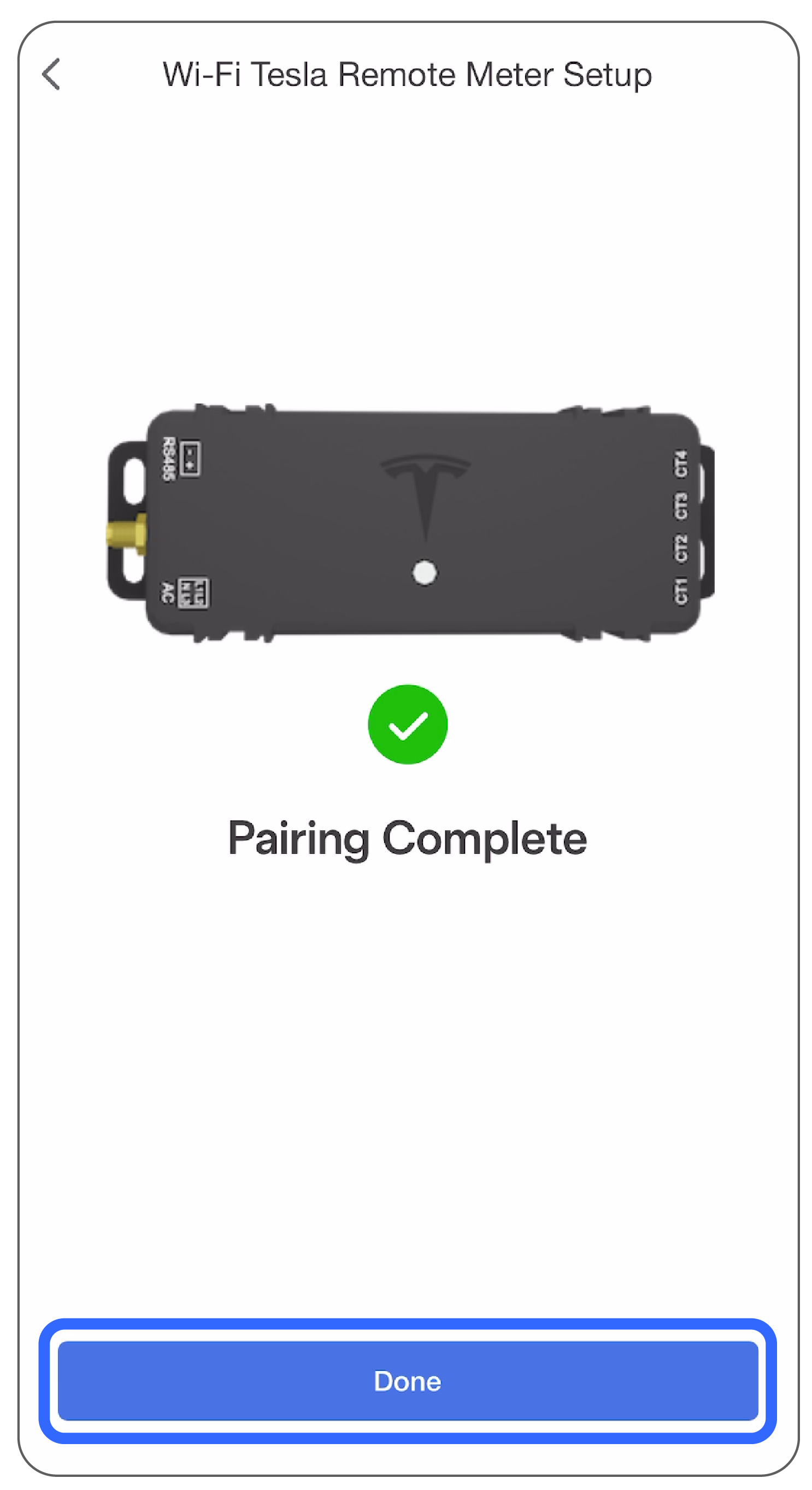

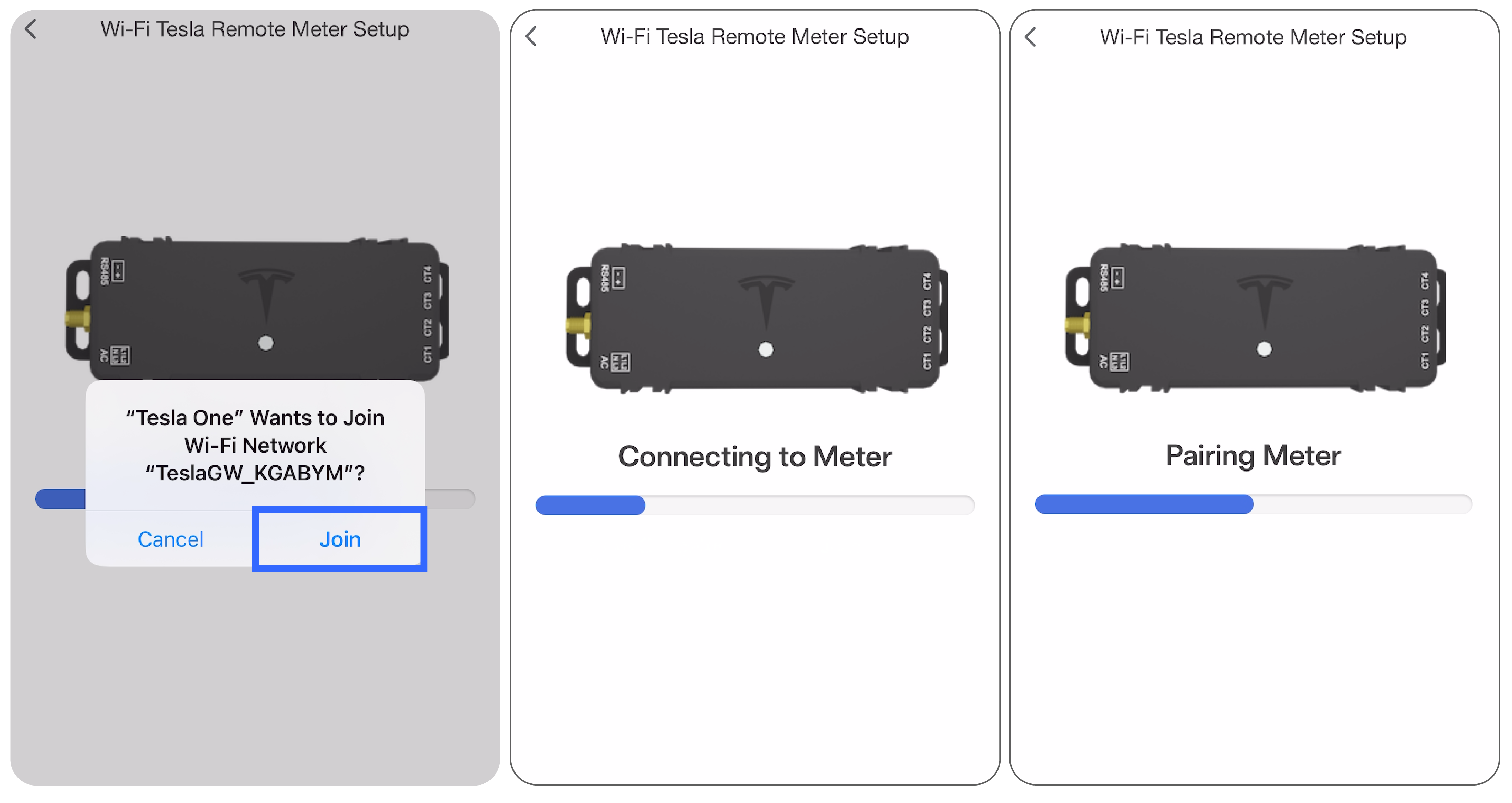

  5. Select Join to join the Tesla Remote Meter (TRM_XXXXX) network.

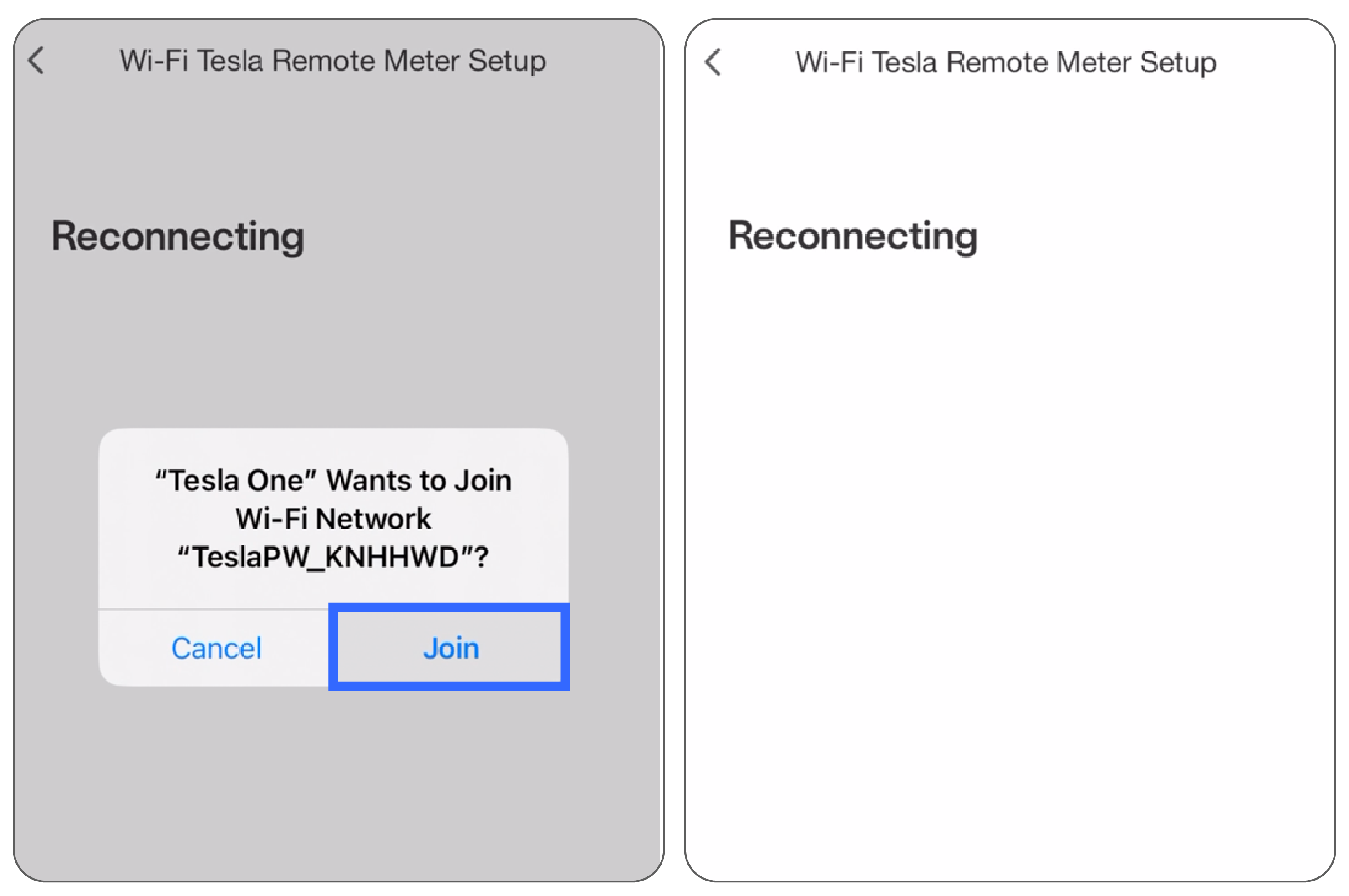

  6. When prompted, select Join to re-join the Powerwall (TeslaPW) network.

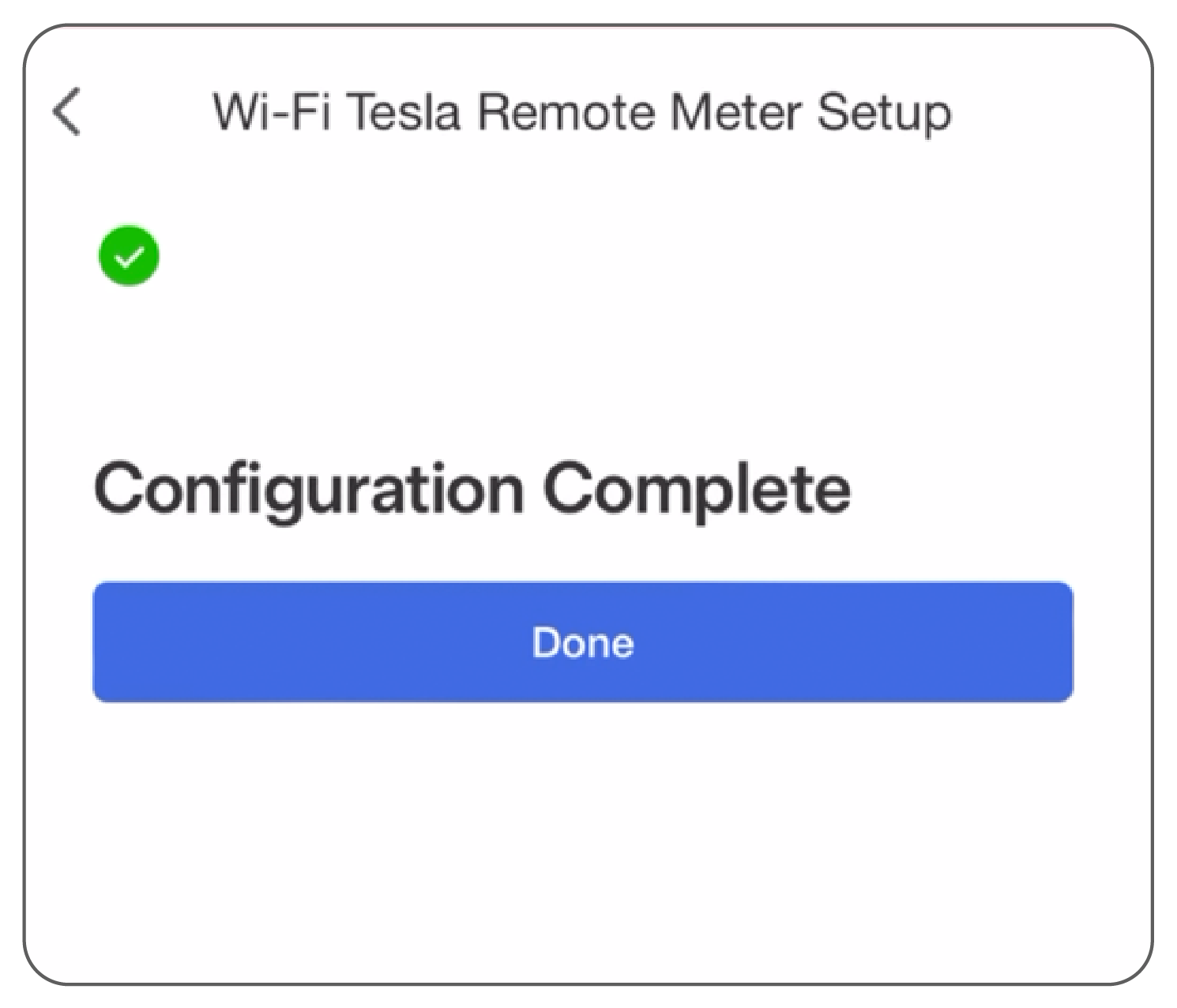

  7. Confirm the meter was successfully connected (the Configuration Complete page will display).

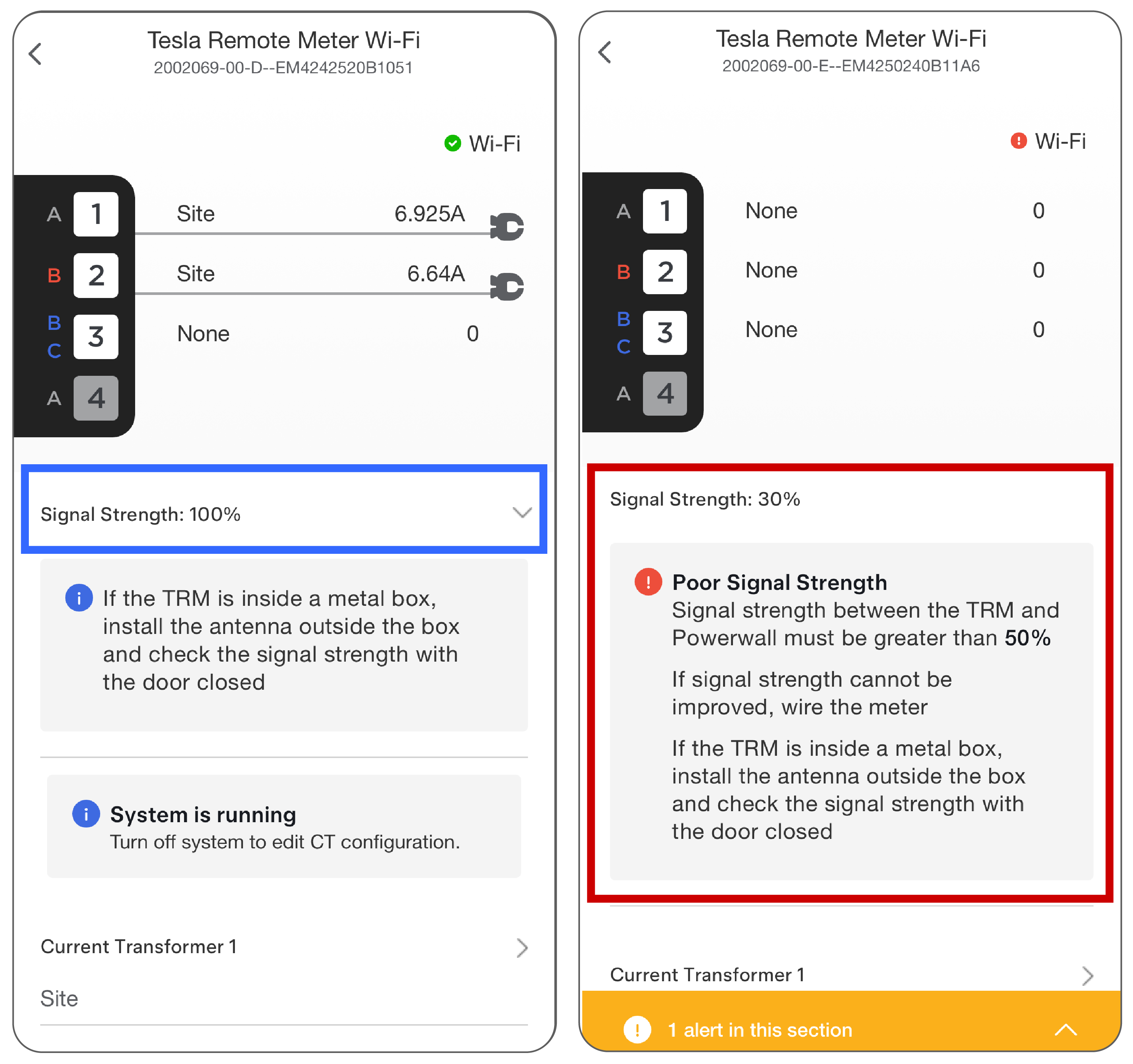

  8. Select Remote Meter and confirm the Signal Strength is at least 50%.
    Informational PurposesAn informational icon, calling your attention
    Note
    If Signal Strength is lower than 50%:
    1. Confirm the meter antenna is extended outside the metal enclosure if it is installed inside the metal enclosure (see section in the Powerwall 3 Installation Manual).
    2. Use a Wi-Fi extender or other method to increase Wi-Fi signal strength.
    3. Connect the Tesla Remote Meter to Powerwall 3 via RS-485 wiring.
    Informational PurposesAn informational icon, calling your attention
    Note
    Tesla One must be updated to version 12.36 or later to view Signal Strength.

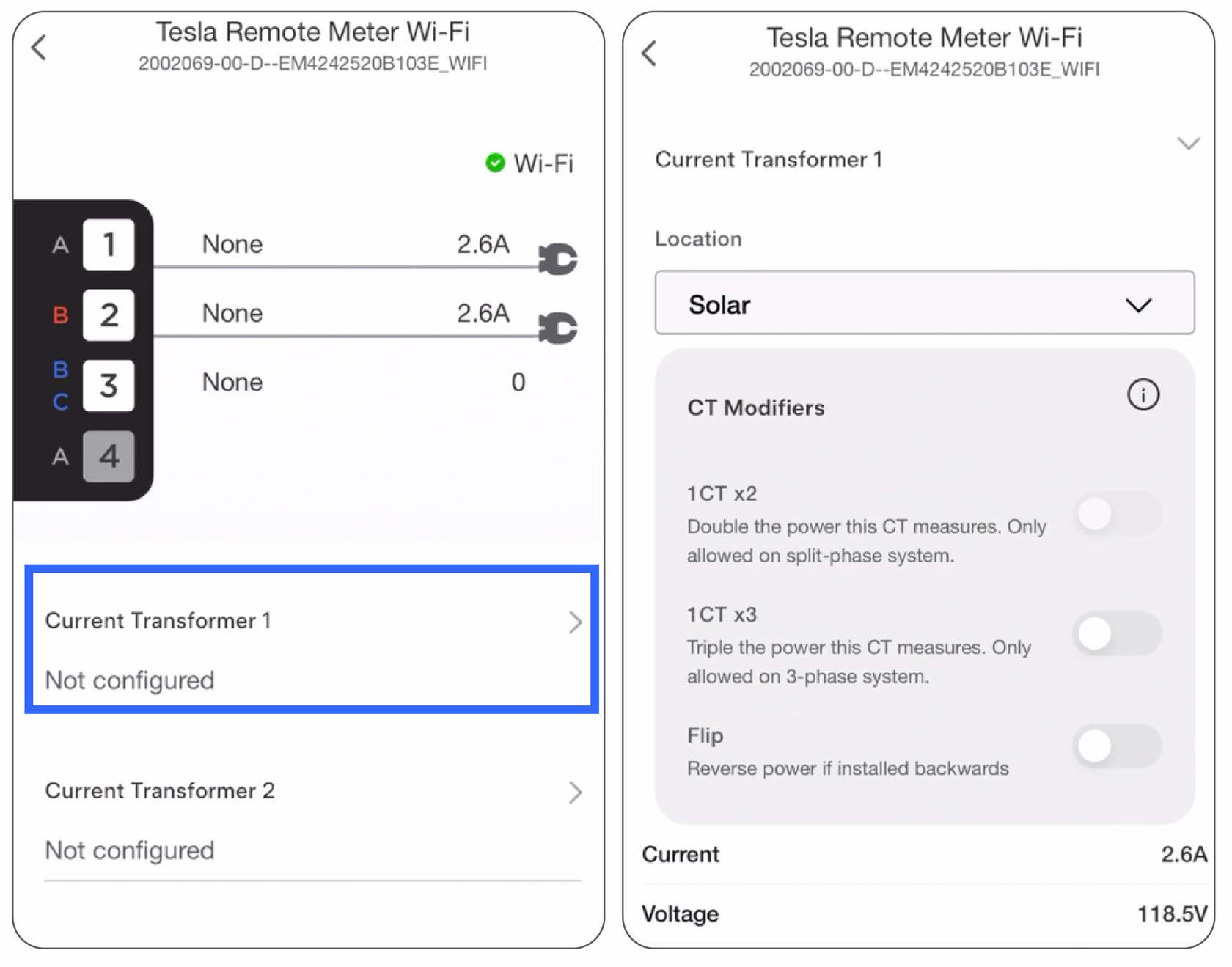

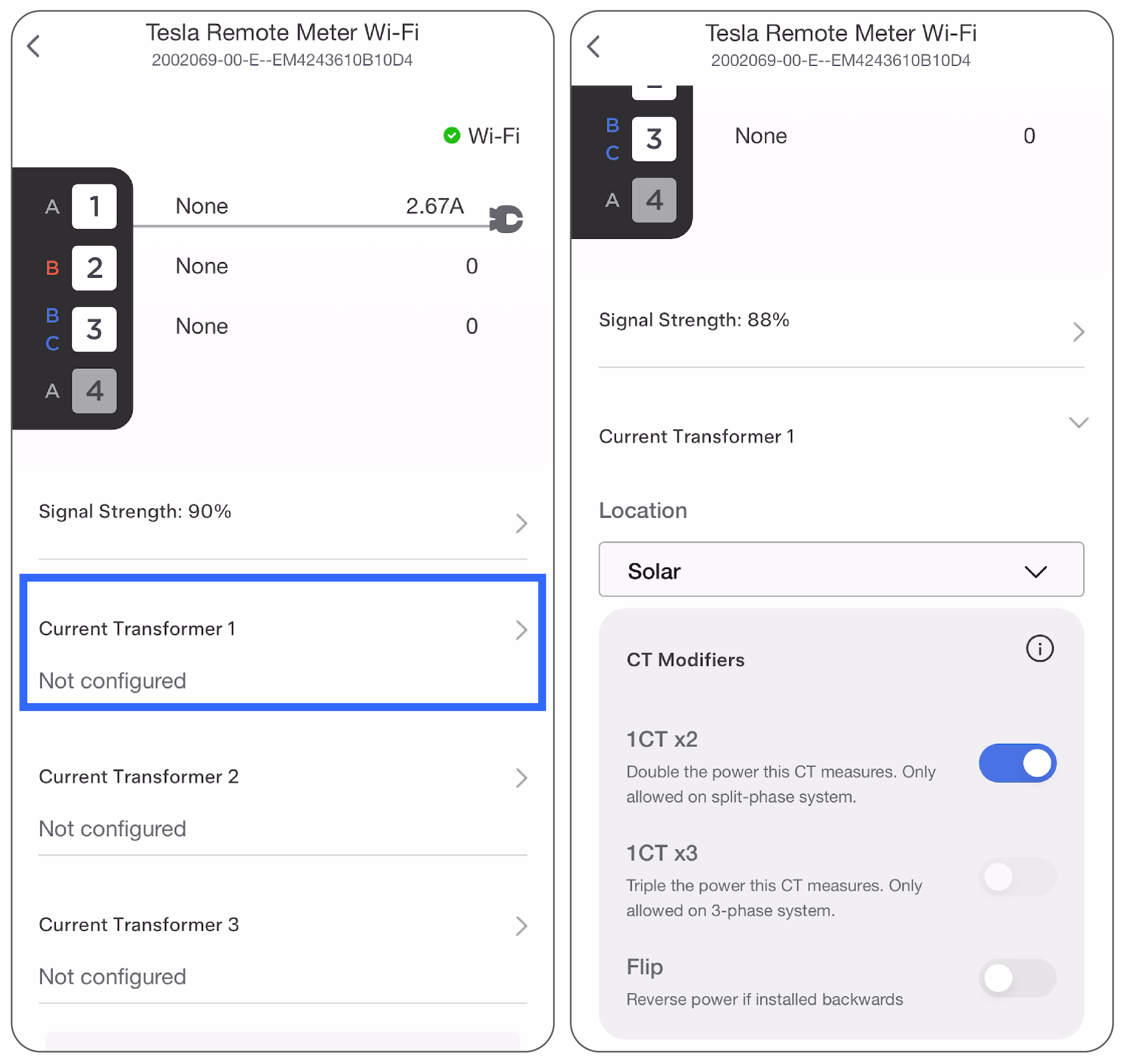

  9. Configure the CT(s) as Site or Solar, depending on what they are measuring.

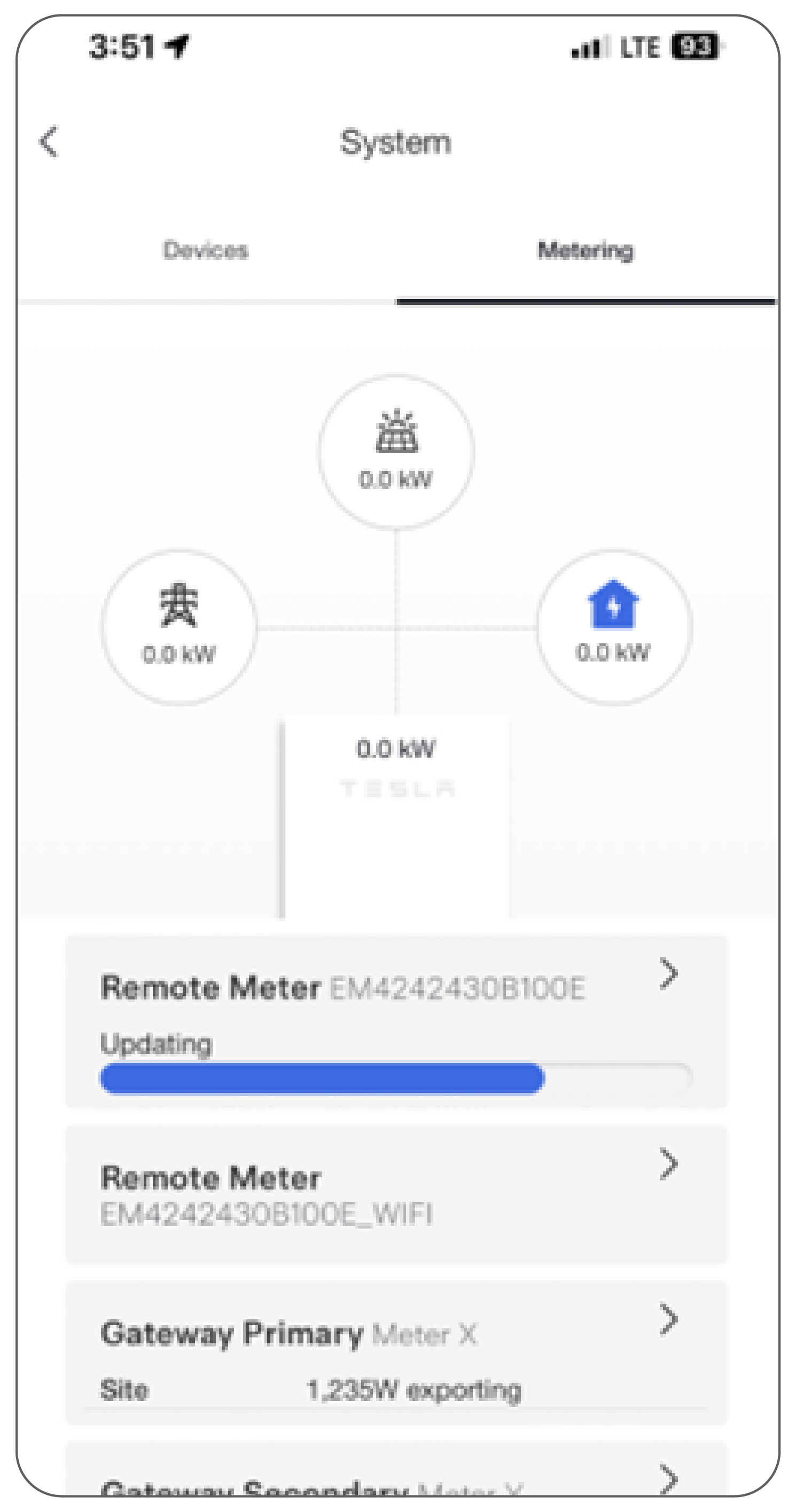

  10. On the landing page, select Start System. The meter may update its firmware, which may take up to 5 minutes (track the meter's update progress by selecting System > Metering tab).

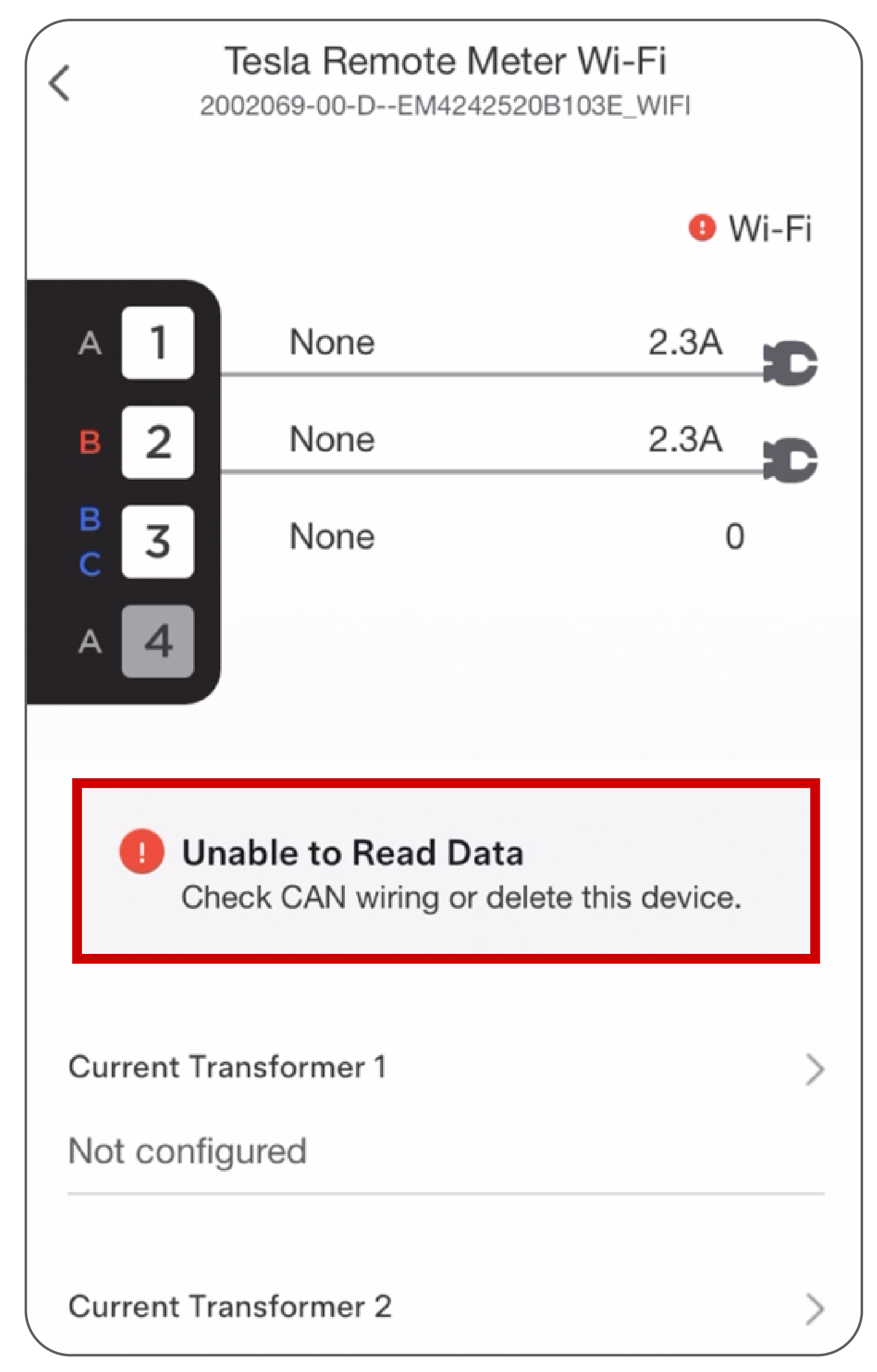

  11. Review the meter vitals to confirm the CT(s) have been installed and configured correctly.
Informational PurposesAn informational icon, calling your attention
Note

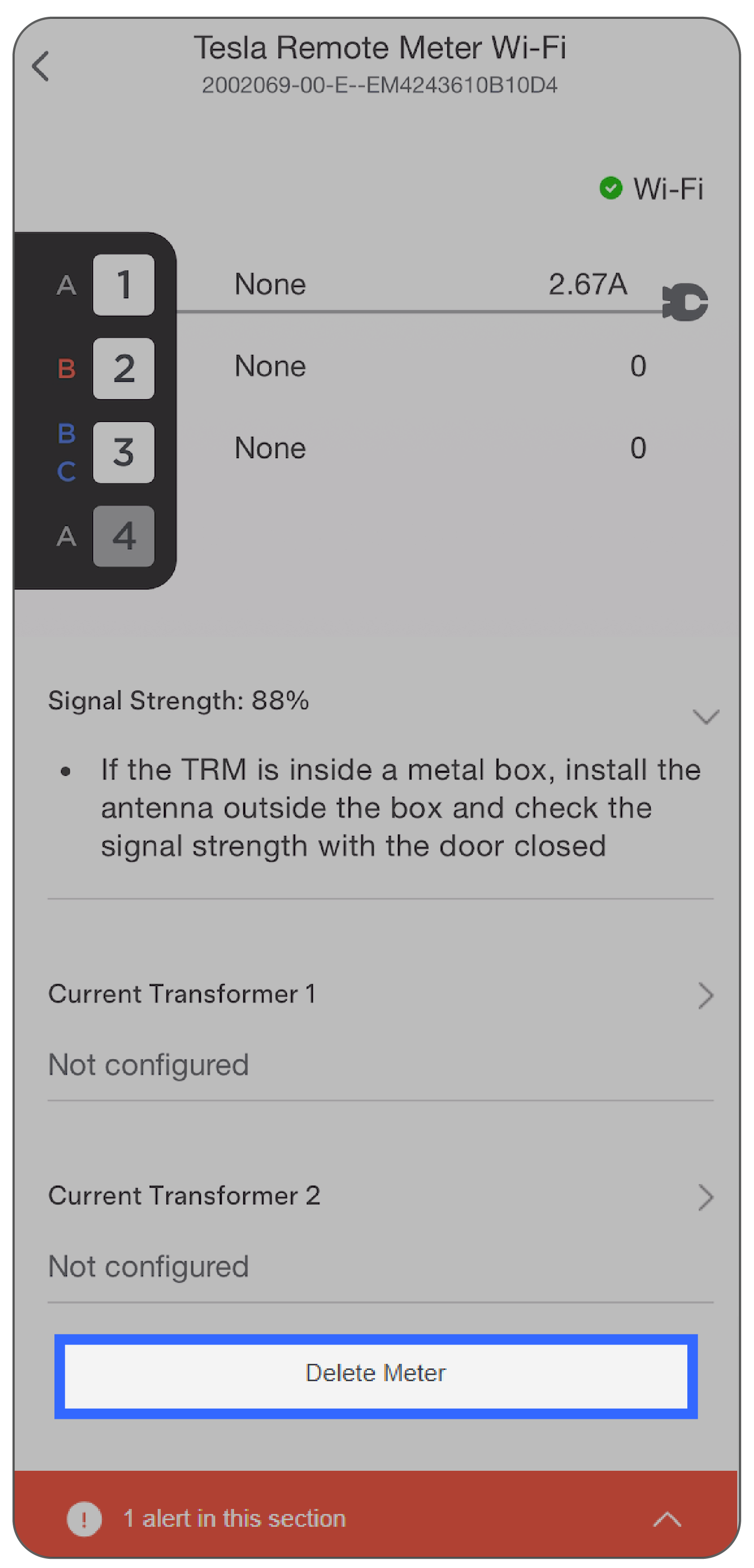

If needed, Tesla Remote Meter can be deleted (unpaired) from Powerwall 3 by selecting Delete Meter from the Meter page in Tesla One. Perform this step before turning off and physically removing the meter.
