Configure Backup Gateway 2 Secondary (Meter Y)

Backup Gateway 2 Meter Y has three CT ports, with the following voltage references:
  • CT 1: L1
  • CT 2: L2
  • CT 3: L3

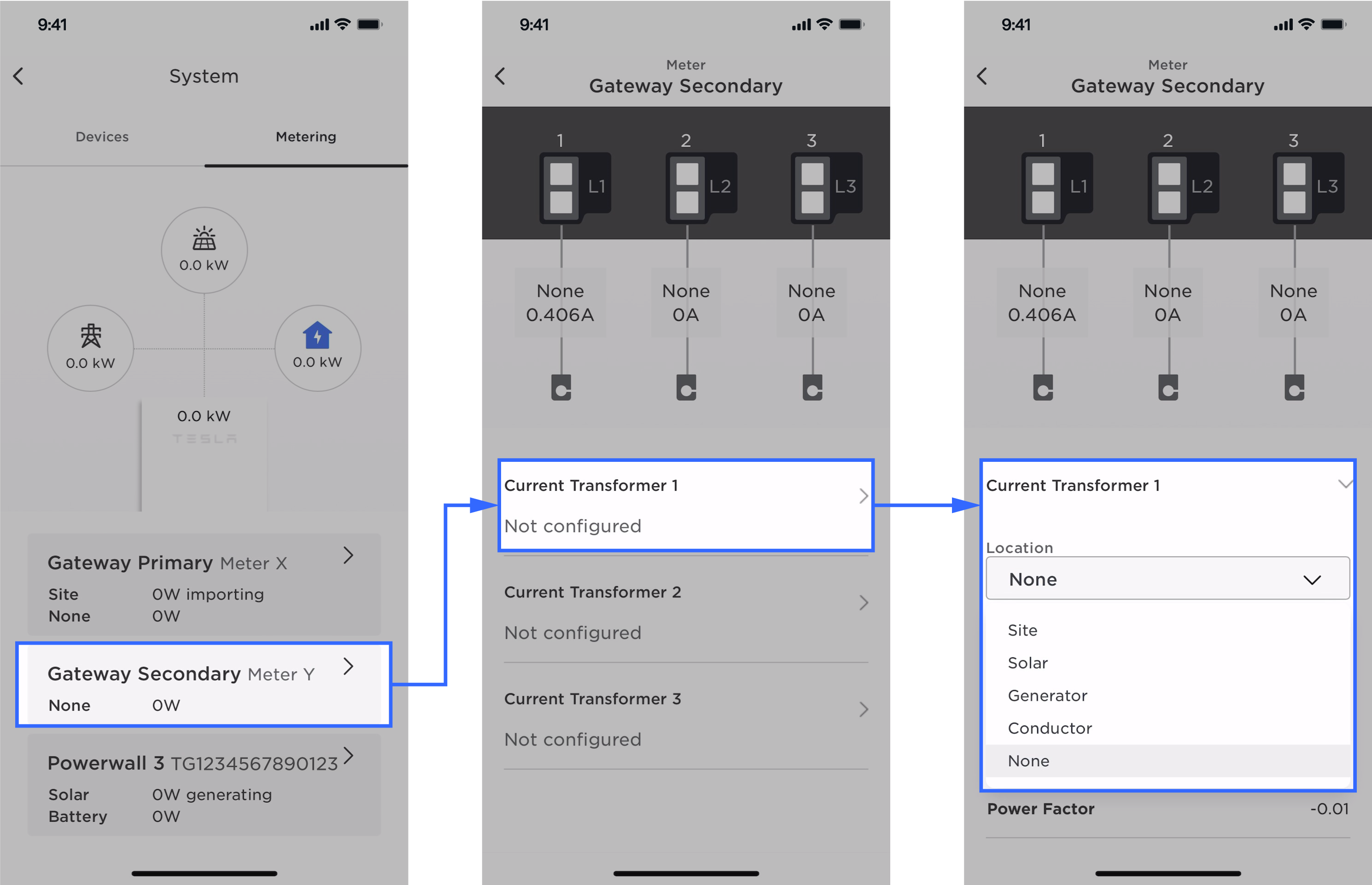

  1. Select Gateway Secondary Meter Y and select what each CT is measuring from the Location dropdown.
    • Site: Select when a CT is installed on the incoming supply conductors to measure Site.
    • Solar: Select when a CT is installed on the Solar conductors.
      Informational PurposesAn informational icon, calling your attention
      Note
      When one CT is installed to measure the solar power from a three-phase solar inverter, toggle 1CTx3 button to the ON position to triple the power measured by the CT. To ensure that the total power output calculated by software is correct, the solar power must be converted by a balanced three-phase solar inverter, which distributes power evenly between the three phases.
    • Generator: Select when a CT is installed on the Generator conductors.
    Informational PurposesAn informational icon, calling your attention
    Note
    If any of the CT readings are inverted and it has been confirmed that they are oriented correctly, toggle Flip button to the ON position to correct the reading.
  2. Review the vitals for each CT (voltage, current, and power factor) to confirm they have been installed and configured correctly.
    Informational PurposesAn informational icon, calling your attention
    Note
    The live power flow and current readings are available for each CT in real time, as well as an overview of all meters and CT settings, in the Metering tab.
