Configure Wired Tesla Remote Meter

  1. Confirm Tesla Remote Meter is powered on (indicated by flashing green LED).
  2. Log in to Tesla One and connect to the Powerwall 3, then confirm the following minimum software versions:
    • Tesla One version version 12.19.1 or later
    • Powerwall software version 24.28.12-rm-5 or later
  3. If the system is running, select Stop System.

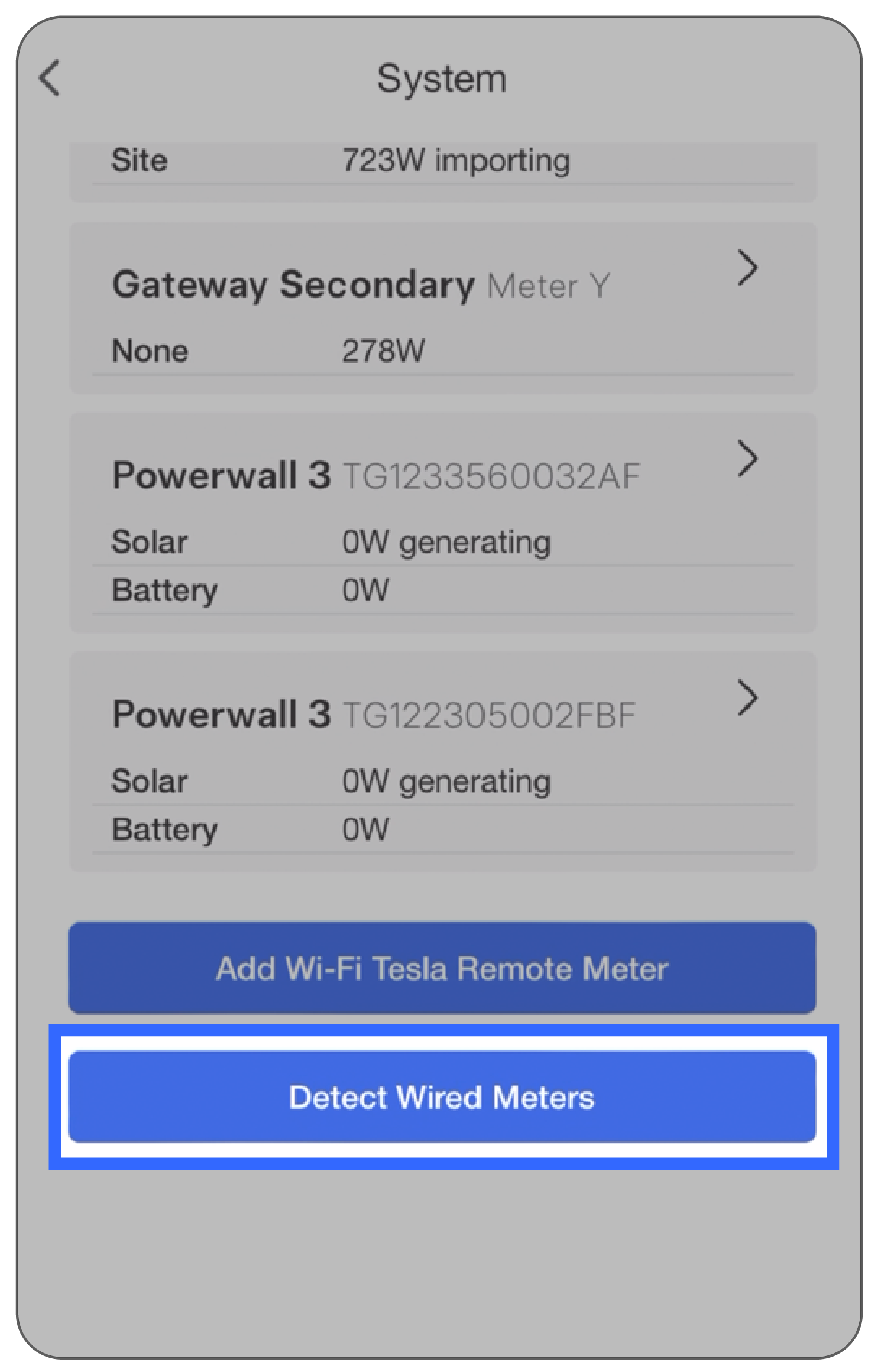

  4. Select System, then select the Metering tab and select Detect Wired Meters. The Tesla Remote Meter should automatically appear.

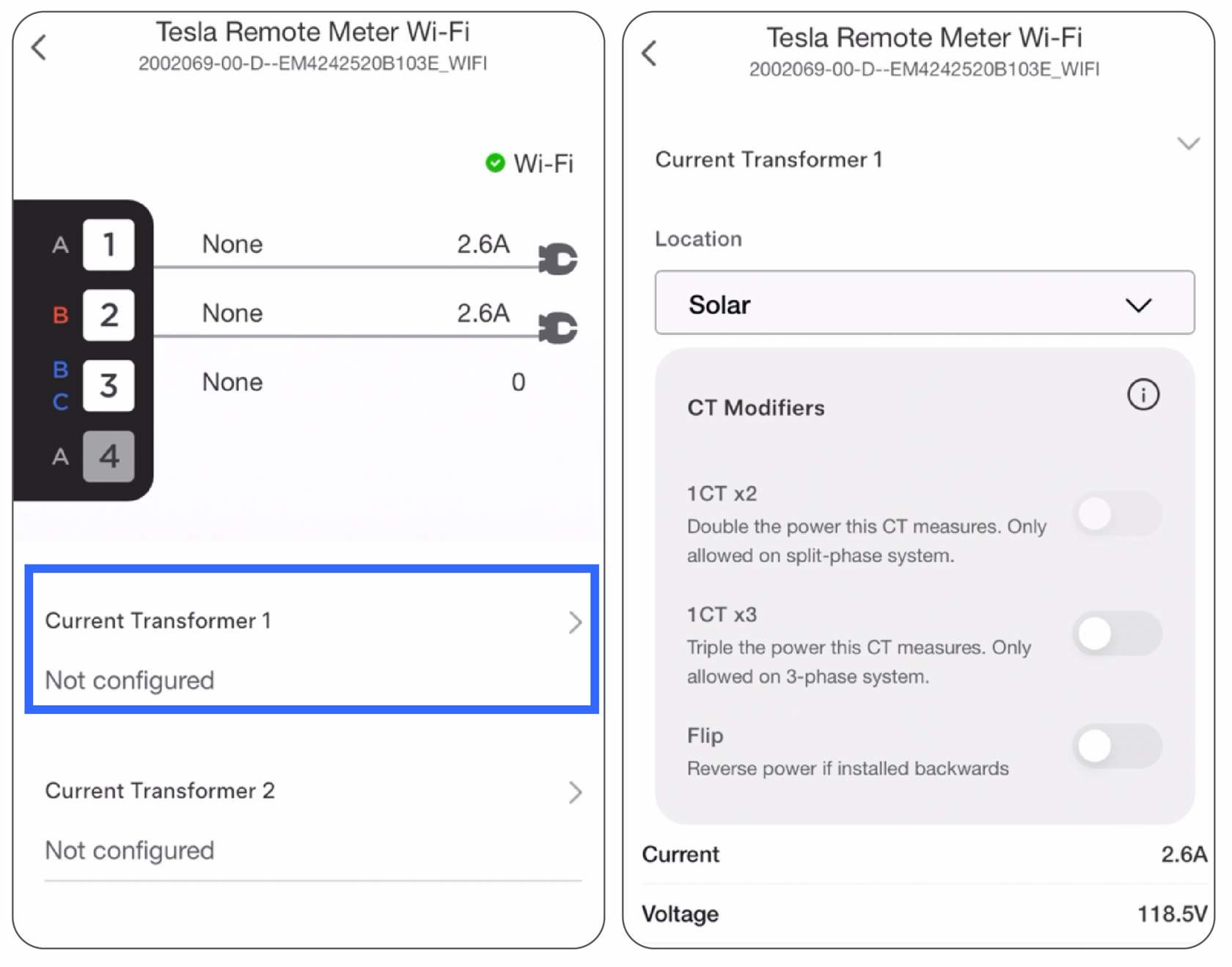

  5. Select Remote Meter and configure the CT(s) as Site or Solar, depending on what they are measuring.
  6. On the landing page, select Start System. The meter may update its firmware, which may take up to 5 minutes (track the meter's update progress by selecting System > Metering tab).
  7. Review the meter vitals to confirm the CT(s) have been installed and configured correctly.
Informational PurposesAn informational icon, calling your attention
Note
If needed, Tesla Remote Meter can be deleted (unpaired) from Powerwall 3 as follows:
  1. Unplug the RS-485 harness from Tesla Remote Meter.

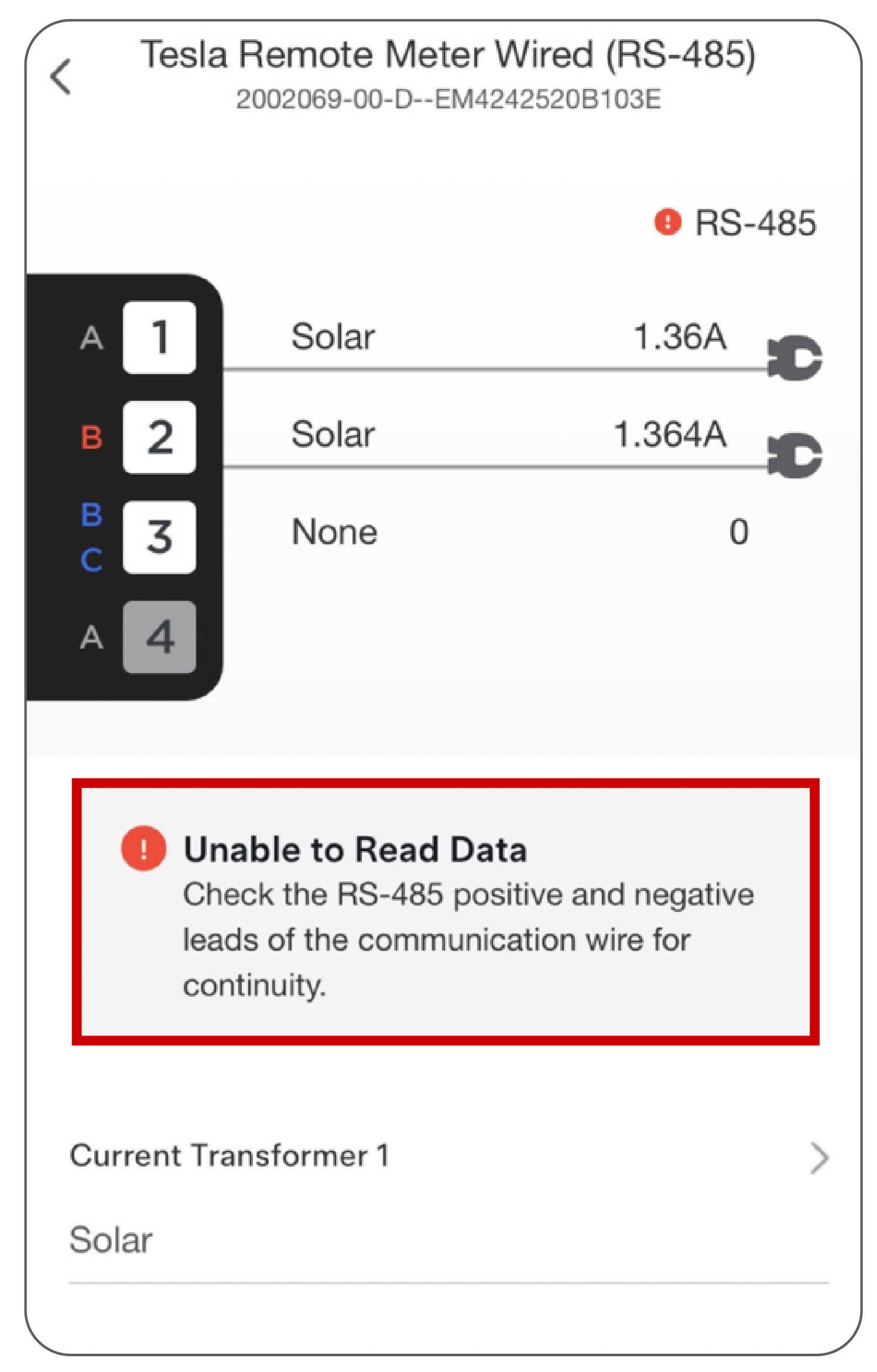

  2. Wait for the Unable to Read Data alert to appear on the Metering page in Tesla One.

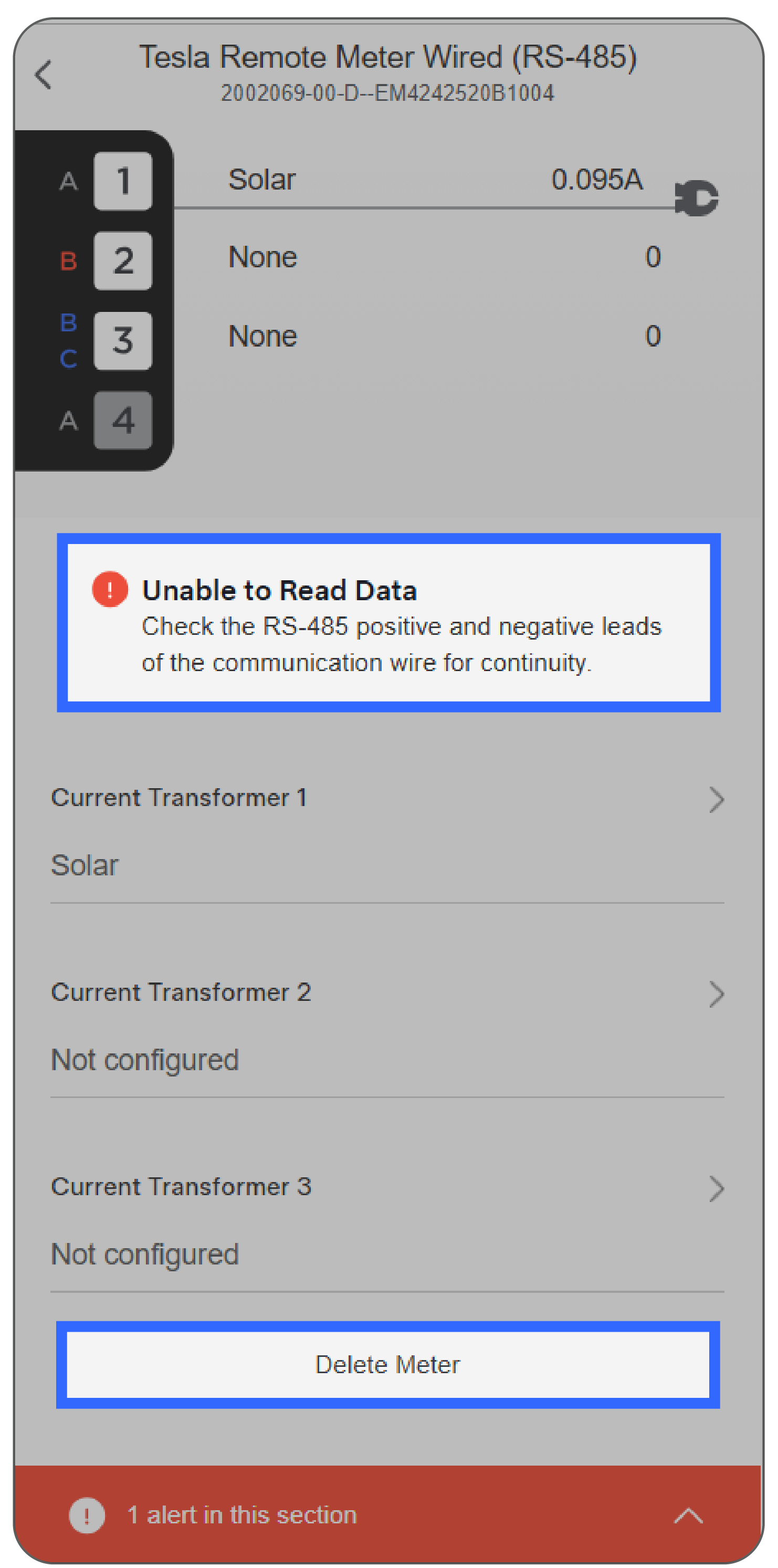

  3. Select Delete Meter.
