Product Specifications
This manual applies to Wall Connectors identified by part number 1529455-**-*.
| Nominal Voltage and Wiring (Service Type) |
Single phase configuration 1-phase 230 V L-N  |

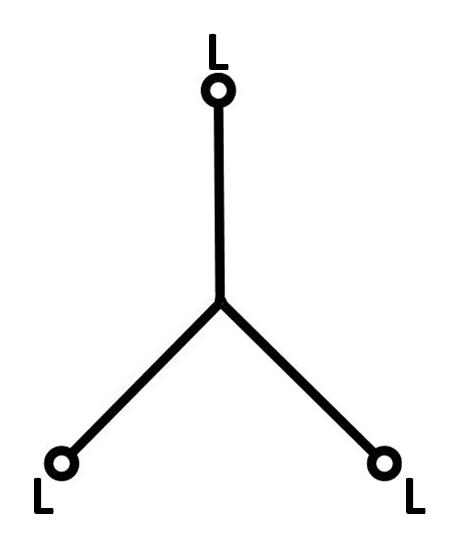

Wye transformer configuration 3-phase 400 V L-L  |

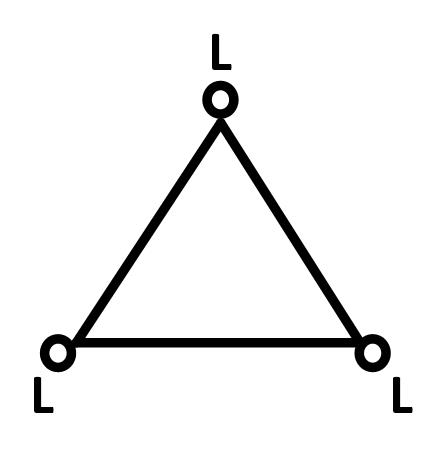

Delta configuration 3-phase 230 V L-L  |
| Nominal Current and Current Range Imin – Inominal(Imax) |
1-20(32) A (adjustable by installer) | ||
| Terminal Blocks | Stranded: 4-25 mm2, copper
only Solid: 1.5-20 mm2, copper only |
||
| Supported Earthing Scheme | TN/TT/IT | ||
| Nominal Frequency | 50/60 Hz | ||
| Cable Length | 7.3 m (24 ft) | ||
| Wall Connector Dimensions | Height: 345 mm (13.6
in) Width: 155 mm (6.1 in) Depth: 110 mm (4.3 in) |
||
| Wire Box Bracket Dimensions | Height: 250 mm (9.8 in)
Width: 120 mm (4.7 in) Depth: 50 mm (2.0 in) |
||
| Weight (including wirebox) | 6.8 kg (15 lb) | ||
| Operating Temperature | -30˚C to 50˚C (-22˚F to 122˚F) | ||
| Storage Temperature | -40˚C to 85˚C (-40˚F to 185˚F) | ||
| Location | Non-restricted access | ||
| Withstand Current Ratings ( Ipk, Icw & Icc) | 10kA | ||
| Enclosure Rating | IP 55 | ||
| Pollution degree | 3 | ||
| EMC Classification | Environment A & B | ||
| Mechanical Protection | IK08 | ||
| Ventilation | Not required | ||
| Means of Disconnect | External branch circuit breaker | ||
| Residual Current Detection | Integrated (Type A + DC 6 mA) | ||
| Wi-Fi | 2.4 GHz, 802.11b/g/n | ||
| Maximum RF power | |||
| RFID | 13.56 MHz | ERP: 0.0166 mW | |
| UHF | 433.92 MHz | ERP: 0.00353 mW | |
| 2.4GHz Wi-Fi | 2412-2472 MHz | EIRP: 95.5 mW | |
| BLE | 2402-2480 MHz | EIRP: 1.84 mW | |
| Certifications | CE, IEC 61851-1 CB | ||
