Power Supply Options

For basic operation, Wall Connector requires an electrical connection to Line 1, Neutral, and Protective Earth (PE) terminals. Connection to Line 2 and Line 3 terminals is supported for some grid types.

CAUTION

Wall Connector supports 230 V L-N (+/- 10%). Mis-wiring the neutral terminal with >264V to PE can damage Wall connector

Wall Connector can operate on a three-phase power supply or a single-phase power supply.

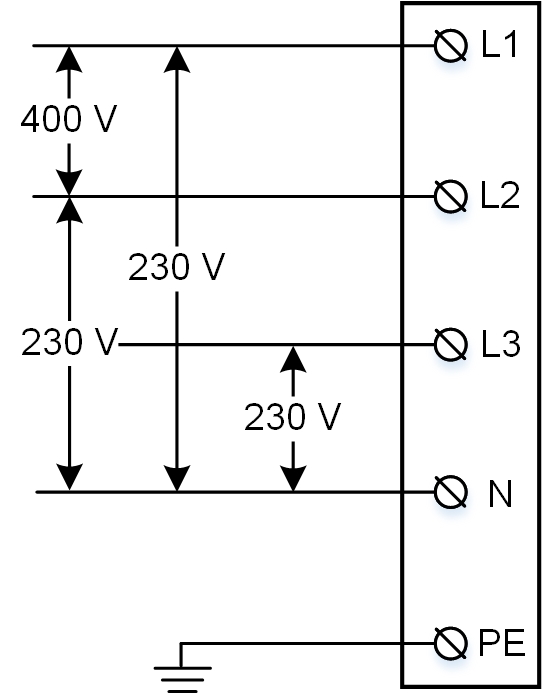

Table 1. Most Common Installation Option

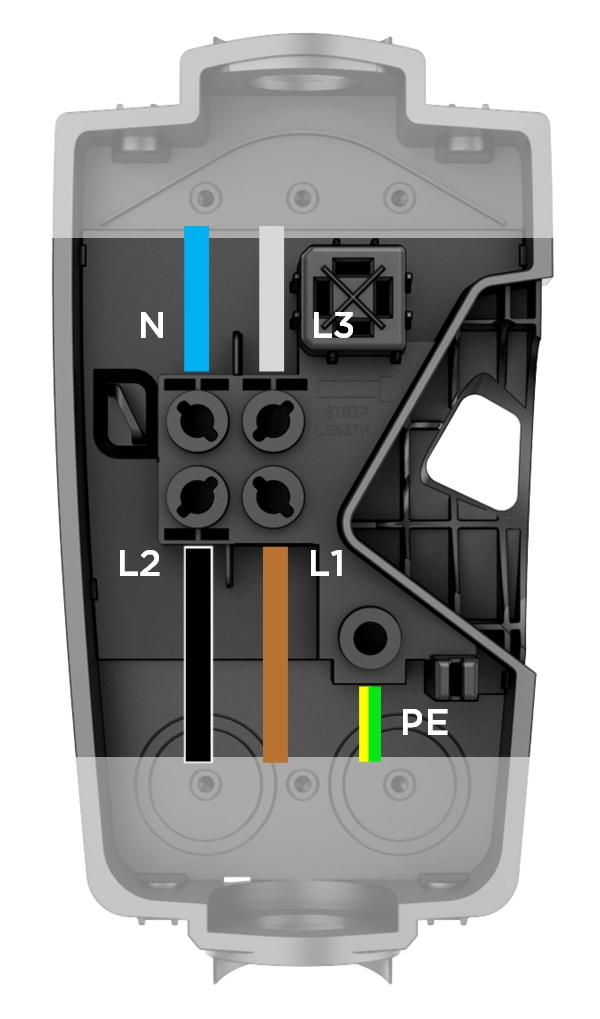

Wiring Configuration Option for Five Wires: Line 1, Line 2, Line 3, Neutral, PE
		Grid type options: 400 V 3-phase Wye CAUTION Double check N connection is 230 V L to N at terminals of wirebox before energizing.

Note

Blue is used as the IEC standard for neutral. Some markets may use other colors to symbolize neutral and line conductors.

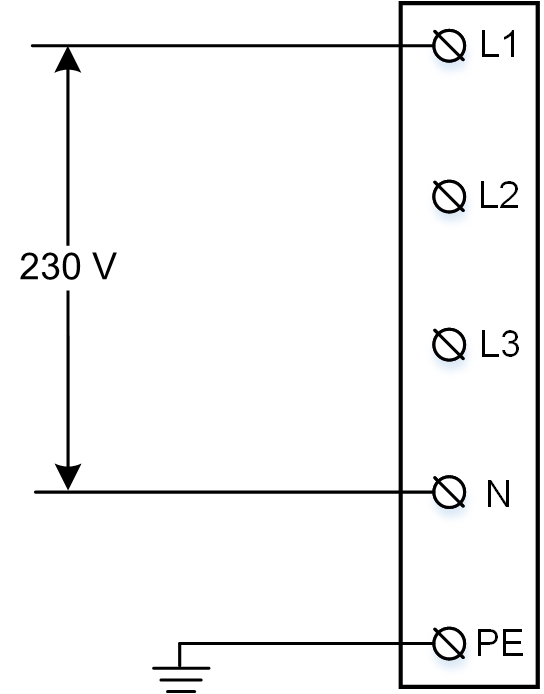

Table 2. 2nd Most Common Installation Option

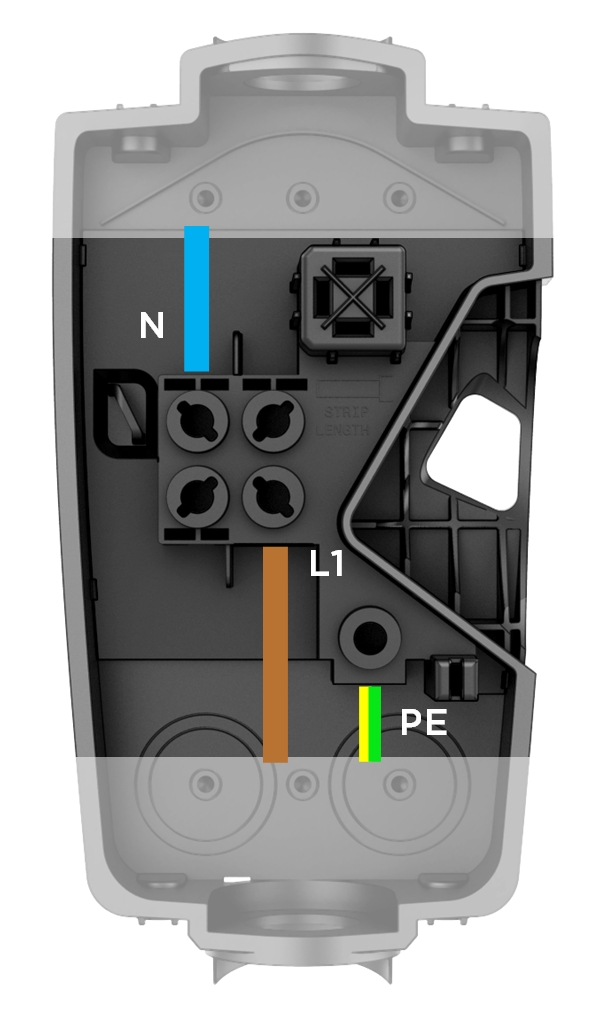

Wiring Configuration Option for Three Wires: Line 1, Neutral, PE
		Grid type options: 230 V Line to Neutral CAUTION Double check N connection is 230 V L to N at terminals of wirebox before energizing.

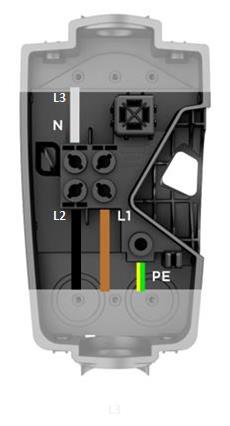

Table 3. 230V 3-phase Delta Configuration
Wiring Configuration Option for Four Wires: Line 1, Line 2, Line 3, PE
*When connecting to a 230 V Delta no neutral grid, land the L3 in the neutral terminal of the wirebox.		Grid type options: Delta 230 V Line to Line Note When wired in this configuration, the Wall Connector allows charging of only Tesla vehicles. If this configuration is unsuitable, wire the unit as a single-phase configuration. Be advised, phase sequence is irrelevant. CAUTION Verify voltage measurements are 230 V L-L between all three.
