Pull excess wire first, then cut to length. Use a wire stripper to cut each
conductor wire appropriately based on entry point and position. Attach the
conduit/fittings and route each conductor wire into the wirebox so it lands in the
correct terminal.
Note
Insulation wire
colors may vary based on market.

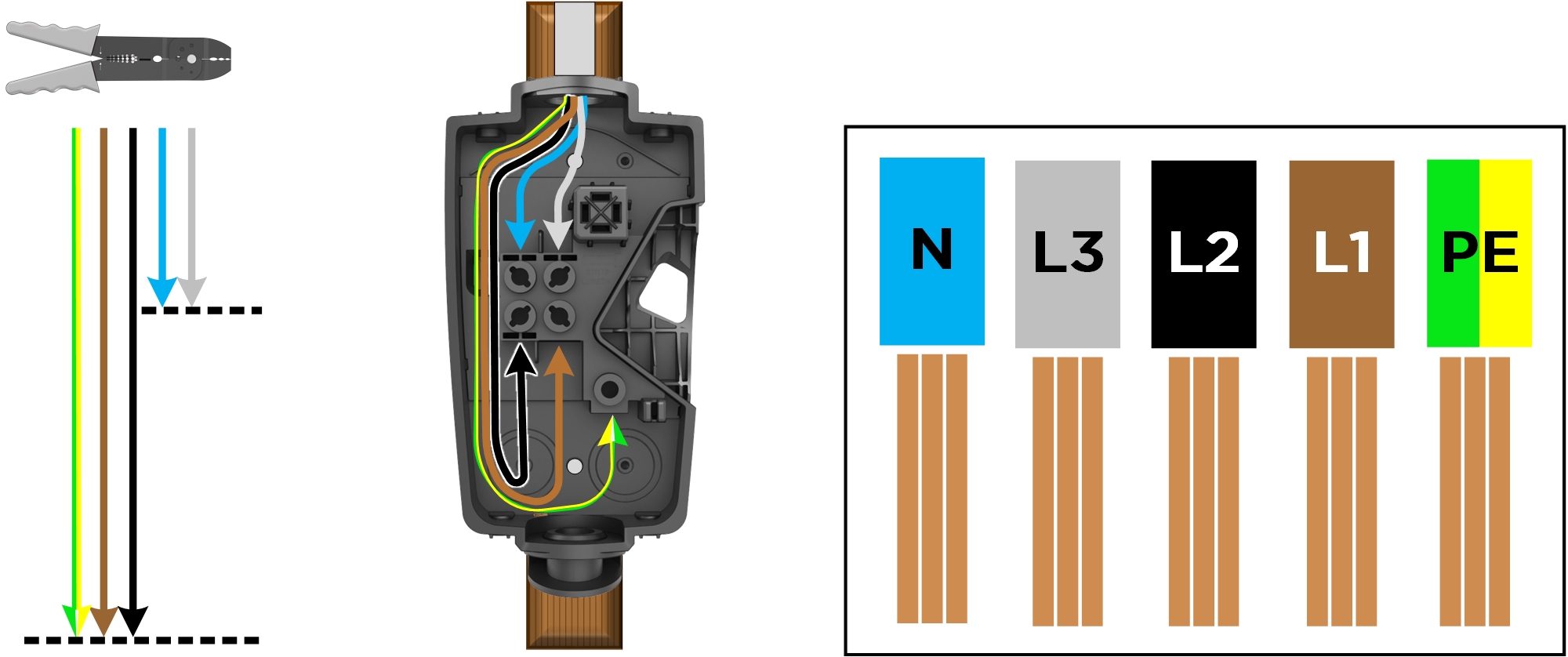

For Top Wire Entry
Wire
lengths/proportions shown are not to scale.

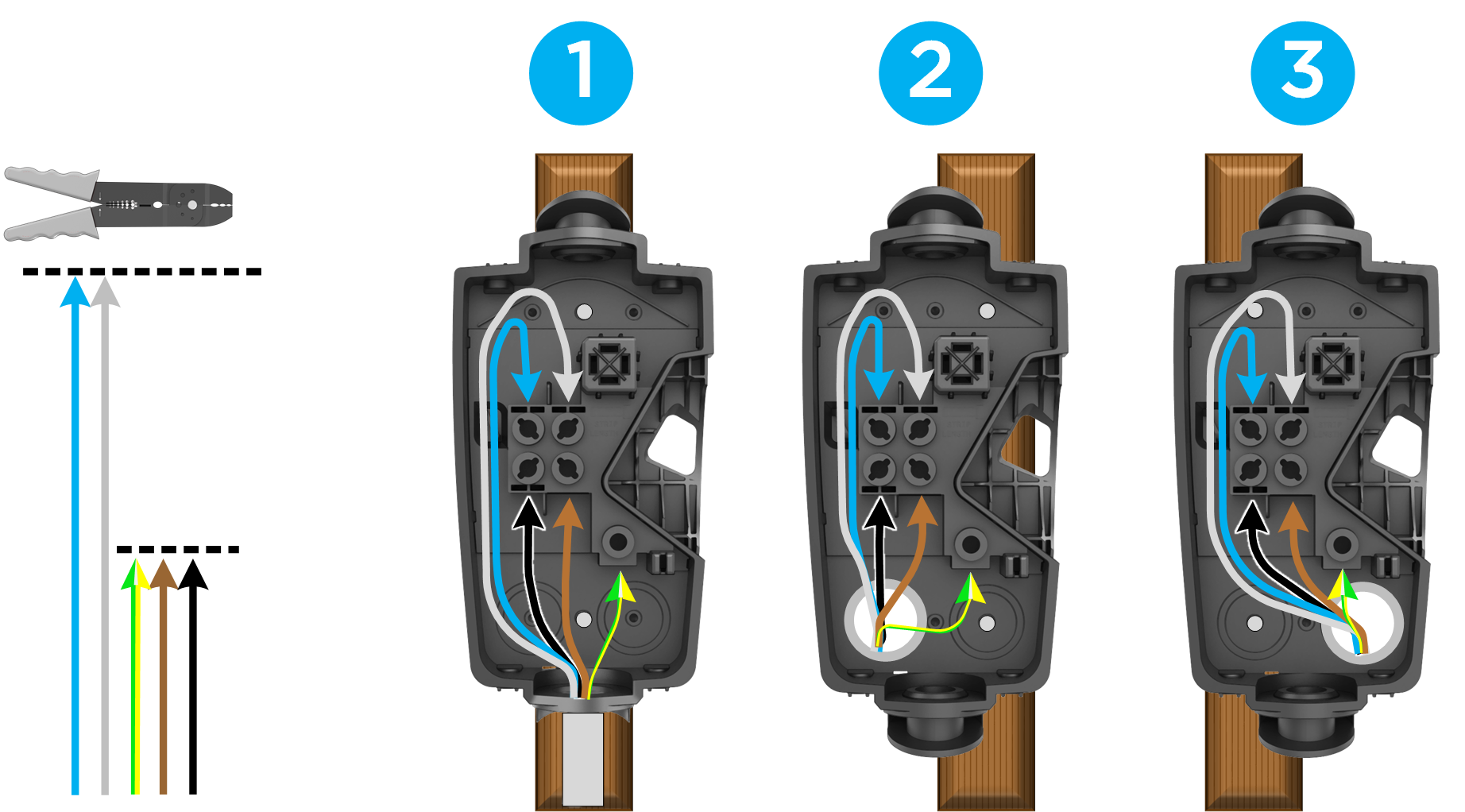

For Bottom (1), Rear Left
(2), or Rear Right (3) Wire Entry
