STEP 5: Stripping and Securing Wires in Wirebox Terminals

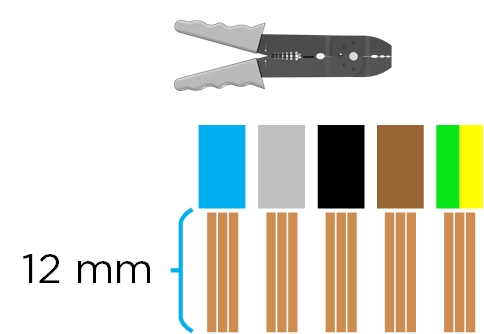

  1. Use a wire stripper to strip the ends of each wire to ~12 mm.
  2. Insert each stripped wire into the correct terminal.
    Informational PurposesAn informational icon, calling your attention
    Note
    If using stranded wiring smaller than 4 mm2, use a correctly sized ferrule so it can be securely terminated.

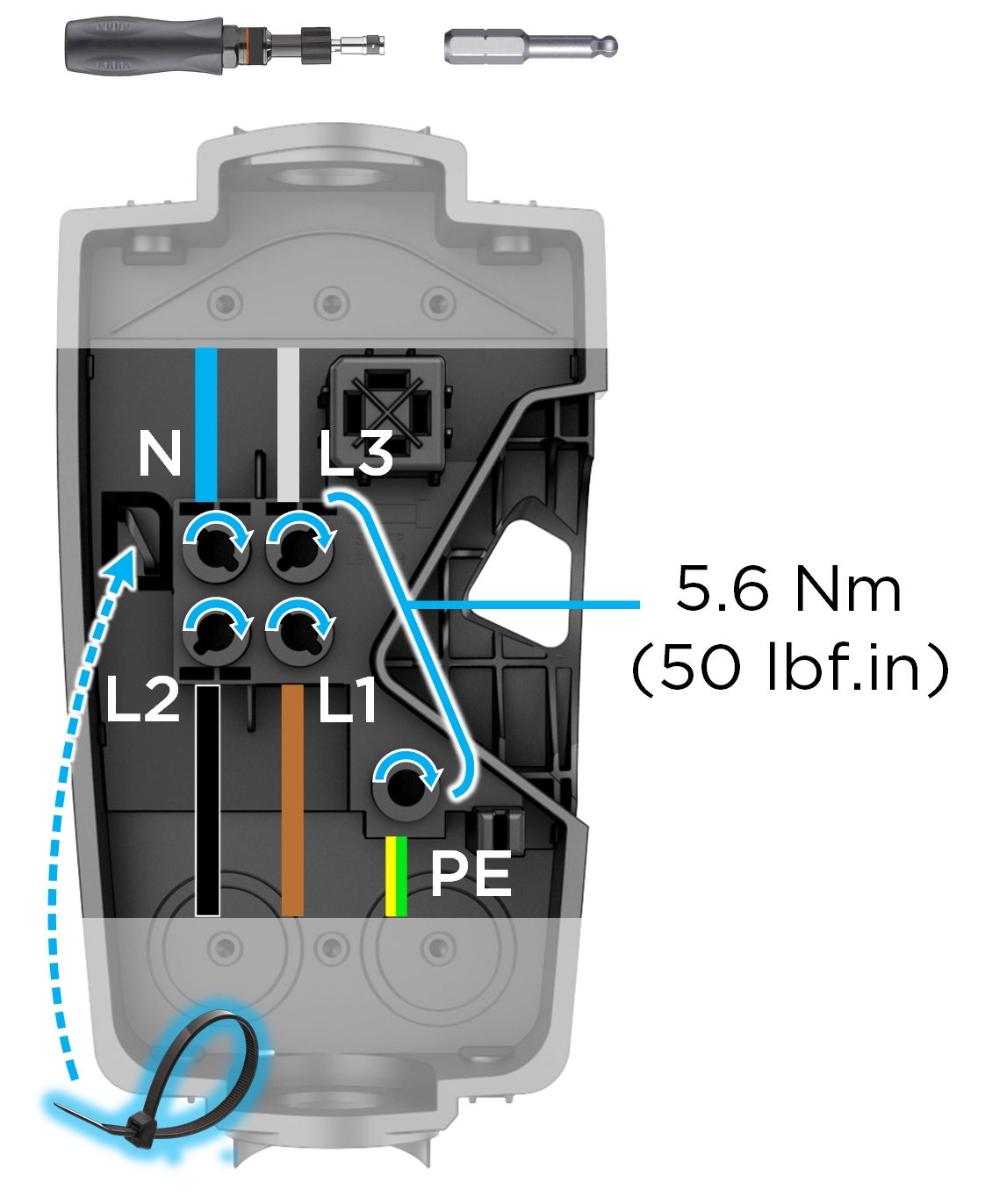

  3. Use the included bit to torque each terminal to 5.6 Nm (50 lbf.in). Use zip ties to secure wires to service loop on the left side of the wirebox.
  4. Use scissors to cut excess plastic off zip tie after securing in place. Ensure no wiring or other obstruction crosses over the terminal block screws before proceeding to the next step.
