Group Power Management circuits may be installed in an electrical panel that supports other loads. If space is limited or the main power supply is far from the Wall Connectors, installing a dedicated load center or single branch circuit may be prudent.

See below for examples of Wall Connector group power management diagrams (one with sub-panel and one without). Each individual Wall Connector in below examples is capable of providing 32 amps when it is the only one in use. As more Wall Connectors begin plugging into vehicles, the system will automatically distribute power based on the total power allocated to the site.

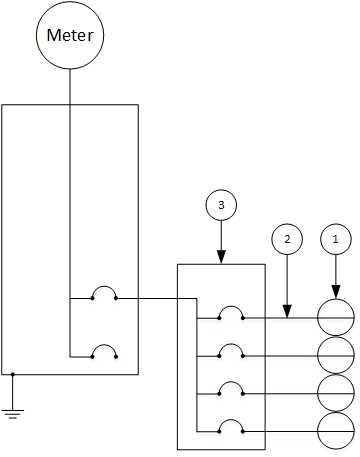

Group Power Management Setup with Sub-Panel

1. Wall Connector
2. 60 A branch circuit
3. 100 A sub-panel / feeder breaker

Group Power Management Setup Without Sub-Panel

1. Wall Connector
2. 60 A branch circuit
