Light Codes
Startup
Once energized at the circuit breaker, every LED (seven total) on the faceplate will illuminate for up to five seconds.
Other
| After startup, waiting for commissioning | Standby, waiting to plug in | Charging in progress | SSID broadcasting, ready to commission | Waiting to charge, communicating with vehicle |
|---|---|---|---|---|

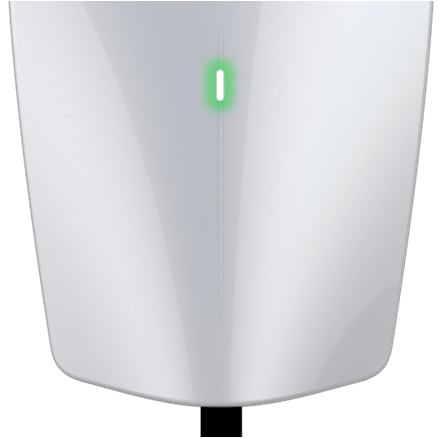

| Solid yellow (green + red) | Top green solid | Every green streaming | Green pulsing | Blue solid |
|
|
|
|
|
Note
If a red dot is displayed, connect to Wall
Connector Commissioning or see next table for all error codes.
