Powerwall 3 Removal Procedure (with PW3 Dolly)

Part numbers: Powerwall 3 Dolly - 1856187-00
Work type: Removal
Required tools:
  • T20 Torx driver
  • Drill
  • ¾" or 19 mm socket
  • Nitrile gloves
  • Powerwall 3 crate
  • Powerwall 3 dolly

  1. Follow the steps outlined in De-energizing Powerwall 3 to prepare Powerwall for removal.
  2. Set the speed on the drill to 1 (low speed, high torque) and set the clutch to the highest position before the drill icon. Equip a ¾" or 19 mm socket on the drill.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not use an impact driver.

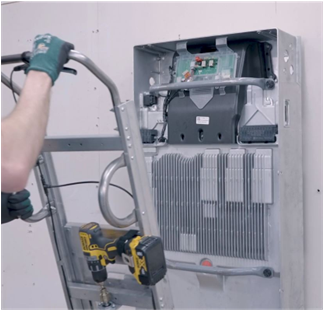

  3. Attach the drill to the acme screw on the Powerwall 3 dolly and fasten with the Velcro strap.

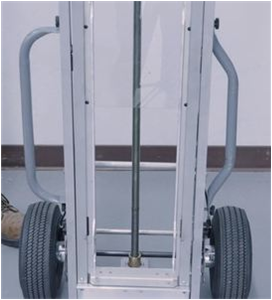

  4. Make sure the lifting plate is at the lowest position
  5. Lift the locking plate, and release. Ensure that the locking plate does not stick in the raised position, and bounces back to the lower, resting position.

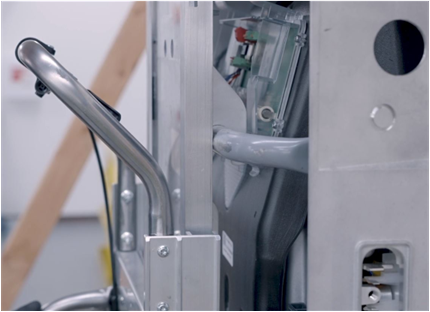

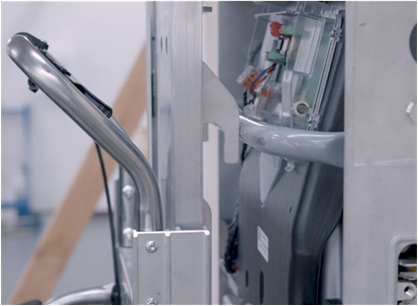

  6. Remove the two lifting handles from the dolly and install them to the four mounting points on Powerwall.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure to install the rounded handle on the top of Powerwall, and angled handle on the bottom of Powerwall.
  7. Move the dolly to in front of Powerwall.

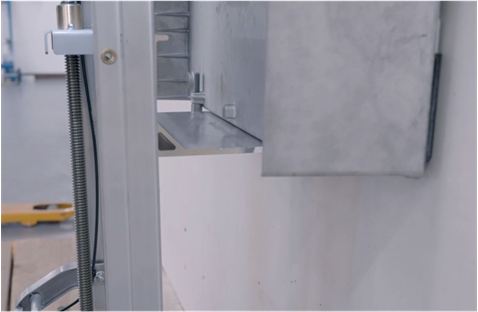

  8. Raise the lifting plate to match the Powerwall height.

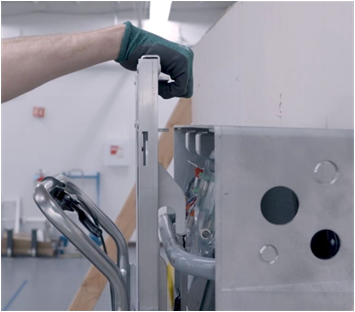

  9. Pull the locking plate to engage the dolly onto Powerwall.

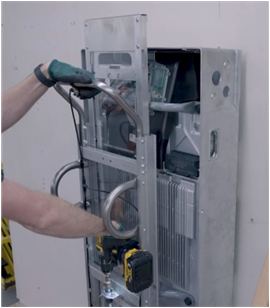

  10. Raise the base plate to disengage Powerwall from the mounting bracket.

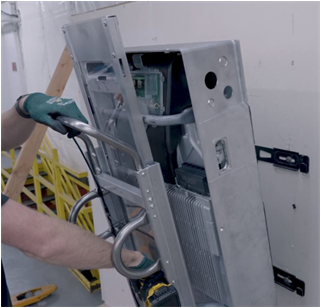

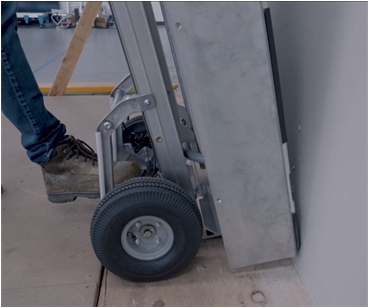

  11. Hold the brake and tilt back the dolly to fully dismount Powerwall from the mounting bracket.

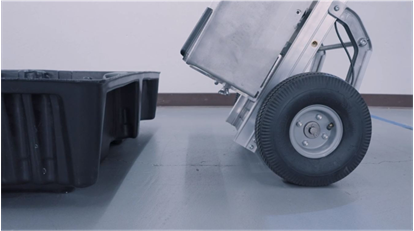

  12. Drop the base plate to the lowest position.
  13. Move the dolly and Powerwall to the packaging.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use the handbrake on the top handle, if necessary.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Always put the base plate in the lowest position when moving the dolly with Powerwall attached.

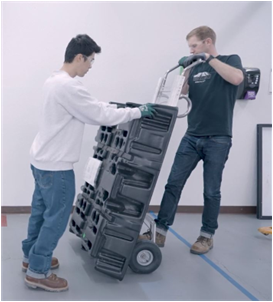

  14. Raise the base plate so that Powerwall matches the packaging height.

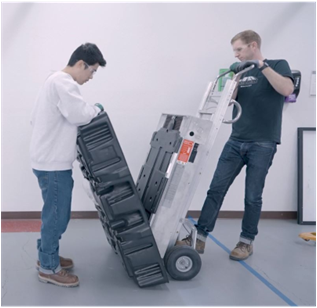

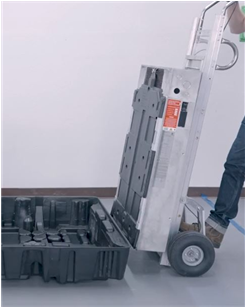

  15. With a second operator, attach the crate to Powerwall.

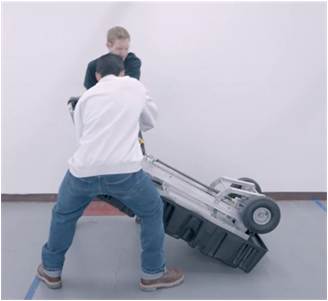

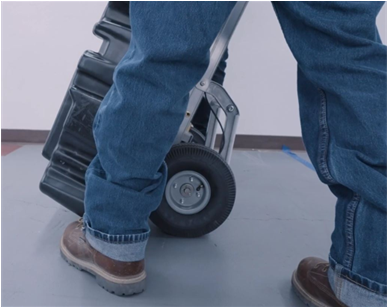

  16. With one foot stepping the bottom of the packaging as a pivot and each operator holding crate and dolly handle on each side, slowly bring packaging with Powerwall down to the ground.

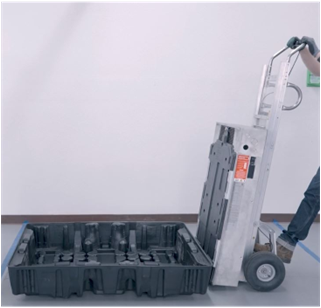

  17. Pull the locking plate to unlock the dolly from Powerwall.
  18. Remove the dolly from Powerwall.
  19. Remove the two lifting handles from Powerwall and install them back onto the dolly.
