Powerwall 3 Mounting Procedure (with PW3 Dolly)

Part numbers: Powerwall 3 Dolly - 1856187-00
Work type: Installation
Required tools:
  • T20 Torx driver
  • Drill
  • ¾" or 19 mm socket
  • Nitrile gloves
  • Powerwall 3 dolly

  1. Set the speed on the drill to 1 (low speed, high torque) and set the clutch to the highest position before the drill icon. Equip a ¾" or 19 mm socket on the drill.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not use an impact driver.

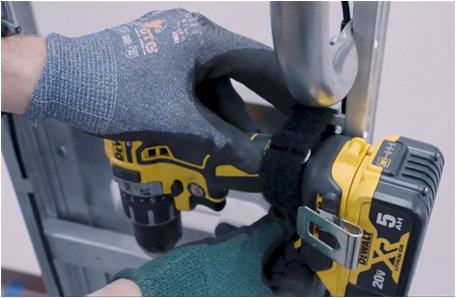

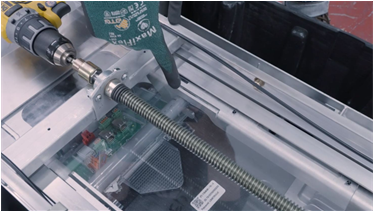

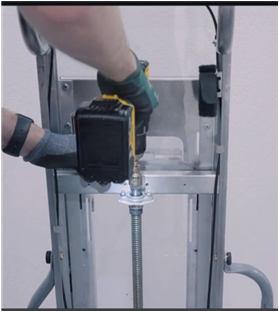

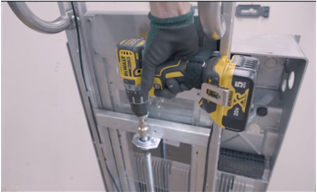

  2. Attach the drill to the acme screw on the Powerwall 3 dolly and fasten with the Velcro strap.

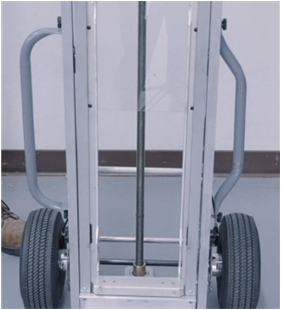

  3. Make sure the base plate is at the lowest position

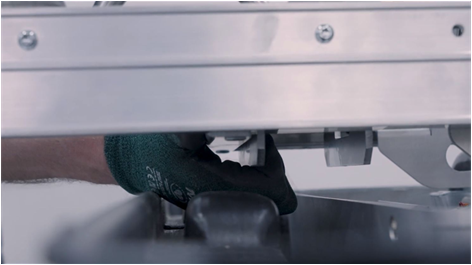

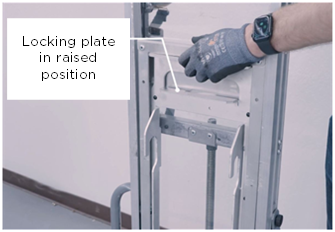

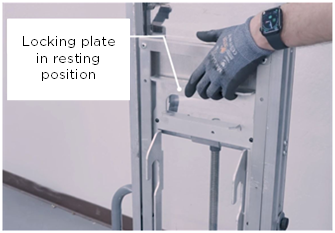

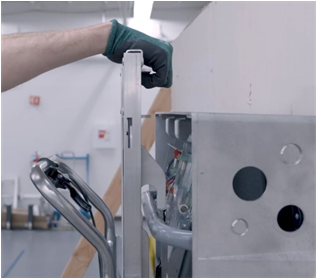

  4. Lift the locking plate, and release. Ensure that the locking plate does not stick in the raised position, and bounces back to the lower, resting position.

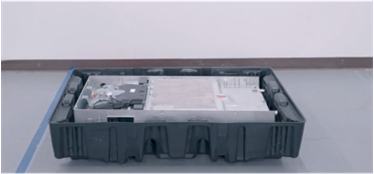

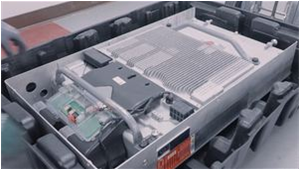

  5. Place Powerwall 3 crate on the floor and open the crate with Powerwall 3 facing up.

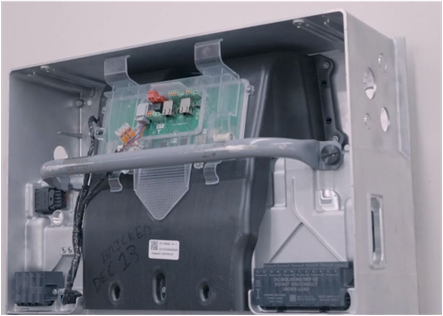

  6. Remove the two lifting handles from the dolly and install them to the four mounting points on Powerwall.
    Informational PurposesAn informational icon, calling your attention
    Note

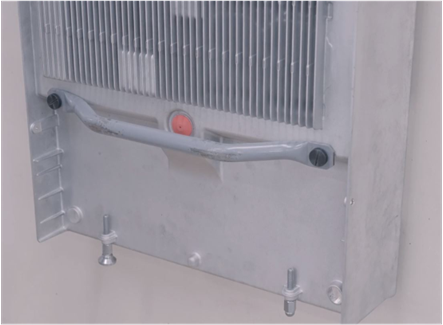

    Make sure to install the rounded handle on the top of Powerwall, and angled handle on the bottom of Powerwall.

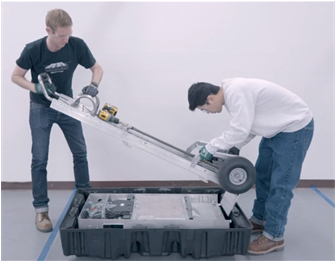

  7. Lift the dolly with one operator holding the top handle and the other operator holding the bottom. Then attach the dolly to Powerwall by inserting the base plate between the bottom of Powerwall and the packaging.

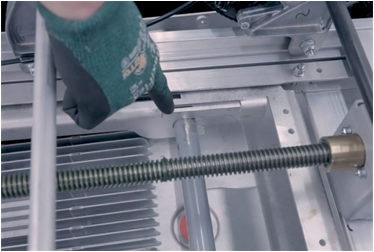

  8. Lift the locking plate to engage the dolly to the lifting handles on Powerwall, then release.
    Informational PurposesAn informational icon, calling your attention
    Note

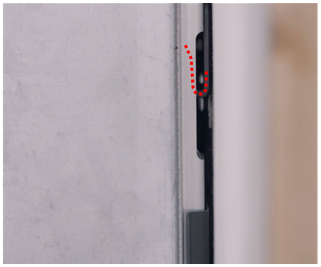

    Look through the dolly to make sure both lifting handles are secured to the dolly.

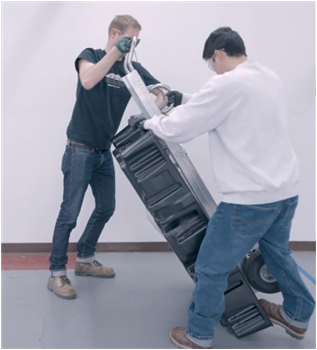

  9. Stand up the dolly and Powerwall, with one foot planted at the bottom of the packaging as a pivot, and each operator holding packaging and dolly handle on each side.
  10. Remove the packaging from Powerwall with the other operator holding the dolly.

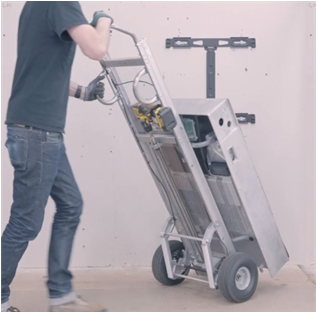

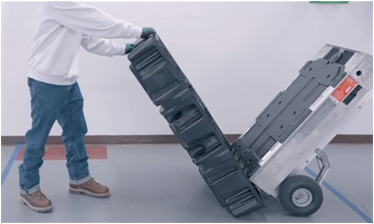

  11. Move the dolly with Powerwall to the mounting location.
    Informational PurposesAn informational icon, calling your attention
    Note

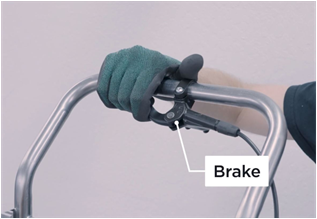

    Use the brake on top handle if necessary.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Always put lifting plate in the lowest position when moving the dolly with Powerwall attached.

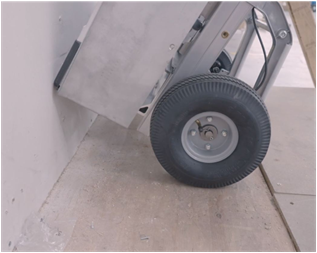

  12. Move Powerwall toward the mounting wall, until Powerwall touches the wall gently. Then, straighten up the dolly.

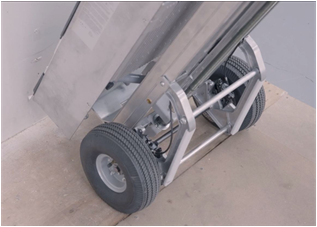

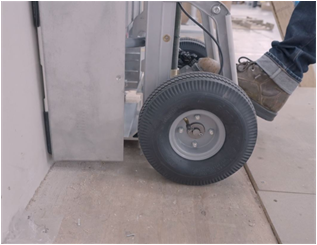

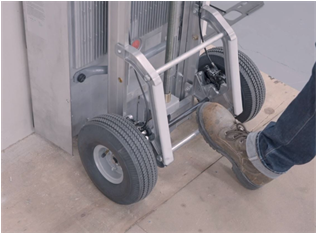

  13. Hold the brake, step on the bottom rail as a pivot, and tilt back the dolly about 30 degrees.

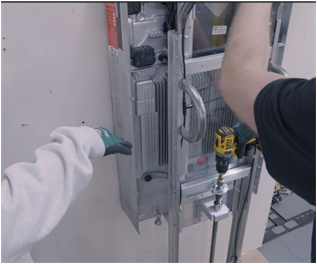

  14. Use the drill to lift Powerwall to the height, based on the wall bracket position.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Always tilt dolly back 30 degrees when lifting Powerwall to avoid tilting forward or catching the wall bracket.

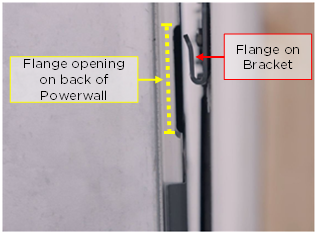

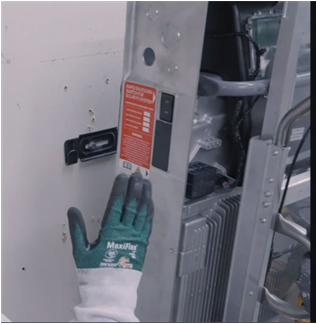

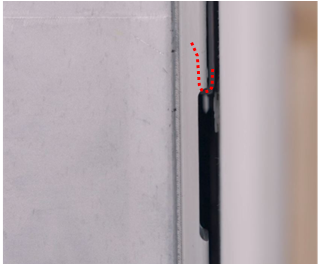

  15. After lifting the Powerwall to enough height, tilt forward to the wall. Use a spotter to make sure Powerwall is aligned to the wall bracket on all four flanges.
  16. With the guide from a spotter, lower Powerwall until it's fully sitting on all four wall bracket flanges.
  17. Lift the locking plate and tilt the dolly back to detach from Powerwall.
  18. Drop the lifting plate to the lowest position.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Always put the lifting plate in lowest position when not holding the dolly to avoid tilting forward
  19. Remove the two lifting handles from Powerwall and install them back onto the dolly.
