Using Wall Connector

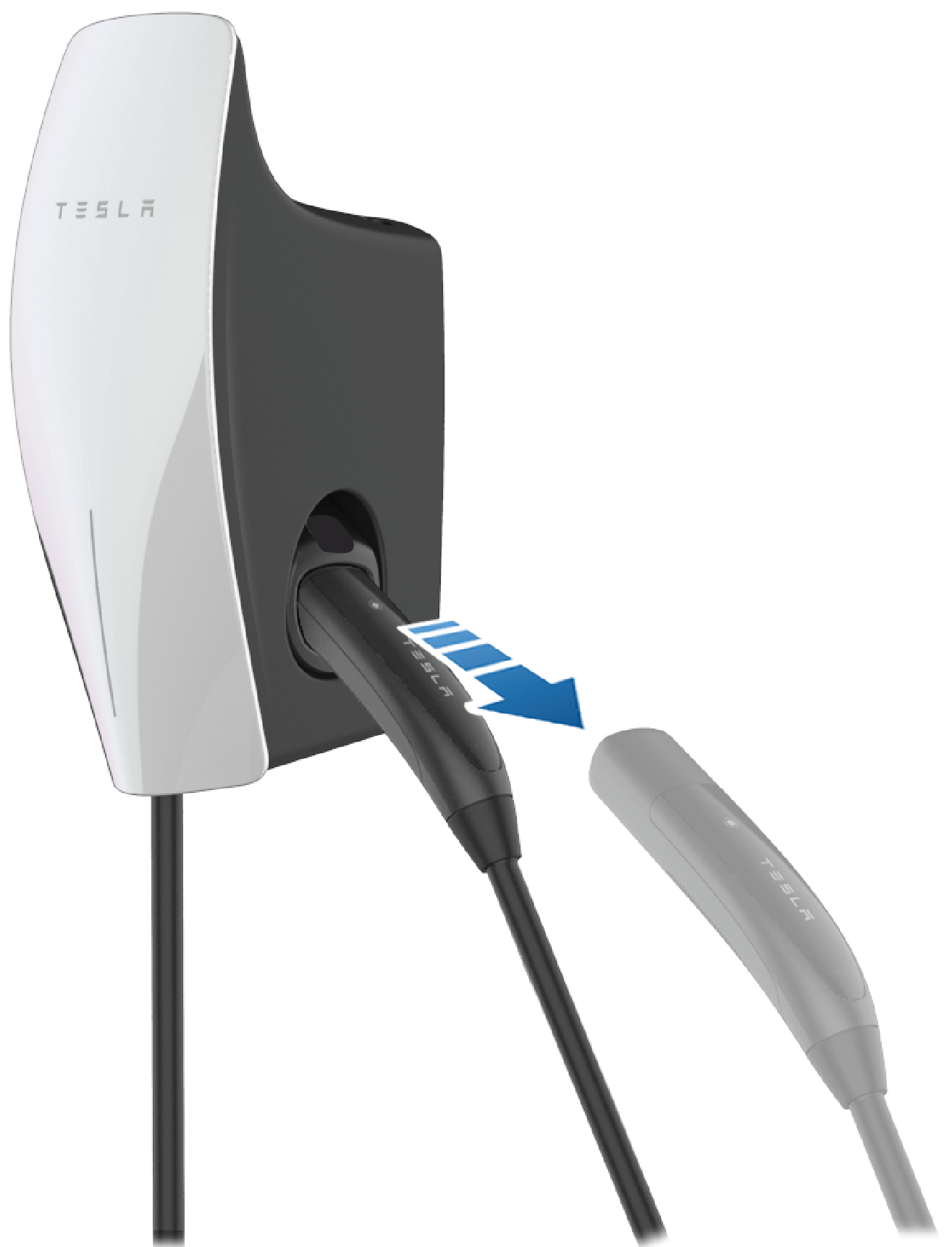

  1. To use NACS handle, remove the NACS connector from the holster.

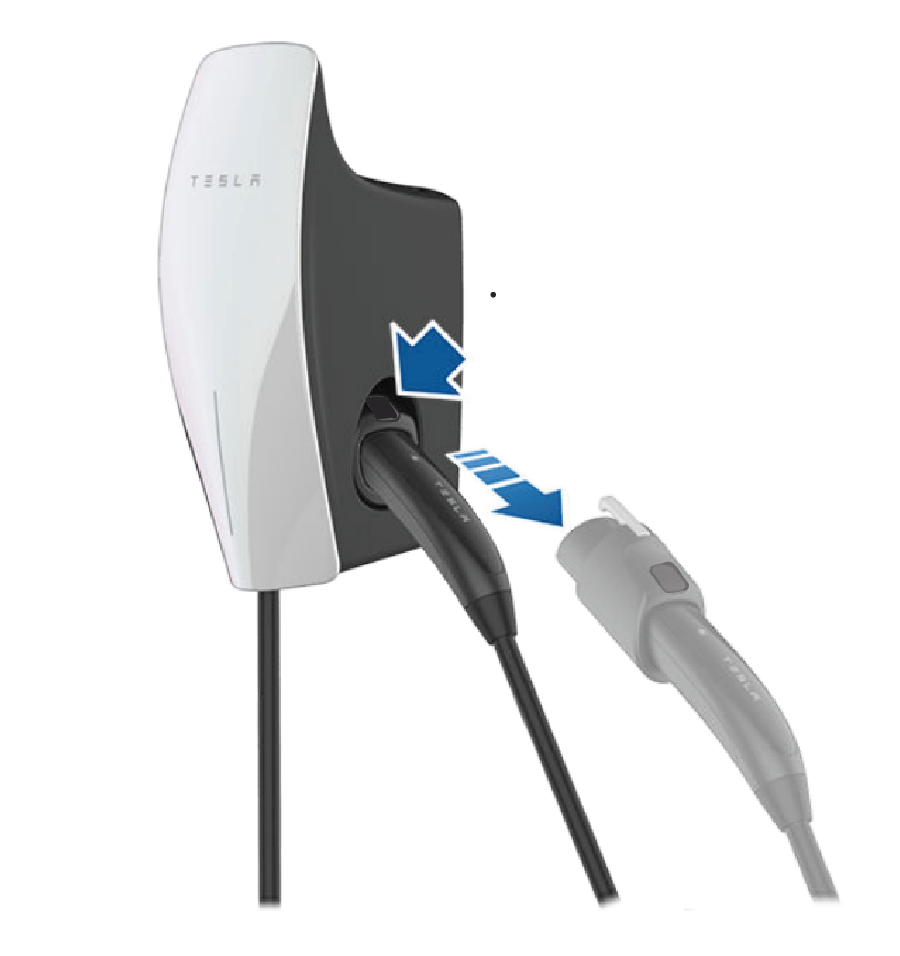

    To use J1772 handle, press the black button on the J1772 adapter to remove the handle from the dock.
  2. Insert the charge handle into the vehicle charge port.
  3. Check the vehicle controls or the Tesla app to verify charging.
  4. To remove the charge handle from the vehicle, press and hold the button on the handle to unlock the charge port.
    Informational PurposesAn informational icon, calling your attention
    Note
    The vehicle must be unlocked for the charge handle to be removable.
  5. Remove the charge handle from the vehicle charge port.

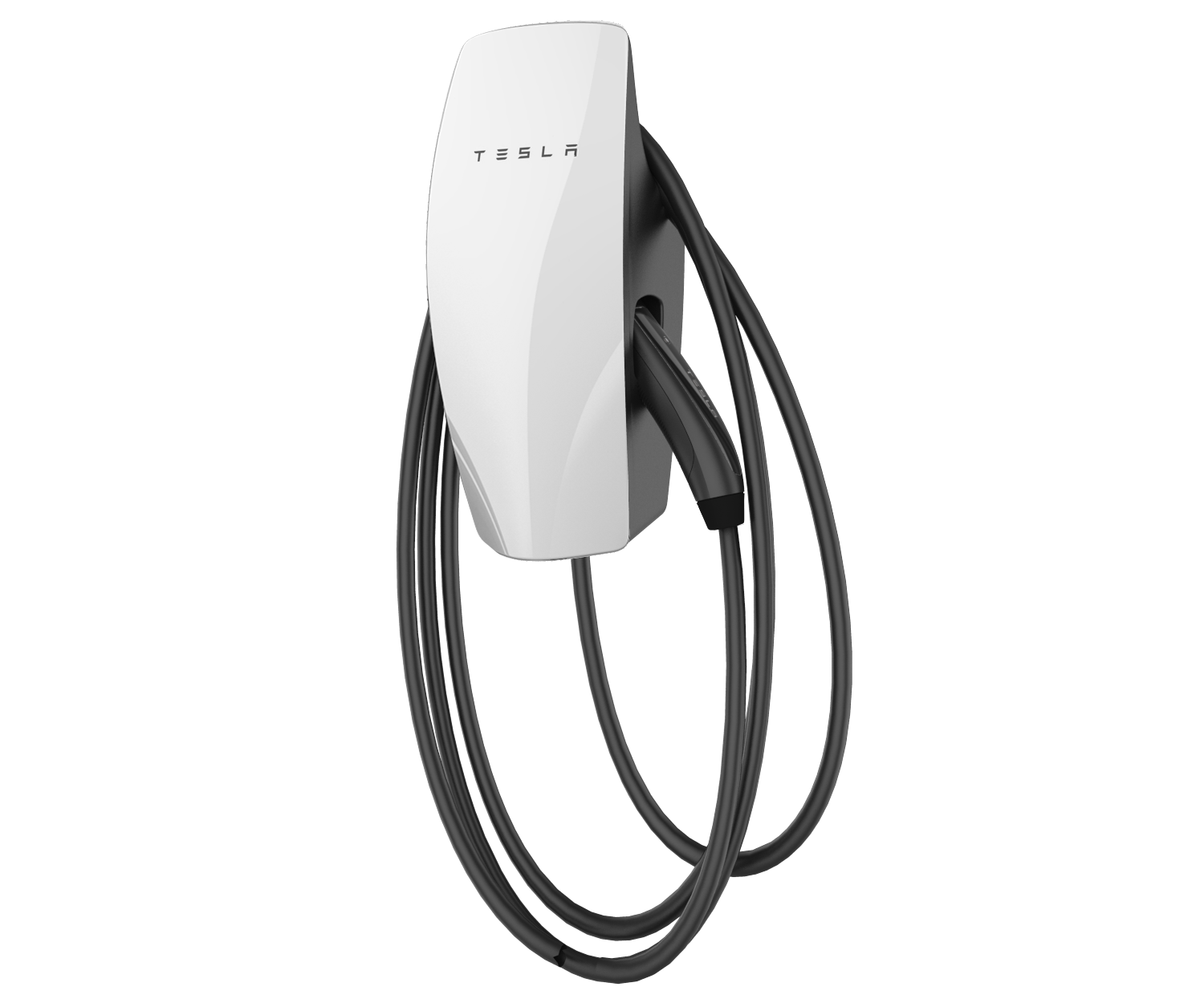

  6. Wrap the charge cable counter-clockwise around the Wall Connector and insert the charge handle into the holster.
