Wall Connector may be installed on any flat, vertical surface capable of
supporting its weight (e.g. wall, pedestal, etc.). Wall Connector weighs ~13lbs (5.7kg).
Choosing Location

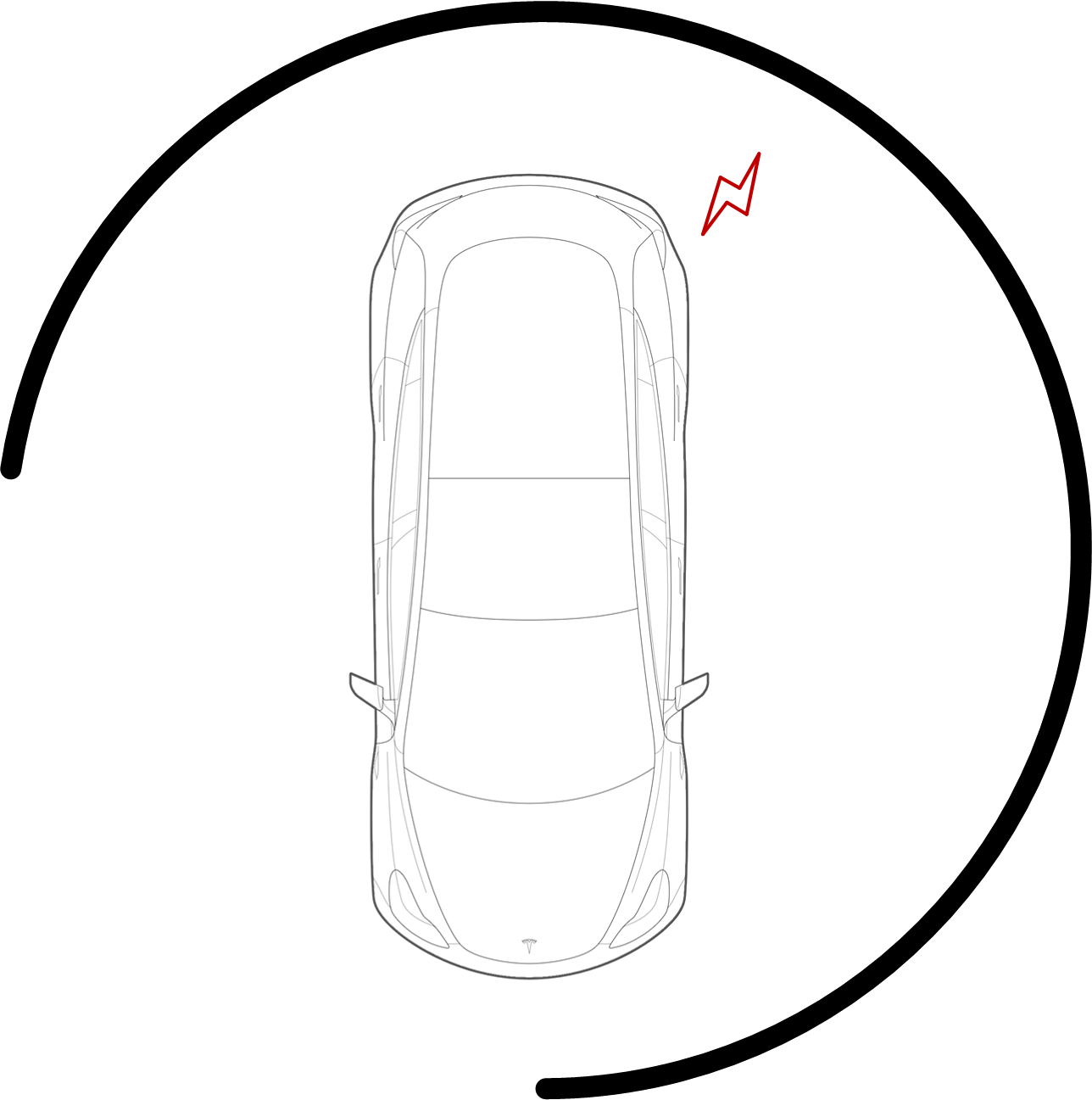

Install Wall Connector in a location that allows the charge cable to
reach the vehicle charge port without putting strain on the cable. Recommended
installation area for Wall Connectors with 24 ft (7.3 m) cable:
Install Wall Connector in a location with ample clearance on all sides
to allow the charge cable to loop around the unit and the charge handle to
comfortably land in the side dock.
Choosing Height
Maximum height (indoor and
outdoor): 60 in (1.52 m)
Recommended height: ~45 in
(~1.15 m)
Minimum outdoor height: 24 in
(0.6 m)
Minimum indoor height: 18 in
(0.45 m)
Maximizing Wi-Fi Signal
Reception
Wall Connectors should be connected to a local Wi-Fi network for optimal
functionality. For maximum signal reception, avoid installing Wall Connector on
opposite sides of concrete, masonry, metal studs, and other physical obstructions
that could impede Wi-Fi signal reception.
Note
If a mobile device is able to
connect to local Wi-Fi at a given location, it is a good indication that Wall
Connector will also be able to connect.

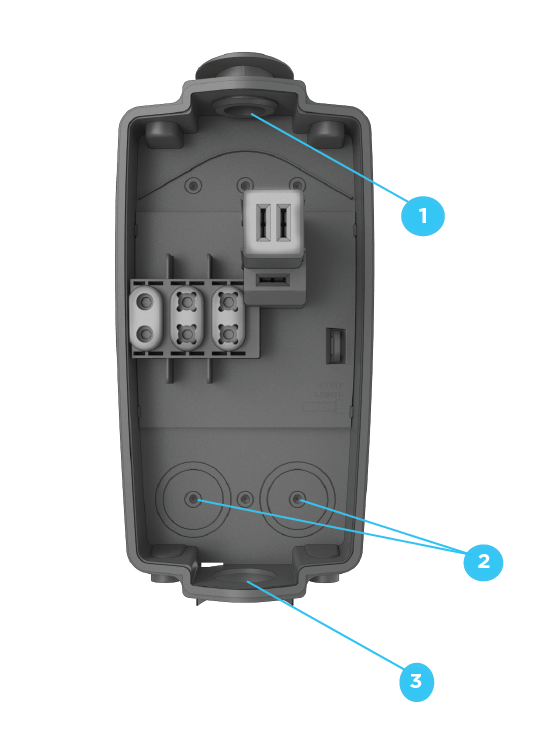

Wire Entry Options
Wall Connector's wirebox has multiple wire entry options. Choose
one entry path and follow installation instructions based on chosen entry
path.
