Step 6: Attach Wall Connector to Wirebox

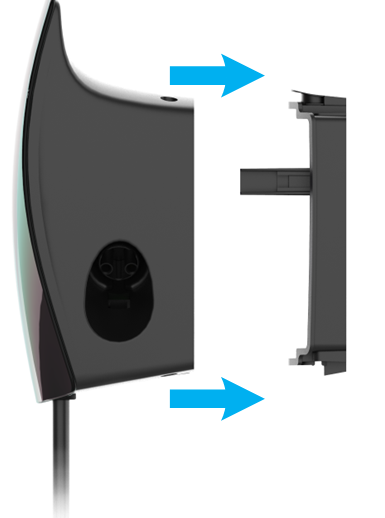

  1. Attach the main unit to the wirebox by pushing it inward.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Ensure that the wiring is not pinched when attaching the wirebox.

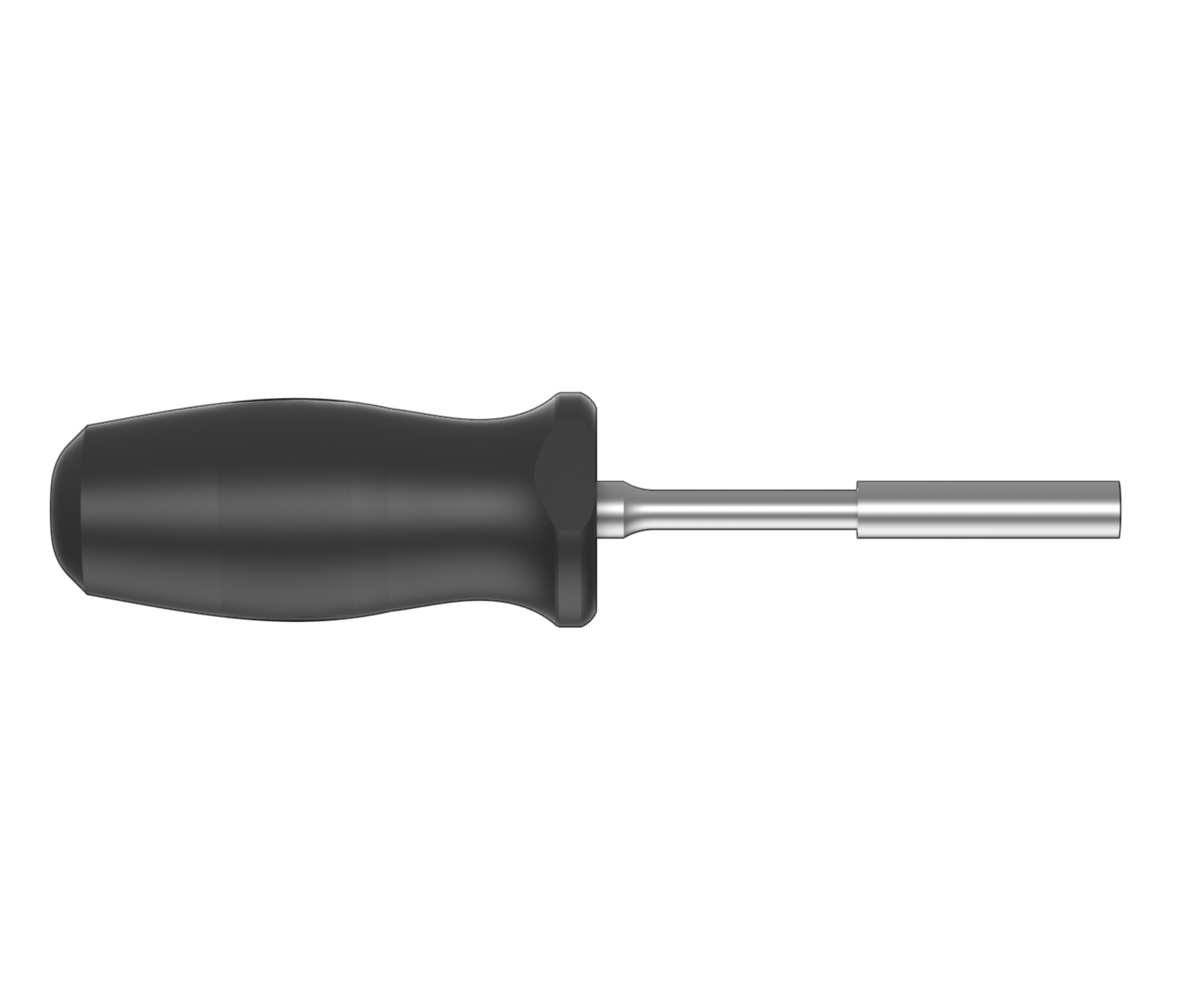

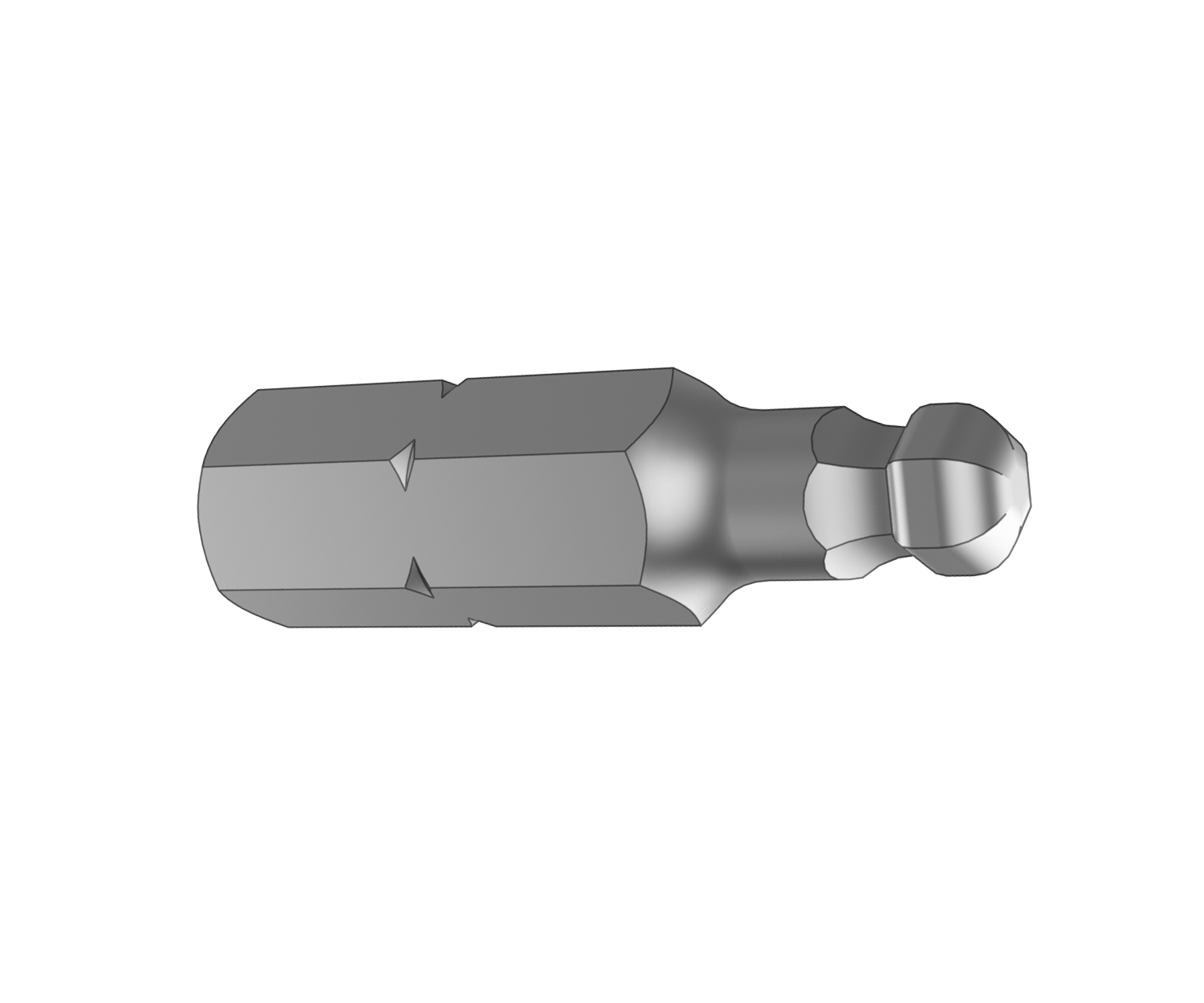

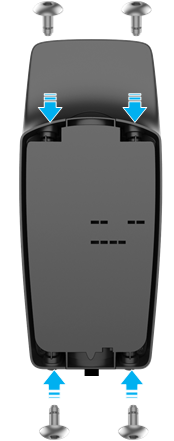

  2. Secure the main unit to the wirebox with the four included fasteners and the included 4 mm hex bit using a bit driver, applying pressure to the faceplate during the process to compress the internal seal. Firmly hand-tighten the four fasteners until they are secure.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not use a power drill for this step.
