Step 3: Prepare Wirebox and Mount to Wall

  1. Use a bit to drill two pilot holes into the wirebox that match the locations chosen on the cardboard mounting template.

    Drill bit

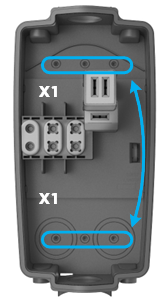

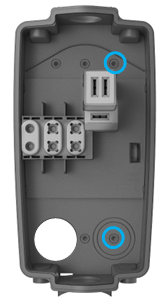

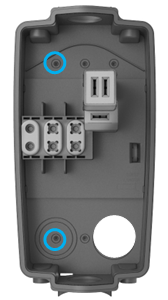

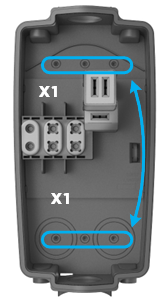

    Top Entry Bottom Entry Rear Left Entry Rear Right Entry

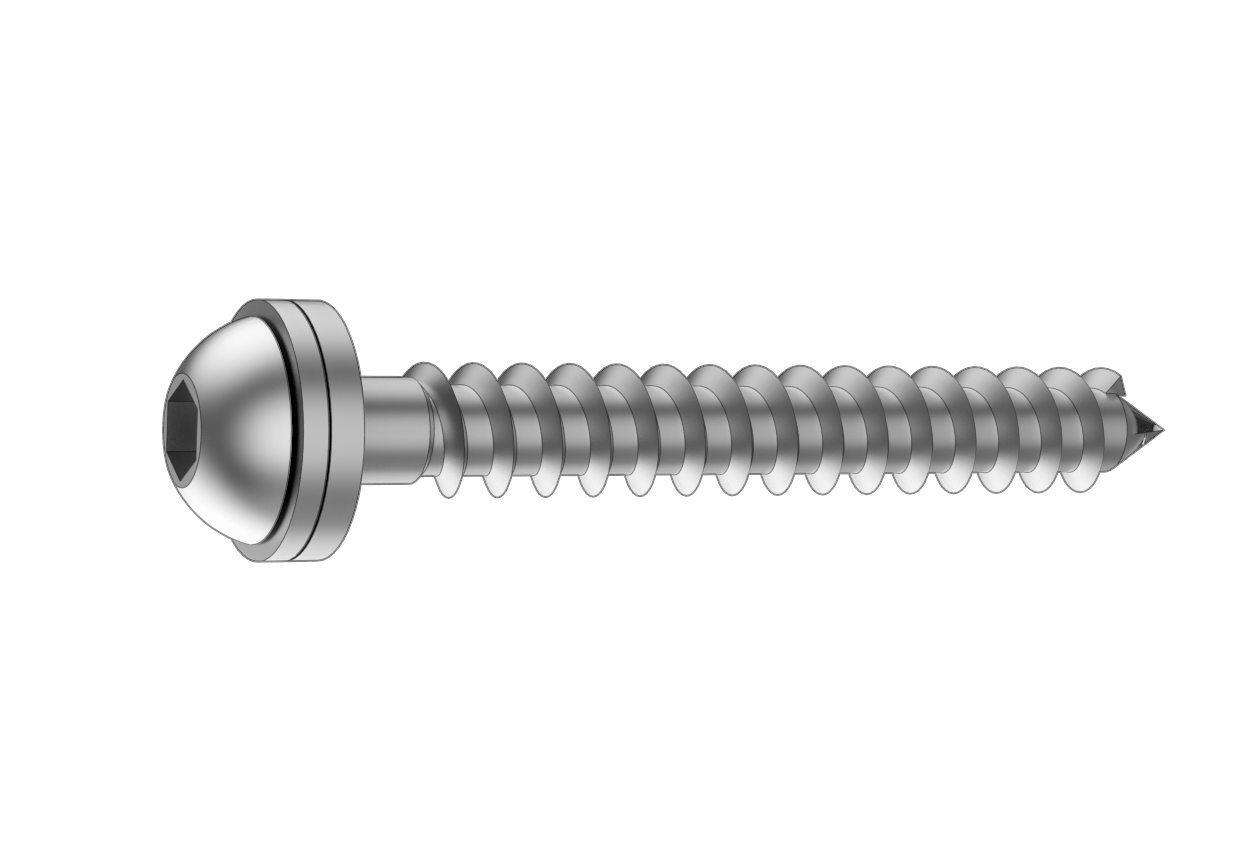

  2. Attach the wirebox to the mounting location using the included 4 mm hex bit and the two included wood fastener screws.
    Informational PurposesAn informational icon, calling your attention
    Note
    Type 3R rating is only possible when washers have sealing gaskets. If mounting to alternate surface (such as a prefabricated pedestal), use alternate fasteners with sealing washers.
    Informational PurposesAn informational icon, calling your attention
    Note
    The wood fastener screws are designed to support the weight of the entire Wall Connector, cable, and charging handle.
