Group Power Management Overview

The firmware-based group power management feature enables up to 6 Wall Connectors installed at the same site to intelligently share the site's total available power via unit-to-unit Wi-Fi. This minimizes the need for many residential and commercial applications to have specific electrical upgrades for concurrent multi-vehicle charging.

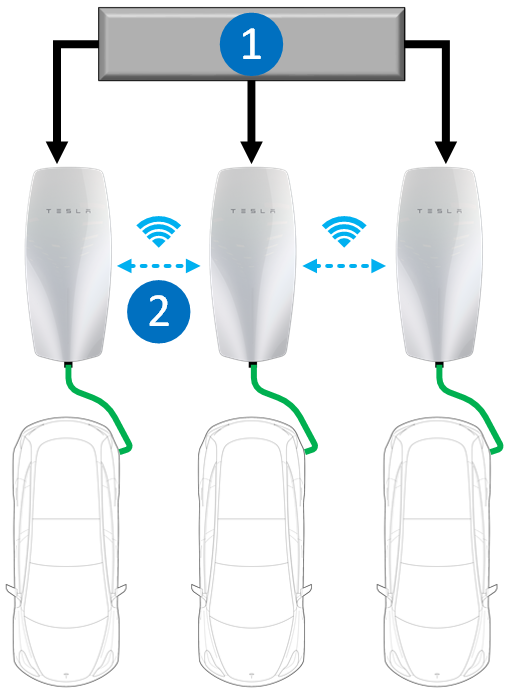

During the commissioning process,

Wall Connectors are allocated to individual or shared branch circuits (up to 60 amps)
Total power is allocated to the group of linked Wall Connectors

Note

For instructions to commission Wall Connectors in a group power management network, see Gen 3 Wall Connector Group Power Management.

Total current output of Wall Connectors that are grouped will never exceed the site's total allocated power.
