STEP 7: Install Clamp-on Ferrite Cores / Metal PV Shield

Powerwall 3 ships with clamp-on ferrite cores and/or a metal PV shield. Review the following table to learn which parts ship with Powerwall 3 depending on Powerwall 3 part number:

Powerwall 3 P/N Accessory Kit P/N Included Parts Conduit

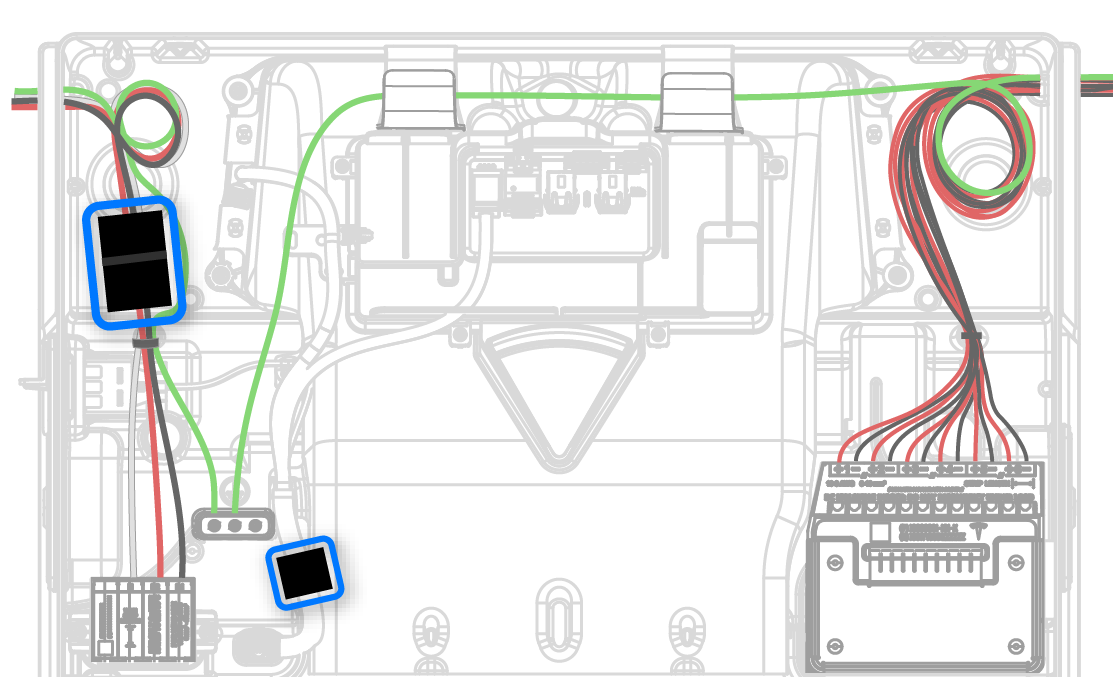

Powerwall 3 P/N 1707000-11-L and higher and 1707000-21-L and higher
1857363-00-J (1) large clamp-on ferrite core for the AC conductors

(1) small clamp-on ferrite core for the TACO low voltage harness

 Any conduit allowed

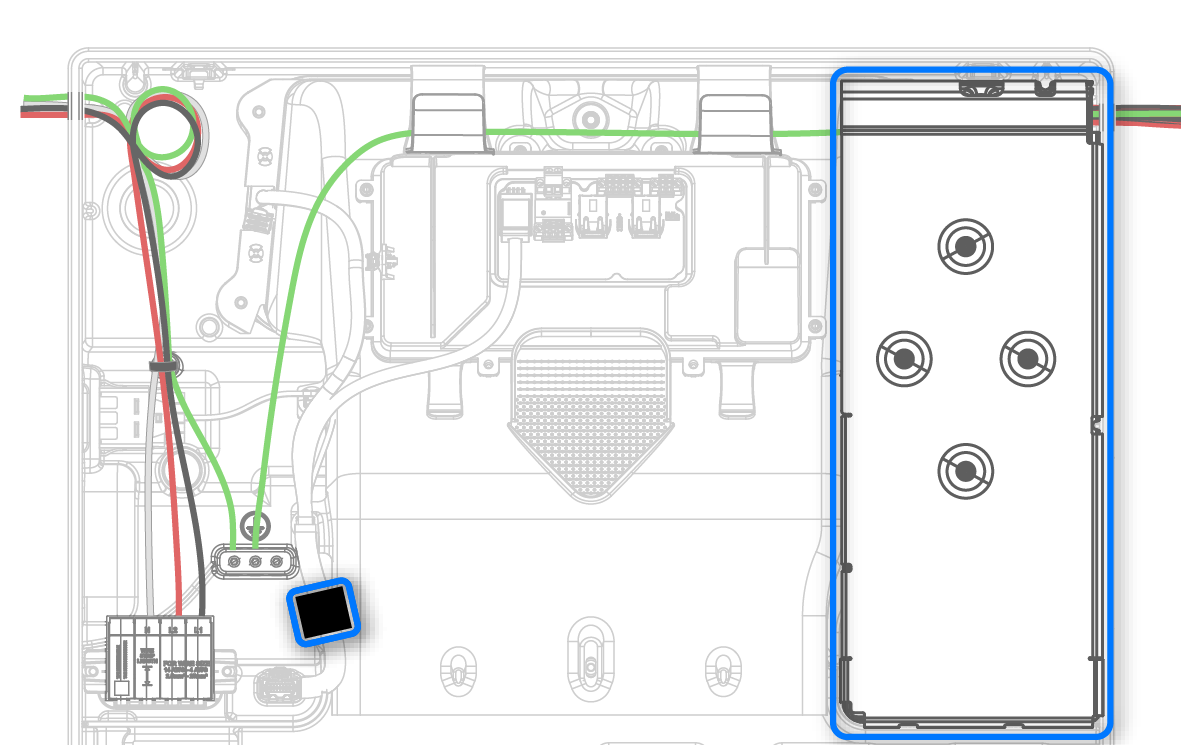

Powerwall 3 P/N 1707000-00-J to 1707000-21-K

1857363-00-F 1857363-00-E

 (1) metal PV shield for PV conductors

(1) small clamp-on ferrite core for the TACO low voltage harness

 Metal conduit required

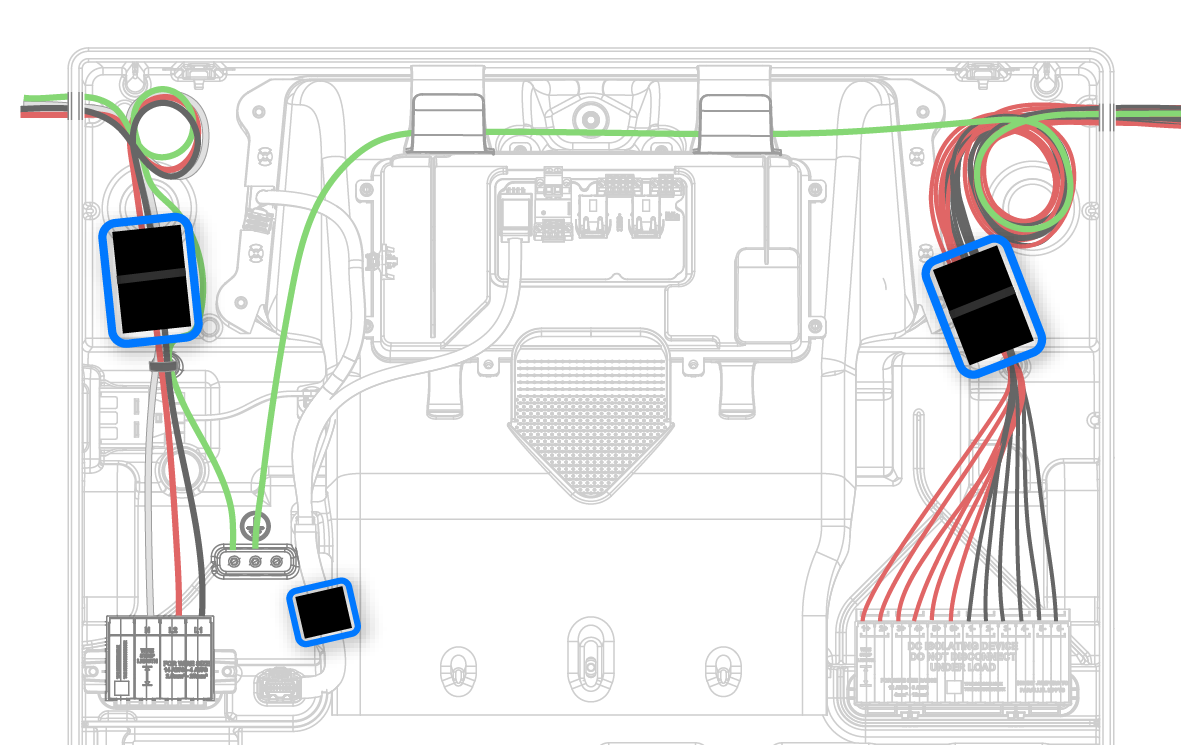

Powerwall 3 P/N 1707000-00-H and lower
1857363-00-D (2) large clamp-on ferrite cores for the AC and PV conductors

(1) small clamp-on ferrite core for the Tesla Asset Controller (TACO) low voltage harness

 Metal conduit required
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Ferrite cores are fragile; handle with caution.
Informational PurposesAn informational icon, calling your attention
Note
Equipment grounding conductors do not need to be included in ferrite cores.
  1. Install the provided small clamp-on ferrite core around the Tesla Asset Controller (TACO) low voltage harness.

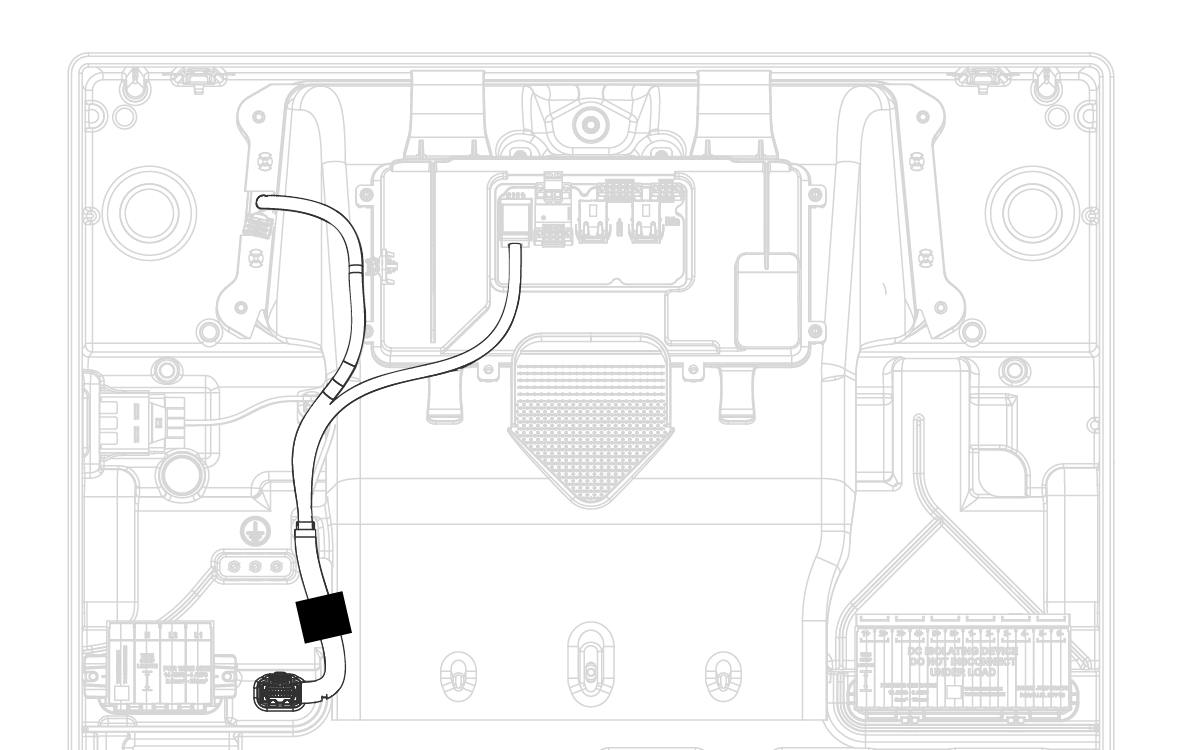

    Figure 1. Ferrite Ring Around LV Harness
  2. For Powerwall 3 P/N 1707000-11-L and higher and 1707000-21-L and higher, install the large clamp-on ferrite core:

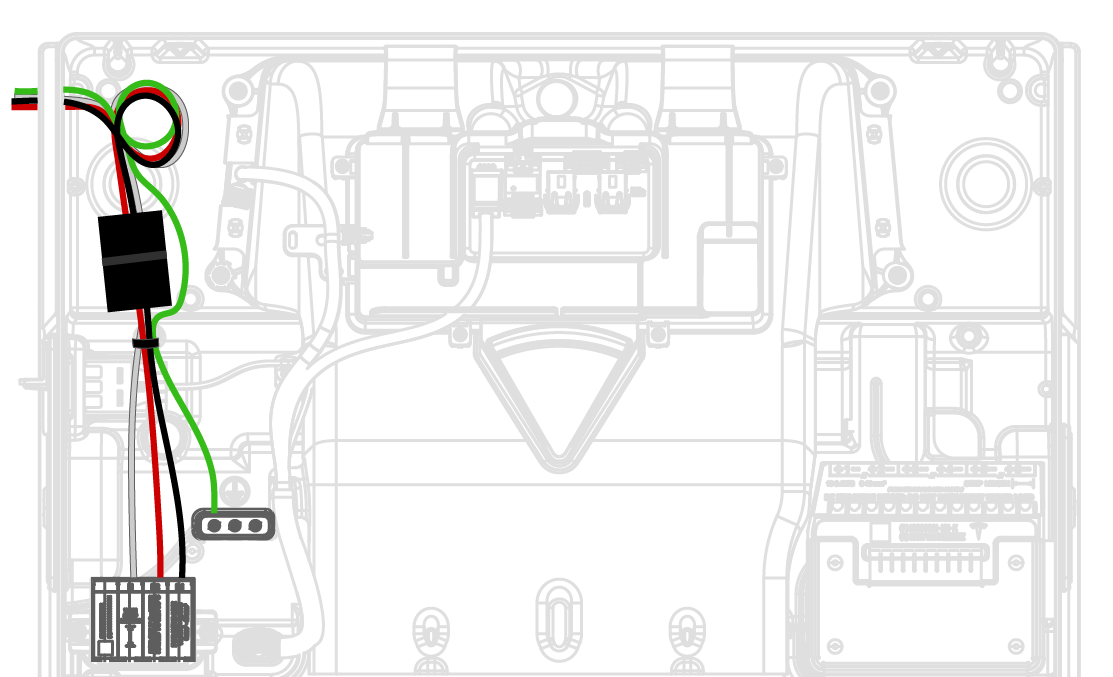

    1. Install the provided large clamp-on ferrite core around the AC conductors.
      Figure 2. Ferrite Ring Around AC Conductors
    2. Secure the ferrite core closed with the provided cable tie.

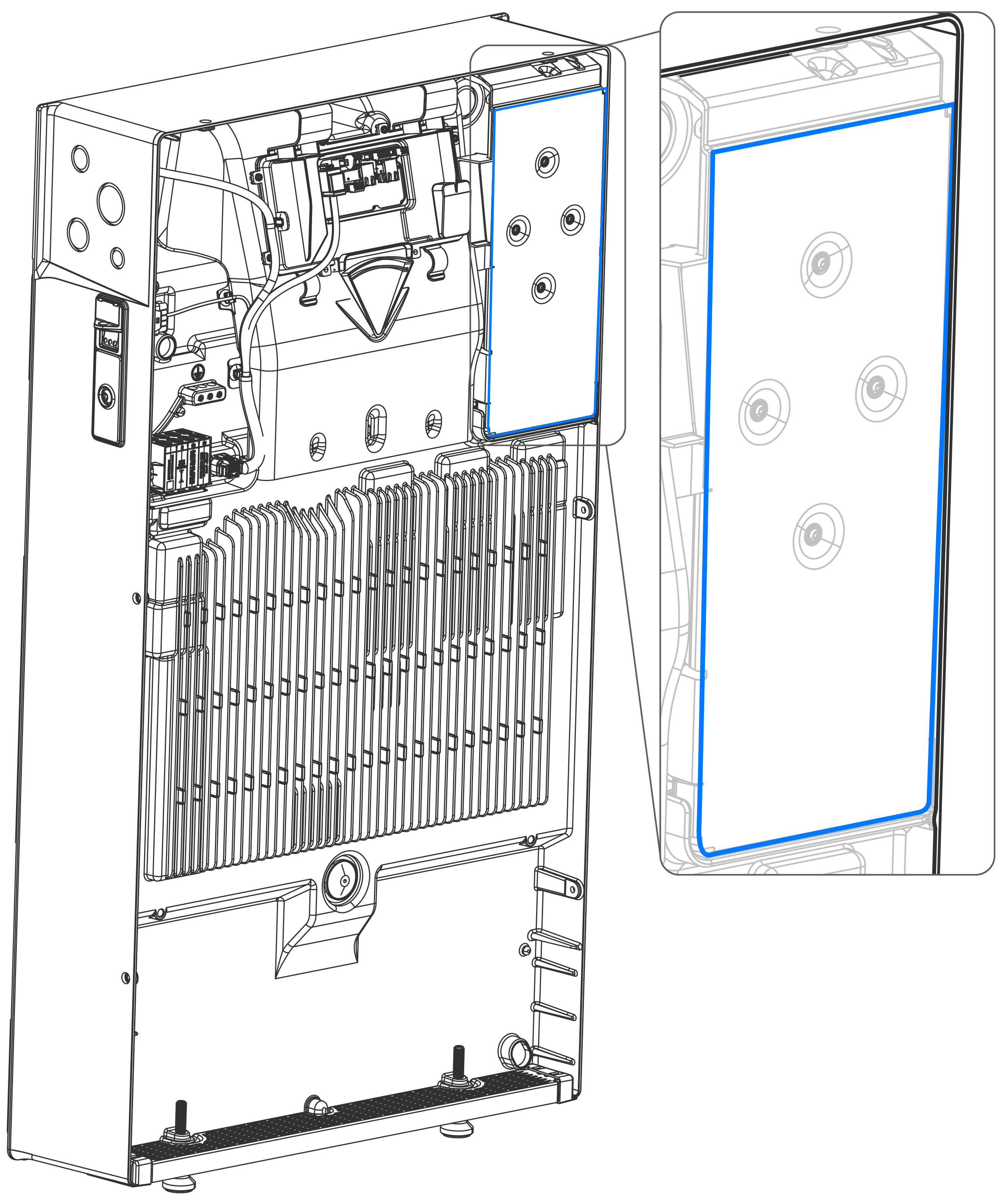

  3. For Powerwall 3 P/N 1707000-00-J to 1707000-21-K, install the metal PV shield:
    1. Inspect the PV shield and confirm the metal is not warped or bent.

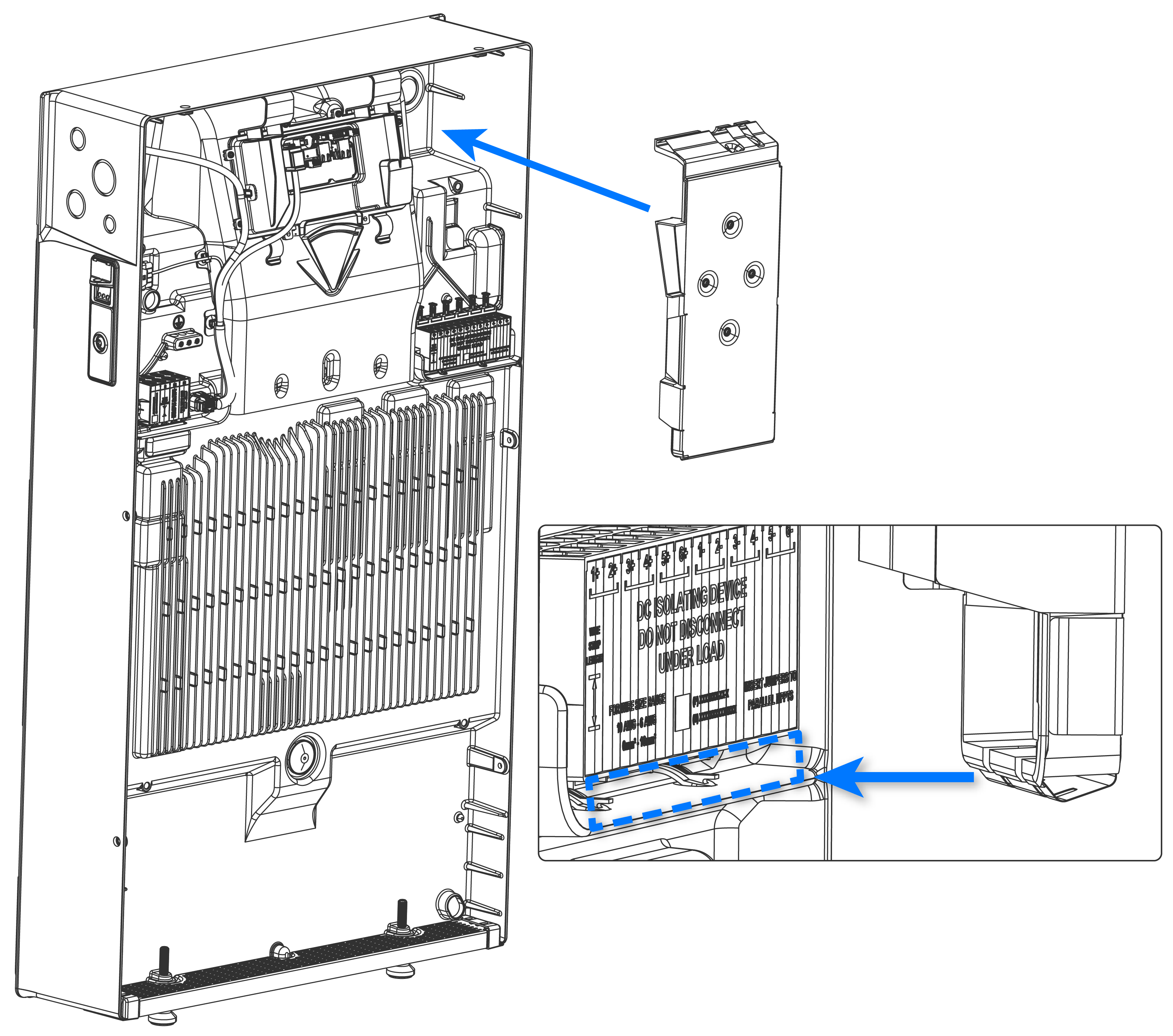

    2. Align the bottom edge of the PV shield with the space between the PV connector and the metal enclosure. Push the PV shield into place.
    3. Confirm the edges of the PV shield do not protrude past the edges of the Powerwall 3 enclosure.
    Informational PurposesAn informational icon, calling your attention
    Note
    When the metal PV shield is installed, additional ferrite cores are not required on the AC and PV wires.
  4. For Powerwall 3 P/N 1707000-00-H and lower, install the large clamp-on ferrite cores:
    1. Install one of the provided large clamp-on ferrite cores around the AC conductors.

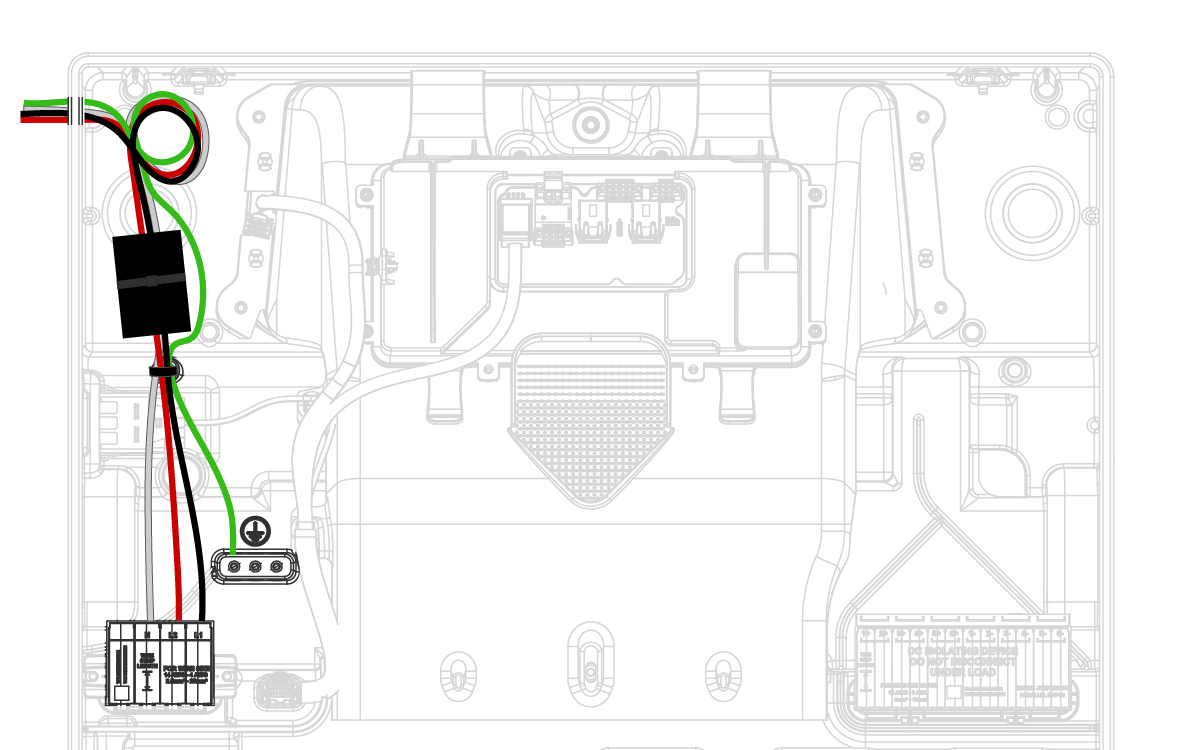

      Figure 3. Ferrite Ring Around AC Conductors
    2. Secure the ferrite core closed with the provided cable tie.
    3. Install one of the provided large clamp-on ferrite cores around the PV conductors.

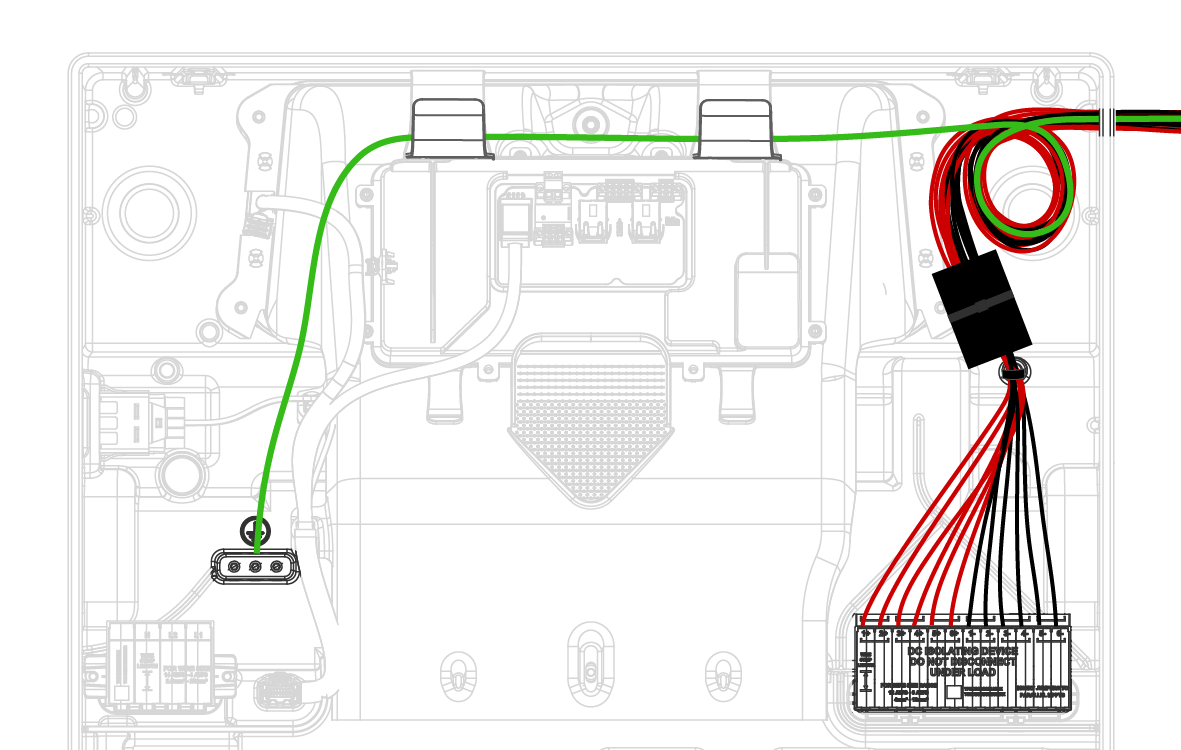

      Figure 4. Ferrite Ring Around PV Conductors
    4. Secure the ferrite core closed with the provided cable tie.
