Gateway 3 Service Parts, Orderable Parts, and Accessories
Note
Some of
the parts and kits listed below may not be orderable by Channel Partners; for a list of
parts and kits that can be ordered by Channel Partners, please see the Powerwall Pricing Guide on
Partner Portal.
| Part Number | Name | Description |
|---|---|---|

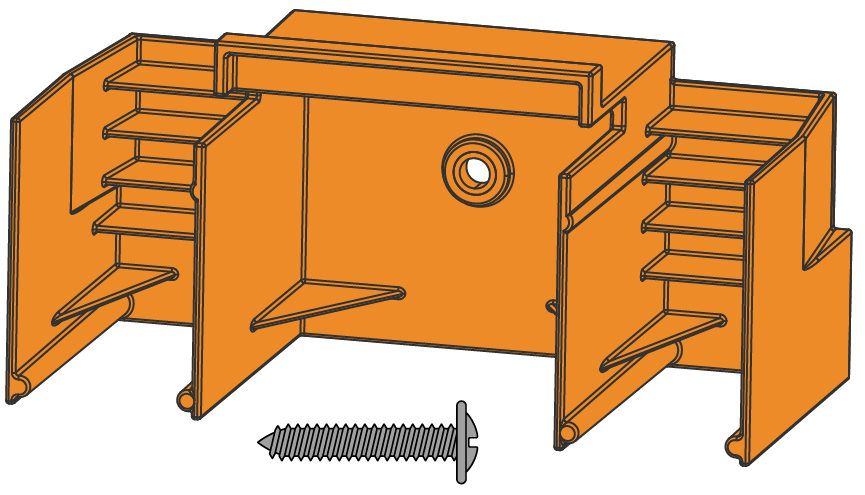

| 2065063-xx-y | Gateway 3 Square D Lug Divider Kit | Plastic lug divider with hold-down fastener required when using a Square D main breaker in Gateway 3 |

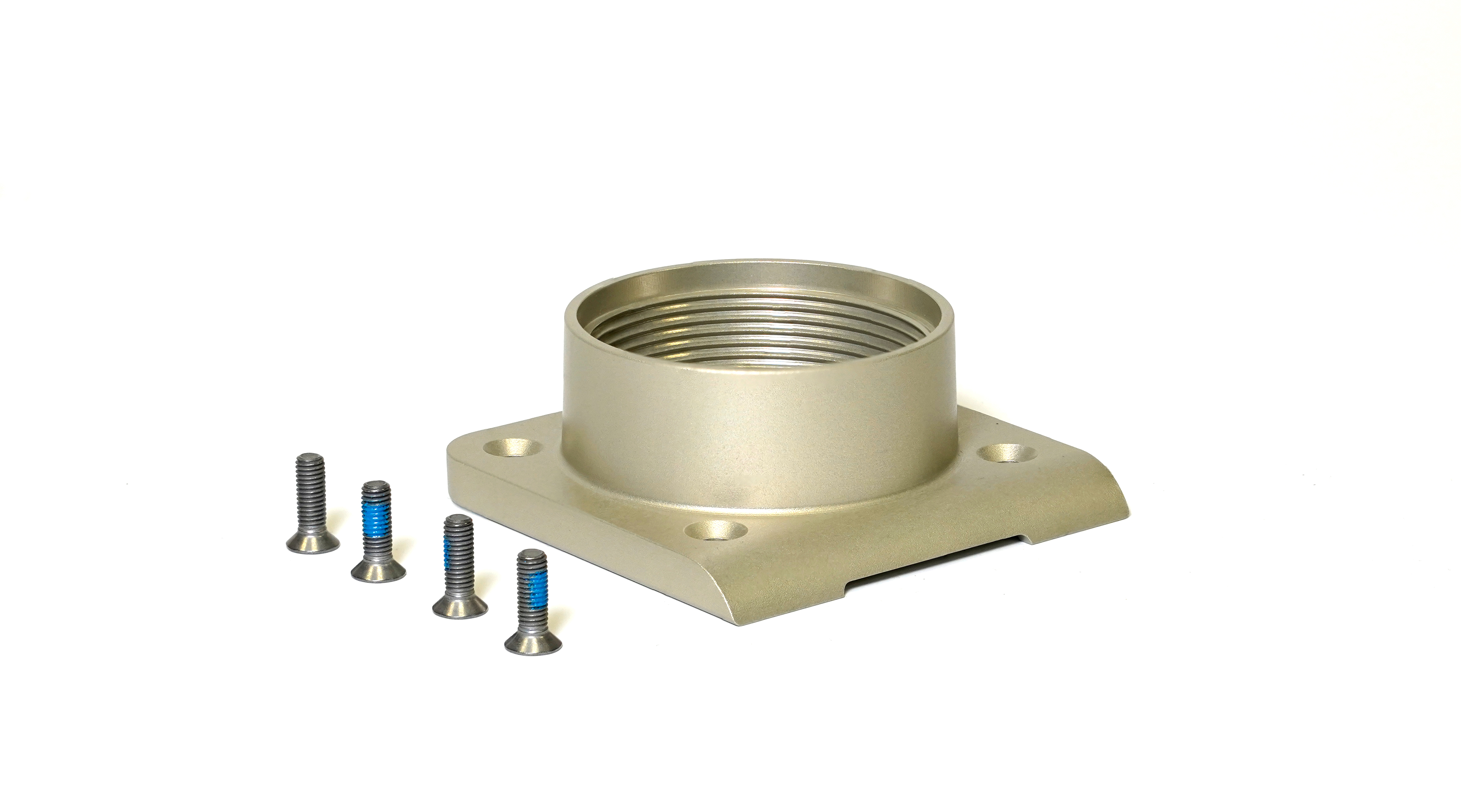

| 1549184-xx-y | 2" Conduit Hub Kit | 2” conduit hub and bolts |
| 1549184-01-y | 1.25" Conduit Hub Kit | 1.25” conduit hub and bolts |
| 1534278-50-y | Gateway 3 Top Hatch | Service replacement top hatch for the Gateway 3 |
| 1486318-20-A | Gateway 3 Glass Door | Service replacement glass door for the Gateway 3 |
| N/A (purchase from manufacturer) | Schneider Electric HOMFPCP Homeline Filler Plate | Breaker filler plates compatible with Gateway 3 internal panelboard breaker knockouts if needed Note There are no filler
plates for the main breaker slots. If a main breaker knockout is
punched out but not used, the deadfront must be replaced.
|
| Eaton BRFPP Circuit Breaker Knockout | ||
| Siemens ECQF3P Filler Plate |
