Gateway 3 Wiring Overview

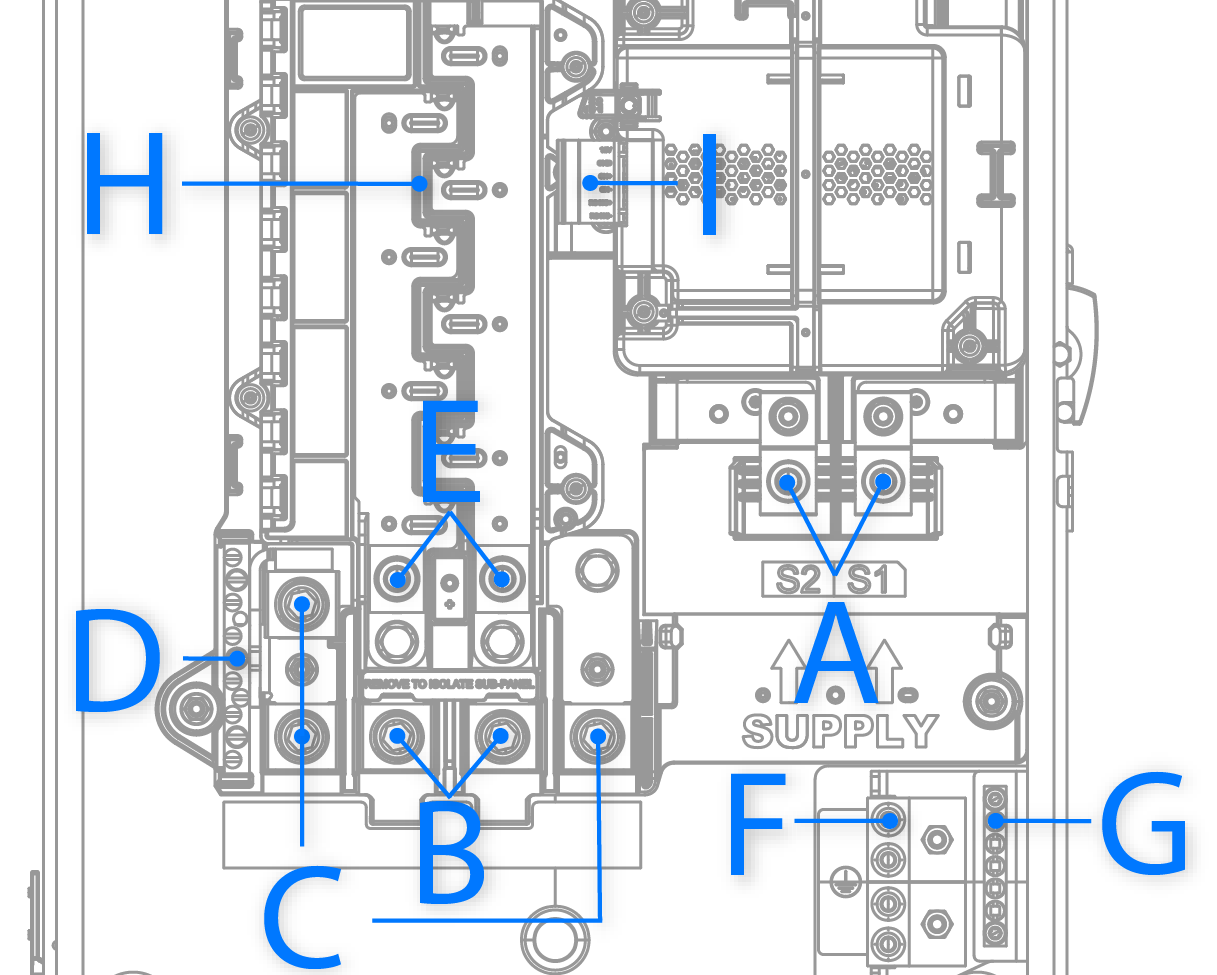

| Component | Recommended Wire Color | Wire Gauge 1 | Tool Size | Wire Strip Length | Torque | |
|---|---|---|---|---|---|---|
| A | Supply Terminals | Black, Red | 6 AWG – 250 kcmil | 5/16-inch hex | 1 ¼-inch (32 mm) | 275 in-lb, 23 ft-lb |
| B | Backup Terminals | Black, Red | (1x) #4 AWG - 250 kcmil | 3/8-inch hex | 1 ¼-inch (32 mm) | 250 in-lb, 21 ft-lb |
| (2x) #4 AWG - 4/0 stranded2 | ||||||
| C | Large Neutral Terminals | White | (1x) #4 AWG - 250 kcmil | 3/8-inch hex | 1 ¼-inch (32 mm) | 250 in-lb, 21 ft-lb |
| (2x) #4 AWG - 4/0 stranded2, 3 | ||||||
| D | Additional Neutral Terminals | White | See table in Gateway 3 Neutral Bar and Ground Bars | |||
| E | Backup Terminals on Internal Panelboard | Black, Red | 6 AWG – 250 kcmil | 5/16-inch hex | 1 ¼-inch (32 mm) | 275 in-lb, 23 ft-lb |
| F | Large Ground Terminals | Green or Bare | 6 AWG – 2/0 | 3/16-inch hex | ¾-inch (20 mm) | 120 in-lb, 10 ft-lb |
| G | Additional Ground Terminals | Green or Bare | See table in Gateway 3 Neutral Bar and Ground Bars | |||
| H | Internal Panelboard | See Acceptable Circuit Breakers and Install Load / Generation Breakers on Internal Panelboard | ||||
| I | Communication connector | See Gateway 3 Communication Wiring | ||||
1 Use copper or aluminum conductors rated to a minimum of 75°C.
2 Conductors must be the same size and material when terminating more than one conductor under these terminals.
3Double lugging is allowed only when conductors are paralleled to increase ampacity for a single circuit.
CAUTION
Do not modify the factory
lug configuration.
