Current Transformer on Incorrect Phase

  1. Locate the CT on the Meter page in the Device Setup interface in Tesla One.
  2. Determine which phase the CT should be measuring.
    • Tesla Remote Energy Meter with Tesla 200 A CTs:
      CT1Line 1
      CT2Line 2
      CT3Line 2
      CT4N/A (CT4 functionality will be available at a later date)
  3. Verify the CT is measuring the correct phase.

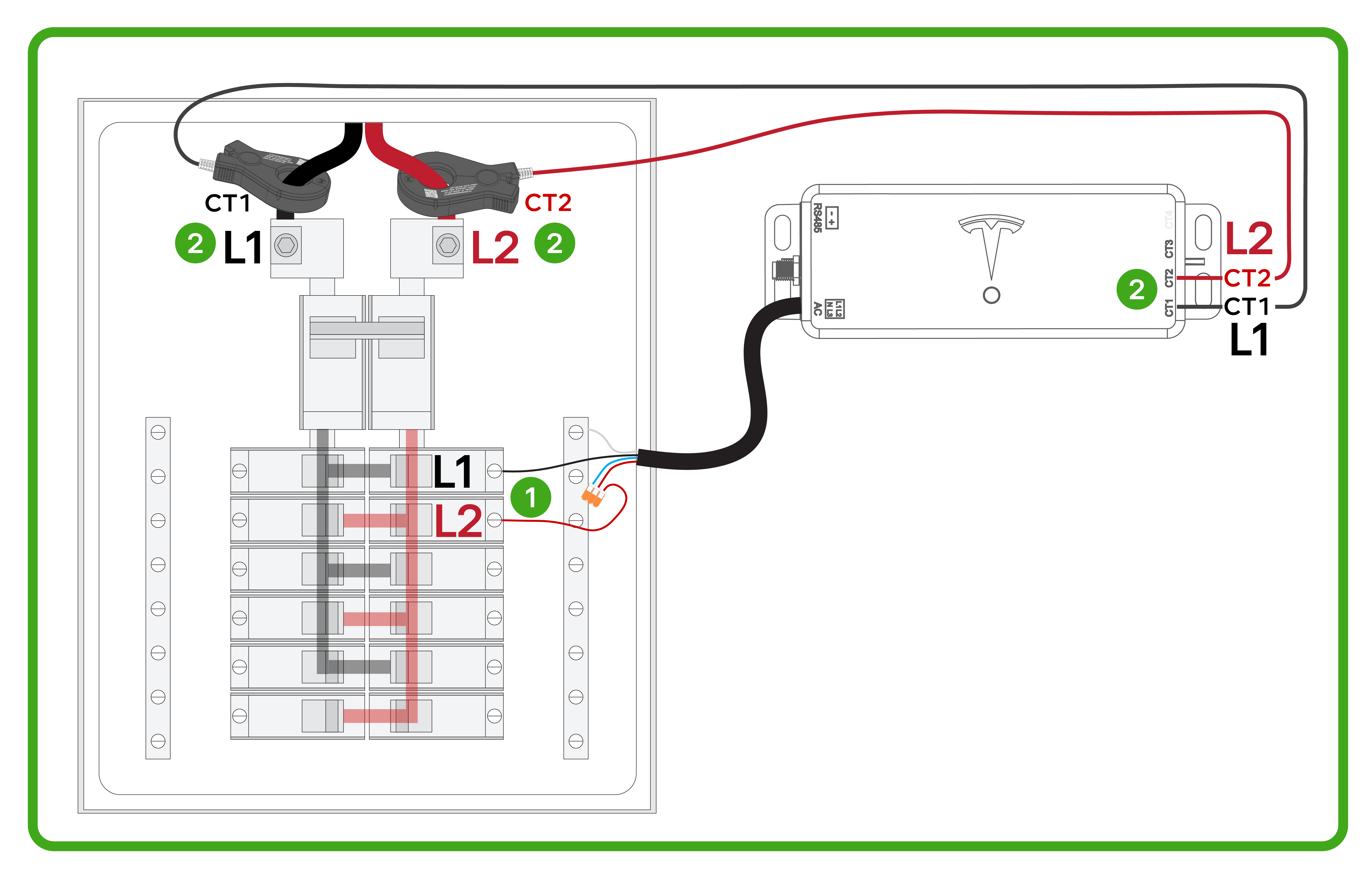

Figure 1. Tesla Remote Energy Meter with Tesla 200 A CTs: Correct Meter and CT Installation

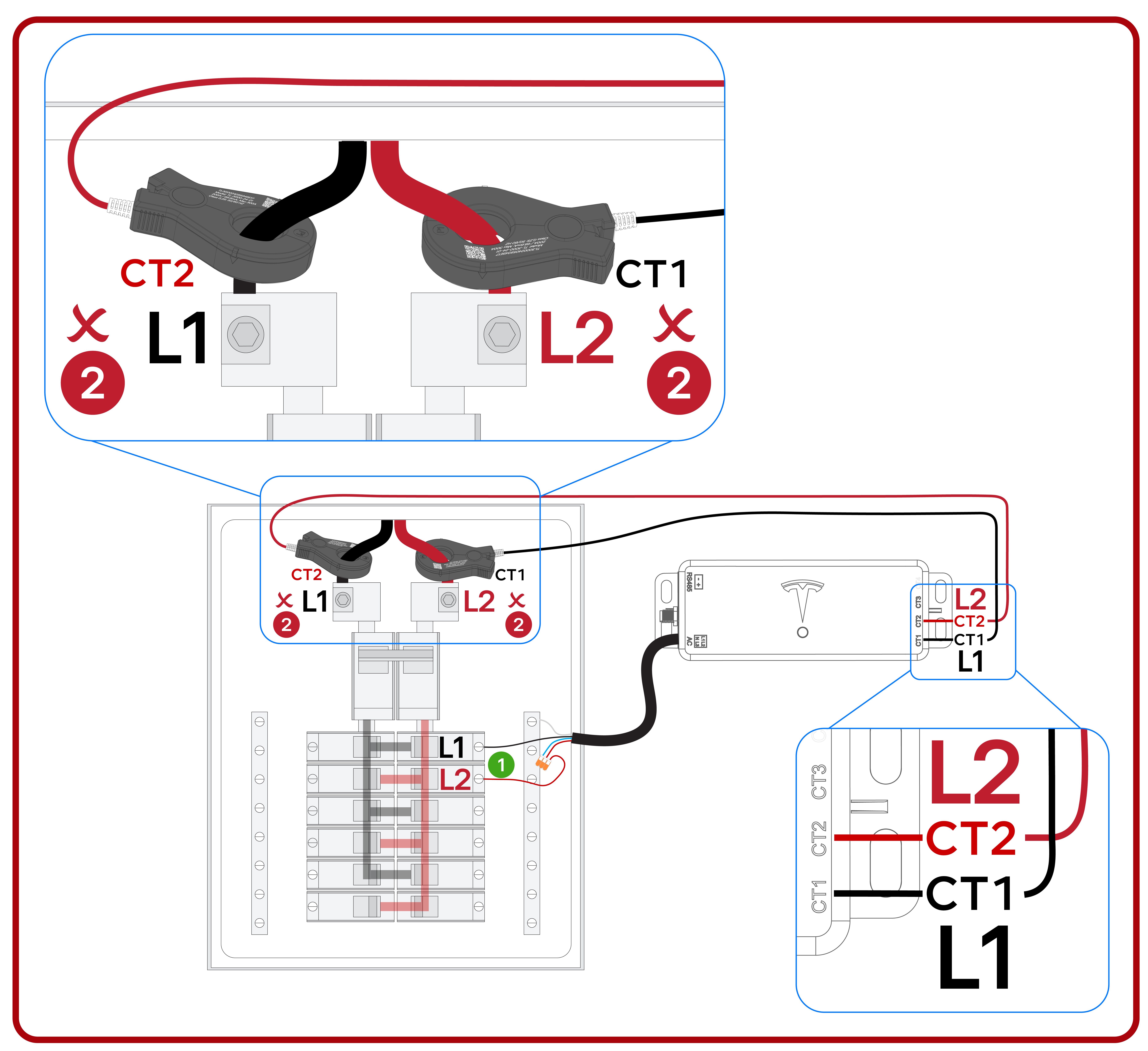

Figure 2. Tesla Remote Energy Meter with Tesla 200 A CTs: Incorrect CT Installation - CTs are Measuring Incorrect Phases

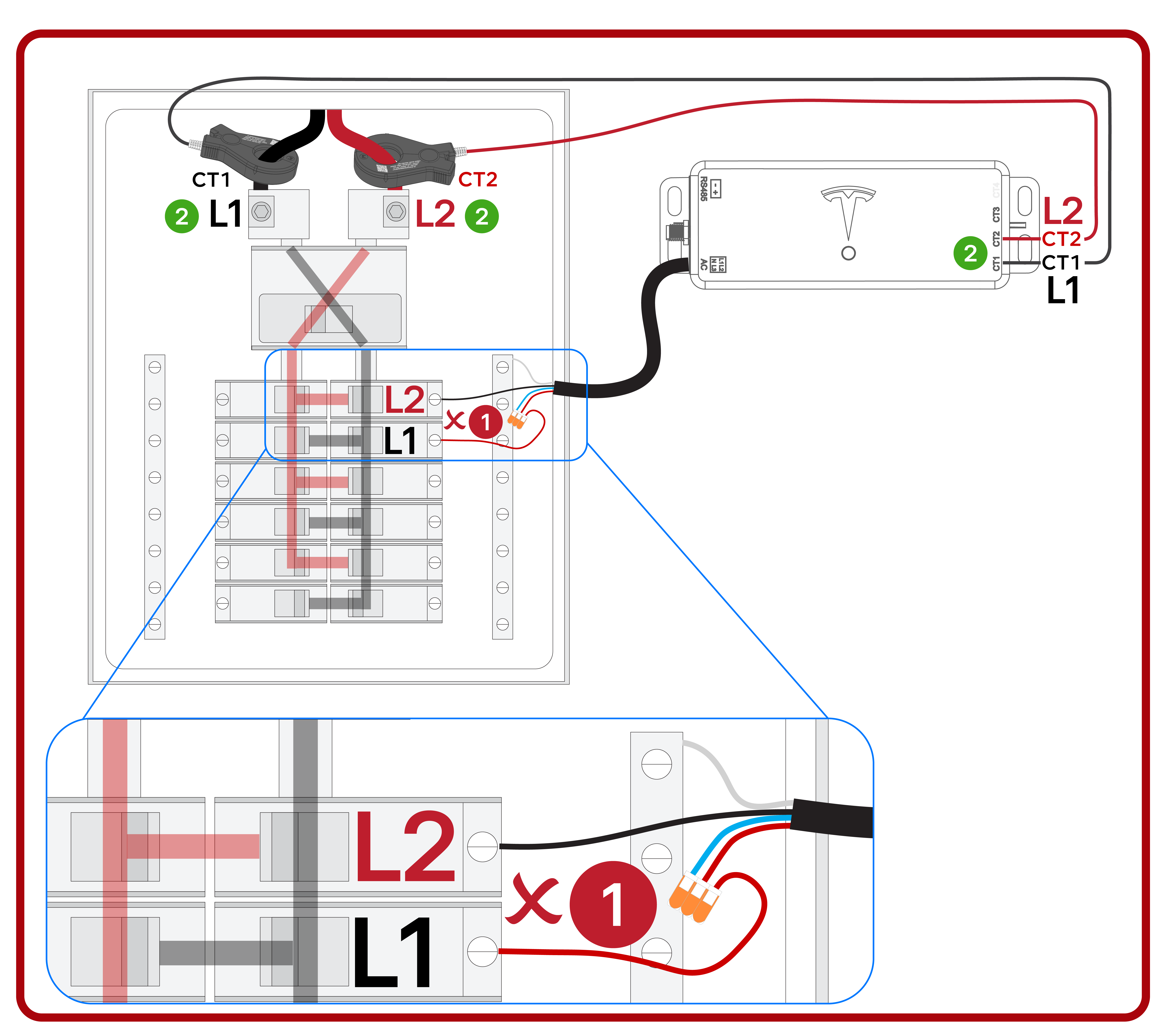

Figure 3. Tesla Remote Energy Meter with Tesla 200 A CTs: Incorrect Meter Installation - Main Breaker Swapped Busbar Phases, Resulting in Voltage Line Harness Being Wired Incorrectly

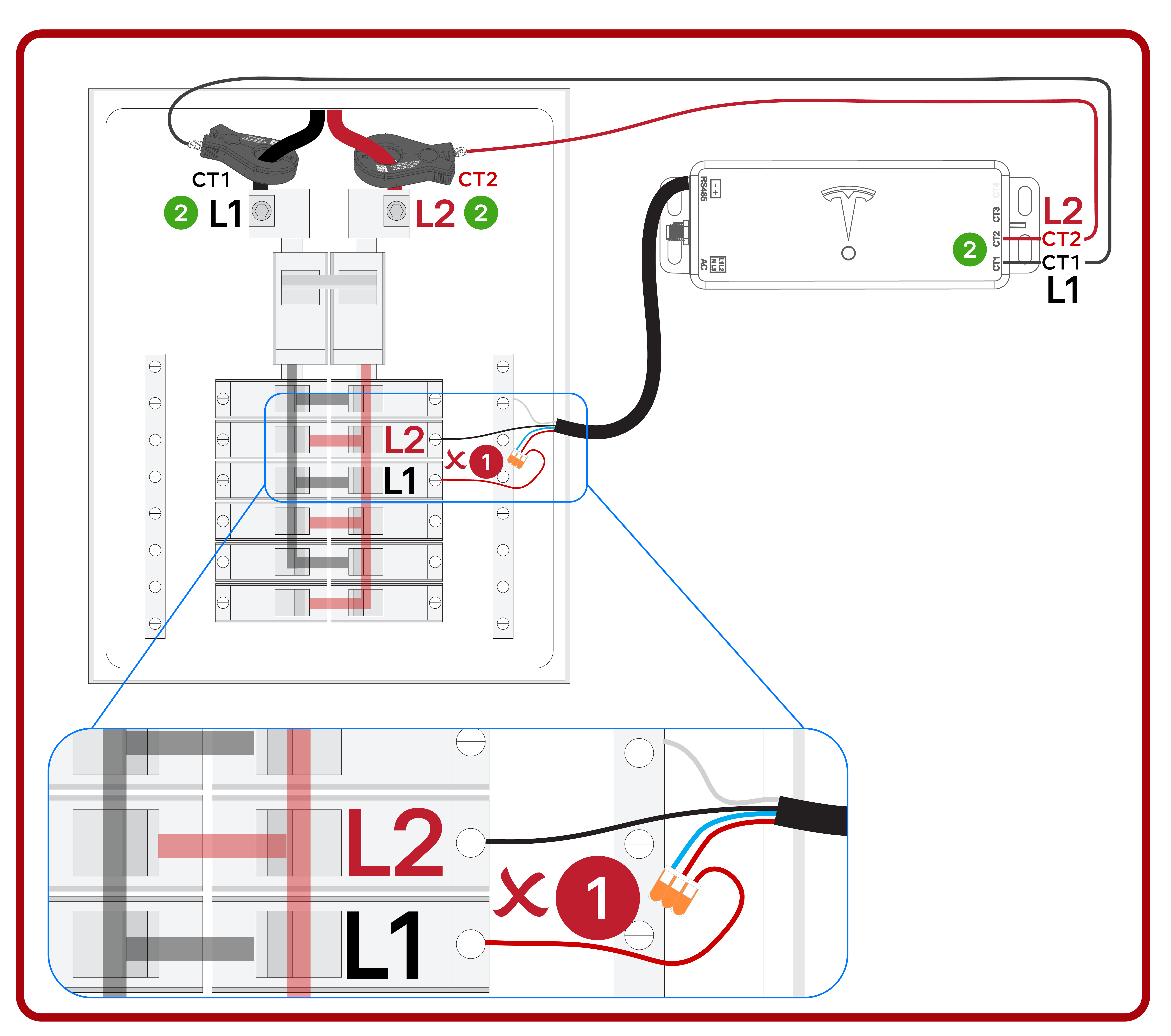

Figure 4. Tesla Remote Energy Meter with Tesla 200 A CTs: Incorrect Meter Installation - Installer Skipped a Breaker Pole, Resulting in Voltage Line Harness Being Wired Incorrectly
