Incorrect Orientation of the Current Transformer

  1. Locate the CT(s) used to measure the source that is displaying incorrect power flow readings.
  2. Verify the CT(s) are oriented such that the label is facing toward the source (away from the breaker).
    1. Solar Current Transformer: Label toward the inverter
    2. Site Current Transformer: Label toward the Grid

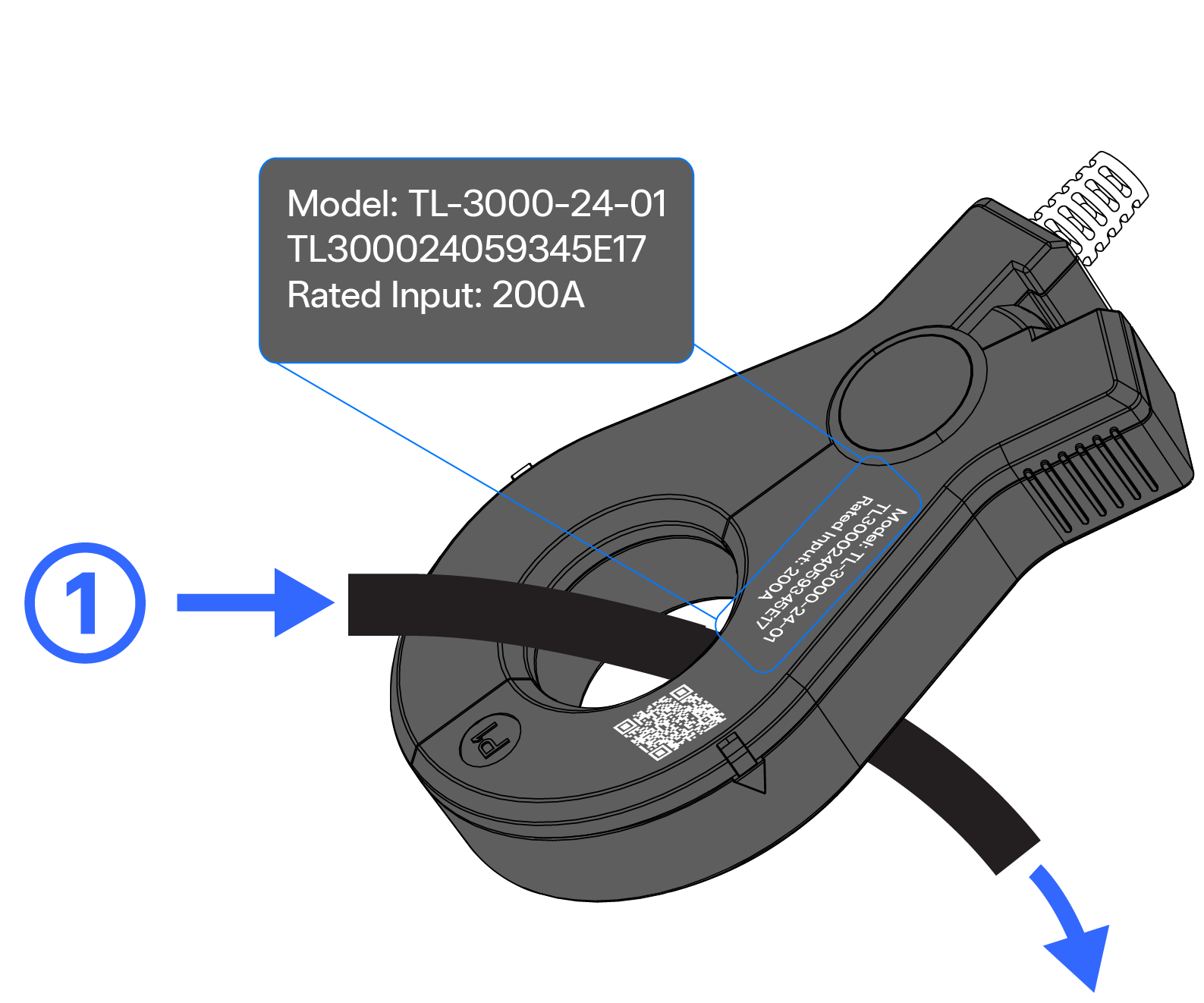

      Figure 1. Tesla 200 A CT (for Tesla Remote Energy Meter) Orientation in Relation to Power Flow ➀
