Wall Connector Unable to Read Data

Informational PurposesAn informational icon, calling your attention
Note
This alert is not visible from the landing page.

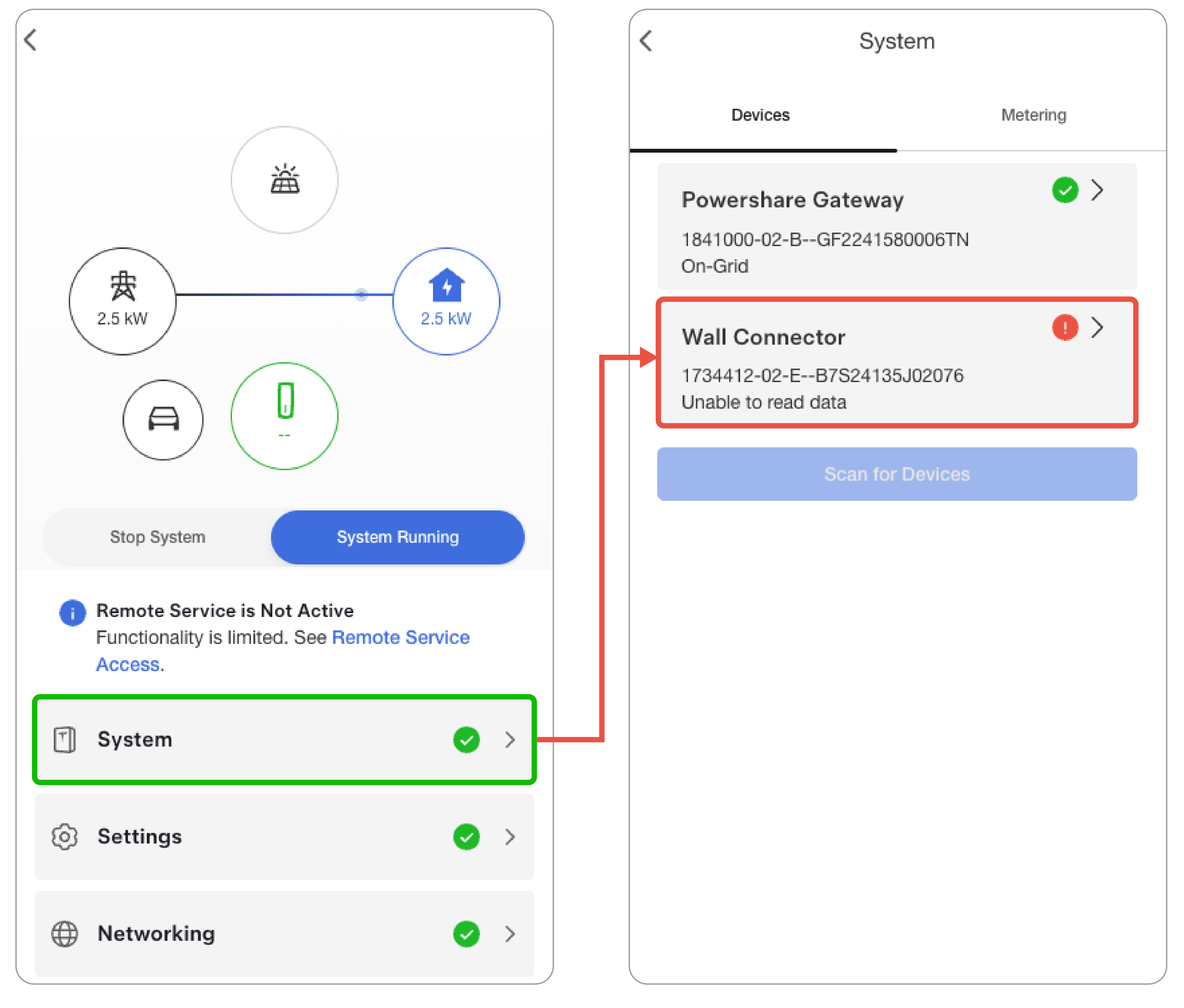

From the landing page, the system appears to be configured and functioning correctly, with a green check on System. However, after selecting System, Wall Connector has an Unable to read data status.
To resolve this issue:
  1. Confirm the Wall Connector is not configured for features that are incompatible with Powershare (e.g. Group Power Management or Dynamic Power Management).
  2. Inspect all wiring terminations to ensure the system has been wired properly and all connections are tight.
  3. Confirm there are no sharp bends or angles in the communication wiring, including when the Powershare Gateway deadfront is closed.
  4. If the issue persists, contact Tesla Installer Support.
