Optional: Perform the Off-Grid Powershare Test

The Go Off-Grid feature in the Tesla mobile app confirms the system will function as expected, both when connected to the grid and during a grid outage. The test is optional because the customer must be available to perform it in their Tesla app.

Informational PurposesAn informational icon, calling your attention
Note
The following minimum software versions are required to use the Go Off-Grid feature:
  • Energy Firmware Version 24.44.3
  • Wall Connector Firmware Version 24.44.3
  • Vehicle Firmware Version 2024.44
  • Tesla Mobile App Version 4.45.0
Informational PurposesAn informational icon, calling your attention
Note
If the system includes a Backup Switch that must be installed by the utility at a later date, the Off-Grid test cannot be performed. Once Backup Switch has been installed, the customer will receive a notification in their Tesla app to complete the Off-Grid Powershare test; a site visit is not required for this test.
Informational PurposesAn informational icon, calling your attention
Note
As an alternative to performing the Off-Grid test in the customer’s Tesla app, the system main breaker can be turned off to simulate a grid outage. However, this method cannot be used for Powershare systems with Backup Switch, as Backup Switch is always installed upstream of the main breaker.

Note that solar breaker(s) must be turned OFF before turning the main breaker off for a backup test.

  1. For systems with solar in the backup circuit, turn the solar breaker(s) OFF.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Turning solar breaker(s) OFF before going off-grid is critical to ensure the customer's home loads are not damaged during the off-grid test.
  2. Plug the Universal Wall Connector charge handle into the Cybertruck. The Cybertruck charge port LED will pulse green to indicate it is charging.
  3. If they have not done so already, ask the customer to pair their phone with Powershare Gateway:
    1. Confirm the customer's Tesla mobile app has been updated to version 4.45.0 or greater.
    2. In the app, select Settings, then Phone Pairing.
    3. Follow the prompts to scan the QR code on the Powershare Gateway deadfront.
      Informational PurposesAn informational icon, calling your attention
      Note
      There is also a QR code label on the Powershare Gateway TACO:

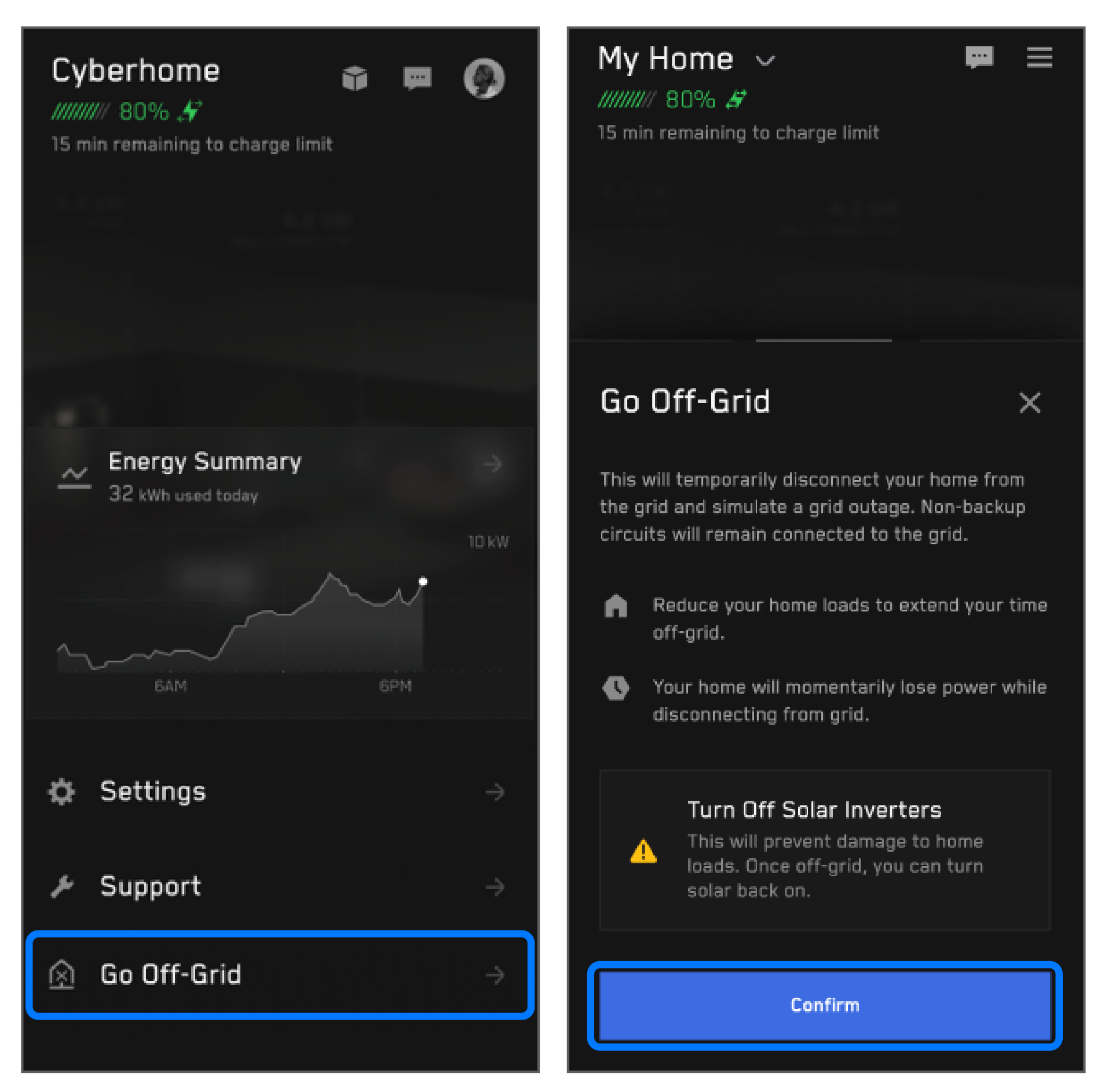

  4. In the customer's Tesla app, select Go Off-Grid.
  5. Cybertruck will begin backup up the home, confirmed by the following:

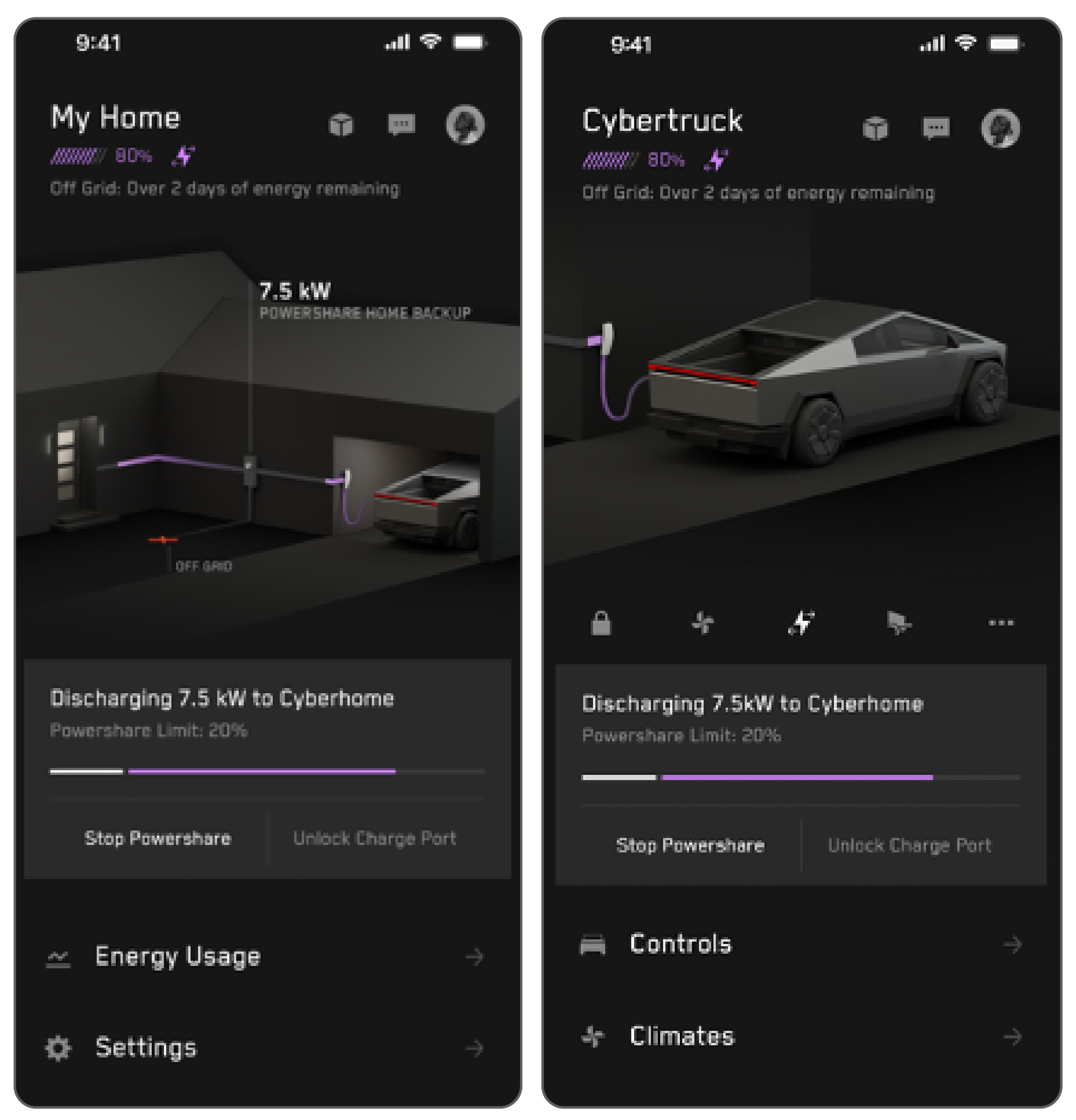

    • The customer's Tesla app displays Cybertruck discharging to the home
      Informational PurposesAn informational icon, calling your attention
      Note
      Once Powershare Gateway has been registered to the customer, they will see the "My Home" screen on the left.

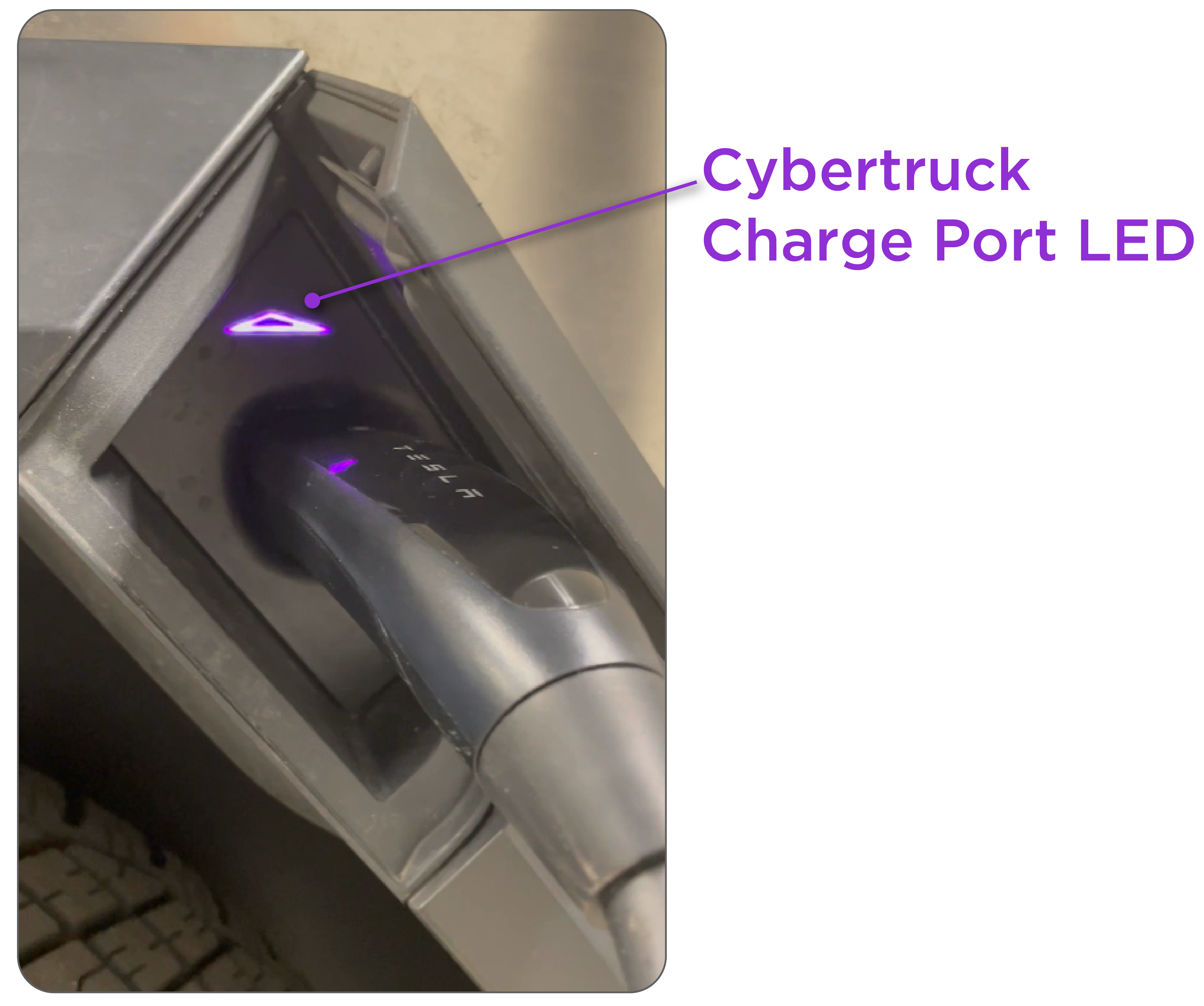

    • The Cybertruck charge port LED is pulsing purple
    • The Wall Connector LED is green and moving in a streaming pattern from bottom to top
  6. After confirming that Powershare is working to back up the intended loads, select Reconnect To Grid to end the test.
