Prepare Ethernet Wiring for CAN / 12V Circuits

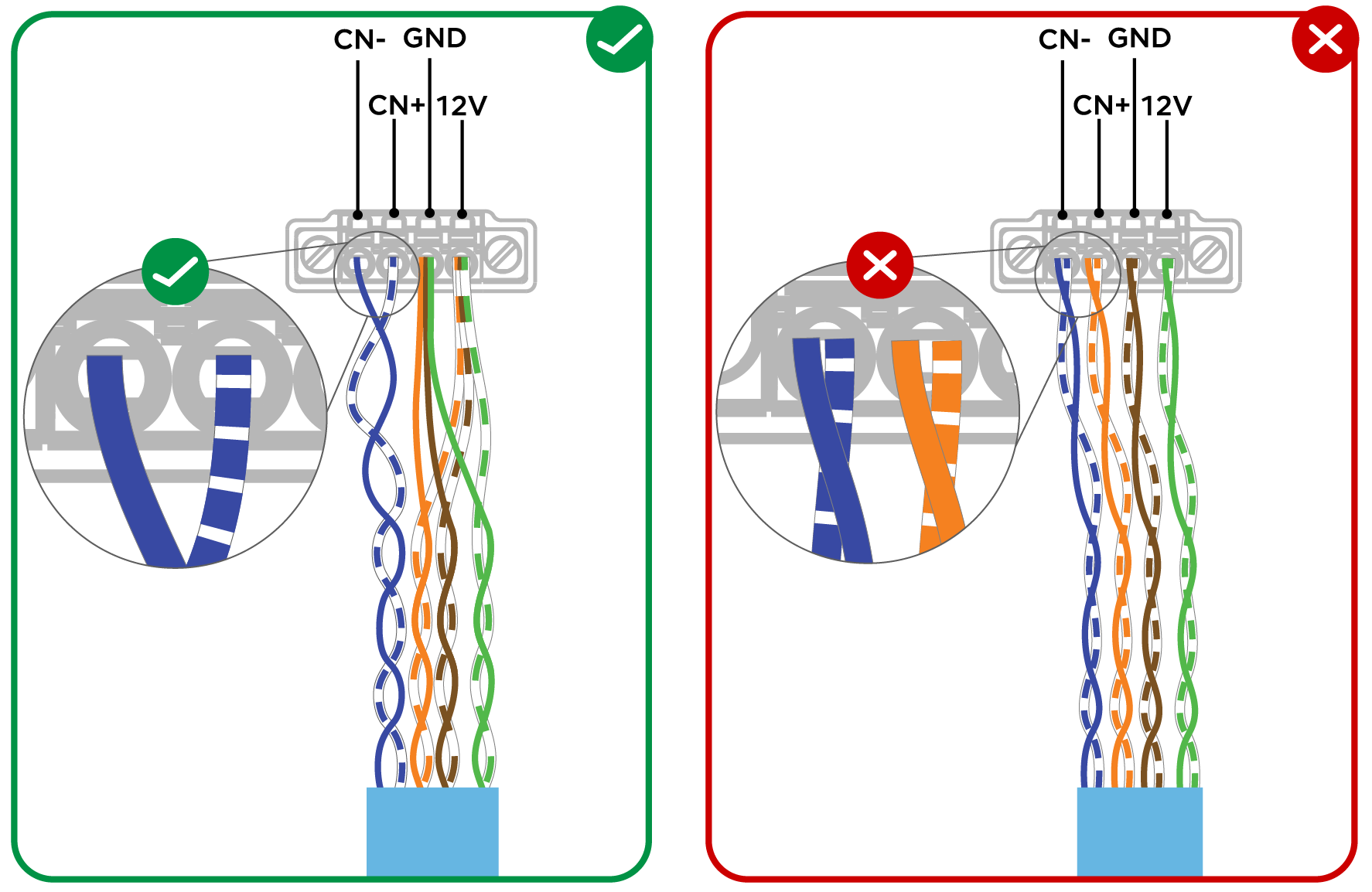

When using CAT5 or CAT6 Ethernet wiring to connect CAN / 12V circuits, connect the Ethernet conductors to the CAN / 12V terminals as follows:
  1. Connect the solid blue wire to the CAN- terminal.
  2. Connect the striped blue wire to the CAN+ terminal.
  3. Combine the remaining solid color wires (orange, brown, and green) at the GND terminal.
  4. Combine the remaining striped wires (orange striped, brown striped, and green striped) at the 12V terminal.
    Informational PurposesAn informational icon, calling your attention
    Note
    Combining the wires in this manner increases power / current capability.
Informational PurposesAn informational icon, calling your attention
Note
A common wiring error is to connect each pair of wires (blue and blue striped, orange and orange striped, etc.) to each terminal. This method does not work, because the wires connected to the CAN- and CAN+ terminals must be a twisted pair.
CAN / 12V Terminal Ethernet Wire Color
CAN- Blue
CAN+ Blue striped
GND Orange
Green
Brown
12V Orange striped
Green striped
Brown striped
