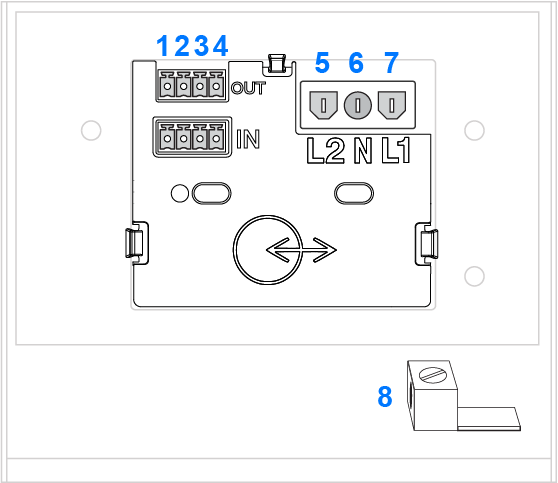

Powerwall Wiring

Table 1. Powerwall Wiring: Communication
	Powerwall Terminal	Recommended Wire Color	Wire Gauge
1	12V + (Logic +)	Brown	18 - 16 AWG (0.8 - 1.5 mm²)
2	GND (Earth)	White	18 - 16 AWG (0.8 - 1.5 mm²)
3	CN + (CAN HI)	Blue	24 – 16 AWG (0.2 – 1.5 mm²)
4	CN – (CAN LO)	Yellow	24 – 16 AWG (0.2 – 1.5 mm²)
	Cable Shield/Drain Wire	(Terminate at Powerwall chassis ground lug only)

Table 2. Powerwall Wiring: Power¹
	Powerwall Terminal	Recommended Wire Color	Wire Gauge
5	L2 (Line 2) – to Neutral	Red	10– 8 AWG (6 – 10 mm²)
6	N (Neutral)	White	10 – 8 AWG (6 – 10 mm²)
7	L1 (Line 1)	Black	10 – 8 AWG (6 – 10 mm²)
8	Chassis Ground Lug	Green / Yellow	10 – 8 AWG (6 – 10 mm²)

¹ Depending on local code for installation methods and cable sizing calculations.

Note

Refer to local codes and standards for correct wiring practices and wire colors.

(3) Wago lever nuts are provided for use with up to 6 mm² (10 AWG) cable. If 10 mm² cables are required per wiring methods, other appropriate connectors may be used, or a junction box near the Powerwall can be used to convert from 10 to 6 mm² cables. Follow all code wiring requirements.

Note

Suitable wire ferrules may be used with Wago connectors, but are not required.
