Powerwall 3 is a fully integrated solar and
battery system. The home's PV array is connected directly to Powerwall 3, which converts solar energy and
stores it for future use.
Powerwall 3 is installed with Backup Gateway
2 to control the system's connection
to the grid and monitor home energy consumption.
Figure 1. Example System Diagram
The following table outlines the key Tesla components in a
standard Powerwall 3 system.
Tesla Components
Tesla Part Numbers
Component
Description
1707000-xx-y
Powerwall 3 is an
integrated solar and battery system that converts energy from
solar panels to be used by
the home, and stores excess energy for future use. Every system
contains at least one Powerwall 3, with
additional Powerwall 3 units
and/or Expansion
units installed depending on the home’s solar
system size and/or energy consumption.
1807000-xx-y

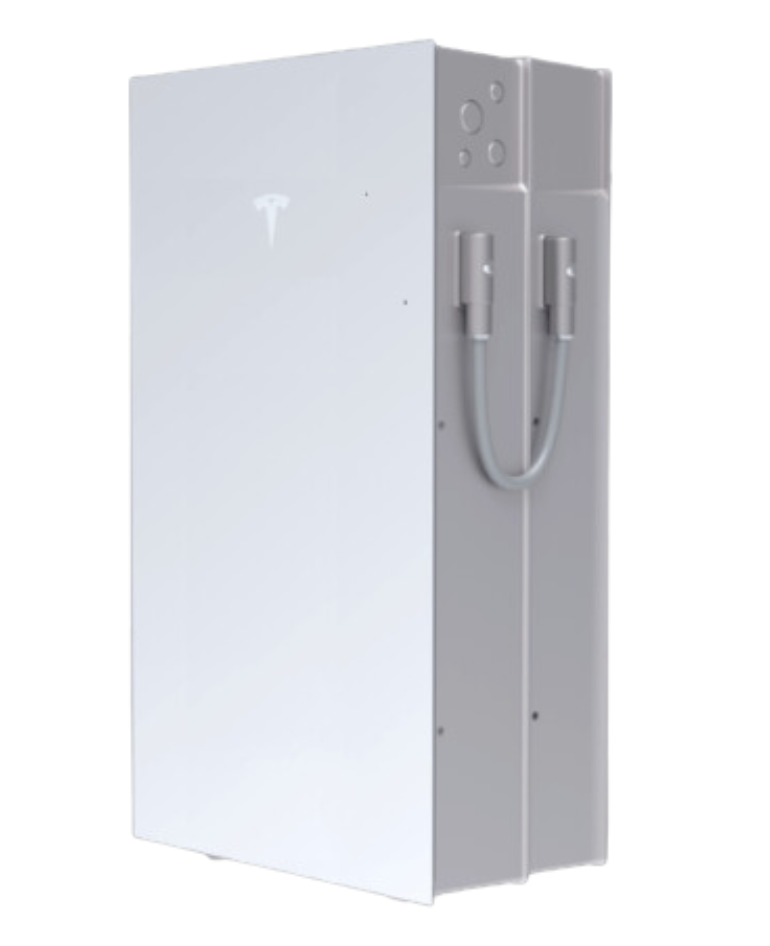

Expansion unit is
mounted behind Powerwall 3
unit
Powerwall 3Expansion is a battery
that provides additional storage for a Powerwall 3 system. Because
the Expansion does not
include an inverter, it cannot be installed without Powerwall 3. Solar cannot
be connected to an Expansion unit.
1152100-xx-y
Backup Gateway 2 monitors energy usage and manages the transition
to and from backup operation.
2002069-xx-y
Tesla Remote Energy
Meter is an external
meter. It can be used to monitor the energy usage or solar
production when AC coupled.
