Make AC Power Connections to Supply and Load Panels

In each of the following steps:
  • Strip the ends of the wires, install wire ferrules, and insert into the corresponding Backup Gateway terminal lugs.
  • Using an M3 Allen bit, tighten the lugs to 4 Nm.
  1. Connect the main service conductors to the Backup Gateway Supply terminals according to Conductor Connections for Single Phase (left) and Three-Phase (right).
  2. Connect the home load panel conductors to the Backup Gateway terminals according to the table on the following page.
  3. Depending on the quantity of Non-Backup circuits, a Non-Backup panel will be required. Connect the conductors (Line(s), Neutral, and Protective Earth) from the Non-Backup panel to the Backup Gateway's Non-Backup terminals.

    Non-Backup circuits include: 3-phase PV inverters, 3-phase loads, large single-phase loads.

  4. Connect the non-backup panel conductors to the Backup Gateway Non-Backup terminals according to the table on the following page. Any circuits connected here will not be powered when disconnected from the grid. During on-grid operation, these circuits are still metered by the internal site metering with no additional metering hardware required.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Installing 3-phase equipment on the backup circuit may result in equipment damage.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Always ensure all equipment is safely de-energized and locked out prior to working, to prevent risk of electric shock. To avoid shock hazard, never power on the system without a connection to Earth at the Gateway. The Earth bar and backplate voltage may float when ungrounded. If conducting earth loop impedance testing, ensure the Gateway always has a suitable Earth connection.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Incorrect wiring of AC conductors presents a risk of electrical shock or damage to equipment. Before energizing the system, ensure all connections are made correctly according to the instructions in this document and in accordance with local wiring codes and regulations.
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
To ensure IP55 ingress protection, appropriate fittings and/or cable glands must be used to secure all cables passing into the enclosure.

Refer to Appendix B: Wiring Reference for all wiring requirements and recommendations, including wire colors and gauges.

Refer to Appendix C: System Wiring Diagrams for example system wiring diagrams.

Table 1. Conductor Connections for Single Phase (left) and Three-Phase (right)
Single Phase Three-Phase

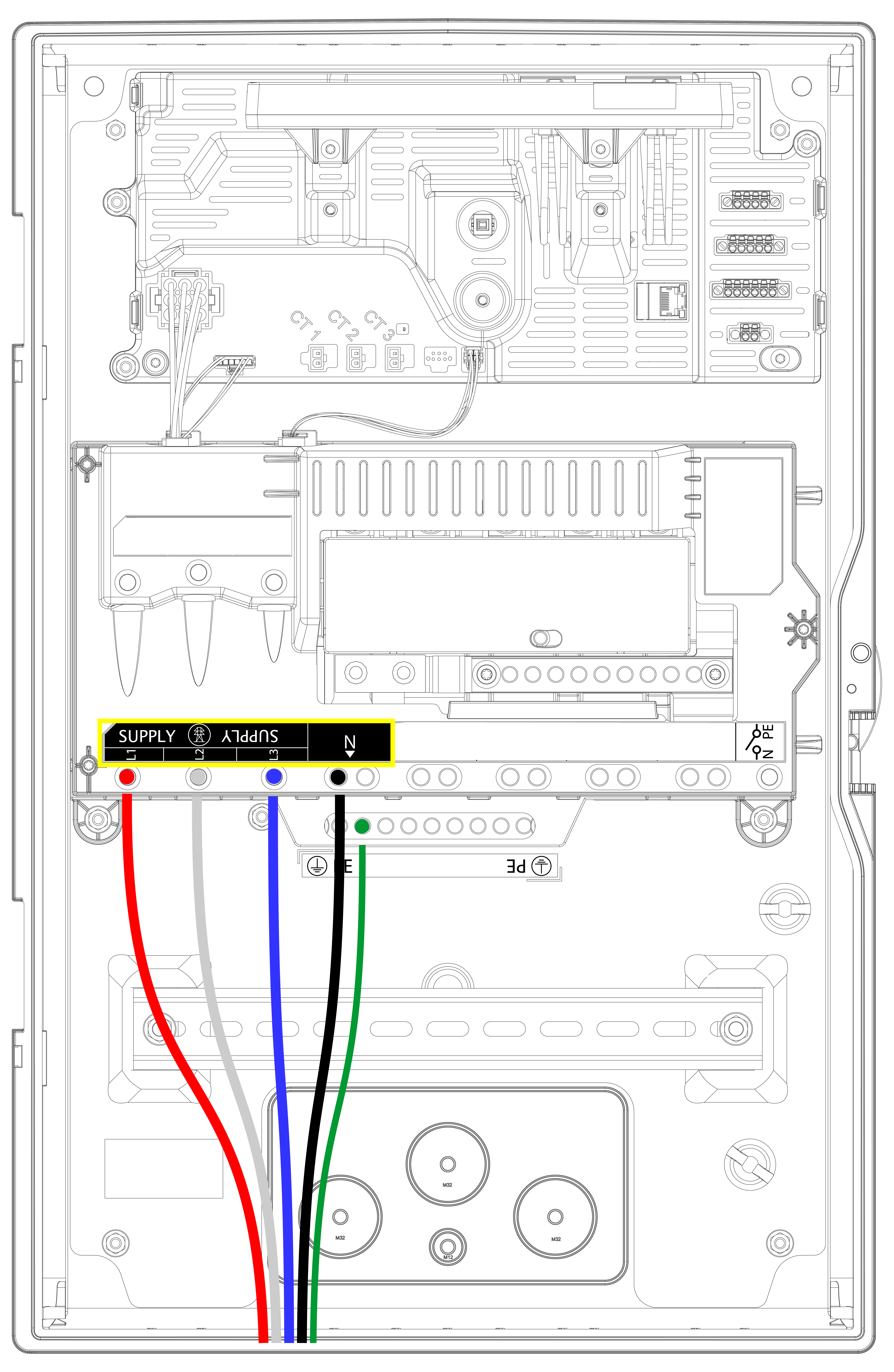

Supply Connections
Home Load and Backup Connections

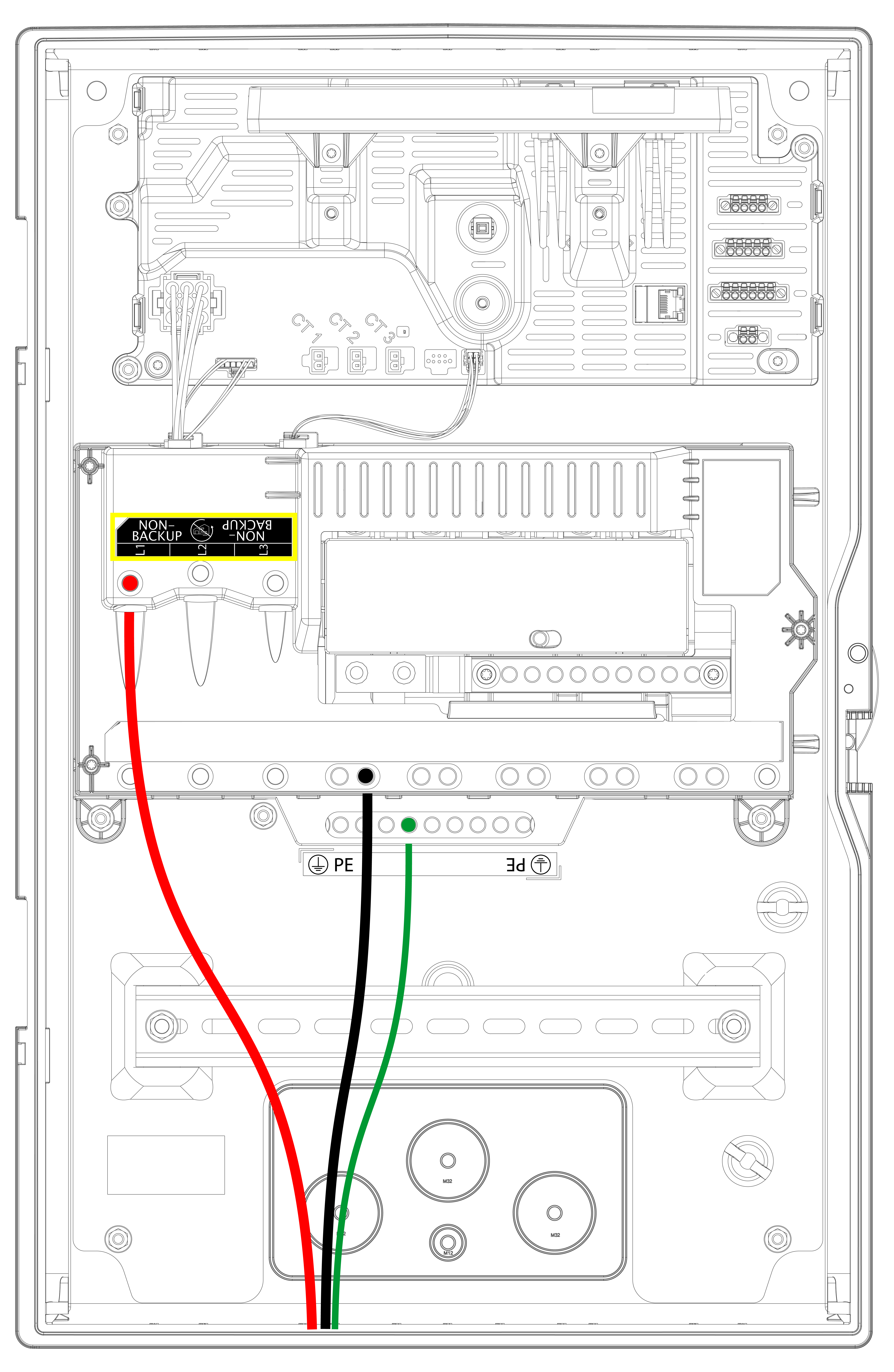

Non-Backup Connections
Terminal Maximum Wire Gauge Strip Length Torque
Supply 35 mm2 12.5 mm 4 Nm
Non-Backup 35 mm2 12.5 mm 4 Nm
Home (Backup) 35 mm2 12.5 mm 4 Nm
Neutral terminal bar 25 mm2 12.5 mm 4 Nm
PE terminal bar 25 mm2 12.5 mm 4 Nm
