Tesla Remote Energy
Meter can be installed to
provide additional metering for Powerwall systems.Figure 1. Tesla Remote Energy
Meter
Metering Site in Partial Home Backup Configuration with
AC-Coupled Solar

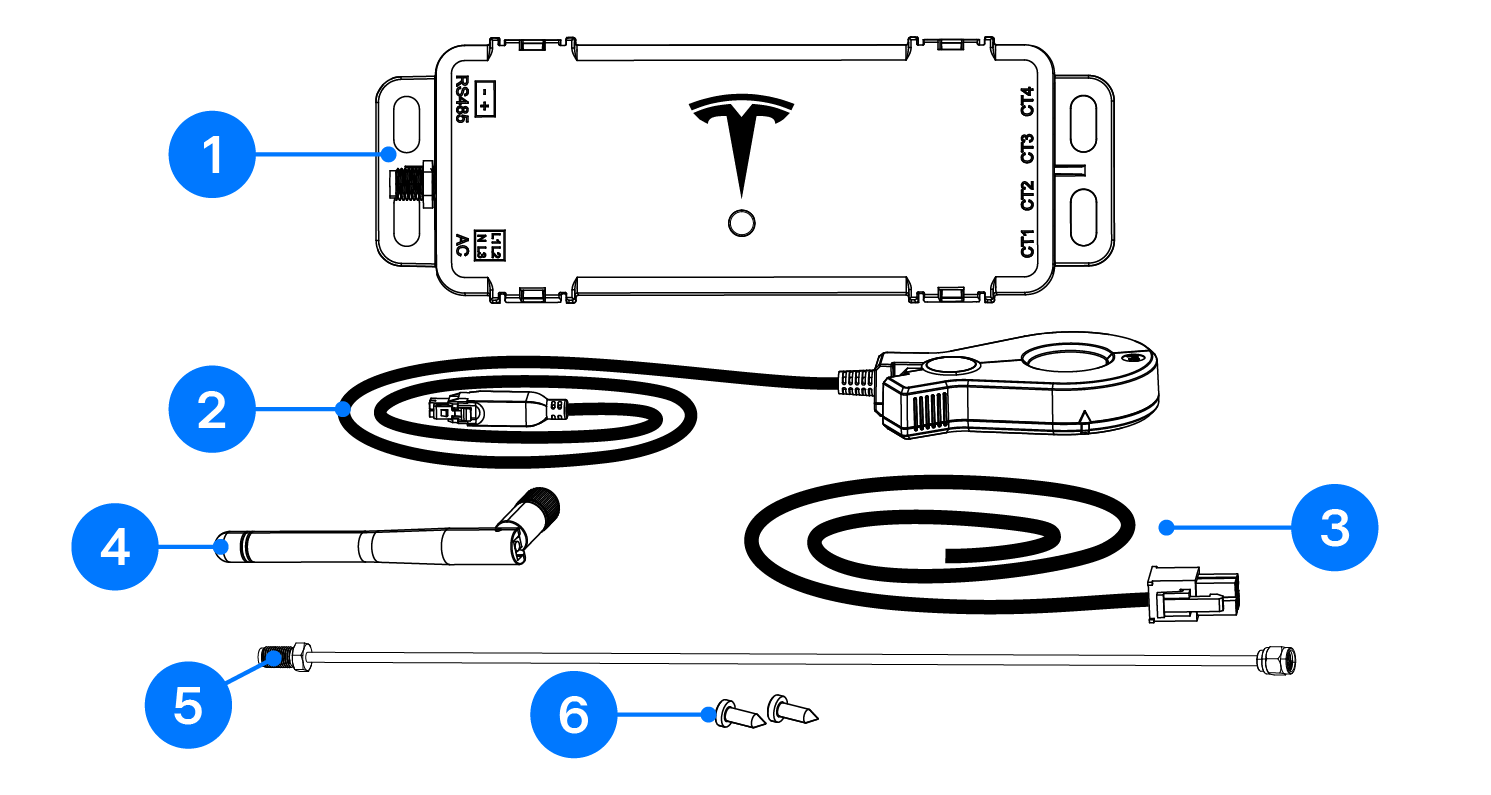

Table 1. Tesla Remote Energy
Meter Kit
Contents (Tesla P/N 2083765-xx-y)
Part Description
Quantity
Tesla Remote Energy
Meter
1
Tesla 200 A CT (1.5 m)
1
Voltage harness (600 mm)
1
External antenna
1
Antenna extension
1
Fasteners
2
Table 2. Tesla Remote Energy
Meter
Accessories
Part Description
Tesla P/N
Quantity
Tesla 200 A CT (1.5 m)
2033376-xx-y
1
RS-485 harness (1.2 m)
2045794-xx-y
1
CT extension (3.5 m)
2060713-xx-y
1
Note
The Tesla Remote Energy
Meter accessories listed above are not included
in the Tesla Remote Energy
Meter kit. They must be ordered
individually.
