Tesla Remote Energy Meter Specifications

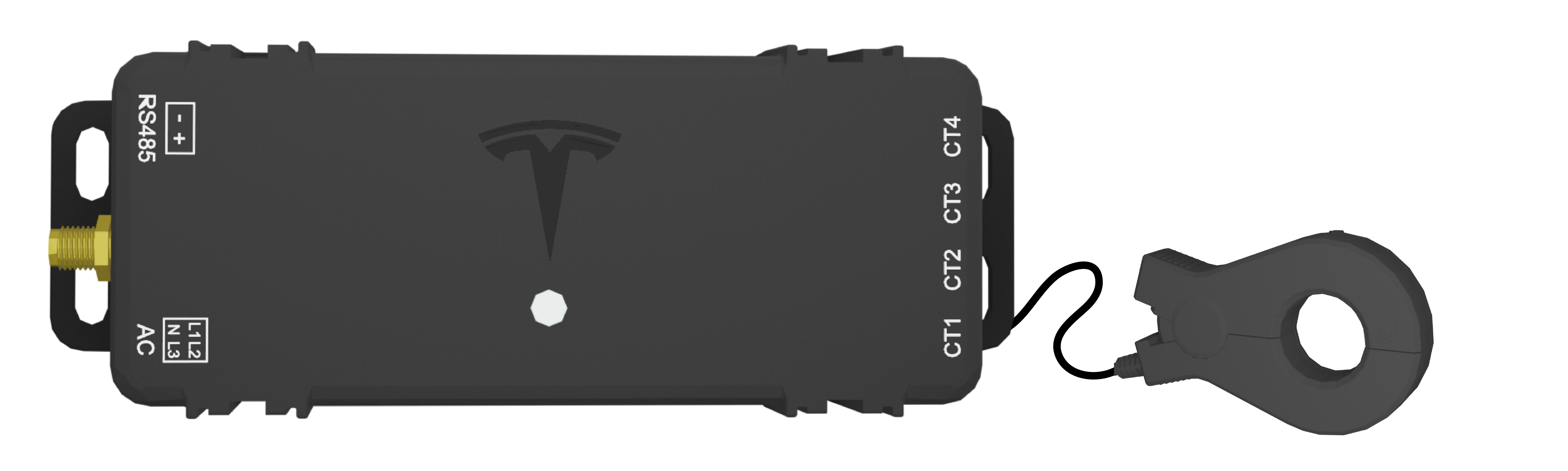

Tesla Remote Energy Meter Specifications
| Model Number | 2002069-00-x |
| Accuracy | 0.2% |
| Nominal AC Voltage | 230 VAC 1 |
| AC Frequency | 50 - 60 Hz |
| Maximum Power Consumption | 3 W |
| Compatible CTs | Tesla 200A CTs (see Tesla 200A CT Specifications) |
| Connection Method | Wireless: Wi-Fi (2.4 and 5 GHz) 2, 5 |
| Wired: RS-485 harness (1.2 m or 4 ft) 3, 4, 5 | |
| Overcurrent Protection Device (OCPD) | 16A |
| Dimensions | 145 x 52 x 31 mm |
| Ambient Operating Temperature | –30°C to 70°C |
| Conforms to | UL 61010-1, CSA C22.2 No. 61010-1, IEC/EN 61010-1, ANSI C12.1, IEC 62052-11, IEC 62053-21 |
| Supported Applications | Site, Solar, Generator, Conductor |
| Compatible Grid Types | 1ф L1-N, 3ф L1-L2-L3-N Wye 6 |
1 Voltage harness (600 mm or 23.6 in) is included in the Tesla Remote Energy Meter kit. If additional length is required, the voltage harness can be extended using 1.5 - 6 mm2 AC wiring. To maintain accuracy, keep the meter within 61 m of its breaker when using 2.5 mm2 wire.
2 An external Wi-Fi antenna and antenna extension cable are included in the Tesla Remote Energy Meter kit. When using Wi-Fi as the connection method, remote meters placed inside of load centers can be subject to signal interference, especially when a panel cover is installed. For best performance, where possible, use the included external antenna and the antenna extension cable to extend the external antenna.
3 RS-485 harness is not included in the Tesla Remote Energy Meter kit; it can be ordered individually (Tesla P/N 2045794-00-x).
4 If the RS-485 harness length is not sufficient, 0.2 - 1.5 mm2 communication wiring can be used to extend the length up to a maximum of 100 m or 328 ft.
5 A Powerwall 3 site can have a maximum of (2) Tesla Remote Energy Meters; (1) connected via RS-485 harness for measuring the site and another (1) connected via Wi-Fi for measuring the AC-coupled solar. Do not connect (2) Tesla Remote Energy Meters via Wi-Fi.
6 Connection to L1 and Neutral is always required.
Tesla 200A CT Specifications
| Model Number | 2033376-00-x |
| Capacity | 200 A |
| Insulation Rating | 600 V |
| Lead Length | 1.5 m 7 |
| Optional Extension | 3.5 m 8 |
| Optional Y-Splitter | Not available |

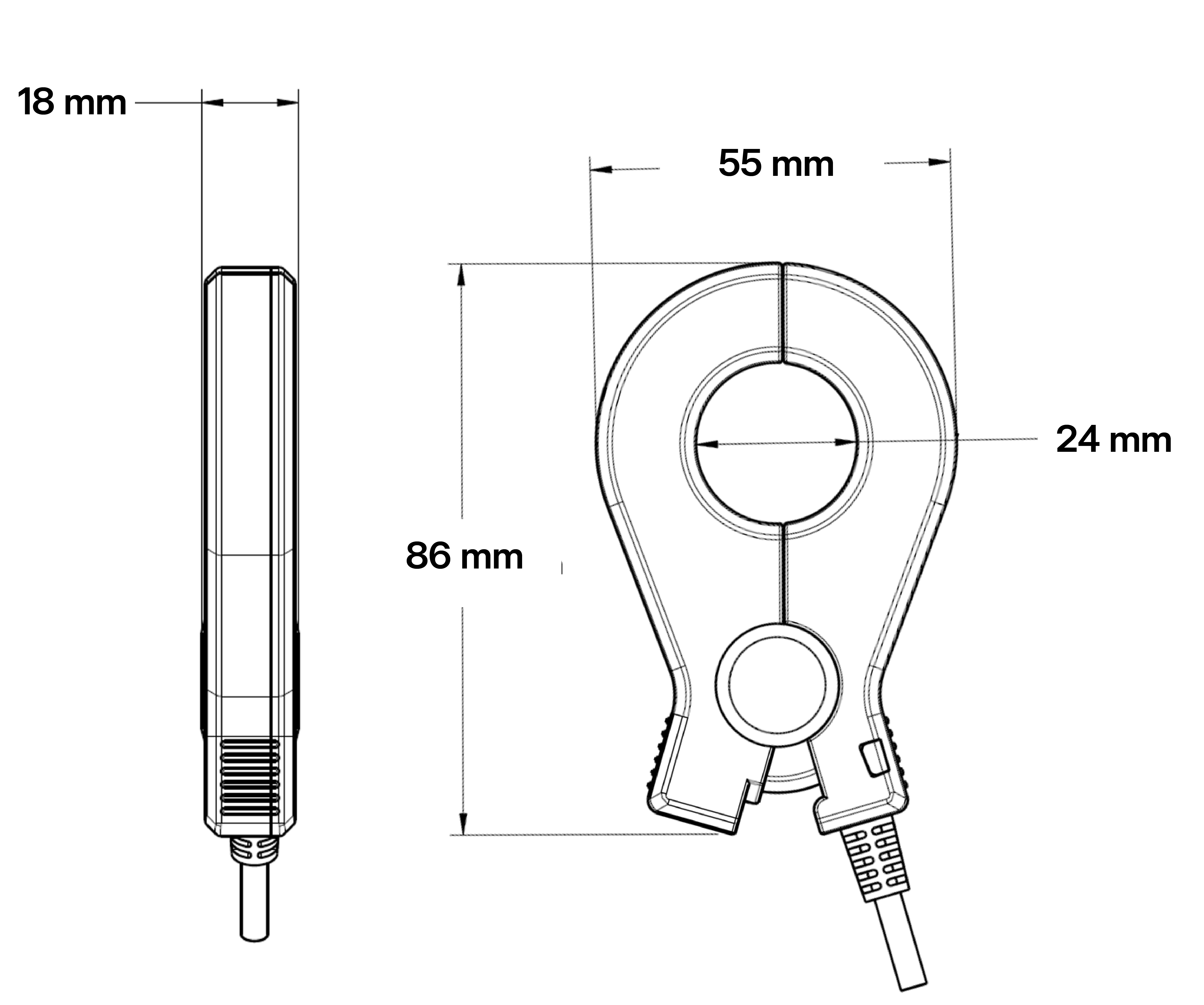

| Dimensions (L, W, H) | 86 x 55 x 18 mm |
| Window Size | 24 mm |
| Operating Temperature | –30°C to 85°C |
7 If the CT lead length is not sufficient, do not splice the CT leads. Up to (2) CT extensions can be used to extend the length to a maximum of 8.5 m (1.5 m CT lead + 3.5 m extension + 3.5 m extension).
8 Extension is not included in the Tesla Remote Energy Meter kit; it can be ordered individually (Tesla P/N 2060713-xx-y).
