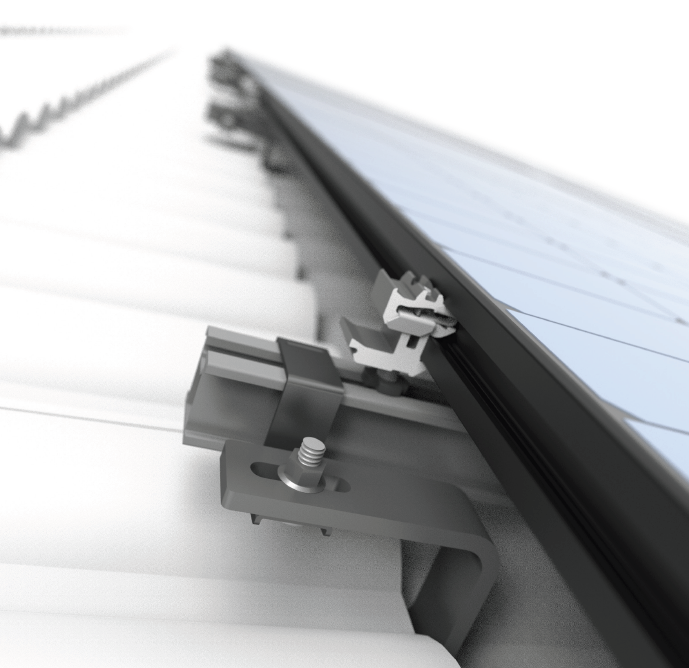

Rail Based Application for Tile Roofs

Notices:

This manual contains safety, installation, configuration and troubleshooting instructions for Tesla Zep Compatible™ Systems (ZS) products. Tesla recommends that you save this manual in a readily accessible location, should any questions arise.

Tesla ZS Span is UL 2703 Listed for Bonding.

Tesla ZS Span has a IEC/UL 61730 Class “A” Fire Rating when installed on steep slope roofs using modules from any manufacturer certified as “Type 1” or “Type 2.”

Tesla ZS Span is to be mounted over a fire resistant roof covering rated for the application.

This system should be periodically re-inspected by qualified service technicians. In the event any components or fasteners are found to be loose, they should be re-tightened to manufacturer’s specifications. Any components showing signs of corrosion that compromise safety or function shall be replaced immediately.

Tesla ZS Span may only be used to ground and mount Zep Compatible™ PV modules.

All Tesla Zep Compatible™ modules comply with IEC/UL 61730 and have been evaluated for grounding and mounting in compliance with the included instructions. Zep Compatible™ modules are identified by the Zep Solar logo on their label.

Tesla Zep Compatible™ components are only suitable for PV modules with a series fuse rating of 20 Amps or less.
