STEP 3: Install Splice Assembly Kit

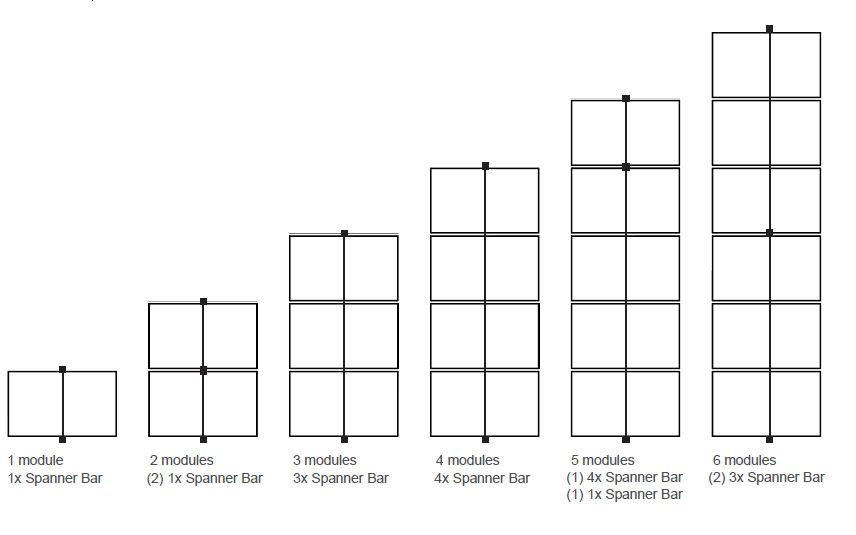

  1. Determine spanner bar lengths.
    The Spanner Bar is offered in pre-cut lengths based on module width dimension. Assemble Spanner Bars into the final lengths required for the array design. Do not cut Spanner Bars. Use proper Spanner Bar lengths to build the array. Avoid over-splicing.
  2. Install the splice assembly kit (if needed).

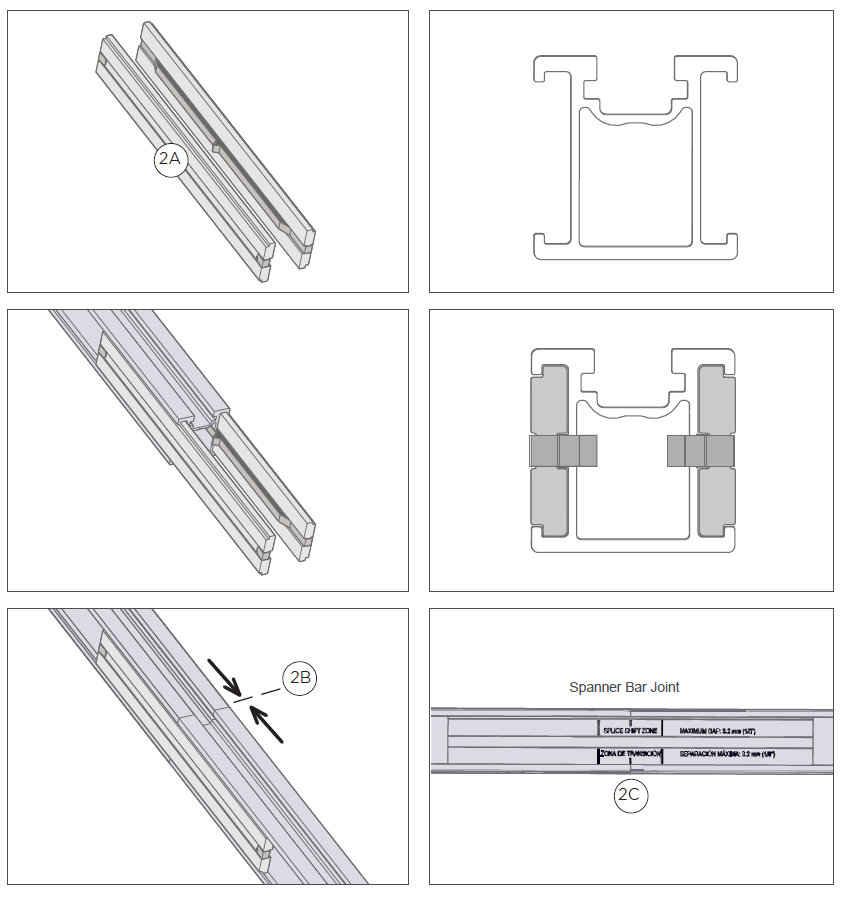

    Use the Splice Assembly Kit (2A) to connect Spanner Bars. Press Spanner Bars together to ensure minimal gap (2B). Use Alignment Marks to properly position the Splice Assembly Kit over the Spanner Bar joint of two Spanner Bars (2C).
