The first Array Skirt should be installed at the front of the system, starting with the Rockits that are closest together. Set the Array Skirt on the Rockit and rock down, making sure to fully engage with the Key side of the Rockit. The Array Skirt should press flush against the Rockit. Rock in the second Array Skirt, aligning it to be flush against the first Array Skirt.

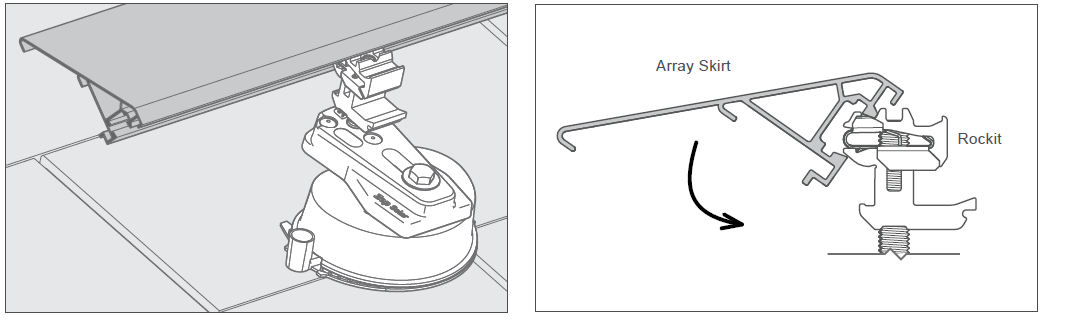

Set the Array Skirt on the Rockit and rock down.

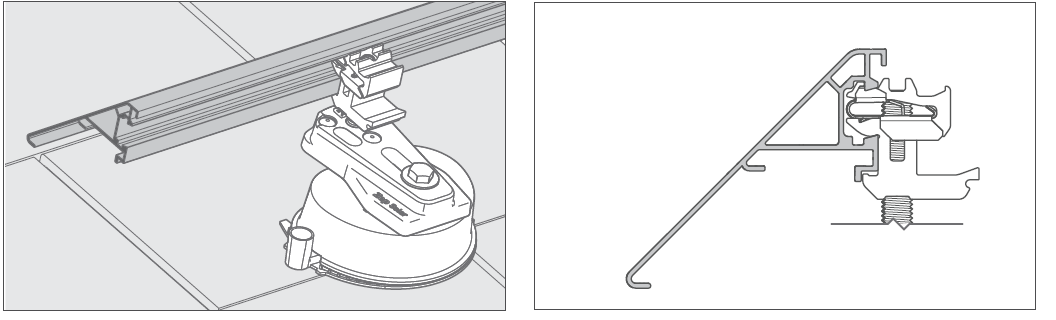

Fully engage with the Key side of the Rockit.

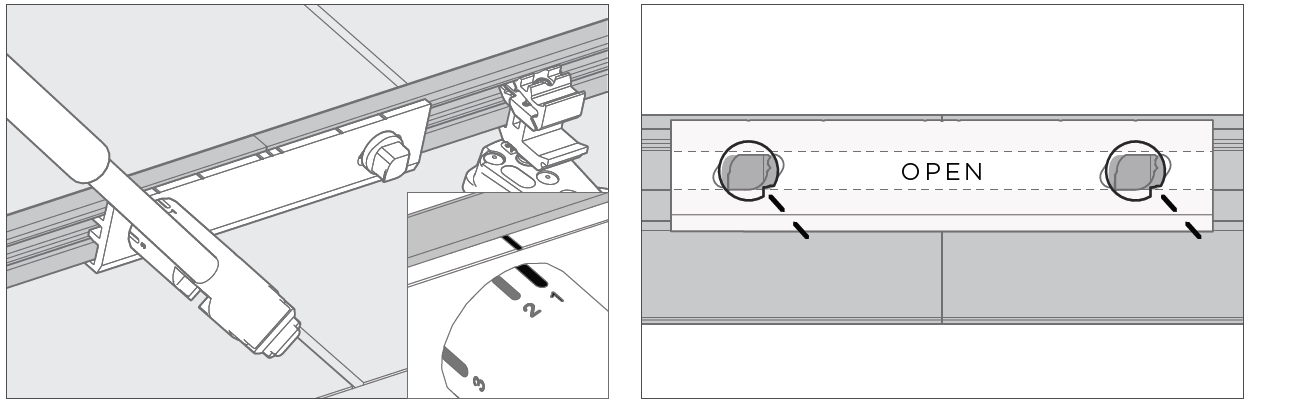

Place and center an Interlock over the seam of the two Array Skirts, using timing marks as shown (2A). Use the Zep Tool to rotate Interlock Zeps from Position 1 to Position 3 (2B). The outside edge of the Array Skirt should line up with the array perimeter. Complete the Skirt by installing additional Array Skirts with Interlocks.

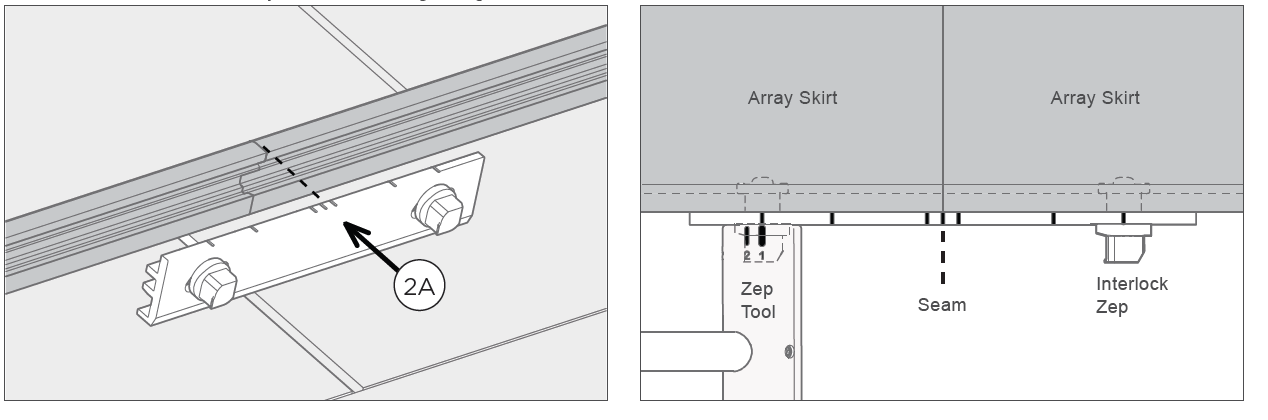

Center the Interlock at the Array Skirt seam, using timing marks.

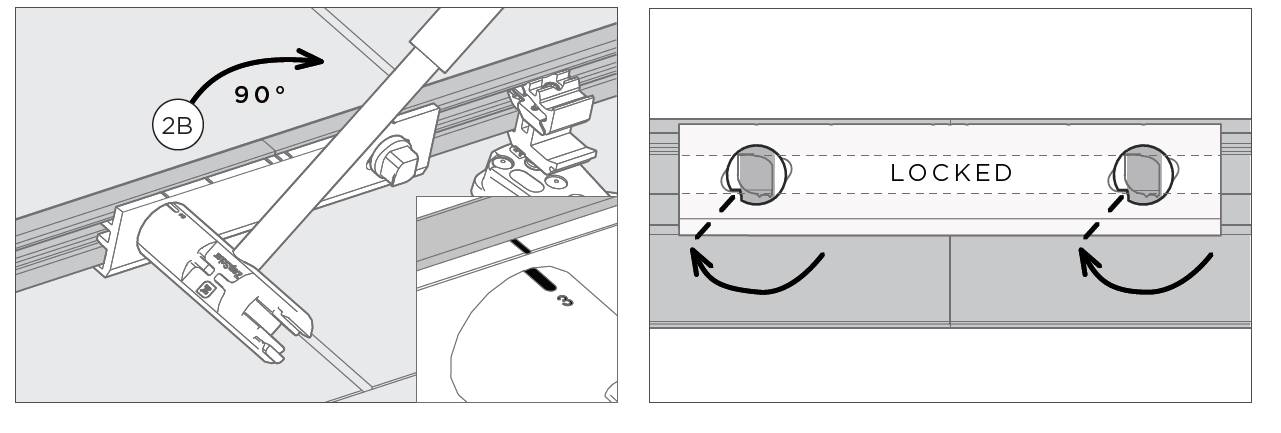

Rotate Interlock Zeps from Position 1 to Position 3.

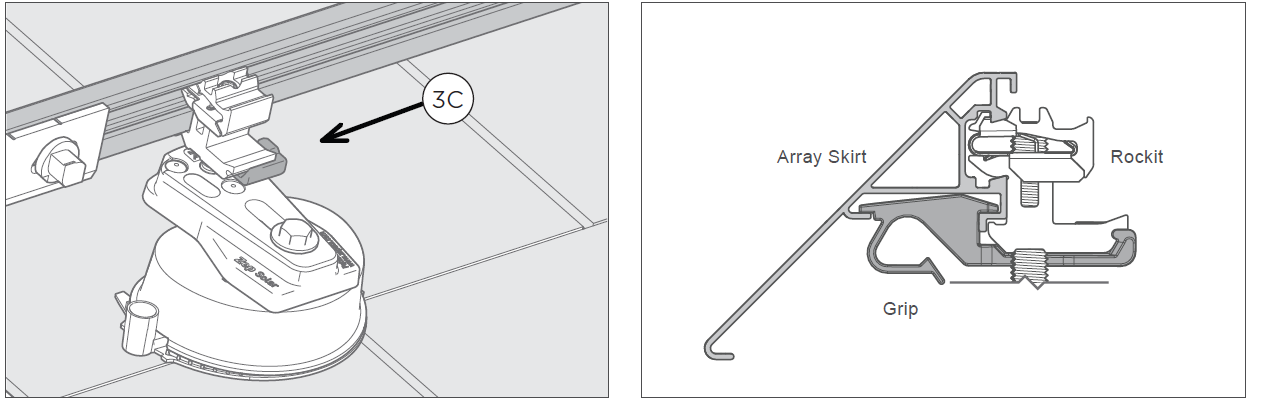

Insert Grip on underside of Array Skirt.

Rotate Grip until it clicks into place.

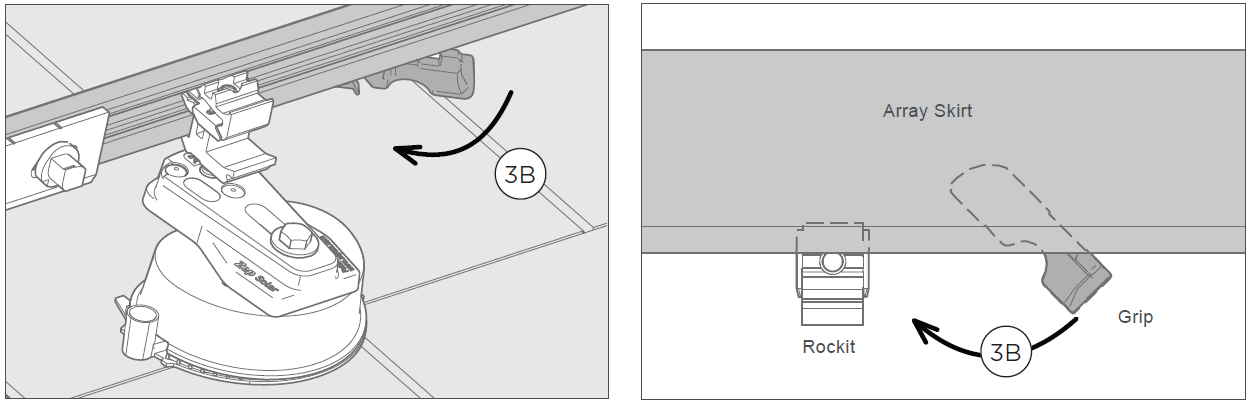

Slide the Grip until it clicks into the Rockit.
