In addition to standard roofing tools (Drill and Impact Driver; Stringline and
Chalkline; Measuring Tape) Tesla Zep Systems require a #30 Torx bit and two
proprietary tools - the Zep Tool and Flat Tool.
Zep Tool
Torx Bit
Flat Tool
Installation Overview

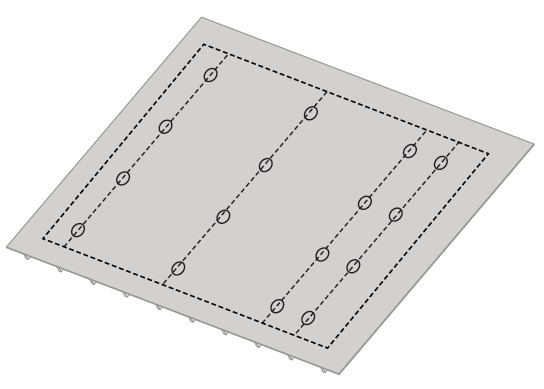

Lay out Array.

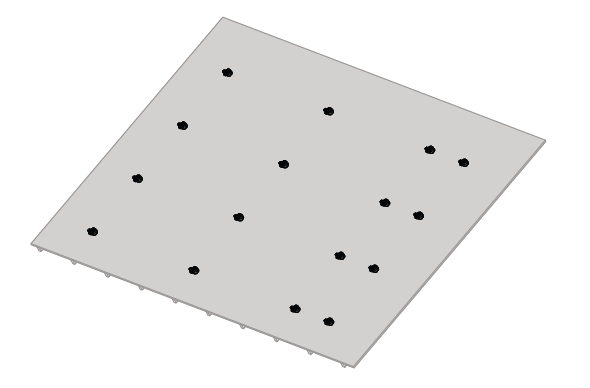

Install Comp Mounts.

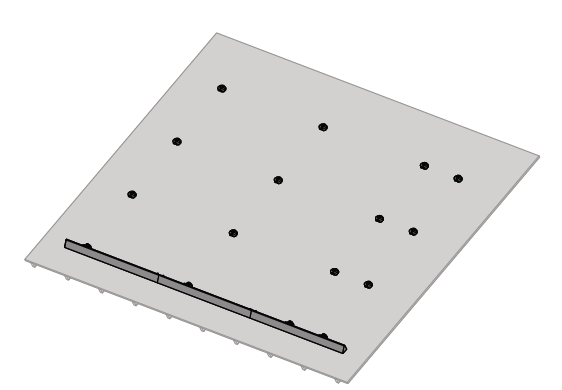

Install Array Skirt.

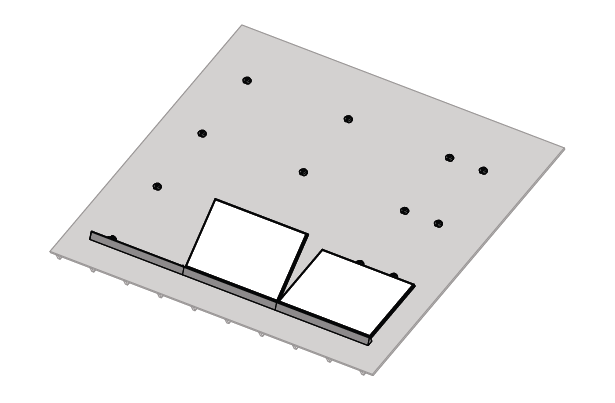

Install First Module Row - SKIMBL.

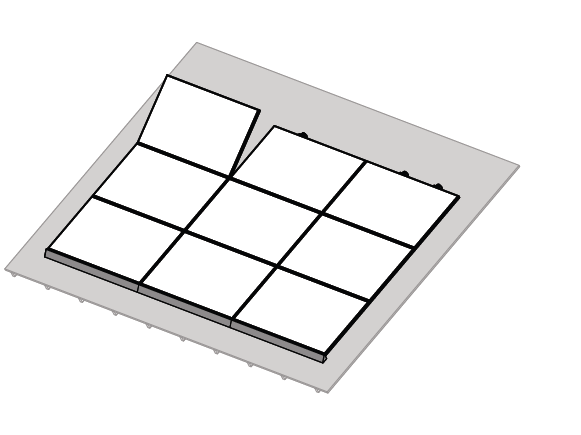

Complete Module Rows.

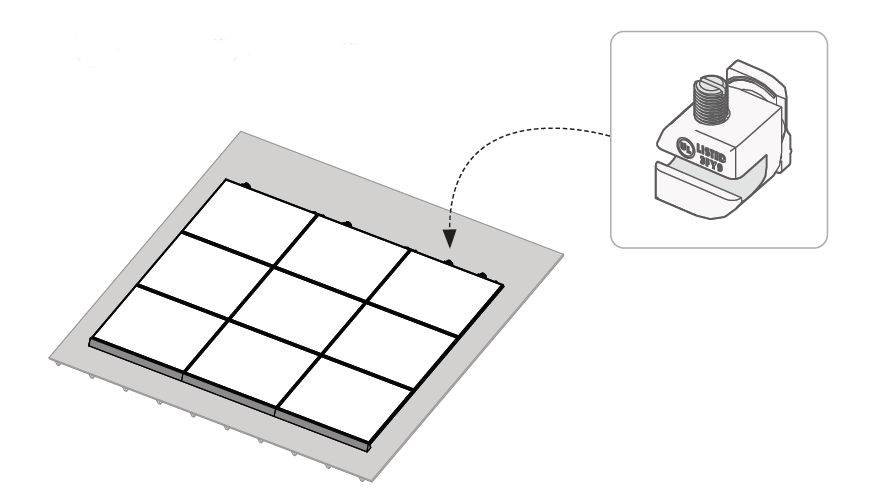

Ground Zep.

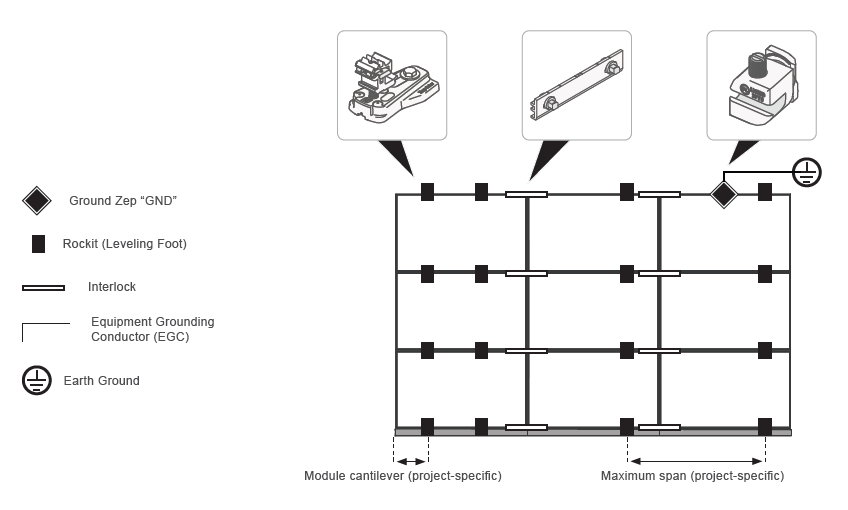

Standard Standoff Layout
Maximum cantilever and span is shown on the project plan set.
Maximum cantilever is 1 ⁄ 3 of the maximum span and never exceeds 24 inches.

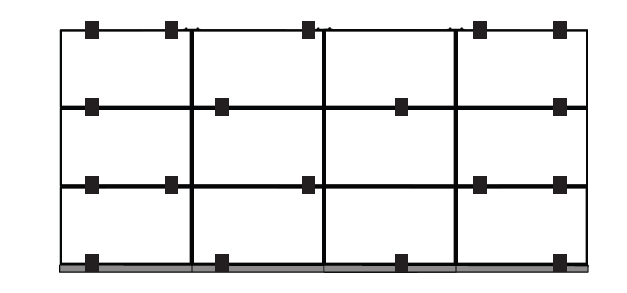

Staggered Standoff Layout
Staggered standoff layouts may be necessary to avoid roof obstructions and fulfill
required cantilevers.
