STEP 5: Install Spanner Clamp

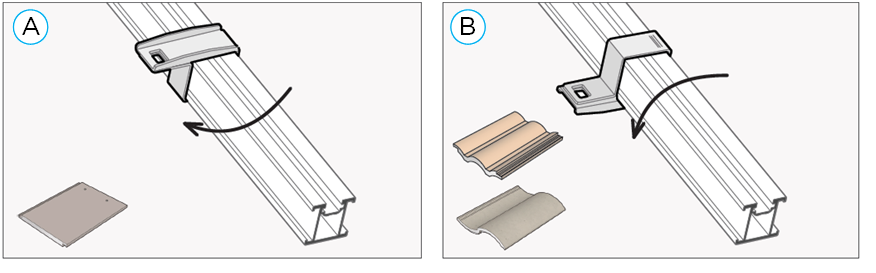

  1. Slide the Spanner Clamp onto the Spanner Bar.
    The Spanner Clamp orientation is determined by tile type.

    A - Flat Tile

    B - W and S-Tile

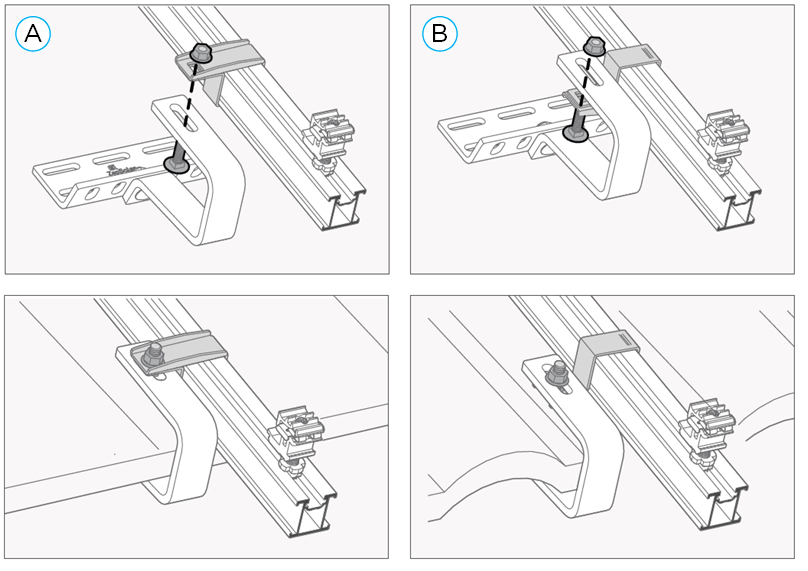

  2. Fasten the Spanner Clamp to the Mighty Hook.
    Use an impact to secure the Spanner Clamp onto the Mighty Hook with Carriage Bolt and Flange Nut.

    A - Flat Tile

    B - W and S-Tile

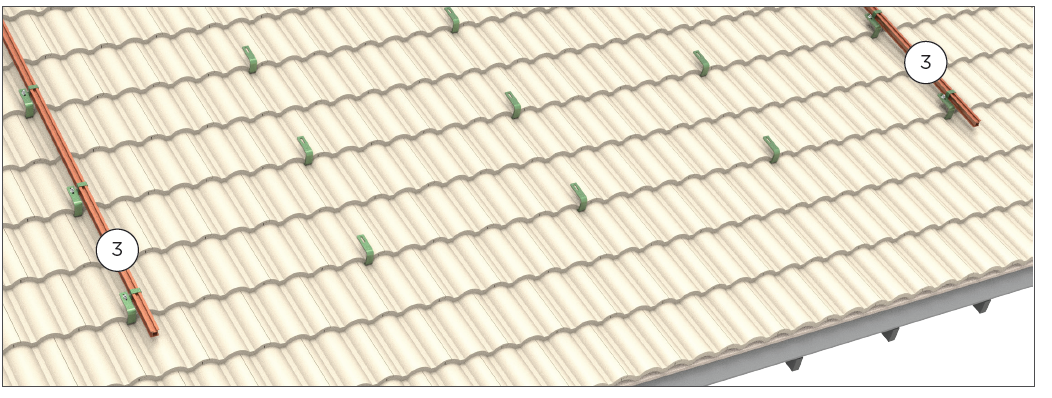

  3. Mount the outer Spanner sections on the Mighty Hook.

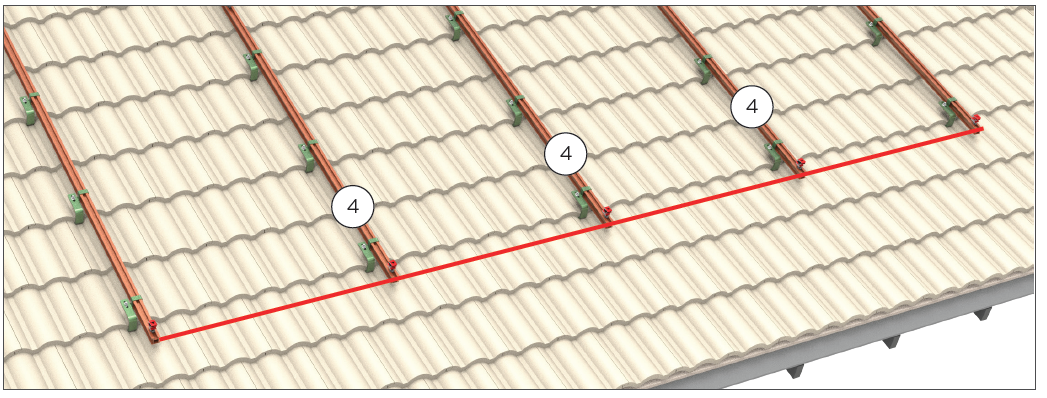

  4. Mount the inner Spanner sections on the Mighty Hook.

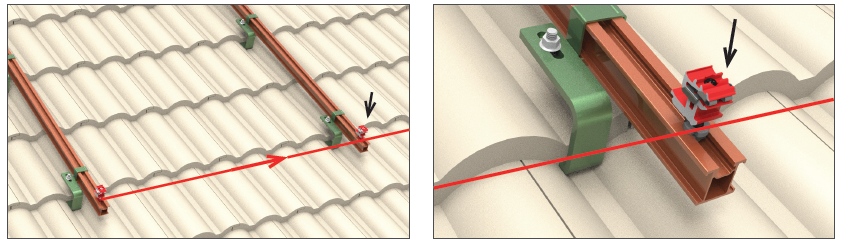

    Use String Line to Align Middle Spanner Bars and Cam Feet. Place string line on front side, just below the Rockit, on the two outermost Cam Feet. Slide middle Spanner Bars into position until Cam Feet threaded studs meet string line.

    Secure Middle Spanner Bars and Align Cam Feet. Visually check that Spanner Bars are level, and not tilted.
  5. Level the Cam Feet Rockits to the string line.
    Spin the Rockit to adjust Cam Foot height up or down within the allowable range (0.75 inch).
