STEP 4: Install Cam Foot

  1. Insert the Cam Foot V2 base into the Spanner Bar channel.

    Attach first row of Cam Feet ½ inch from Spanner Bar edge, measuring from the front of the Cam Foot threaded stud (tolerance window is 1/4” to 3/4”). The Key side of the Cam Foot Rockit should face outwards, towards the perimeter of the array. Tongue side of Rockit should face inwards, towards the field of the array.

    Informational PurposesAn informational icon, calling your attention
    Note
    This measurement can be easily obtained via the flat tool indentation.

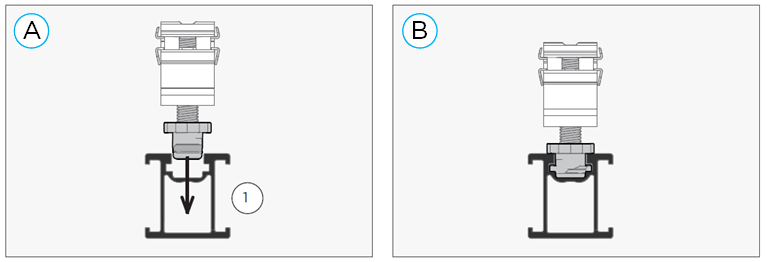

    A - Unlocked Cam Foot

    B - Locked Cam Foot with rotated base

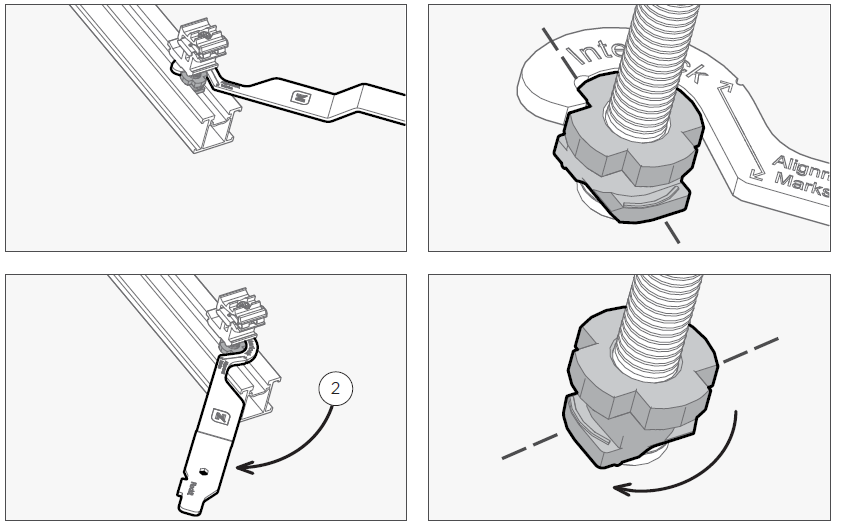

  2. Lock Cam Foot using the Flat Tool.

    Lock the Cam Foot (Rockit) into the Spanner Bar by rotating the base 100 degrees using the Flat Tool.

    Informational PurposesAn informational icon, calling your attention
    Note
    Insert the “jig” side of the flat tool into the Spanner Bar.
