STEP 7: First Row Cam Feet

  1. Stage the Cam Feet.

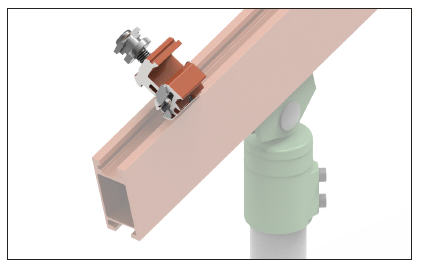

    Stage Cam Feet onto the Rails according to the number of modules specified in the project plan set by placing it Rockitside down.
  2. Install the outer Cam Feet for the first row.

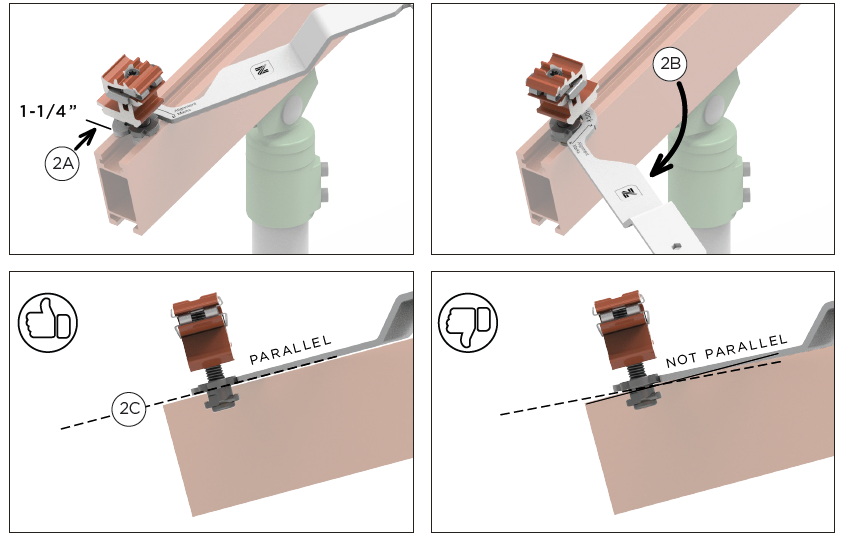

    Insert the first Southern-edge Cam Foot into the Rail channel 1 1/4” from the Rail edge (2A). Use the Offset Flat Tool to turn the Cam Foot 90 degrees clockwise (2B). Keep Offset Flat Tool level and parallel to Rail surface to avoid gouging the Rail (2C). Install a Cam Foot on the opposite front corner, 1 1/4” from the Rail edge.
  3. Use a string line to install inner Cam Feet.

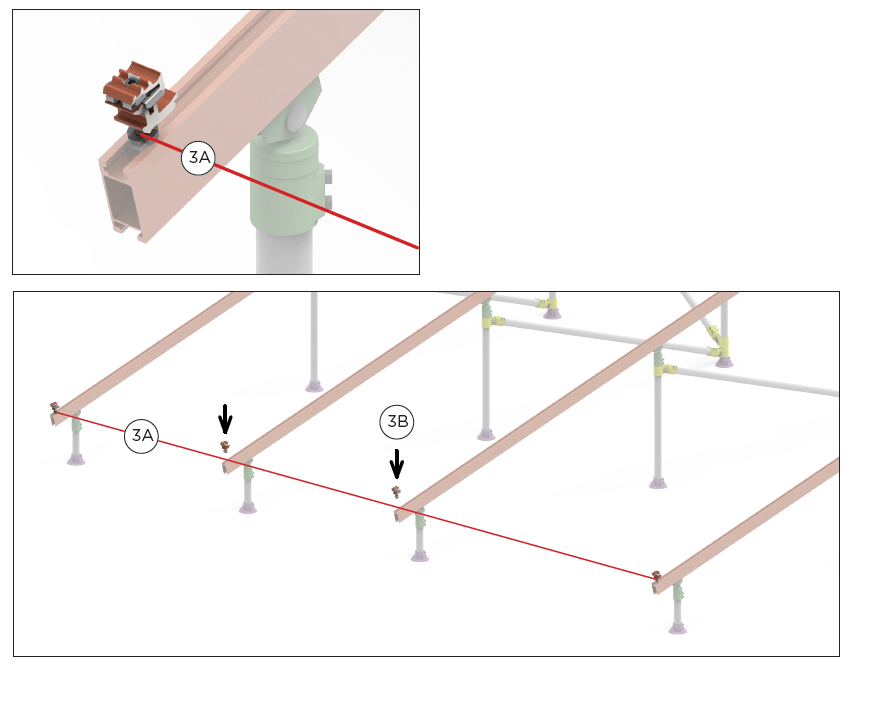

    Pull a String Line (3A) between the corner Cam Feet to define the alignment of the first row and install the remaining Cam Feet (3B).
