Approved Sealants
Here is a list of Tesla's approved sealants and their use cases.
| Use Case Category | ZS Comp | ZS Span (Tile) | ZS Ramp (Low Slope) | Solar Roof |
|---|---|---|---|---|
| Anchor Pilot Hole | GC4500/MS-1937 | GC4500 | N/A | DL35 |
| Hook Pilot Hole | N/A | GC4500 | N/A | N/A |
| Puck | MS-1937 | N/A | N/A | N/A |
| Mount | N/A | N/A | M-1 + One-part pourable | N/A |
| Conduit (On Roof) | GC4500/MS-1937 | N/A | N/A | N/A |
| Conduit (Exterior) | TEC 133 | TEC 133 | TEC 133 | TEC 133 |
| BOS (PVI, PW) | TEC 133 | TEC 133 | TEC 133 | TEC 133 |
| Junctions/Counterflashing (Mortar) | N/A | N/A | N/A | DL 35 |
| Replacing Tiles Outside Mounting Hardware Locations | N/A | Seal Bond 500 | N/A | N/A |
| Sealant Type | Image |
|---|---|

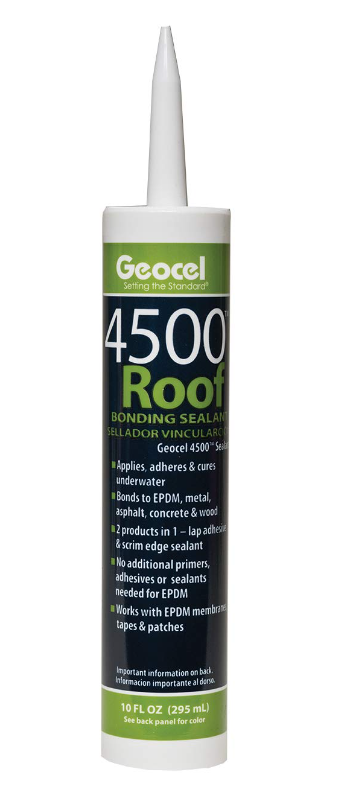

| GC4500 |
|

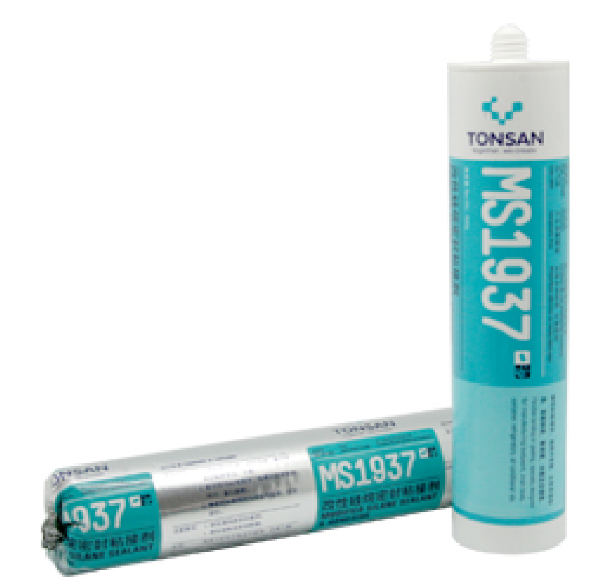

| MS-1937 (Tonsan) |
|
| DL35 (Dura Link 35) |
|

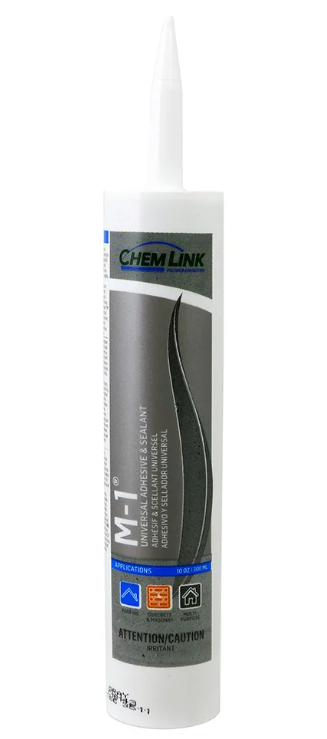

| M-1 (ChemLink) |
|

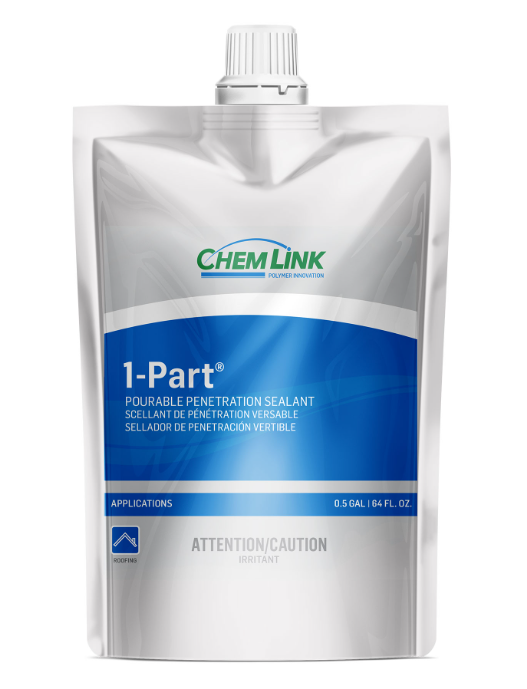

| One Part Pourable (ChemLink) |
|
| TEC 133 Clear Silicone Sealant (HB Fuller) |
|

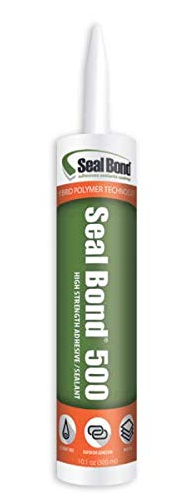

| Seal Bond 500 |
|
