STEP 2: Install Base Feet

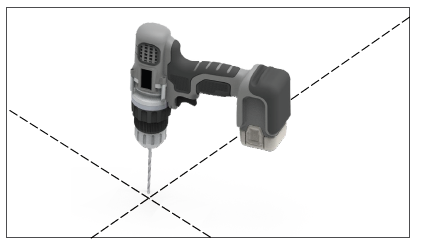

  1. Pilot holes.
    Drill pilot holes at the marked locations of the Base Feet.

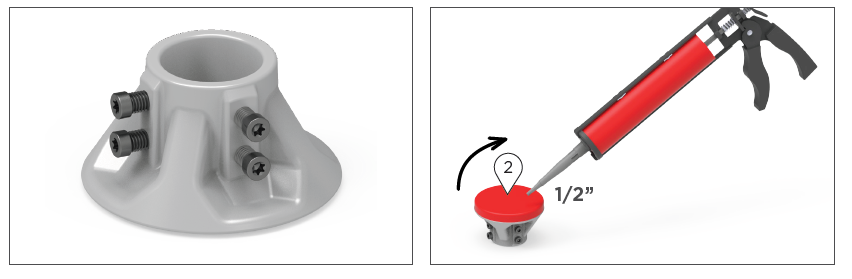

  2. Seal at base.
    Cover the surface of the underside of the Base Feet with a 1/2” bead of sealant. Refer to the Approved Sealants section for a list of approved sealants.

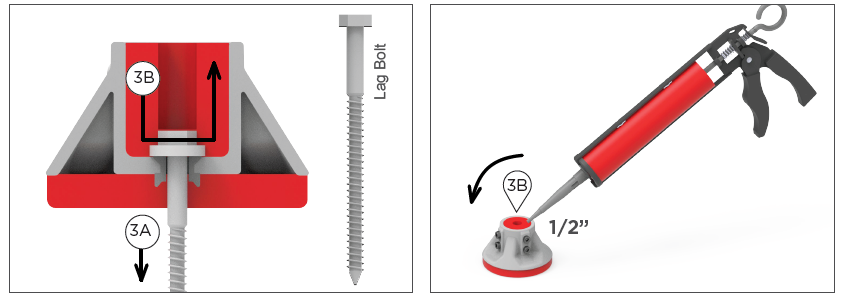

  3. Fasten and seal inside.
    Place the Base Feet at the marked locations and secure in place with a Lag Bolt (3A). Cover the inside of the Base Feet with 1/2” bead of sealant (3B) (See Approved Sealants). Cover the surface of the inside of the base foot for a complete, waterproof seal.
